Fordmods Logo

EF/EL V8 ECU pin 31



Page 1 of 1 [ 7 posts ]


 Post subject: EF/EL V8 ECU pin 31
Posted: Mon Apr 16, 2007 7:46 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Can someone with a EF or EL V8 wiring diagram tell me where pin 31 of the ECU connector goes?? The wire is yellow in colour



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Mon Apr 16, 2007 8:11 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 452

Joined: 21st Dec 2004

Gallery: 1 images

Location: Adelaide
SA, Australia

The V8 drawing doesn't show it, but on the 6 cyl pin 31 is a yellow wire that goes to the power steering pressure switch.



_________________

Adrian
EF Fairmont, 5.0Lt, Pacemaker Headers, Sports cats, Redback muff, T5 manual, 16" Tickford rims, Tickford "Body Styling", DBA Gold Rotors, Heritage Green, JVC MP3
XB Coupe, 351C, twin system, C4 shift kitted auto, 9" LSD, Eccose Blue, very loud !!!!

Top
 Profile


Posted: Mon Apr 16, 2007 8:36 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

thats what i thought. But beleive it or not, the yellow wire is present in the V8 loom :?



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Mon Apr 16, 2007 9:26 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

I think there is a yellow wire with a very thin and faint red stripe on it ( or pink stripe ) which is the fuel pump wire. Can't remember what pin it is.



_________________

5.6L of carbon footprint.

Top
 Profile


Posted: Tue Apr 17, 2007 1:35 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 363

Joined: 7th Feb 2007

Ride: BLOWN 347 EB GT/ BF XR6 TURBO

Power: 345 rwkw

Location: eastern creek
NSW, Australia

are you sure that its pin 31???? :?:



_________________

MY CAR PLZ TAKE A LOOK forums/xtt909-update-t66227.html

DAZFAB MEMBERS ,,,,DAZZLE, EBI347, TERRORISTGHIA, TROYMAN ,SWC, XTT909

Top
 Profile


Posted: Wed Apr 18, 2007 12:25 am
Smokin em up
Offline
User avatar

Age: 55

Posts: 219

Joined: 11th Jan 2005

Ride: Pursuit 250

Location: Katoomba
NSW, Australia

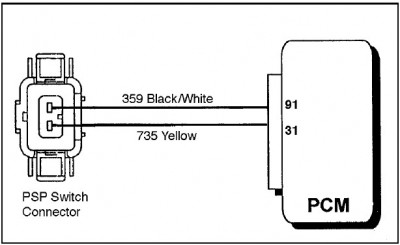

POWER STEERING PRESSURE SWITCH

Sensor Description: Vehicles fitted with an I6 Engine have a Power Steering Pressure Switch (PSP) which is a pressure sensitive switch that detects when pressure within the power steering system reaches a specified level. To prevent engine stall and maintain idle quality during parking manoeuvres the PCM boosts the engine idle speed by approximately 100 RPM. The PSP is a normally closed pressure switch. Under no load conditions the switch connects PCM Pin No. 31 to ground through PCM Pin No. 91, Signal Return (SIGRTN). When the power steering load is high, the PSP opens causing 8-10 volts to be detected at PCM Pin No. 31.

Connections

PCM Pin 31.................. .................... ...................P SP Signal

PCM Pin 91.................. ................. Signal Return (SIGRTN)





Attachments:
pin31.jpg [ 33.83 KiB | Viewed 52 times ]
Top
 Profile


Posted: Wed Apr 18, 2007 12:43 am
Smokin em up
Offline
User avatar

Age: 55

Posts: 219

Joined: 11th Jan 2005

Ride: Pursuit 250

Location: Katoomba
NSW, Australia

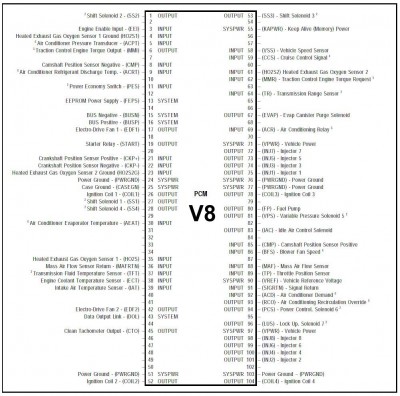

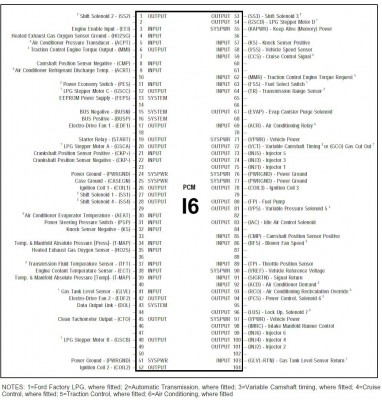

These are the V8 and I6 pin outs, according to them 31 is empty on V8.





Attachments:
pinoutsI6.jpg [ 183.21 KiB | Viewed 81 times ]
pinoutsV8.jpg [ 170.09 KiB | Viewed 103 times ]
Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 1  [ 7 posts ]

Who is online

Users browsing this forum: Google [Bot] and 13 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Mon Dec 11, 2017 8:55 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
