EF xr8 power figure??



Page 1 of 5 [ 67 posts ] Go to page 1, 2, 3, 4, 5  Next


 Post subject: EF xr8 power figure??
Posted: Sun Jun 06, 2010 6:18 pm
Stock as a Rock
Offline
User avatar

Age: 27

Posts: 125

Joined: 2nd Apr 2010

Ride: EF xr8

Location: Albany
WA, Australia

Hey was just wondering is 108.4rwkw an alright figure from a manual 5l windsor with no mods except k&n flat panel??
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Sun Jun 06, 2010 6:36 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i would say its a tad low, you should atleast expect 120rwkw minimum. but i guess it all depends on the dyno, the km on the car. ect
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Sun Jun 06, 2010 6:40 pm
Stock as a Rock
Offline
User avatar

Age: 27

Posts: 125

Joined: 2nd Apr 2010

Ride: EF xr8

Location: Albany
WA, Australia

it made that at just over 4000rpm. When im drivin, past 4000rpm it feels like its not pulling nearly as hard as like 3000rpm. Thinkin that its because of the standard heads and exhaust manifolds
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Sun Jun 06, 2010 7:49 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

robby1 wrote:
it made that at just over 4000rpm. When im drivin, past 4000rpm it feels like its not pulling nearly as hard as like 3000rpm. Thinkin that its because of the standard heads and exhaust manifolds

check out the sydney dyno day results,nf fairlanes 139,101,ef 130 and i think stock,how many kms on motors i dont know,but lists owners and cars,mods if any-diffs,gearboxes,motors



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Sun Jun 06, 2010 7:51 pm
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

Check that the accelerator cable is opening the throttle blade all the way with the throttle pressed, its common for the cable to stretch over time.

I would expect an old smoky auto V8 to pull those kind of numbers, but not a manual which I assume all the usual wear and tear items are in good order (leads, plugs, filters etc)



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Sun Jun 06, 2010 7:56 pm
Stock as a Rock
Offline
User avatar

Age: 27

Posts: 125

Joined: 2nd Apr 2010

Ride: EF xr8

Location: Albany
WA, Australia

Yer its serviced regulary. I'll have to have a look at that.
Its done 260000kms. Doesnt burn much oil at all.
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Sun Jun 06, 2010 8:00 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

robby1 wrote:
Yer its serviced regulary. I'll have to have a look at that.
Its done 260000kms. Doesnt burn much oil at all.

they carbon up the oil scraper rings and use oil



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Mon Jun 07, 2010 9:16 am
Getting Side Ways
Offline

Posts: 699

Joined: 1st Jan 2006

Ride: Lots, all Fords

Location: Hamilton
New Zealand

Your power is way down, and 4000rpm is low for a maximum reading. A good stock 5.0 should be around 140-145rwkW @ 5000rpm. Something's not right. As to what the problem is, you just have to work systematically through the possibilities - dyno, engine mechanical, electrical, fuel.



_________________

XA Faimont 351C, AU2 XR8 Manual 5.0, DA LTD 5.0, Mk1 Capri 5.0, 1995 Mustang 5.0, EF2 XR8 Manual, EF2 Fairmont Ghia 5.0, AU3 XR8 Auto, AU2 XR8 Auto, AU2 XR8 Manual Ute, TE Cortina 5.0 Manual, DU LTD 5.0 soon to be manual

Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Mon Jun 07, 2010 2:22 pm
Getting Side Ways
Offline

Age: 32

Posts: 942

Joined: 23rd Dec 2007

Ride: AU1 XR8

My stock as a rock eb v8 with 300tho + kms pulled 108 for its final figure was around 112 with 320nm but averaged out came up as 108rwkw and 300rwnm @ 4150rpm - 100% stock no mods and a/f was 12.5.

Capares 5speed pulled 127rwkw @4150rpm with just a full exhaust system, then 160rwkw with a manifold swap (rpm2). He had an a/f of 13 i believe but it doesn't ping with good petrol ie 98ron.
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Mon Jun 07, 2010 7:46 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

pretty hard to guess whats potentially wrong off just a number, it could be one of a million things.
post the dyno sheet, could even just be a low reading dyno.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Mon Jun 07, 2010 8:00 pm
Getting Side Ways
Offline

Age: 36

Posts: 508

Joined: 28th Feb 2009

Gallery: 9 images

Ride: Ed v8 fairmont wagon, wr450f

Power: 137 rwkw

My stock eb xr8 motor in my ea made nearly 137rwkw & 345nm and its manual too.Its got a crap 2.5'' exhaust and K&N panel filter.Im not sure what the timing is set at but reckon it could do with a few more degree's too...and its got 139k on the engine

phill
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Mon Jun 07, 2010 8:28 pm
Stock as a Rock
Offline
User avatar

Age: 27

Posts: 125

Joined: 2nd Apr 2010

Ride: EF xr8

Location: Albany
WA, Australia

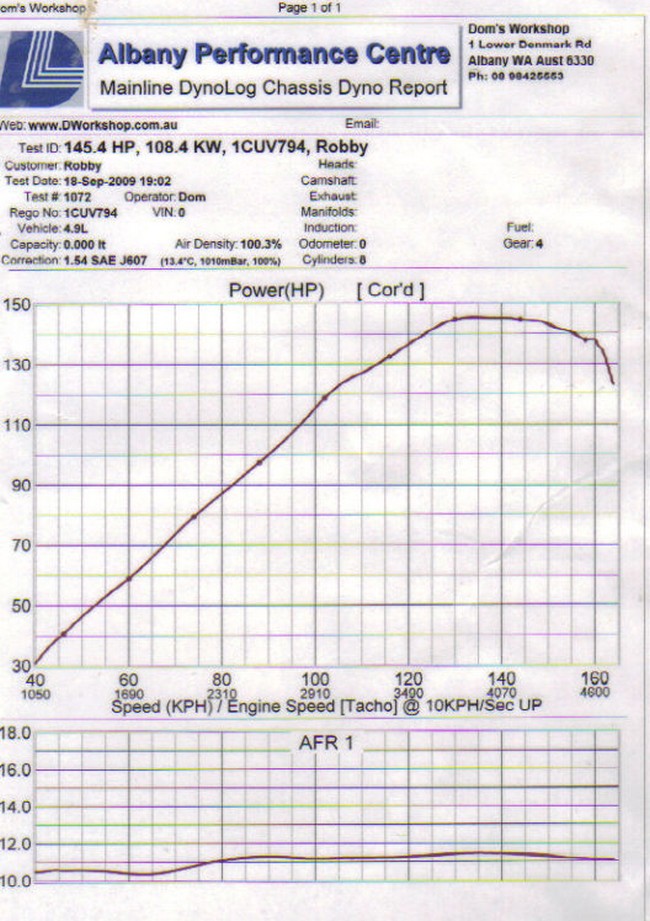

Heres the dyno sheet





Attachments:
File comment: This is the dyno sheet
xr8 dyno sheet.jpg
xr8 dyno sheet.jpg [ 159.91 KiB | Viewed 217 times ]
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Tue Jun 08, 2010 10:09 am
Stock as a Rock
Offline
User avatar

Age: 54

Posts: 160

Joined: 23rd Mar 2009

Ride: 96 EF Ghia wagon

Power: 122 rwkw

Location: Fairmont Lane, Windsor Gardens
SA, Australia

Mine made almost 122rwkw on LPG without any mods and that's through the auto box. Above 4000 not much happens, but Ford didn't make them to rev like a racecar despite the XR name, more for towing a trailer with plenty of low down torque. V8 in the EF series was the same across the range with all the same running gear.



_________________

Stock as a Rock engine option 'Z'
302 V8 auto on LPG @ 210,00km
- 121.7 rwkW / 163.3 rwHP

Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Tue Jun 08, 2010 1:13 pm
Getting Side Ways
Offline

Age: 32

Posts: 942

Joined: 23rd Dec 2007

Ride: AU1 XR8

Mainline dynos dont give generous readings if thats what it made then thats what it made...

Look dynos are more for tuning cars and at the end of the day it 'estimates power' as long as the tune is good i wouldn't worry about the low reading power figure.

Atleast now you have a baseline to start with.
Top
 Profile


 Post subject: Re: EF xr8 power figure??
Posted: Tue Jun 08, 2010 3:52 pm
Stock as a Rock
Offline
User avatar

Age: 27

Posts: 125

Joined: 2nd Apr 2010

Ride: EF xr8

Location: Albany
WA, Australia

yer alot of people i no have said that this particular dyno is low scoring . i havent had any tuning done to it yet but once i fit some headers, exhaust i was thinkin of doing something along those lines. not sure were to take it or what exactly i can get done though
Top
 Profile
