Falcon 5.0ltr vs Mustang - HELP



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Falcon 5.0ltr vs Mustang - HELP
Posted: Tue Apr 25, 2006 8:13 am
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

What is the year equivalent mustang to the e series 5.0ltr.

There seems to be the years 96 -04 on most gear but I cant be sure whether this what im chasing?

thanx
Top
 Profile


Posted: Tue Apr 25, 2006 8:44 am
Technical Contributor
Offline
User avatar

Age: 34

Posts: 4355

Joined: 14th Dec 2005

Gallery: 36 images

Ride: Fairlane

Location: Newy
NSW, Australia

from memory i think on the E series, we use parts from 86-94 mustang parts.

I'm not 100% sure on the exact years, but these are the engines that we use.

Someone may correct me if i am wrong.



_________________

The Lane Lives.... Finally!!!!

Top
 Profile


Posted: Tue Apr 25, 2006 11:02 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 896

Joined: 3rd May 2005

Gallery: 18 images

Ride: Blueprint EB II Fairmont 5L

Location: Wanneroo
WA, Australia

i have my edelbrock manifold & throttlebody (in boxes) in front of me and it says "For 1986 - 1995 Mustangs"
Top
 Profile


Posted: Tue Apr 25, 2006 11:02 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 896

Joined: 3rd May 2005

Gallery: 18 images

Ride: Blueprint EB II Fairmont 5L

Location: Wanneroo
WA, Australia

youll find the later stuff will fit too, like for example the t/body just requires an adaptor..but im pretty sure the later stuff was the 4.6L V8
Top
 Profile


Posted: Tue Apr 25, 2006 12:33 pm
Getting Side Ways
Offline

Posts: 1162

Joined: 19th Jun 2005

Location: perth sor
WA, Australia

86-93 for the eecIV eb/ed 165kw motors..

94/95 for the eecV ef/el motors..

86 not really applicable coz IIRC they had forged slugs, or somethin like that.. not the hypereuretic like th 87+

thats just for HO.. theres cobra parts mixed about in there.. ie ebgt/sprint was essentially a cobra motor..

oh yeh and 96+ was the 4.6 modular



_________________

current ride: worn out chuck taylors

Top
 Profile


Posted: Wed Apr 26, 2006 2:18 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

'88-'93 Mustang 5.0 HO is essentially the same animal except for front engine dress. '86-'88 Speed density Mustangs were also very similar except the cam timing events were slightly different and of course the '86 only had the terrible heads.
In '92 Ford switched to a hyper piston instead of the previous forged one.
Many early 5.0 Falcons have the forged piston engine but it is hit and miss as to what car you got it in as I've seen an ED with the forged pistons and an EB1 without!?
The '94-'95 Mustang had the same engine except it had the terrible upper intake with the curved t-body neck to allow it to fit under the sloping bonnet. This is the worst flowing HO intake there is. The throttle body has a horizontal blade on this engine. Front dress on this engine is very similar to our E-series 5.0L.
This mustang still used an EECIV which shares nothing with the earlier EECIV except the 60 pin connector. It also had the ability to control the AODE/4R70W trans which was new for the '94-up Fords.

Pete.
Top
 Profile


Posted: Thu Apr 27, 2006 2:21 pm
Tyre Shredder
Offline

Age: 29

Posts: 389

Joined: 12th Sep 2005

Ride: R32 Rb25

Location: Melbourne
VIC, Australia

wait, so i got a mustang engine?
Top
 Profile


Posted: Thu Apr 27, 2006 2:28 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 896

Joined: 3rd May 2005

Gallery: 18 images

Ride: Blueprint EB II Fairmont 5L

Location: Wanneroo
WA, Australia

dj`emz wrote:
wait, so i got a mustang engine?


basically, yes
Top
 Profile


Posted: Thu Apr 27, 2006 2:30 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

dj`emz wrote:
wait, so i got a mustang engine?


If you are refering to the engine in your Fairlane?....no....it's basically a 5.0L Explorer engine minus the poxy 90 degree t-body/external EGR adaptor.

Pete.
Top
 Profile


Posted: Thu Apr 27, 2006 2:30 pm
Getting Side Ways
Offline

Posts: 1162

Joined: 19th Jun 2005

Location: perth sor
WA, Australia

ah thanks pete.. always get mixed up with the pistons thing.. and the eec4/5 thing.

:)



_________________

current ride: worn out chuck taylors

Top
 Profile


Posted: Thu Apr 27, 2006 2:40 pm
Tyre Shredder
Offline

Age: 29

Posts: 389

Joined: 12th Sep 2005

Ride: R32 Rb25

Location: Melbourne
VIC, Australia

ahh the american 4x4...

mustang sounds better :P
Top
 Profile


Posted: Thu Apr 27, 2006 3:07 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

No worries clampy,

Generally speaking '94-'95 is the changeover period from IV to V. So it's safe to say '96-up is EECV only....there are some exceptions to this in other parts of the world though.
The reason the '94-'95 5.0 Mustang EECIV was not used on the EF 5.0L is because the BTR trans has seven solenoids as opposed to the five used in the AODE/4R70W and that EEC was already maxed out in terms of output drivers and the control strategy of that trans is also completely different. The 4.0L however, being bank fired meant that trans control could be integrated much earlier(EB).
Another mechanical point is that the '93 Cobra engine whilst essentially identical to the ED Sprint engine did not have a removable EGR plate; it was cast in and not water cooled!?

Pete.
Top
 Profile


Posted: Sat Apr 29, 2006 7:46 am
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

Its the throttle body I am trying to match at the moment and assuming that the 86 - 95 is basically same engine will the tps and other electricals on the side of the original t/b be used without dramas.

Below I have a 86-93 t/b which is the one I think I am after and the 96 - 04 t/b compared. If you have a mustang t/b could you confirm the one that fits best?

Im using on the original explorer upper?

Thanx





Attachments:

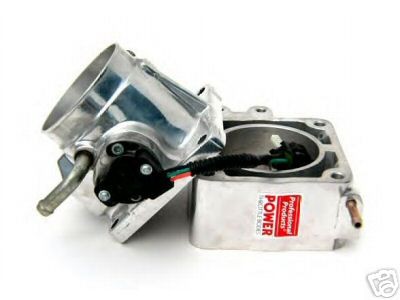

75tb86-93.jpg [ 15.25 KiB | Viewed 42 times ]

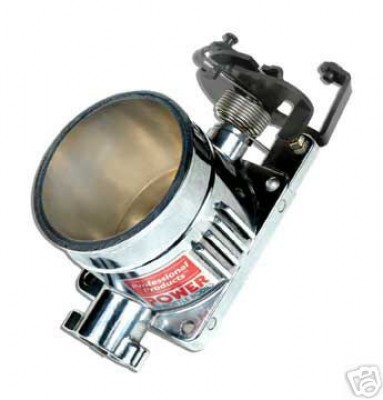

75tb96-04.jpg [ 17.05 KiB | Viewed 36 times ]
Top
 Profile


Posted: Sat Apr 29, 2006 10:47 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 896

Joined: 3rd May 2005

Gallery: 18 images

Ride: Blueprint EB II Fairmont 5L

Location: Wanneroo
WA, Australia

yep..that should fit...i have an edelbrock one and it has all the same connections etc as that one...
Top
 Profile


Posted: Sat Apr 29, 2006 8:25 pm
Smokin em up
Offline

Posts: 235

Joined: 15th Jan 2006

Gallery: 11 images

Location: central coast
NSW, Australia

thanx all for your help
