Can any one give me some info on the purge canister solenoid on the nc Fairlane?
I know they're in the F/Dside wheel well and it was probably unplugged by the previous owner because of an apparent noise, but since then I've cleaned up the plug and reconnected it but still can't correct the fault codes, I've used 2 ecu's and both register the same fault codes, one hose from the pcs seems to vent in the engine bay and the other heads off towards the brake booster and thru the fire wall,
Is there a way to check if the pcs is working properly?



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 12:24 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

It should be on the passenger side near the airbox because the canister itself is mounted in that wheel well area. One end of the hose goes to the canister(obviously) and the other plumbs into the upper intake manifold via the steel pipe that runs along the front of the engine near the fuel lines/coil before bending around the dizzy and has an ajoining rubber hose that attached to the barb under the front side of the upper intake.
15 is an EEC ROM fail code btw. If the EEC ain't toast clear the codes and retest after connecting the CANP solenoid.
Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 9:18 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

Thanks I'll get on to that, any idea what the hell is mounted on the driverside then?



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 9:47 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

How about a photo of what you're talking about that's mounted on the driver side?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:11 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

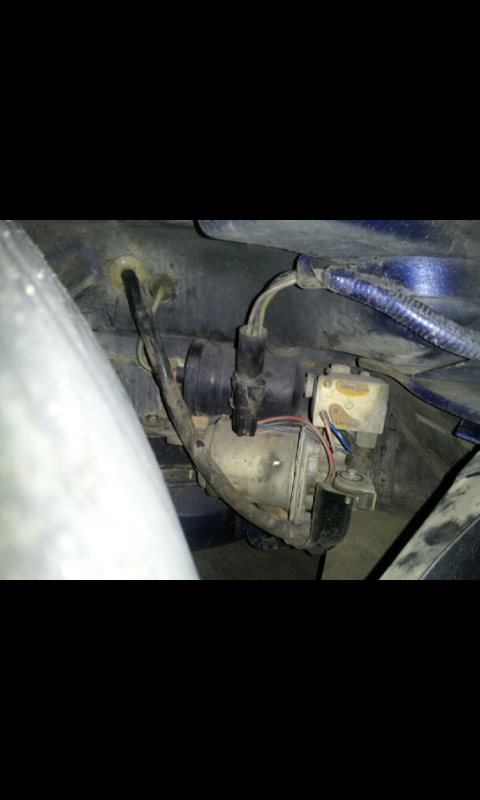

Attachment:
File comment: D/side
Screenshot_2013-10-20-21-07-52.png [ 256.45 KiB | Viewed 80 times ]
this is on the D/side



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:14 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

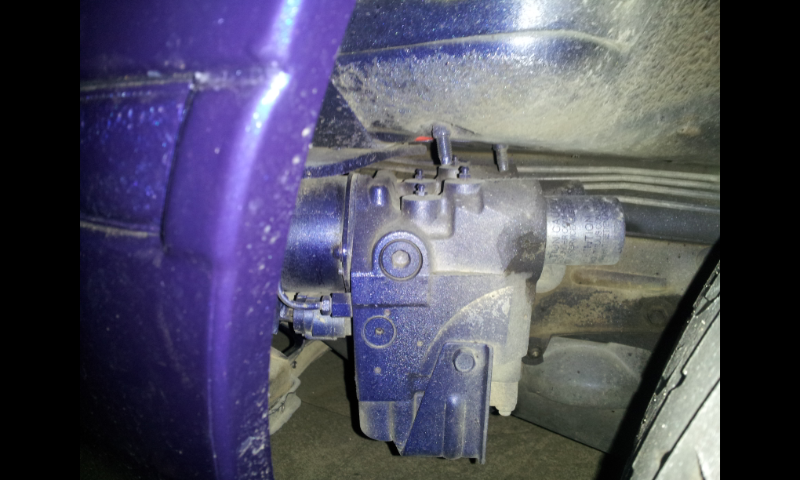

Attachment:
File comment: P/side
Screenshot_2013-10-20-21-12-40.png [ 460.96 KiB | Viewed 63 times ]
this is P/side



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:21 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

drivers side is self levelling suspension compressor. passenger is ABS by the look. Charcoal canister should be ahead of the ABS.
Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:24 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

Makes sense, thanks allot, I'll go have a look



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:25 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

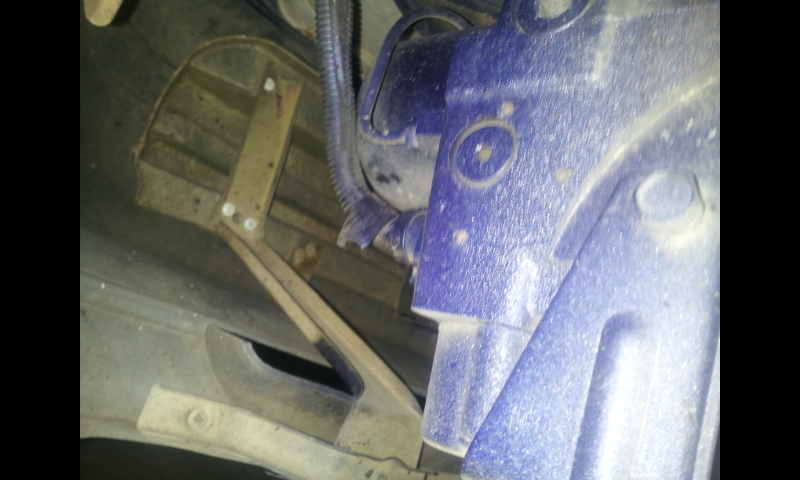

Attachment:
File comment: Abs & front bumper
Screenshot_2013-10-20-21-30-11.png [ 440.45 KiB | Viewed 56 times ]
There's nothing there?



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:34 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

NC the equivalent of ED?

On ED that solenoid is in the engine bay, not under the mudguard and is between the air box and then manifold... Two plastic lines duck under the airbox through the guard, one hooks to that small rigid steel pipe that loops up over the shock tower... The other will hook to the solenoid and then duck into the intake manifold...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 10:37 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

Thanks Tim, I'm on to it



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 11:28 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

Found 'em! Both rubber hoses are disconnected, solenoid is missing along with the tube connecting to the intake, can anybody give me a part number for the solenoid? I'll be needing one of those,
As for code 15, both ecu's (1deb & 3dfa) will come up with 15, but work fine, could the j3 Chip cause that?



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 11:37 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Yep the J3 will cause that permanent ECU failure code... remove the J3 and it goes away...

That solenoid was worth like $300 from Ford when you could get it because it was required for emissions control and as such the charged respectively for it...

Your best bet is to visit your local wrecker... Most ED style ones buggered up and didn't work and let the smell of fuel into the cabin... I have since replaced my dodgy ED one with the generic Jaycar one and had no issues... $20 of jaycar and a couple of bits of vac hoses out of the spares bucket and some hose size changers (jaycar solenoid has fractionally smaller barbs on it) and adapted the wiring tail onto it and I've been one happy camper...

You just need to make sure you install them the right way around... One way if you suck hard enough you can over come the spring pressure and draw air... That's the wrong way... The lowest barb should be hooked to the motor so it tries to suck the valve shut, not open...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Sun Oct 20, 2013 11:52 pm
Oompa Loompa
Offline

Age: 35

Posts: 26

Joined: 23rd Dec 2011

Gallery: 1 images

Ride: NC Fairlane Ghia

Location: townsville
QLD, Australia

That's some very helpful info Tim, much appreciated, I'll definitely be making a trip to jaycar on my next days off, and thanks for solving the self levelling susp mystery XR9UTE, had me stumped haha



_________________

I'll show you I'm Australian if you show me your Brazilian

Top
 Profile


 Post subject: Re: fault code 15,85,96
Posted: Mon Oct 21, 2013 12:00 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

TimmyA wrote:
NC the equivalent of ED?

On ED that solenoid is in the engine bay, not under the mudguard and is between the air box and then manifold... Two plastic lines duck under the airbox through the guard, one hooks to that small rigid steel pipe that loops up over the shock tower... The other will hook to the solenoid and then duck into the intake manifold...

Cheers,
Tim


which is what I said already.
Top
