Hey guys,

I'm after some help trying to locate a few wires.
1. I need to find a Tacho signal wire so i can wire up my shift light.
2. Either a Water Temp wire or if there is a spot for me to screw a sensore into an engine jacket?? or something like that...

Cheers Dave
Top
 Profile


Posted: Sun Aug 07, 2005 7:37 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

The water temperature sender should sit in the lower thermostat housing if its similar to the I6, and the tacho wire (though being an XR it should have one, and so cant see the point?) should come from the ecu, and up to the dash. The wiring section in the gregorys manuals should show you which colour if you know how to look.



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Sun Aug 07, 2005 7:57 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2351

Joined: 11th Nov 2004

Gallery: 30 images

Ride: Blown XR8

Location: Melbourne
VIC, Australia

Thanks mate,
Yeah i've got a different brand Workshop manual, because apparently Gregory's don't have one for the V8's.
Its only for a shift light, not a monster tacho or anything like that, cause i hate them too!

Cheers Dave
Top
 Profile


Posted: Sun Aug 07, 2005 7:59 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Ah sorry! Didnt see that! Well go right ahead.



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Sun Aug 07, 2005 8:39 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2351

Joined: 11th Nov 2004

Gallery: 30 images

Ride: Blown XR8

Location: Melbourne
VIC, Australia

Yeah i can't stand them, some people love them, personaly i'm one that doesn't. It was just with the blower setup, the power is going to be coming on a little differently than it is at the moment. I just didn't want to be hitting the limiter.

Thanks for the help.
Top
 Profile


Posted: Mon Aug 08, 2005 1:01 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

For the coolant temp you can either tap into the factory harness at the EEC (pin 7 which I have listed as light green/yellow) or from one of the sensors. I have attached a pic of the two temp sensor, I think the one on the passanger side is the dash sensor while the one on the drivers is the EEC feed. Otherwise you can just tap into the thermostat housing like I have done (see other pic)

There is a tach feed to the instrument cluster (pink/blue wire) or you can get it from the diagnostics port directly below the fuse panel, its the third pin from the right on the bottom row.





Attachments:

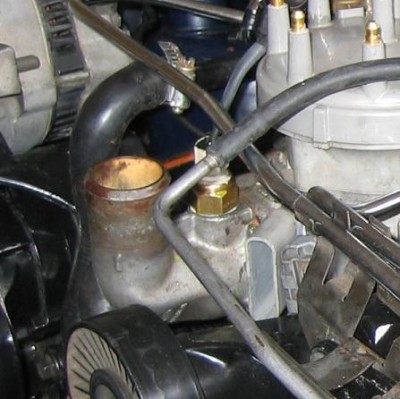

File comment: new temp sensor tapped into the thermostat housing
temp.JPG [ 34.53 KiB | Viewed 36 times ]

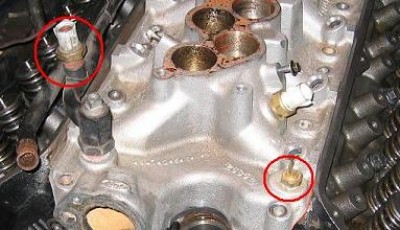

File comment: Temperature sensors
temp2.JPG [ 24.3 KiB | Viewed 38 times ]
Top
 Profile


Posted: Mon Aug 08, 2005 1:51 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Nice manifold...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Mon Aug 08, 2005 1:54 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

EBXR8380 wrote:
Nice manifold...


:D yeah. Looks even better after some painting today too.
Top
 Profile


Posted: Mon Aug 08, 2005 3:02 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

EDXR8 wrote:
There is a tach feed to the instrument cluster (pink/blue wire) or you can get it from the diagnostics port directly below the fuse panel, its the third pin from the right on the bottom row.
Just be careful in the EL's - the cluster tacho line may be green/yellow - don't get it mixed up with similar wires, e.g. fuel tank.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
