NFghia's supercharged 347 project



Page 1 of 14 [ 205 posts ] Go to page 1, 2, 3, 4, 5 ... 14  Next


 Post subject: NFghia's supercharged 347 project
Posted: Tue Feb 07, 2006 11:45 pm
Tyre Shredder
Offline
User avatar

Age: 48

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

Well I've had the Fairlane for nearly 6yrs and I was looking at upgrading to a BA fairmont, fairlane maybe XR8.
But if I do that then I'm back at square one with the mods and no cash left. :x
So I've decided to give the lane a bit of a going over :roll:

I picked up a spare donk a few months ago and have been tossing up on
which way to go with the mods. First up I want to make as much torque as possible so forced induction of some kind is the way. And of course there is no substitute for cubic inches. :twisted:
I'm not after a high rever but want to be able to haul the big a** fairlane around a bit easier which means more punch from low down.

So last week I picked up a stroker kit.
Scat 9000 series 347 crank.
Scat 4340 I beam rods.
And SpeedPro Hyperutectic slugs.

Hmmmmmmmm Stroker.

So thats the bottom end sorted.

I ruled out twin turbos due to heat, lag, and the space.

It was down to what type of S/C, centrifical (Paxton, Vortex) which are pretty easy to bolt up, but with kits at $6500 (Pfffffttttt) all I need is S/C unit and I'll fabricate my own bolt up bits. Roots type blowers (Eaton, Whipple) make great boost down low (around 70% at 1800rpm) so thats the type I decided to go for. PLUS you don't see many roots type blowers bolted onto Windsors.

Seeing as I intend to fabricate my own induction system the hunt was on for a cheap S/C, I was looking at an Eaton M90 which are pretty easy to get under $1k, but they rate them 4.0 to 5.7ltr would probably do as the engine won't see over 5k much, of course the preferred would be the M112.

Today I put a bid in on a S/C that came off a Ford Lightning 5.4 (US car) basically an Eaton M112 made for Production Fords, well bugger me!!! I won it for US$455 form a Canadian Ehh. :lol: with shipping I'm guesstimating around Aus$800.

This should look pretty sweet if I can squeeze it all under the bonnet. (Think I'll have to do the BA bulge with the respray)

Now it's time to find a nice pair of alloy heads and valve train.

Also she'll be breathing LPG and at this stage I think I'll go with a GRA setup.

So there ya have it so far, any comments, suggestions or otherwise are welcome as half the crazy ideas I've got have come from reading through the froums here.. :o



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Wed Feb 08, 2006 12:30 am
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 1000357

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

f**k yer mate!

thats awesome

torque about torque!



_________________


RIP SCOTT

Top
 Profile


Posted: Wed Feb 08, 2006 1:02 am
EFI Guru
Offline

Age: 49

Posts: 4010

Joined: 5th Nov 2004

Gallery: 24 images

Ride: 351 Rangie, '69 390 XR7 Cougar

Location: Perth
WA, Australia

Sounds good,

Although the '03 Cobra M112 may have been a better choice due to it's side entry for the throttle body...depends on bonnet clearance I guess.

Here is the Kenne Bell kit for the 5.0.
It runs an Autorotor screw type blower and works with your stock accessory drive system.
http://www.kennebell.net/superchargers/ ... wzilla.htm
Check out Terry Battens example;
http://norcom.net.au/~bpt/post-5-1115215374.jpg

Pete.
Top
 Profile


Posted: Wed Feb 08, 2006 1:16 am
EFI Guru
Offline

Age: 49

Posts: 4010

Joined: 5th Nov 2004

Gallery: 24 images

Ride: 351 Rangie, '69 390 XR7 Cougar

Location: Perth
WA, Australia

BTW it fits under the bonnet of his ED. I think you may be slightly better with your NF as I think the bonnet bulges up a little more than the earlier falcons and 'Lanes?
I believe initial runs netted 335kw with 10psi and of course stupid amounts of torque. His goal is 16psi but I think belt slippage is becoming a problem with the stock 6-rib.
He's running 42's, 90mm Lightning MAF, 90mm t-body and TwEECer on a 3DEA EEC.
http://norcom.net.au/~bpt/Picture%20001.jpg

Pete.
Top
 Profile


Posted: Wed Feb 08, 2006 10:32 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 8656

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Mmm... batten's setup is amazing.

This steup shoulds crazy nfghia.

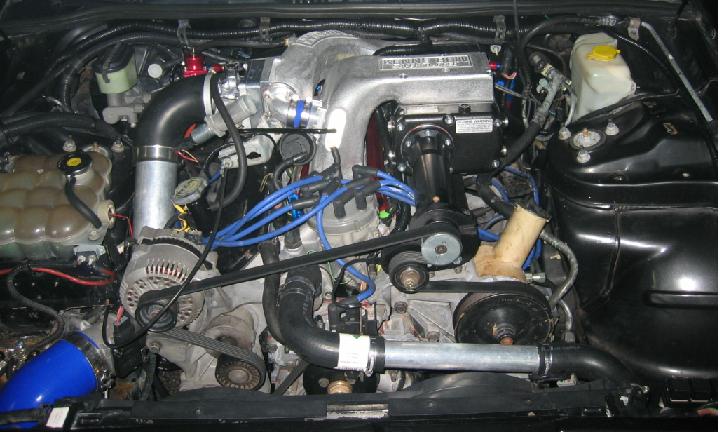

Attachments:
347 Blown.jpg
347 Blown.jpg [ 69.73 KiB | Viewed 782 times ]



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Feb 08, 2006 2:03 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 2288

Joined: 4th Dec 2004

Ride: '98 EL Fairmont

Location: Melbourne
VIC, Australia

Wow its really good to see someone getting out there and doing this stuff because alot of people (me included) just talk about doing it without any real chances of ever getting it done.

Good work and good luck.



_________________


Top
 Profile


Posted: Wed Feb 08, 2006 3:33 pm
Site Admin
Offline
User avatar

Age: 31

Posts: 8823

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

I hope you're not sticking with the stock 302W block. Im going an N/A 347 setup and am nervous about splitting the block. With a blower ontop of that, you should be looking at the Dart block!!!



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Wed Feb 08, 2006 3:45 pm
Tyre Shredder
Offline
User avatar

Age: 48

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

Hmmmm I'm pretty sure I won't fit the one I got where they have theirs.. :shock:

But I'm thinking it might fit on the side under the alternator where the idler pulley is now.. If not on the side then a custom or modified lower inlet and bang it on top down the middle...

I know there's a bloody great dizzy in the way. :evil:

Seeing as I'll use my MegaSquirt to power it I might get rid of the dizzy and use coil packs for spark. Take a look at some of what this guy has done
http://www.toohighpsi.com/coolers/jimproject2.htm

After dooling over that go back to the home page http://www.toohighpsi.com/index.htm and check out the Twin Supercharged T-bird... :shock:

Looking at how they went about doing their cars I thought that doesn't look too hard :roll: But I have access to a mill and lathe at work so I'm sure it'll be a bit of trial and error, probably more error :lol: :lol:

But first I have to get my double garage up so I've got some where to do this crazy s**t..



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Wed Feb 08, 2006 4:12 pm
Tyre Shredder
Offline
User avatar

Age: 48

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

Waggin wrote:
I hope you're not sticking with the stock 302W block. Im going an N/A 347 setup and am nervous about splitting the block. With a blower ontop of that, you should be looking at the Dart block!!!


Well I was thinking bout it but I'll be happy to get around 300Kw with about 10psi boost or less and seeing as I'm not looking for big revs I'm hoping she'll hold together :roll:

All I'd like is to have that 'pushed into the back of the seat' feeling I used to get out of my 351clevo XB when the secondaries opened up.. Hmmmmm Torque as DiscoFrank says.. :lol:

Plus if it does detonate I'll have the donk thats in it now as a spare while I organize a better block. Hehe



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Wed Feb 08, 2006 4:33 pm
Smokin em up
Offline

Age: 43

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

[quote="XR9UTE"]Sounds good,

Although the '03 Cobra M112 may have been a better choice due to it's side entry for the throttle body...depends on bonnet clearance I guess.

If you change to a cobra blower I have a f150 it would look good on.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Wed Feb 08, 2006 5:23 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4937

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

NFGhia sounds wicked mate keep everyone posted with progress pics and a vid of the final outcome would be sweet 347 and blown sounds unreal :P good luck



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Wed Feb 08, 2006 5:26 pm
Site Admin
Offline
User avatar

Age: 31

Posts: 8823

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

300KW is getting pretty close to the limit and you should almost be able to reach that without the blower ;)



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


Posted: Wed Feb 08, 2006 5:39 pm
Fordmods Addict
Offline
User avatar

Age: 28

Posts: 7962

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Waggin wrote:
300KW is getting pretty close to the limit

Well, if it all goes to s**t, at least Fordmods will be able to start it's photo collection of split Windsor blocks! :twisted:

Seriously though, this looks like one hell of a project, and I'll be watching with much interest.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Wed Feb 08, 2006 7:50 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

Is there any reason apart from the extra 17cubes that you went for the 347cui over the 330cui stroker???

the 347s have some big drawbacks, like the poor stroke/rod ratio.
and the piston pin sitting high up in the oil ring..

with a 330 and the blower you'd still easy make the power you wanted.



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Wed Feb 08, 2006 8:15 pm
EFI Guru
Offline

Age: 49

Posts: 4010

Joined: 5th Nov 2004

Gallery: 24 images

Ride: 351 Rangie, '69 390 XR7 Cougar

Location: Perth
WA, Australia

tickford_6 wrote:
Is there any reason apart from the extra 17cubes that you went for the 347cui over the 330cui stroker???

the 347s have some big drawbacks, like the poor stroke/rod ratio.
and the piston pin sitting high up in the oil ring..

with a 330 and the blower you'd still easy make the power you wanted.


This is so true....I suppose the displacement is just too hard to resist?
Anyway NF has what he has....
I don't think you'll fit the M112 down under the ALT, Ive already sized that up on my 351 with the Cobra M112..No go. Even the M90 is tight and you'd need a custom short drive snout on it like the old BBK instacharger kit.
In the guts of the intake is likely the best shot but it'll have to sit high because the 5.0 is so narrow. I'm currently working on an intake for my 351...as it is I'll have to change the injector angle to a practically a vertical position to fit the width of the M112 case in there. The idea is of course to keep it low enough so I don't need to go through the bonnet.
You can roughly see in this shot with the M90 on top of the 351 that it is already a hard ask(injectors won't fit with the rail on) and the M90 does not have the big flange of the M112 either.
You may be able to go higher because you have 3" up your sleeve compared to the 351 height. In this case you may be able to squeeze the stock rail and injector angle underneath?


Pete.
