Removing Fan clutch from EB 5.0L



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: Removing Fan clutch from EB 5.0L
Posted: Mon May 15, 2006 6:15 pm
Parts Gopher
Offline

Posts: 64

Joined: 28th Apr 2005

Location: NSW
NSW, Australia

HELPPPPPPPPPPP!!!!!!!!!

Can anyone tell me how in the world you remove the fan clutch.

I tried for hours on Saturday with ou success.

I had my son wedge a screw driver between the water pump pulley and pwr steering pulley and I had had a shifter (couldn't find a 36mm open ender anywhere) on the nut belting the crap out of it with a rubber mallet and I could'nt budge it.
Top
 Profile


Posted: Mon May 15, 2006 6:24 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

Which way are you turning it? It is a RIGHT hand thread so that engine rotation tightens it rather than loosens it.

Edited to make search results useful.





Attachments:
DSC01194.JPG [ 63.61 KiB | Viewed 58 times ]



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Last edited by sam12h on Mon May 15, 2006 8:53 pm, edited 1 time in total.

Top
 Profile


Posted: Mon May 15, 2006 6:25 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4305

Joined: 6th Jul 2005

Ride: BA xr8 Magnet ute

Location: Melbourne
VIC, Australia

yeah what sam said. you have to remember that its a reverse thread with the fan
Top
 Profile


Posted: Mon May 15, 2006 6:27 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

if it's like the 6, you need a special tool which grasps 2 bolts at once, kinda like a stretched out spanner.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Mon May 15, 2006 6:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

like this





Attachments:
c removal.JPG
c removal.JPG [ 6.97 KiB | Viewed 976 times ]



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Mon May 15, 2006 7:46 pm
Parts Gopher
Offline

Posts: 64

Joined: 28th Apr 2005

Location: NSW
NSW, Australia

According to the workshop manual the V8 has a right hand thread.

I've tried both directons. No go
Top
 Profile


Posted: Mon May 15, 2006 7:53 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

Ive taken mine off & replaced it with thermos. mine is a 5.0L eb too & it is definately left hand thread. What you were doing to begin with should work. How bout wd40 or similar to penetrate first & a heavier mallot :|



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Mon May 15, 2006 8:24 pm
Parts Gopher
Offline

Posts: 64

Joined: 28th Apr 2005

Location: NSW
NSW, Australia

Hey Sam are you sure it is a left hand thread?

The manual says it is a right hand thread.

Which way did you turn it to undo the nut.


I want to fit thermos also, if I can get the blinking thing off!!!!
Top
 Profile


Posted: Mon May 15, 2006 8:40 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

Yeah, it's a PITA. Horrible feeling i may be wrong. just let me check the nut as it is under the house.



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Mon May 15, 2006 8:45 pm
Smokin em up
Offline
User avatar

Age: 34

Posts: 284

Joined: 4th Dec 2005

Gallery: 15 images

Ride: ED Classic

Location: Melbourne
VIC, Australia

I Just love these hand drawn pictures.

Ive removed a clutch fan off an Xf with a sledge hammer, spanner and the right kind of leverage. Best of Luck with it earnie.

If you dont want to break anything then just get the tool for the job



_________________

93 ED Classic
<a href="http://img302.imageshack.us/slideshow/player.php?id=img302%2F4404%2F1151722371mrk.smil" title="EB GT Bodykit Slideshow" >EB GT Bodykit Slideshow</a>

Top
 Profile


Posted: Mon May 15, 2006 8:56 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

Sorry dude, it is a right hand thread, turn it anti clockwise. :oops:

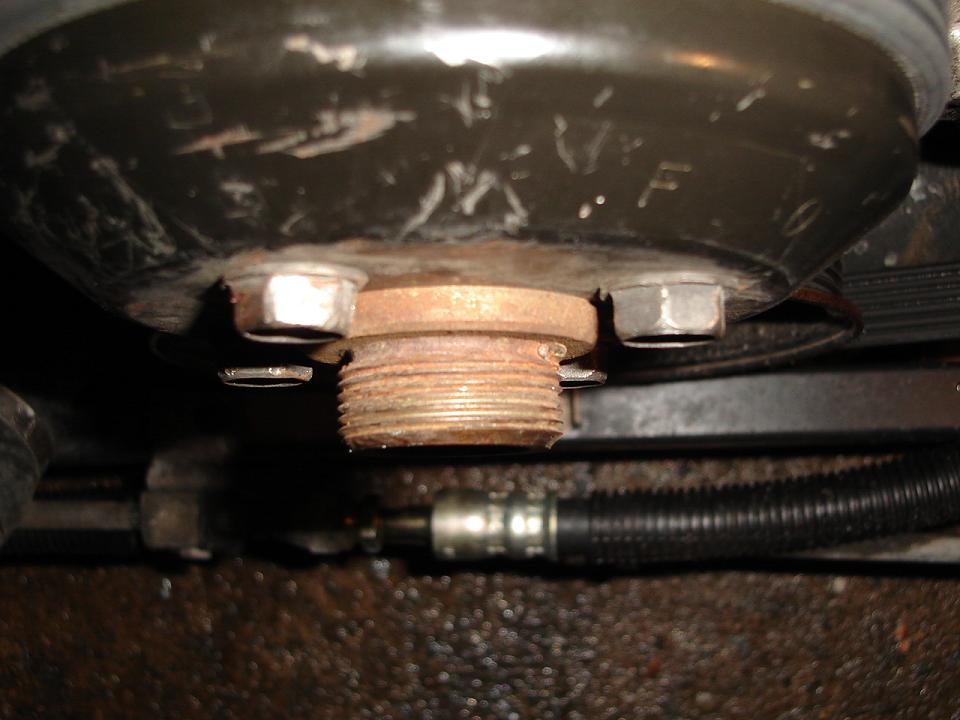

Ive edited my 1st post & added a picture so you can see which way the thread goes. it does rust so WD40 will help, if only a little.



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)

Top
 Profile


Posted: Mon May 15, 2006 9:08 pm
Parts Gopher
Offline

Posts: 64

Joined: 28th Apr 2005

Location: NSW
NSW, Australia

Thanks Sam, I think I'll make up one of those tools that holds the water pump pulley and give it another go. The kid will probably be happy with that as well (scrapped knuckles).

By the way what sort of control circuit did you use to switch the fans on?

I going to use the Davies Craig thermal switch .
Top
 Profile


Posted: Mon May 15, 2006 9:12 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 696

Joined: 15th May 2006

Gallery: 12 images

Ride: ba

Location: Boronia
VIC, Australia

Hey i removed mine a couple days ago ithey used that tool!!!r u puting thermos on?? iv got thermos there of a EL



_________________

Ba Stock As A Rock

Top
 Profile


Posted: Mon May 15, 2006 9:16 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 8590

Joined: 5th Nov 2004

Gallery: 5 images

Ride: AU Fairlane 5.0, KE Laser, 01 Kw

Location: Melbourne
VIC, Australia

I've always used a heavy screw driver with a decent hammer (Not a mallet), usually a cpl of good hits to shock it and off she spins.
Get the screw driver right on the edge of the nut and you should be right, otherwise buy the right spanners lol.
Top
 Profile


Posted: Mon May 15, 2006 9:18 pm
Tyre Shredder
Offline
User avatar

Age: 40

Posts: 378

Joined: 3rd Dec 2004

Ride: EB V8

Location: Blue Mountains
NSW, Australia

I avoid traffic & lights like my life depended upon it (just a personal quirk), so they don't get much use. I just use a switch on the dash & a relay. I kept blowin 30 amp relays so ive now gone up to a 40 amp with no problems so far.



_________________

Production Editor of Performance Motoring at Express Media Group
shollier@expresspublications.com.au
Phone: (02) 9741 3838 (direct line)
