Hey guy's,

I'm not sure if I'm just being a n00b or whatever, but I'm having trouble removing my oil pressure sender, I'm basically just on here looking for tips to remove it so I can replace it. It's for an EL V8 btw

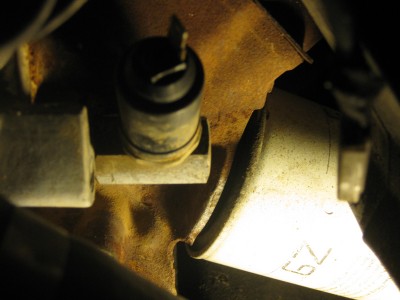

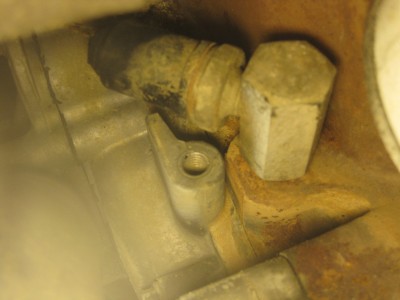

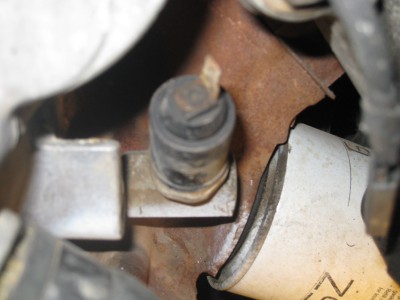

I've got some photo's of it here:

Attachment:
IMG_5897.JPG [ 379.03 KiB | Viewed 32 times ]


Attachment:
IMG_5899.JPG [ 384.33 KiB | Viewed 31 times ]


Attachment:
IMG_5900.JPG [ 377.12 KiB | Viewed 26 times ]


Attachment:
IMG_5901.JPG [ 412.95 KiB | Viewed 27 times ]


So I've worked out that the thread going into the engine block requires a 24mm socket or similer AF size spanner, but the spanner we have is wayyyyyy too long, it fouls up against the thermo fan's, so I was thinking of buying a small cheap spanner to get that off, or even finding an old socket and cutting it down in half would even do the trick. But my next dilema is that electrical part of the sender will then foul on the block when I start to turn it, there does appear to be a hex for maybe unscrewing it but it certainly isn't any ordinary hex drive

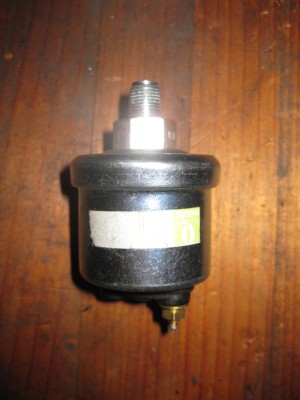

I've also added a pic of the new sender too, I've had a look at the connection on the loom, and by the looks of it I'll have to cut it off and crimp an eyelet terminal on the loom to replace the spade terminal that's on there.

Cheer's guys



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: Removing Oil Pressure Sender
Posted: Thu Jul 05, 2012 1:41 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

1"+1/8th deep impact socket, or as you said, buy a cheap spanner or make one.

that replacement sender is for EB-ED.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Removing Oil Pressure Sender
Posted: Thu Jul 05, 2012 1:51 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1456

Joined: 17th Apr 2008

Gallery: 3 images

Ride: VY Commodore Wagon Accli

Location: Bannockburn
VIC, Australia

Are you sure about the replacement sender? :?

When I replaced the sender out of my ED 6 Cylinder it did look like that but it had a terminal right on the very top that seemed to suit my spade terminal, ie the connection "slotted" in, if that makes any sense.



_________________

Pre AU Adapters for sale

Successful Trades with: John_XR6 (John_LS1), Private9, Schmee, Manari, Kyle_Bardell, Greenhorn (Boostedfalcon.net), FTG AUTO SALVAGE, EVL098, Gogetta, EFIII, Krytox, Blue, Smik-EL, TP351.

Top
 Profile


 Post subject: Re: Removing Oil Pressure Sender
Posted: Thu Jul 05, 2012 10:03 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Listen to Andrew because he is correct.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
