Replacing Windsor 5.0 heater pipes



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 9:55 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

Ford's standard answer for parts like this are, 'they're obsolete'. Does anyone know if there's an aftermarket part available here, or in the USA? I haven't found any on eBay, Summit, Rocket, VPW or elsewhere.

Otherwise, has anyone installed braided hoses back to the firewall? The cost of the 2 rubber hoses at next to the firewall is $120 and they also need replacing.

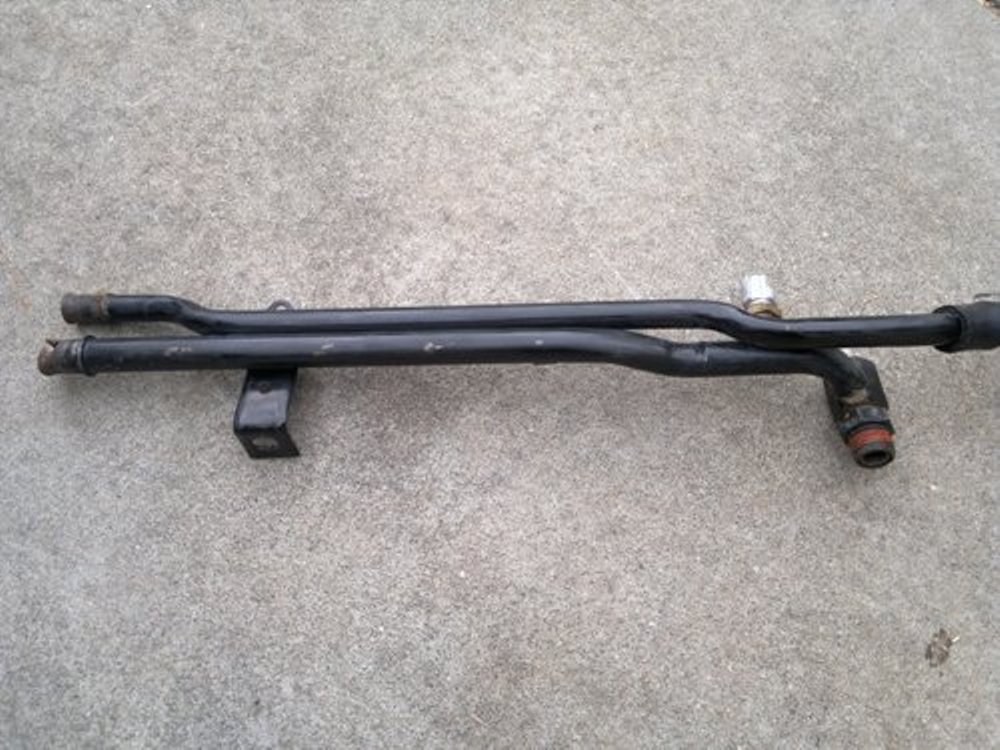

Attachments:
02012015282.jpg [ 149.54 KiB | Viewed 52 times ]



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 10:36 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if you cant find a good one, I think the best bet is use a brass fitting on the manifold to run hoses instead of the steel pipe, and you can re locate the temp sender to the other side of the manifold where the blank plug is...
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 11:09 am
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

I'd like to know the level of interest if I was to manufacture stainless versions of these?
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 2:52 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

Thanks Troy. I was considering making something in brass, but then stainless (or polished stainless :D ) would be better... It's bending the stuff neatly to the right shape that's a problem for me.

XR9UTE wrote:
I'd like to know the level of interest if I was to manufacture stainless versions of these?

I'd be interested in one (and I reckon, if they're not available in the US, you might get some orders from there).

If there is a way of routing the piping around the back of the engine, you could use any 90 degree rubber pipes to join it to the heater tubes at the firewall.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 3:49 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

XR9UTE wrote:
I'd like to know the level of interest if I was to manufacture stainless versions of these?


mine is good, but a stainless will last for the life off the car so im interested..
is there much difference in the e series pipes??
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 4:03 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

There's only the EGR cooling pipes on the earlier stuff and you only need some threaded bungs for A/C temp sensors etc. I'd do a version so that you'd just plug what you didn't use.
Next question: What would you be prepared to pay for such a piece?
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 4:17 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

At a guess, $100-200. We're at the mercy of the manufacturer! :D

Is the fitting that screws into the manifold available in stainless?



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 4:41 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Apart from the fact that original cost more than that, you guessed wrong. No we'll have to make the fitting too. Once we have an NC program done it's a matter of assembly time and therefore cost.
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Fri Jan 02, 2015 6:52 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

I haven't bought many parts from Ford and those I did buy seemed overpriced. I guess, if they're the only supplier, they can charge what they like. Any idea what Ford would have charged for this part?



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Sat Jan 03, 2015 10:31 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

I would be interested in finding out the costs to remanufacture them..
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Sat Jan 03, 2015 11:39 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

Just brainstorming a way to keep the manufacturing cost down....

If stainless is expensive (and potential buyers will bawk at the cost), could it be made in mild steel? That way the manifold fitting could be reused if it isn't corroded much. It looks like the tubes have suffered the most, probably from people using chlorinated water.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Last edited by Shortshift on Sat Jan 03, 2015 4:21 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Sat Jan 03, 2015 1:28 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

The manifold fitting is already steel and does not come off the pipe. Besides I'm only interested in making the highest quality piece and that means stainless.
Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Sun Jan 04, 2015 7:24 am
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Id take one Pete.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Sun Mar 15, 2015 7:22 pm
Getting Side Ways
Offline

Posts: 790

Joined: 18th Mar 2005

Gallery: 4 images

Location: Adelaide
SA, Australia

Hey guys, resurrecting this thread, I have similar woes and a question....... the fitting that goes into the manifold from that pipe, is that a standard thread type fitting? I want to completely replace these stupid metal pipes and just run rubber hoses - sick of trying to cure leaks!



_________________

351 4V XB Coupe running LPG

Top
 Profile


 Post subject: Re: Replacing Windsor 5.0 heater pipes
Posted: Sun Mar 15, 2015 9:34 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

I measured it and it looks like a 3/4" UNC tapered fitting. I'm not sure if they are readily available if you want to make up an alternative in brass or stainless.

If the heater pipes are rusted out, you can still buy a new aftermarket one on eBay in the USA. I paid $175 AU with postage about a month ago.
