 Post subject: timing cover gaskets
Posted: Fri Feb 02, 2007 1:54 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

well i picked up my timing cover gasket and seal kit today and there is 6 gaskets, 2 small and 4 big ones and the seal. 1 of the big ones is the same as the one that came with the waterpump and one looks like it must be the one that goes between the cover and block but not sure as i dont have the cover yet. was wondering where the other 4 gaskets go but then i noticed it says ford 5ltr efi 1992 on the packet and now im confused :?
is there a difrence with the timing covers and gaskets between 1992 and 1998 5ltrs??



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Fri Feb 02, 2007 2:02 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Might be thermostat gasket in amoungst that lot?? Maybe got a gasket kit with ones for the throttle body/egr spacer as well???

If you can get a pic up, should be able to tell ya.

The engine in your EL XR8 is (as far as timing cover, water pump etc goes) is the same as that fitted to an EB V8.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Feb 02, 2007 2:28 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

4.9 EF Futura wrote:
Might be thermostat gasket in amoungst that lot?? Maybe got a gasket kit with ones for the throttle body/egr spacer as well???

If you can get a pic up, should be able to tell ya.

The engine in your EL XR8 is (as far as timing cover, water pump etc goes) is the same as that fitted to an EB V8.


ill go round to the olds place and grab the camera and get a picture up.
do i only need 2 gaskets? one for between the waterpump and cover and one between the cover and block??

mate, you are a fuking legend. without your help i would be screwed.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Fri Feb 02, 2007 3:18 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

millard455 wrote:
ill go round to the olds place and grab the camera and get a picture up.
do i only need 2 gaskets? one for between the waterpump and cover and one between the cover and block??



Yeah mate, if that's all you're changing then you'll only need the two gaskets - water pump and timing cover.

Oh, by the way... there is the rubber sump gasket that goes all the way around the sump (obviously lol). A part of this gasket will be exposed when you remove the timing cover, as it creates a seal between the sump and the bottom of the timing cover.

Excercise a bit of caution when removing the timing cover and the sump gasket will remain in tact. Excercise similar caution when refitting the timing cover - and the sump gasket will be fine.

That's why its recommended to take a few bolts out of the sump, to drop the front of it down a few mm and make it much easier to fit the timing cover and be able to reuse the sump gasket.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Feb 02, 2007 3:29 pm
Getting Side Ways
Offline

Posts: 1162

Joined: 19th Jun 2005

Location: perth sor
WA, Australia

did mine less than a month ago.

i had a pack that was labeled 'ford v8'.. had timing cover, waterpump, crank seal inside.. had more than i need coz some were cleveland(70s and 80s v8s) gaskets. chances are you've got all three(water pump, timing cover, thermostat housing) for both motors..

once u put pic up we'l be able to tell ya pretty quick.



_________________

current ride: worn out chuck taylors

Last edited by -clampy- on Fri Feb 02, 2007 3:41 pm, edited 2 times in total.

Top
 Profile


Posted: Fri Feb 02, 2007 3:33 pm
Getting Side Ways
Offline

Posts: 1162

Joined: 19th Jun 2005

Location: perth sor
WA, Australia

do what 4.9 EF said,and loosen some sump bolts off,

IMPORTANT NOTE: theres a couple of short dowels that go into the block and timing cover(down in the lower part of the timing cover, one left, one right) so it has to slide forward maybe as much as 15mm before it will come free. once u get the bolts off and try pull it out, it will seem stuck but its not. u'l see what i mean.



_________________

current ride: worn out chuck taylors

Top
 Profile


Posted: Fri Feb 02, 2007 3:40 pm
Getting Side Ways
Offline

Posts: 1162

Joined: 19th Jun 2005

Location: perth sor
WA, Australia

4.9 EF Futura wrote:
Oh, by the way... there is the rubber sump gasket that goes all the way around the sump (obviously lol). A part of this gasket will be exposed when you remove the timing cover, as it creates a seal between the sump and the bottom of the timing cover.

Excercise a bit of caution when removing the timing cover and the sump gasket will remain in tact. Excercise similar caution when refitting the timing cover - and the sump gasket will be fine.


just to postwhore some more, theres kits around the place that replace the part of the sump gasket that goes under the timing cover, so if u do damage the sump gasket, its not the end of the world(motor out).. but ideally u dont wanna go thru that. be an idea to chat to the local speed shop who install cams(what you're doing is part of whats involved in installing a new camshaft) into these motors and double check its availability. as a fall back, just in case.



_________________

current ride: worn out chuck taylors

Top
 Profile


Posted: Fri Feb 02, 2007 3:59 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

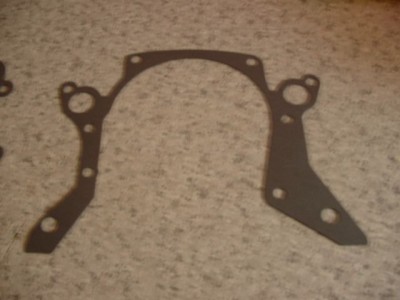

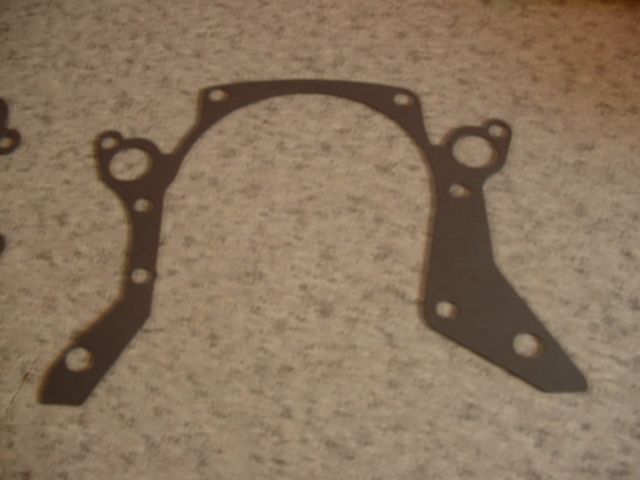

well i got the waterpump gasket sorted, its the only one that fits and im guessing that this one is the cover gasket.





Attachments:
uyt.JPG [ 36.49 KiB | Viewed 57 times ]



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Fri Feb 02, 2007 4:02 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

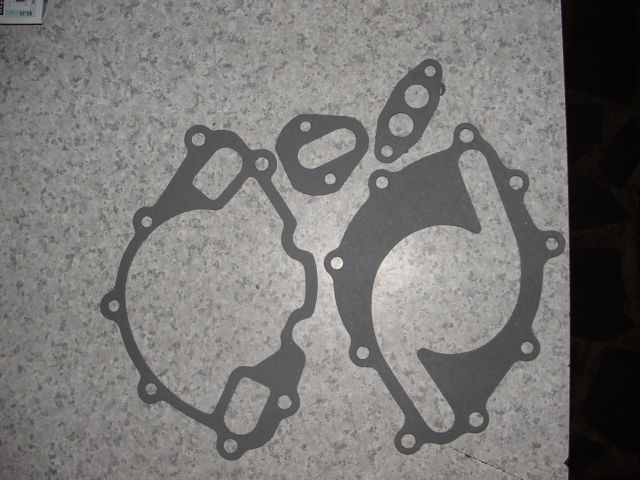

this is the other ones i got





Attachments:
DSCF0115.JPG [ 57.7 KiB | Viewed 66 times ]



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Fri Feb 02, 2007 4:09 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

-clampy- wrote:
4.9 EF Futura wrote:
Oh, by the way... there is the rubber sump gasket that goes all the way around the sump (obviously lol). A part of this gasket will be exposed when you remove the timing cover, as it creates a seal between the sump and the bottom of the timing cover.

Excercise a bit of caution when removing the timing cover and the sump gasket will remain in tact. Excercise similar caution when refitting the timing cover - and the sump gasket will be fine.


just to postwhore some more, theres kits around the place that replace the part of the sump gasket that goes under the timing cover, so if u do damage the sump gasket, its not the end of the world(motor out).. but ideally u dont wanna go thru that. be an idea to chat to the local speed shop who install cams(what you're doing is part of whats involved in installing a new camshaft) into these motors and double check its availability. as a fall back, just in case.


postwhore all ya like man, the more info the better. we dont have any places that do cam instals or anything like that so im just gona be real carefull when removing the cover. i live on the end of the earth, well it seems like it when you gata get stuff done to ya car.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Fri Feb 02, 2007 4:18 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Yep that's the timing cover gasket alright.

Looks like you've also got two different water pump gaskets there (would prob be to account for the different timing covers you can get for these motors... i.e. same timing cover gasket but different water pump mounts and hence gasket).

Lol, NFI what the little ones are for?? Prob some sort of thermostat??

Oh, dont forget to dress these gaskets... i forget the loctite formula number... it's brown and smells disgusting lol.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Feb 02, 2007 4:39 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

4.9 EF Futura wrote:
Yep that's the timing cover gasket alright.

Looks like you've also got two different water pump gaskets there (would prob be to account for the different timing covers you can get for these motors... i.e. same timing cover gasket but different water pump mounts and hence gasket).

Lol, NFI what the little ones are for?? Prob some sort of thermostat??

Oh, dont forget to dress these gaskets... i forget the loctite formula number... it's brown and smells disgusting lol.


cool, now im not so confused :D i got some loctite no3-non hardening sealant, the bloke at ripco said this stuff was the go for timing covers and waterpumps. should i have the hard setting one or the non hardening one? i dont trust ripco lol



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Fri Feb 02, 2007 4:52 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

The little gasket is for the old mech style fuel pump....



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Fri Feb 02, 2007 4:57 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

millard455 wrote:
4.9 EF Futura wrote:
Yep that's the timing cover gasket alright.

Looks like you've also got two different water pump gaskets there (would prob be to account for the different timing covers you can get for these motors... i.e. same timing cover gasket but different water pump mounts and hence gasket).

Lol, NFI what the little ones are for?? Prob some sort of thermostat??

Oh, dont forget to dress these gaskets... i forget the loctite formula number... it's brown and smells disgusting lol.


cool, now im not so confused :D i got some loctite no3-non hardening sealant, the bloke at ripco said this stuff was the go for timing covers and waterpumps. should i have the hard setting one or the non hardening one? i dont trust ripco lol


Nah, that's the stuff mate.

Another tip... gasket dressing hates coolant. So when the job is done and everything is back together, fill the system with plain jane tap water. Run the engine and let it get up to temp for a while... a short drive might be in order. This will help the gasket dressing cure. Then, once cooled down, dump the water and put your choice of coolant in.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Feb 02, 2007 5:06 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

well it looks like i have everything i need (finaly) apart from the timing cover witch shouldnt be far away. :D



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile
