 Post subject: Re: Turbo or supercharge the 351?
Posted: Sun Sep 12, 2010 10:52 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

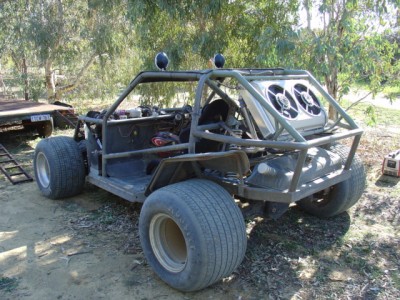

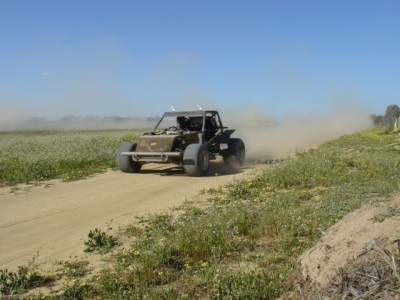

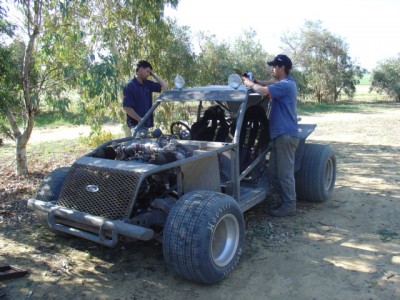

I'm glad this came up...This is my mates' twin turbo cleveland offroad buggy. It's a stock 302 with Weiand X-cellerator, modified 750 double pump(for blow through), duraspark dizzy with Crane H-6TR. He made his own headers for the WRX turbos he got for $150. It's not intercooled but it makes so much torque it's just outta control even with those f**k en huge tyres!...I know I just spent the weekend cutting up in it :mrgreen:
Attachment:
DSC03838.JPG [ 149.05 KiB | Viewed 51 times ]

Attachment:
DSC03839.JPG [ 154.81 KiB | Viewed 45 times ]

Attachment:
DSC03837.JPG [ 147.41 KiB | Viewed 49 times ]
Top
 Profile


 Post subject: Re: Turbo or supercharge the 351?
Posted: Sun Sep 12, 2010 11:09 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

XR9UTE wrote:
I'm glad this came up...This is my mates' twin turbo cleveland offroad buggy. It's a stock 302 with Weiand X-cellerator, modified 750 double pump(for blow through), duraspark dizzy with Crane H-6TR. He made his own headers for the WRX turbos he got for $150. It's not intercooled but it makes so much torque it's just outta control even with those f**k en huge tyres!...I know I just spent the weekend cutting up in it :mrgreen:
Attachment:

Attachment:

Attachment:



That is pure Bliss Pete.

If only it could be registered, i would drive that to work everyday.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Turbo or supercharge the 351?
Posted: Sun Sep 12, 2010 11:16 pm
Getting Side Ways
Offline
User avatar

Posts: 1543

Joined: 7th Mar 2007

Ride: ED Pwnage Pwr!!

Location: onawhoopwhoop
SA, Australia

f**k Yeah! :mrgreen: :mrgreen:



_________________

Adelaide Motorplex < Click on it! You know you want too!
ED HP AU XR6, Wade, T5, and all the usual stuff!

Quote:
Thats not the point *a**hole

Top
 Profile


 Post subject: Re: Turbo or supercharge the 351?
Posted: Sun Sep 12, 2010 11:17 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Too right Brett!
After that weekend of cutting up I feel the need to build one! ....gotta make use for that V10 somehow! :mrgreen:
Took some boat anchor heads for rides at night, and when you consider it's a hairy ride in the day time, it scared the utter s**t out of them! :mrgreen:
Top
 Profile


 Post subject: Re: Turbo or supercharge the 351?
Posted: Mon Sep 13, 2010 12:37 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

To turbo an engine this size its going to make serious power...
So rods and pistons usually require replacing with forged parts..
Lower comp pistons around 8.5 compression as detonation is a big issue with any forced
induction engine..
I prefer EFI as its much more tunable and stable.. A stand alone ECU is best to keep control of boost as most std ECUs don't have the ability to read above atmospheric pressure [1 bar]..
The fuel supply needs to be upgraded depending what engine is in at the time..
Ateast a Walbro 225 in tank fuel pump.. As the higher pressure against boost takes a bigger pump to supply the amount of fuel requred..
Say fuel pressure is set at 40Lb this means the rail pressure is always 40Lb above in take manifold apsolute pressure [map]
The hardest part is fabricating exhaust manifolds.. There are people out there making them...
I fitted turbo's to a 5.0 XR8 about 12 years ago..
http://www.fordforums.com.au/showthread ... +turboThen latter fitted an aftermarket block and been driving it every week since with out issues.. They don't have to rev to make power as torque is very high when load the engine up.. Meaning in higher gear than you generally would if n/a..
Upgraded auto or clutch, gear box is a must...
This should be asked here..
viewforum.php



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


 Post subject: Re: Turbo or supercharge the 351?
Posted: Tue Sep 14, 2010 8:58 pm
Getting Side Ways
Offline

Age: 27

Posts: 506

Joined: 3rd Sep 2007

Gallery: 18 images

Ride: EF Falcon

Location: Victor Harbor
SA, Australia

DAMN! that thing is a kids dream gocart!



_________________

Falcon Build http://www.fordmods.com/post1285079.html#p1285079
