urgent help!!! cant get the car to start after 302 change?



Page 1 of 1 [ 5 posts ]


 Post subject: urgent help!!! cant get the car to start after 302 change?
Posted: Fri May 20, 2011 6:10 pm
Parts Gopher
Offline

Age: 37

Posts: 59

Joined: 7th Aug 2010

Ride: 1996 NF ford fairlane v8

Location: melbourne
VIC, Australia

hi guys
just finished replacing the 302 in my fairlame. apart from the timming cover to water pump gasket is knackered and seams to be spewin water i cant get her to fire. it will ignite every now and then & there is fuel going into her cos i can smell it when it starts to flood.


-1 are all 302w e series distributors the same? it came out of an efxr8 and went into my nf.
-2 with the 2 fuel lines running from the fuel rail does it matter what lines i conect it to running down the passenger side chassie?

im supose to be leavin for tassy on monday but me thinks i may be takin the misses car instead :(

any help would be ausom

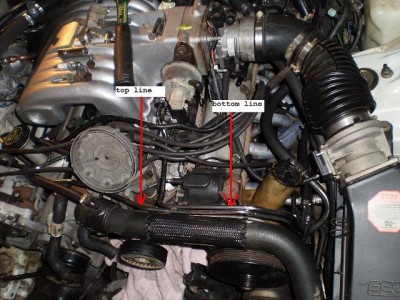

update.... dam it would have been ausom to have the old girl going for tazzy but thems the brakes. I have posted a pick of the fuel lines if someone can tell me if this is correct. i have a few issues with the timing cover so that needs to be fixed. i did noticed one of the wires going from the coil to the dizzy had pushed out of the conector. once the timing cover is sorted and i can set top dead again im hopein she starts.

thanks guys





Attachments:
File comment: is this right?
P5290028.JPG [ 82.95 KiB | Viewed 37 times ]

Last edited by japcrp on Thu Jun 09, 2011 12:16 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: urgent help!!! cant get the car to start after 302 change?
Posted: Sat May 21, 2011 8:59 am
Getting Side Ways
Offline
User avatar

Age: 24

Posts: 4583

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

One is the main fuel line and one is the return line,



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,custom tune,187.1rwkw

Top
 Profile


 Post subject: Re: urgent help!!! cant get the car to start after 302 change?
Posted: Sat May 21, 2011 9:04 am
Getting Side Ways
Offline

Posts: 2438

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

So what they said - make sure the line that goes to the filter is the one going "in" to the engine, the other is the return line. its important otherwise you wont get any fuel pressure.

Did you get the dizzy in right? - 180 degrees out might be close, but not

The 302w E Dizzys are the same. Sounds like timing, or you might have missed a connector?
Top
 Profile


 Post subject: Re: urgent help!!! cant get the car to start after 302 change?
Posted: Sat May 21, 2011 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1692

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

The fuel line with the white clip connects to the passenger side fuel rail pipe, and the black one connects to driver side fuel rail pipe.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: urgent help!!! cant get the car to start after 302 change?
Posted: Thu Jun 09, 2011 11:11 am
Parts Gopher
Offline

Age: 37

Posts: 59

Joined: 7th Aug 2010

Ride: 1996 NF ford fairlane v8

Location: melbourne
VIC, Australia

hey guys can anyone help with my updated issue?
