What pics do you want.



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: What pics do you want.
Posted: Tue Nov 27, 2007 12:05 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

Well I have pulled out the 351 in my fairmont to replace the s**t cork sump gasket with a rubber one.
now is the time to request photos of the install that you would like to see.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Tue Nov 27, 2007 1:19 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Would like to see clearance between firewall and top of inlet manifold, also how close the front end dress is to the thermos, and clearance between extractors and shock/strut towers.
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


Posted: Tue Nov 27, 2007 2:49 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

Front dress is the same distance away from thermo's if you use 5.0 Falcon stuff.
Top
 Profile


Posted: Tue Nov 27, 2007 4:47 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

What sort of front dress clearance to shock towers is their in the EL? Specifically aircon/powersteering side?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Sat Dec 22, 2007 5:40 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

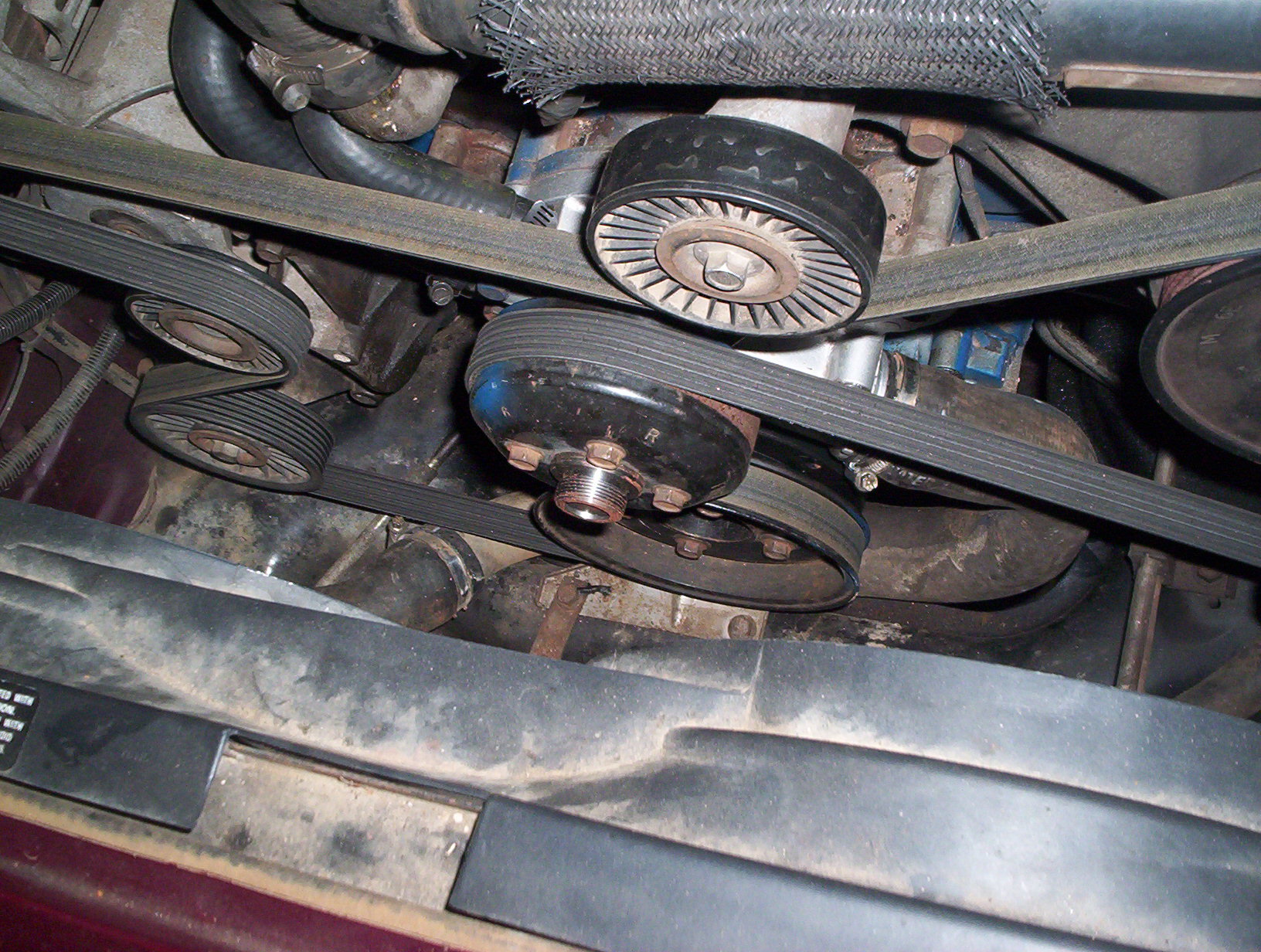

Here is a pic of the front dress.
I have routed the belt differently so I can use the stock belt.





Attachments:
000_0296.JPG [ 530.52 KiB | Viewed 79 times ]



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Sun Dec 23, 2007 12:30 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 324

Joined: 23rd Apr 2006

Gallery: 2 images

Ride: EF II TickMont, BA XR6T

Location: Adelaide - Whyalla
SA, Australia

rebuild that baby 351 motor into a 393
pop some nice alloy heads on her
and a bit of paint and she will be Niiiiice



_________________

Current Ride - Phantom BA XR6 Turbo
EF II Fairmont Tickford Optioned, J3 Chip, Converted To 5 Speed
R.I.P. Nelly .... My NL V8 Fairlane..... Totaled by a kombivan

Top
 Profile


Posted: Sun Dec 23, 2007 6:27 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3531

Joined: 5th Nov 2004

Gallery: 25 images

Ride: 93 Maverick LWB/S2 LWB Delica

Power: 75 rwkw

Location: uoʇǝlƃuıs lʍoq ʇsnp
NSW, Australia

SDFGH_54 wrote:
rebuild that baby 351 motor into a 393
pop some nice alloy heads on her
and a bit of paint and she will be Niiiiice


Now you're taking :twisted:



_________________

93 Ford Maverick LWB automatic petrol guzzler (gets stuck where Deli doesn't, big pumpkins :evil:)
97 S2 Mitsubishi Delica LWB (off the road getting v8 transplant) http://tmacmechanical.com.au/

Top
 Profile


Posted: Sun Dec 23, 2007 7:31 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 451

Joined: 29th Nov 2004

Gallery: 1 images

Ride: XR8(EF) & XR8BOSS290 Ute(FG)

Location: Sydney
NSW, Australia

Good job on figuring out the belt route.

My main concern is how did you go for bonnet clearance ?

Also what deck height 351 do you have (9.2" , 9.5" , ....) ?



_________________

________________________________________

Better off with not enough traction than not enough power.

Top
 Profile


Posted: Sun Dec 23, 2007 8:37 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 324

Joined: 23rd Apr 2006

Gallery: 2 images

Ride: EF II TickMont, BA XR6T

Location: Adelaide - Whyalla
SA, Australia

Macca understands what im talkin about obviously
its got potential, :D


have you had any progress wit the 51 lately ? havent spoken to you for awhile
may as well throw up all the photos you have, always good to flaunt what youve got



_________________

Current Ride - Phantom BA XR6 Turbo
EF II Fairmont Tickford Optioned, J3 Chip, Converted To 5 Speed
R.I.P. Nelly .... My NL V8 Fairlane..... Totaled by a kombivan

Top
 Profile


Posted: Sun Dec 23, 2007 11:40 pm
EFI Guru
Offline

Age: 52

Posts: 4289

Joined: 5th Nov 2004

Gallery: 28 images

Ride: 351 Vogue,XH 5.0,'17 5.0 Stang

Location: Perth
WA, Australia

AXR88U wrote:
Good job on figuring out the belt route.

My main concern is how did you go for bonnet clearance ?

Also what deck height 351 do you have (9.2" , 9.5" , ....) ?


Production 351W's are all 9.5" deck or 9.48" for '69-'70 blocks.
Only Ford racing or aftermarket blocks are available with a Cleveland deck of 9.2". Also most all aftermarket blocks have cleveland 2.749" mains as opposed to the windsors' 3.00".
Top
 Profile


Posted: Mon Dec 24, 2007 1:27 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

AXR88U wrote:
Good job on figuring out the belt route.

My main concern is how did you go for bonnet clearance ?

Also what deck height 351 do you have (9.2" , 9.5" , ....) ?


The belt route was accidental. Everytime I put a new belt on the 5.0 I installed it this way and it would be to long. How do you like that f**k.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Mon Dec 24, 2007 5:35 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

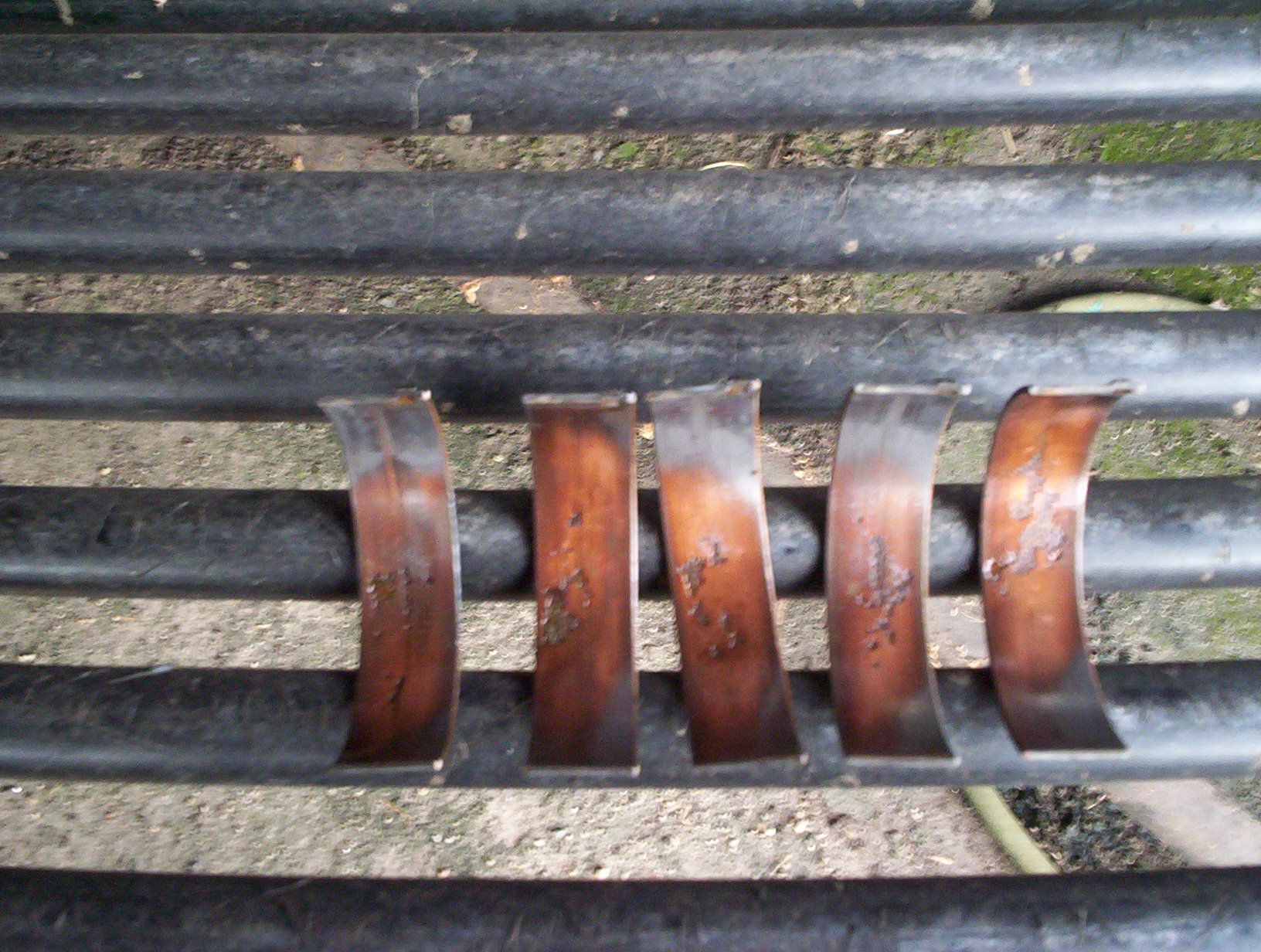

OK here is what has been holding me up.
I think I will run it with the new bearings until it looses oil pressure again and then go silly.





Attachments:
000_0326.JPG [ 516.02 KiB | Viewed 71 times ]



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Mon Dec 24, 2007 5:54 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

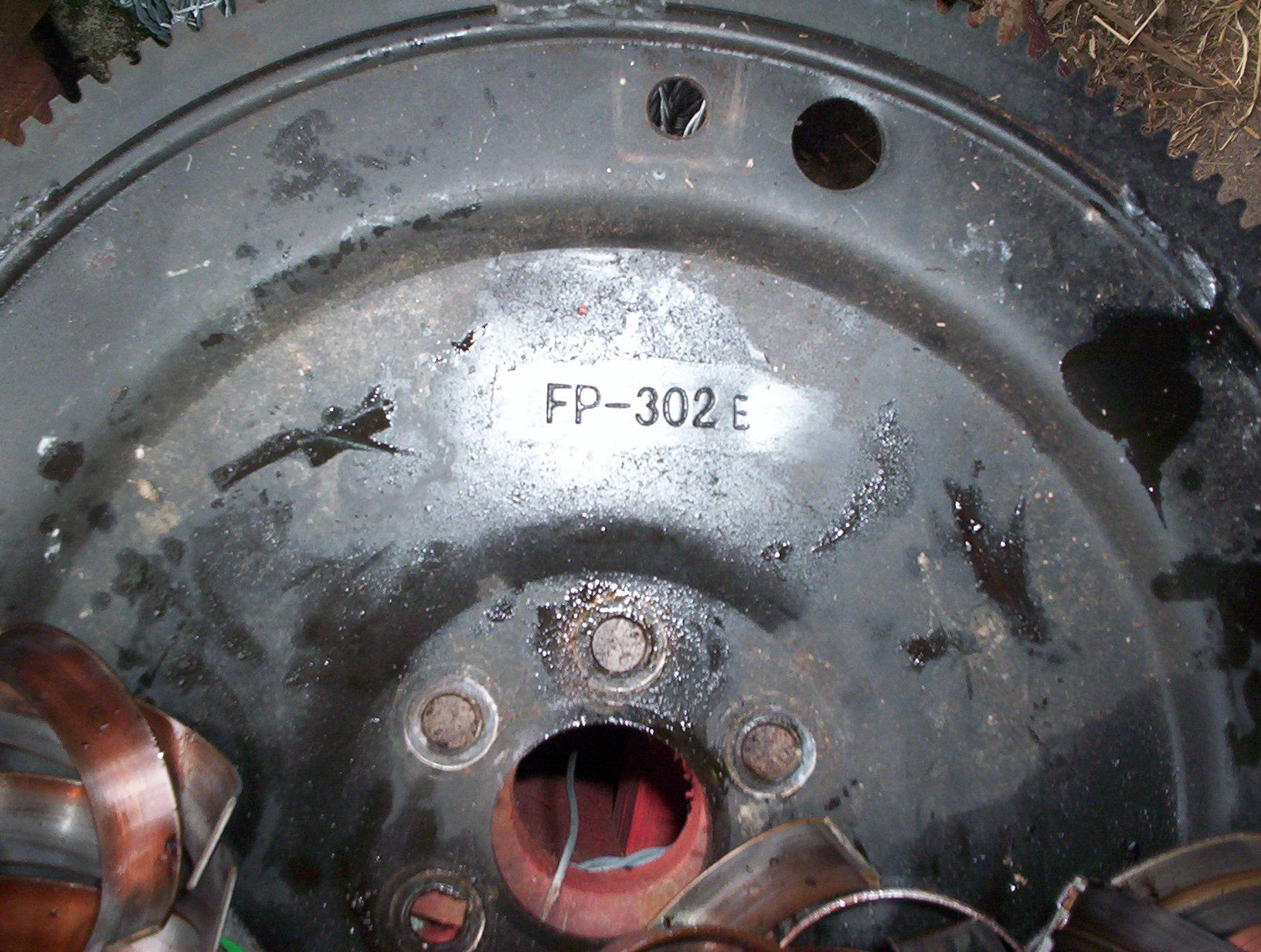

This is the grinding I did to the converter mounting lugs to get it to fit the flexplate.
It is a scat flexplate but if you use a different brand you may not have to do any grinding.
You can see the bead just below the ring gear that was stopping the converter sitting flush.





Attachments:
000_0333.JPG [ 469.56 KiB | Viewed 64 times ]
000_0332.JPG [ 459.33 KiB | Viewed 61 times ]



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Mon Dec 24, 2007 6:06 pm
Smokin em up
Offline

Age: 46

Posts: 221

Joined: 7th Jan 2006

Gallery: 2 images

Ride: F150 EL mont&2001 cobra

Location: Innisfail
QLD, Australia

If I was to do this again I think I would use the AP-01 from www.pricemotorsport.com instead of tracking down a 351 manifold.



_________________

Smoken the hides in top gear

Top
 Profile


Posted: Mon Dec 24, 2007 7:30 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 324

Joined: 23rd Apr 2006

Gallery: 2 images

Ride: EF II TickMont, BA XR6T

Location: Adelaide - Whyalla
SA, Australia

its my fair guess that thoes bearings look way beyond good :D



_________________

Current Ride - Phantom BA XR6 Turbo
EF II Fairmont Tickford Optioned, J3 Chip, Converted To 5 Speed
R.I.P. Nelly .... My NL V8 Fairlane..... Totaled by a kombivan

Top
 Profile
