xw 5L, no start



Page 1 of 1 [ 12 posts ]


 Post subject: xw 5L, no start
Posted: Sun Jan 18, 2009 9:26 am
Parts Gopher
Offline

Age: 66

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Hi again, 5L inj eng in xw. Did post No 7 problem which was resolved, harmonic balancer.. Thanks.
Problem is fitted new billet balancer & started engine. Ran better still, all smooth, ,,,,, New chrissy present-- pressure cleaner?
Cleaned engine bay but stayed away from most electrical connectilns?
No start at all from then on.
Cleaned all connections with air and crc. including dizzy. No start.
Did try to fire on no 3.
Have a complete running eb 5l so all parts necessary,
Changed dizzy. coil inc, cop, rotor, leads. No start, no 3 tryed again.
Fuel pressure is good. compression good, manually checked timing(spark plug out tdc compression, screwdriver in plug hole and see no 1 plug fire check timing mark on pully)
No go. spray aero start into cranking engine, no go.
Can smell fuel when cranking, Good strong blue spark from coil.(1" long)
Nearly the same from plug leads.
Changed computer. NO go.
any ideas welcome, Thanks also car sat for a week i was away, when I came home and tried it again no 5 & 7 were tring. extractor tubes hot.
Top
 Profile


Posted: Sun Jan 18, 2009 9:32 am
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

have you checked the injectors are firing correctly, and is the firing order correct? remember EFI Windsors run the Cleveland Firing order IIRC



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


Posted: Sun Jan 18, 2009 9:35 am
Getting Side Ways
Offline

Age: 40

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: SF5 Forester

Location: Bathurst
NSW, Australia

if it was me i woul spray all the plugs / leads (inside) with a wd40 type of product. if it doesn't start after that hmmm i am outta ideas as you have done what i would of suggested.



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sun Jan 18, 2009 9:37 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Are you still using the salt and pepper connections just behind the intake?? Water in there means no go.



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


 Post subject: reply
Posted: Sun Jan 18, 2009 9:44 am
Parts Gopher
Offline

Age: 66

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Yes all original wireing, including salt & pepper. they have been blown with air and sprayed crc.
Injection sequence shouldn,t be a prob as was running fine
Have sprayed all plugs and leads.
Top
 Profile


Posted: Sun Jan 18, 2009 9:45 am
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

how about the firing order, have you checked thath becaeuse after replacing dizzy, it could be out



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


Posted: Sun Jan 18, 2009 9:54 am
Getting Side Ways
Offline

Age: 40

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: SF5 Forester

Location: Bathurst
NSW, Australia

67RCE wrote:
how about the firing order, have you checked thath becaeuse after replacing dizzy, it could be out


you have placed the leads on correctly 1 2 3 etc etc, i recently change the plugs on my six and muddled up the leads it wouldn't fire correctly. just a suggestion.



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: firing
Posted: Sun Jan 18, 2009 9:55 am
Parts Gopher
Offline

Age: 66

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

firing order checked, also same as from running eb





Attachments:
Cold air from someware.JPG
Cold air from someware.JPG [ 120.07 KiB | Viewed 1193 times ]
Top
 Profile


 Post subject: Plugs
Posted: Sun Jan 18, 2009 12:58 pm
Parts Gopher
Offline

Age: 66

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Happy to say moter running fine. Only thing not changed, plugs.
Put plugs in .fired straight up. I find it hard to believe that washing could cause this problem but seems to be so. I M happy so I dont care.
The old saying comes to mind,,, Do the easy things First.
Thanks everyone





Attachments:

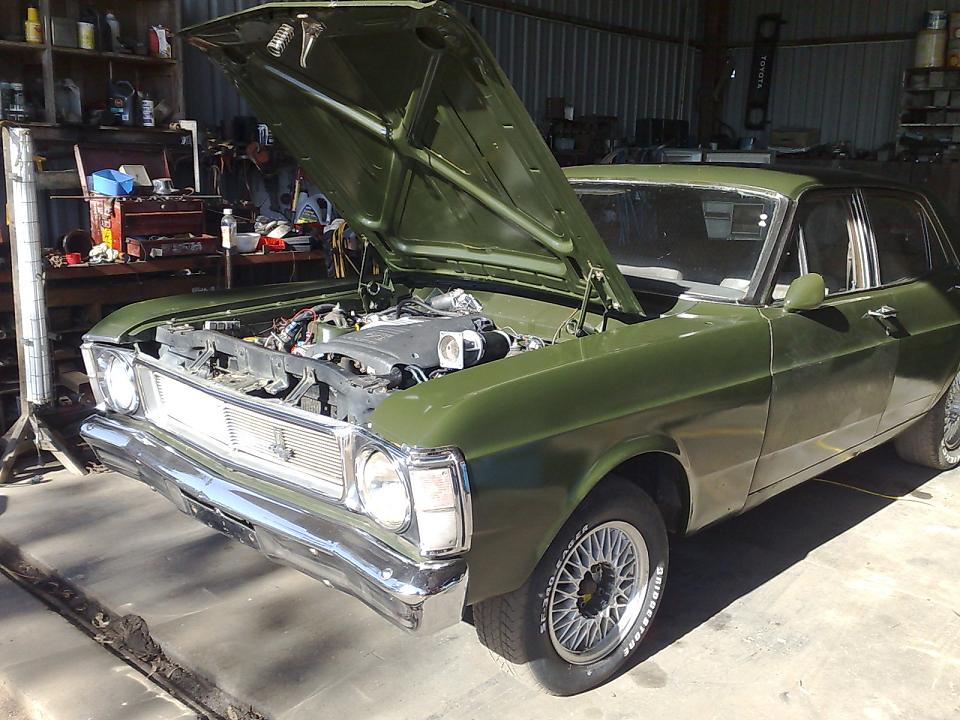

XW green bonnet up.JPG
XW green bonnet up.JPG [ 146.84 KiB | Viewed 1168 times ]
Top
 Profile


Posted: Wed Jan 21, 2009 8:51 pm
Oompa Loompa
Offline

Age: 40

Posts: 46

Joined: 18th Jan 2009

Ride: ed

Location: central west nsw
NSW, Australia

cool project mate, i love the sound of them little windsors. good luck.
Top
 Profile


 Post subject: U are too kind.. Thank s
Posted: Wed Jan 21, 2009 9:30 pm
Parts Gopher
Offline

Age: 66

Posts: 75

Joined: 26th Jul 2006

Gallery: 5 images

Location: Gin Gin
QLD, Australia

Most issues done , twin system soon........ Like a xw fairmant boot.
They suit
It is sounding nice





Attachments:

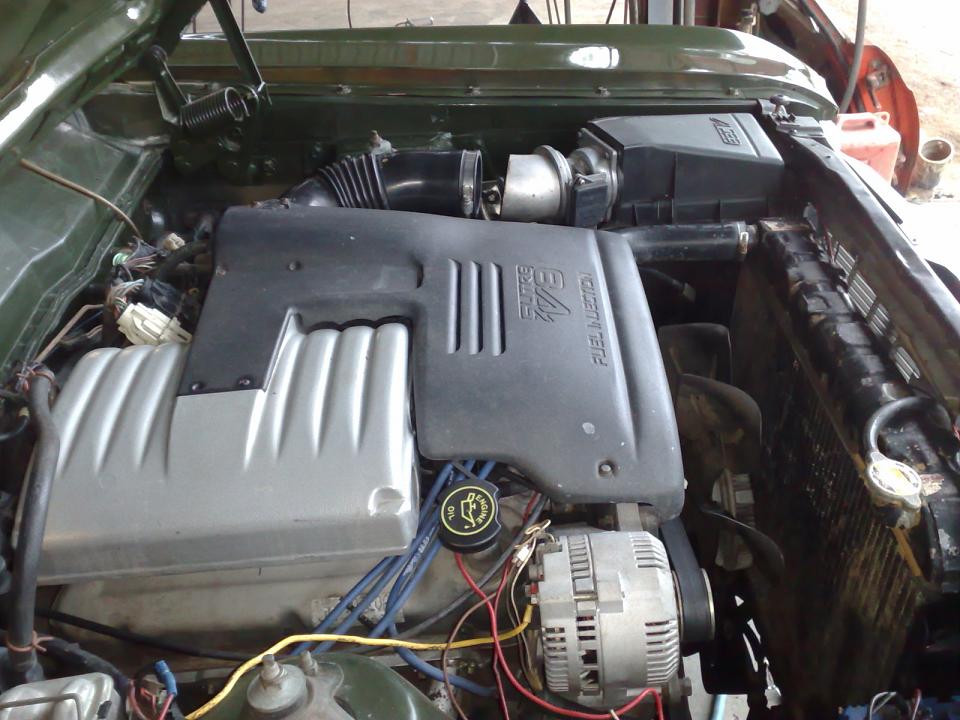

Tho suspect Cleaner.JPG
Tho suspect Cleaner.JPG [ 157.52 KiB | Viewed 1128 times ]
Top
 Profile


 Post subject: Re: xw 5L, no start
Posted: Mon Jan 26, 2009 1:50 pm
Parts Gopher
Offline

Age: 63

Posts: 54

Joined: 9th Jan 2007

Gallery: 11 images

Ride: any modeL fORD fALCON 6 or 8

Location: manukau city
New Zealand

Hey nice machine..
This is a long shot but have fuel lines been disconnected and maybe refitted in reverse?
I had similar problem on my XG ute in my gallery, Everything checked out ok but refused to start. AS it happens a friend of mine did some work headers and disconnected them and replaced incorrectly, took a while to figure out, a simple mistake overlooked..



_________________

Have you driven a REAL Ford...lately?
