170 - 200 motor specs..



Page 1 of 3 [ 43 posts ] Go to page 1, 2, 3  Next


 Post subject: 170 - 200 motor specs..
Posted: Wed Sep 20, 2006 1:11 am
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Hi All. I know that this is an XD, XE, XF forum and I have one of each of those but the current project is puting my XL back on the road after a complete rebuild. I got hold of a motor that was supose to have done only 5K since it was built. I have pulled the head off it and can still see the cross hatch of the hone marks so could be a good one. Anyway, does any one know the stroke of the 170 and 200 motor so I can work out what it is..... Next, what if I put my 144 head back on the this motor which I think is a 170. Bout time I put some photos up of the XF now it is all finished... Regards XFSteve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Thu Sep 21, 2006 5:08 pm
Smokin em up
Offline

Age: 37

Posts: 288

Joined: 18th Jan 2006

Ride: Falcon

Location: sydney
NSW, Australia

http://falconperformance.sundog.net/

http://falconperformance.sundog.net/facts.asp

170 Bore stroke - 3.50/2.94
200 Bore Stroke - 3.68/3.13

Its an American site that may help you a bit.
I think the XL only came with a 144 - 170, the XMs were the first with the 200s.
You can check the crank, on the counterweights they do have the cubic capacity on them.
Top
 Profile


Posted: Thu Sep 21, 2006 5:32 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 866

Joined: 8th Nov 2004

Gallery: 2 images

Ride: XD 351, FG Ute

Location: Darwin
NT, Australia

it's not a xd/e/f forum anything ford with a x is welcome we also catter for mustangs as they are just a rebodied falcon anyway



_________________

WINNER:
Best modified car 1980 - 1989 Shannons show and shine 2006
Best XD-XH Darwin All Ford Day 2011

There is no substitute for cubic inches :twisted:

Top
 Profile


Posted: Thu Sep 21, 2006 5:53 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

this is x series mate - all questions are welcome! :)



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Fri Sep 22, 2006 6:06 pm
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Thanks Guys,

I am even more confused. This engine has a 3.68 bore and a 3.5 stroke.

Steve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Sat Sep 23, 2006 4:06 pm
Smokin em up
Offline

Age: 37

Posts: 288

Joined: 18th Jan 2006

Ride: Falcon

Location: sydney
NSW, Australia

Might be a 221 cubic inch out of an XT or XW. They have a 3.68 bore, but has a smaller stroke, about 3.4 from memory ???
Top
 Profile


Posted: Sat Sep 23, 2006 6:19 pm
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Thanks for that. It has hydraulic lifters!!! Does that shed any extra light on it. All six bores are in top condition. Tops of pistons 'wiped clean'. Spent ALL DAY stripping back the block to bare metal. Pull the sump off tomorrow and have a look at the bottom end. Steve



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Sat Sep 23, 2006 9:18 pm
Stock as a Rock
Offline

Age: 41

Posts: 115

Joined: 6th Nov 2004

Ride: EF XR6

Location: Dalby
QLD, Australia

how many bolts hold the waterpump on?
Top
 Profile


Posted: Sun Sep 24, 2006 10:50 am
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

There are three bolts that hold on the water pump.



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Sun Sep 24, 2006 1:02 pm
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Took off the sump and its got 221 on the counterweight. Grin. Probably have a bit more grunt than the tired 144 then. Grin.



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Tue Oct 03, 2006 5:49 pm
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

Got the motor just about sorted out but looking for a Holley Carb to put on the 221. Have a number of the smaller ones but bit small in the bore. Also looking for a flywheel. Motor came out of a auto... Anyone in Perth go a carb or a flywheel for a 221 looking for a good home.



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Wed Oct 04, 2006 11:49 am
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

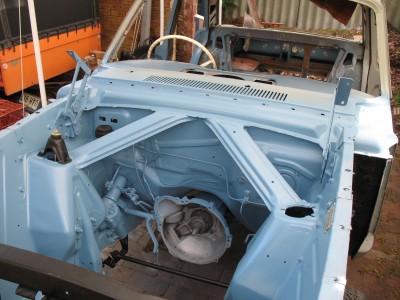

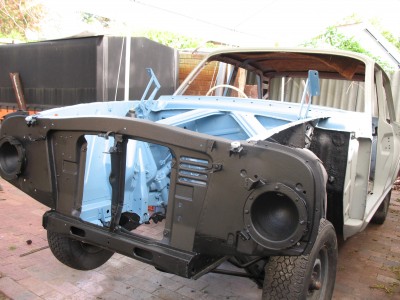

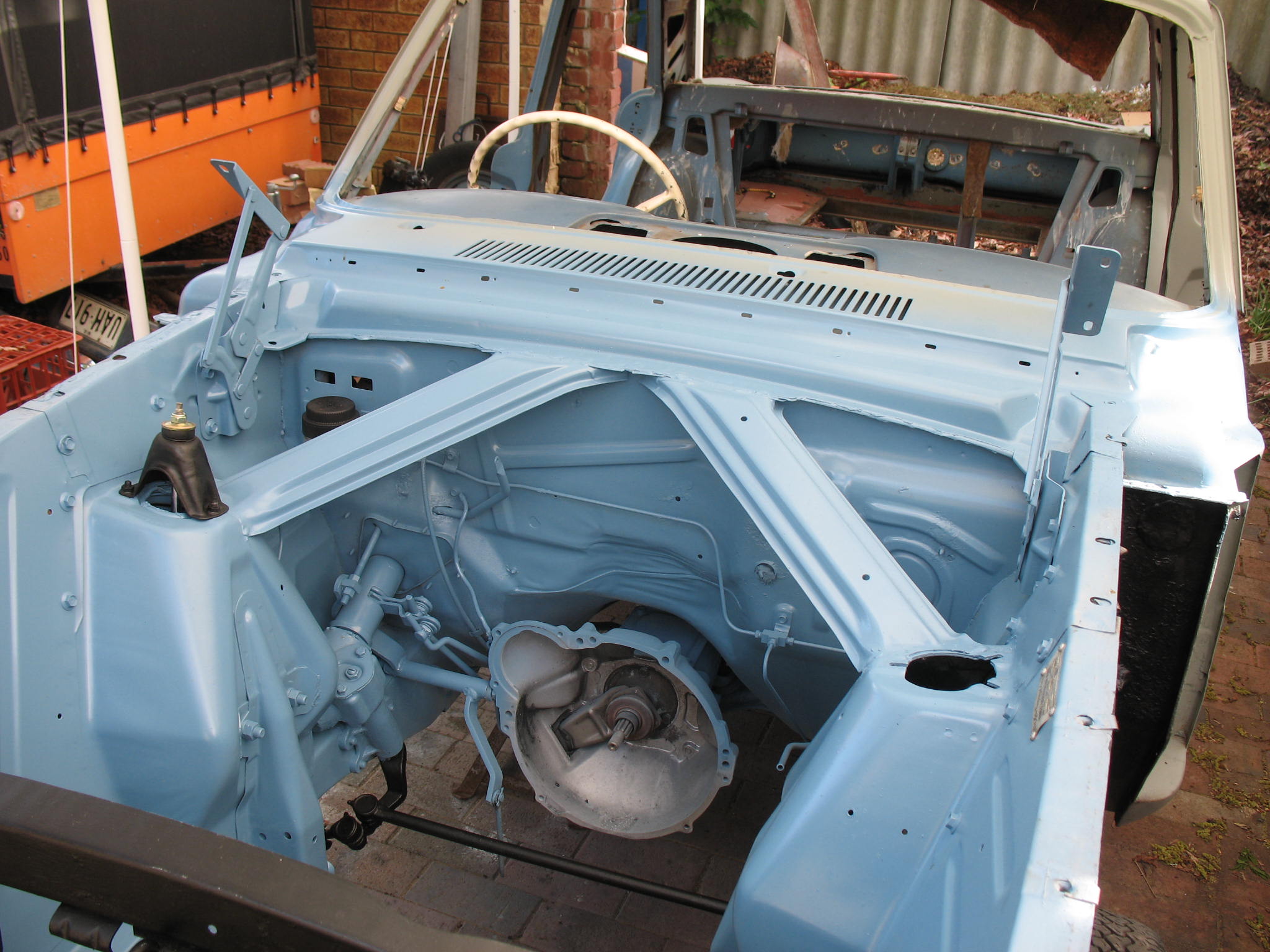

Spent the long weekend (WA) detailing the engine bay of the 62 XL ready to put in the new 221 when complete. The rest of the car is still in primer waiting for the weather to warm up and dry out... Got to swap out the bell housing yet as the 144 bell housing is not compatiable with the 221 motor.





Attachments:
IMG_1090.JPG [ 363.17 KiB | Viewed 124 times ]
IMG_1089.JPG [ 377.11 KiB | Viewed 121 times ]



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Wed Oct 04, 2006 1:32 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2550

Joined: 28th Jun 2005

Gallery: 13 images

Ride: EF 5 Speed, XH Uterus :P

Location: Hobart
TAS, Australia

that's gonna be smicko when done. i've got a mate down here whose got an XL. in progress atm is a turbo'd 200 motor for it :twisted:

i'll see if he has any parts for a 221!



_________________

Maloo - Holden's word for ugly.

Top
 Profile


Posted: Sat Oct 21, 2006 4:44 pm
Parts Gopher
Offline

Age: 68

Posts: 70

Joined: 18th Oct 2005

Ride: XL XE XF

Location: Perth Metro
WA, Australia

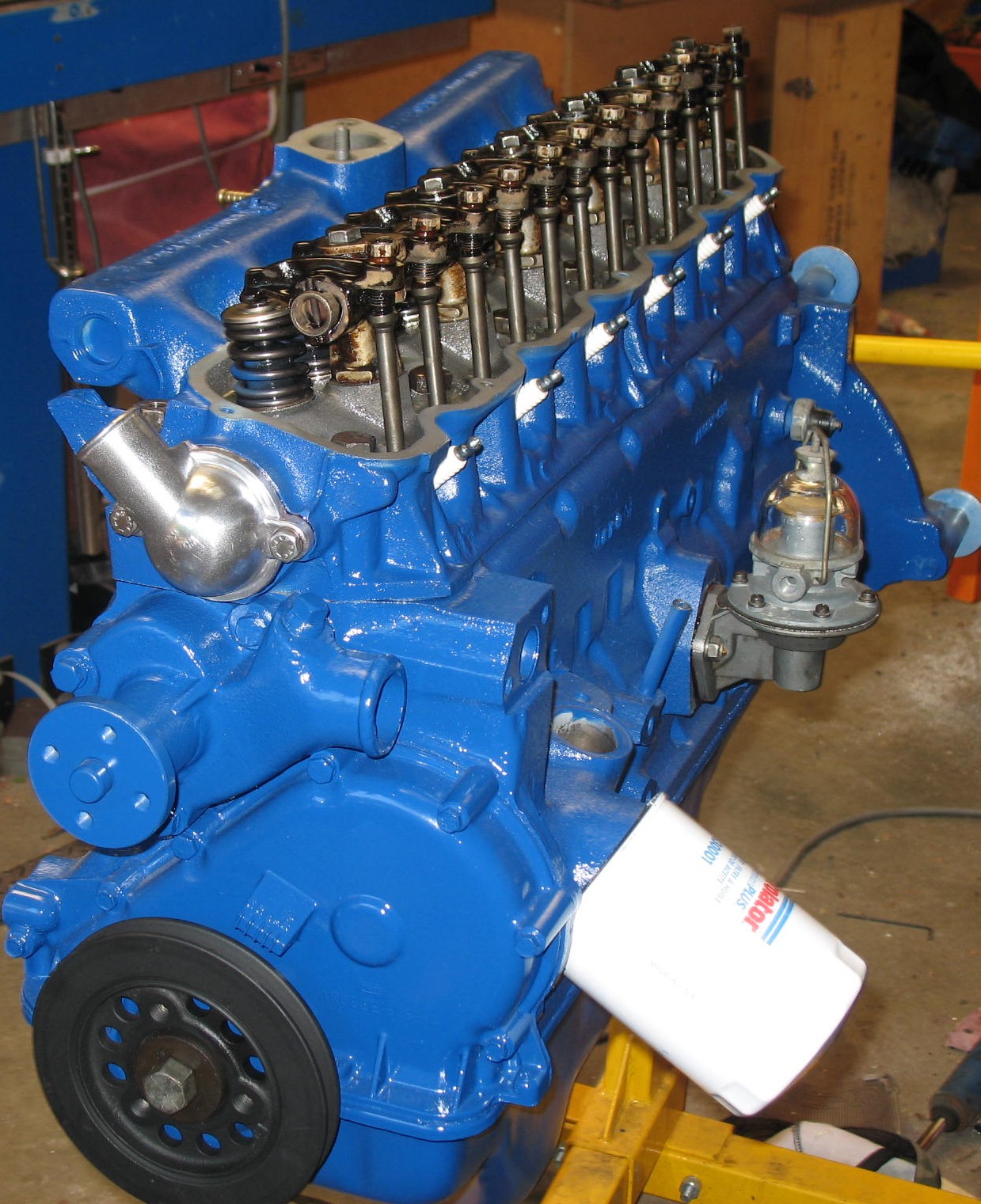

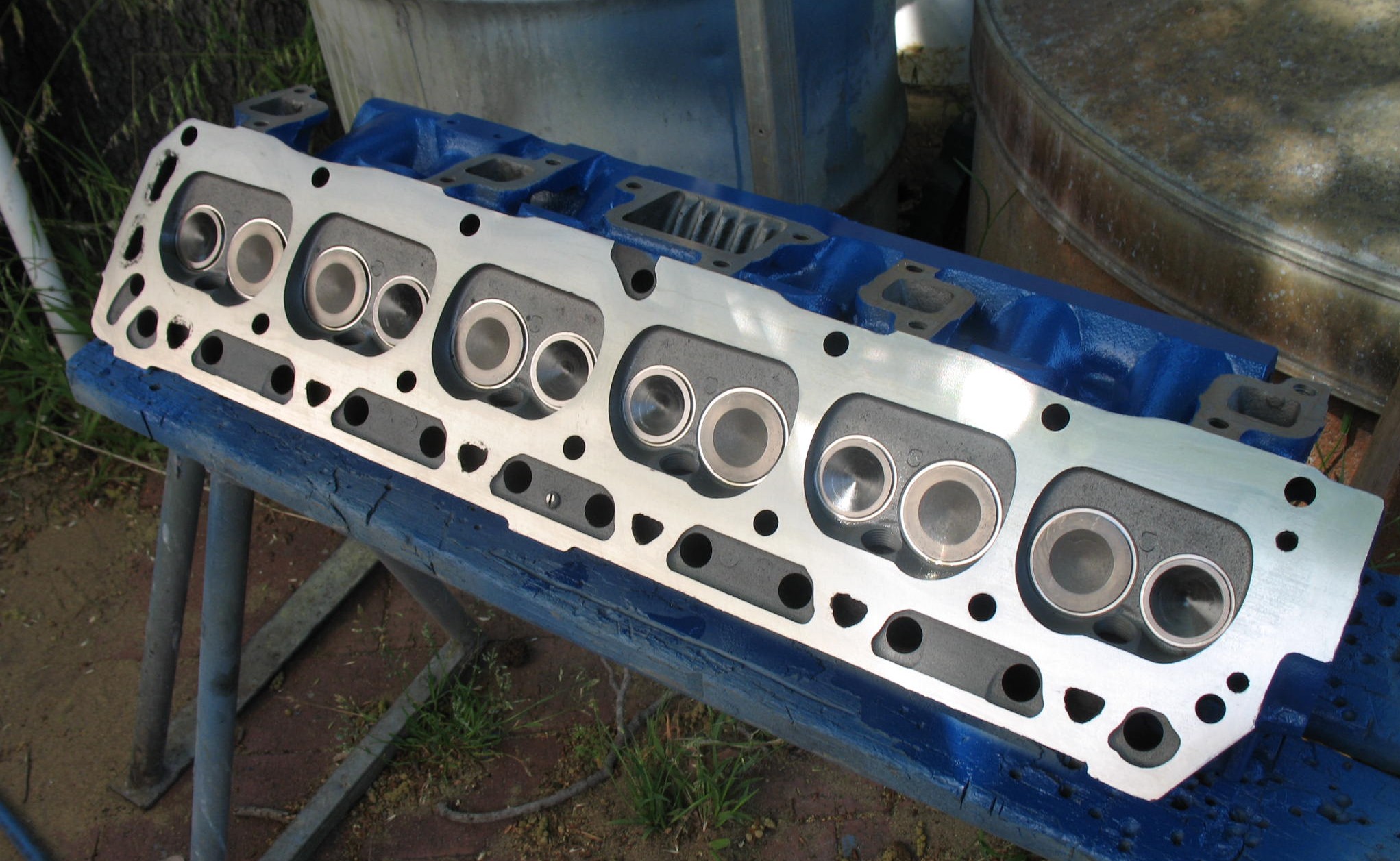

The 221cu into the XL coming along in leaps and bounds. Got the head back from Sabre Performance Engineering in Briggs Street Welshpool on Friday. Absolute top job. Inserts, New valves, K sleeves, ground on both the cylinder face and the exhaust. Did the job in a week!!!. Head is now painted and on the block. Ended up with new mains and big end shells as you have to lift out the crank to put in a new rear seal. Crank was perfect and still STD. New hydraulic lifters. New timing chain. New harmonic balancer. New water pump. New oil pump. Overhaul petrol pump. Still got the distributor and carburettor of overhaul.

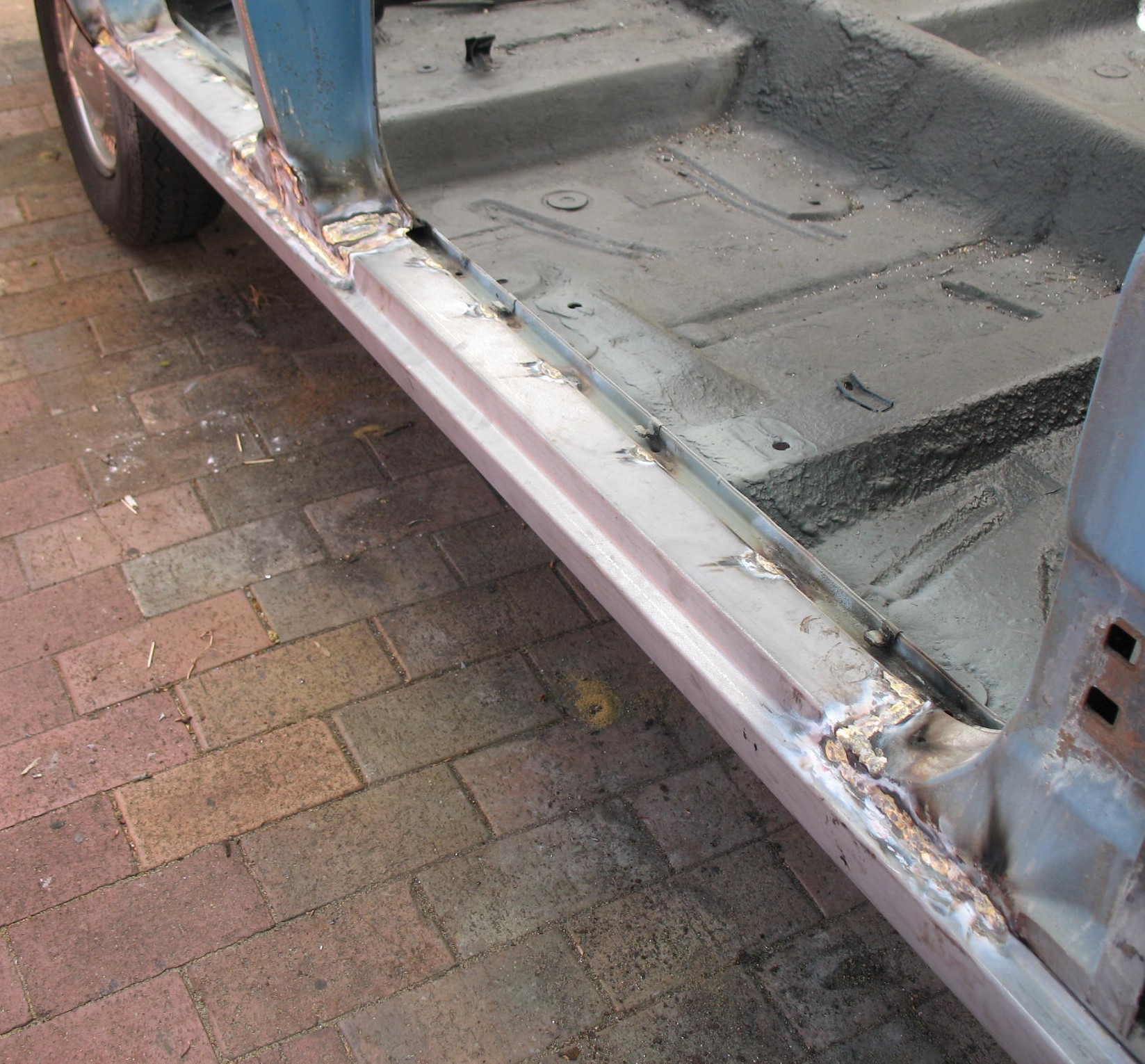

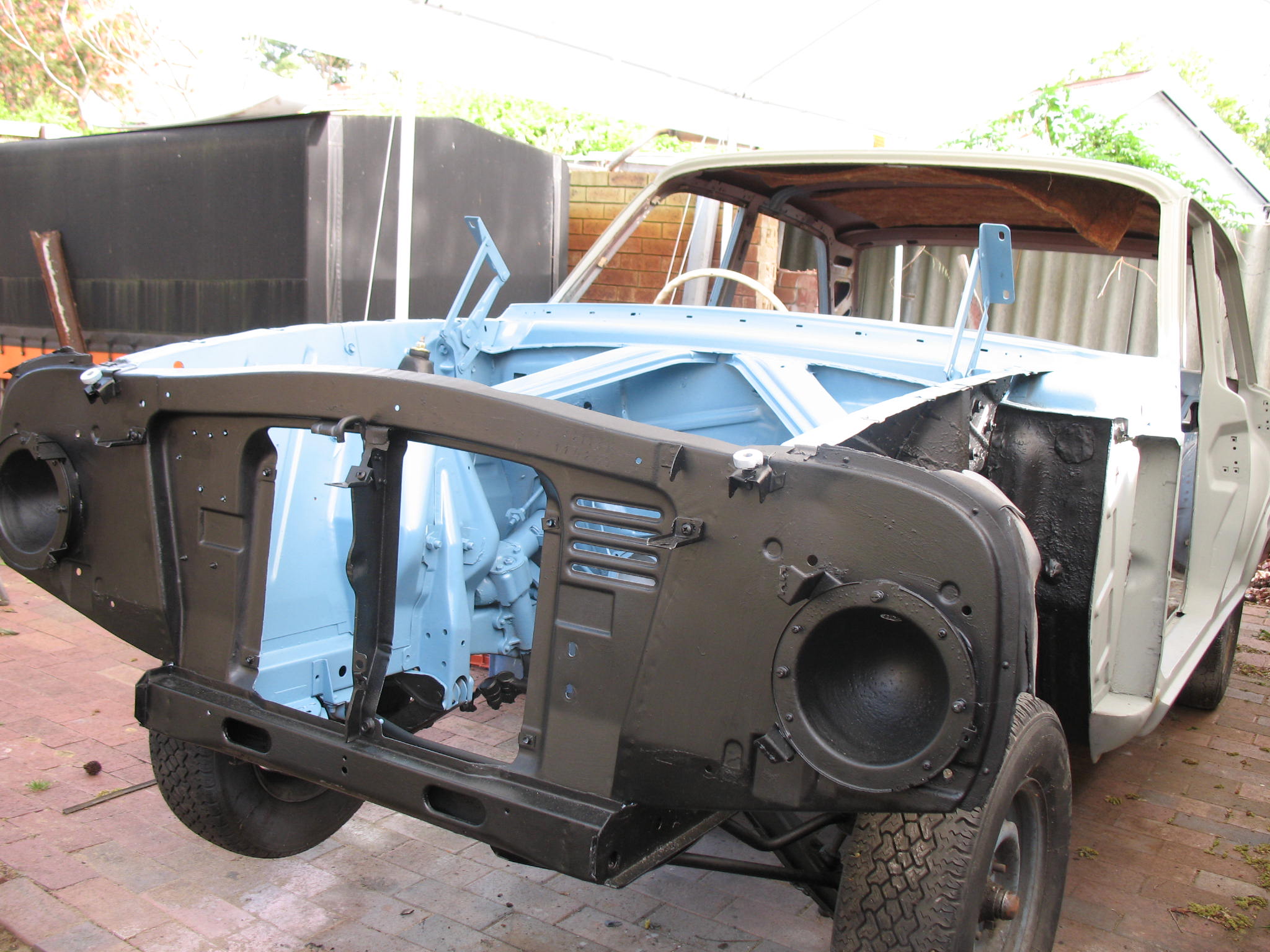

Replaced right hand sill on the body last week end. Lot of laying on your back, grinding and welding. Still got the front and rear of the sill to shape up yet. Did the left before winter (what there was of it). The rest of the body is finished in primer. Bonnet, boot, doors and guards are finished.


I will update in a week or so on the progress. STILL LOOKING FOR A FLYWHEEL and BELL HOUSING. (3 speed manual)

Cheers

XFSteve





Attachments:
221-1.jpg [ 418.74 KiB | Viewed 156 times ]
Head.jpg [ 478.59 KiB | Viewed 128 times ]
Sill.jpg [ 558.75 KiB | Viewed 140 times ]



_________________

Even a backfire from a Ford is a QUALITY BACKFIRE

Top
 Profile


Posted: Mon Oct 23, 2006 10:32 am
Smokin em up
Offline

Age: 37

Posts: 288

Joined: 18th Jan 2006

Ride: Falcon

Location: sydney
NSW, Australia

The 221 is a great little engine!
I had one in my XP sedan, it went very well indeed.
All the best with the rebuild, and great to see another early Falcon being built up.
Top
 Profile
