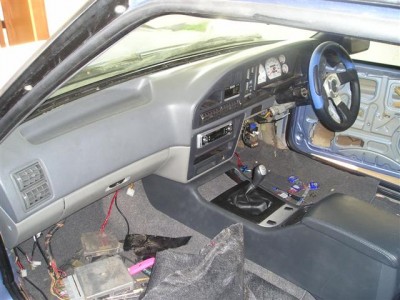

Has any successfully put an ED dash into a X series?
I started this a few days ago, I knew there was going to be a lot of work but it's quickly getting out of hand.
I've FINALLY got the thing to physically fit, but to get everything to work is turning out to be a nighmare.
I thought these would have been very simular in regards to wireing, heating and cooling. But it seems everything is slightly different.





Attachments:
new dash started.jpeg.JPG
new dash started.jpeg.JPG [ 116.32 KiB | Viewed 139 times ]
Top
 Profile


Posted: Thu Nov 16, 2006 10:46 pm
Smokin em up
Offline
User avatar

Posts: 212

Joined: 11th Mar 2005

Gallery: 4 images

Location: Melbourne
VIC, Australia

mate good job, howd you go about the moutnings points? im lookin at doing a BA dash into my XF
Top
 Profile


Posted: Thu Nov 16, 2006 10:49 pm
Tyre Shredder
Offline
User avatar

Age: 27

Posts: 315

Joined: 7th Oct 2006

Gallery: 3 images

Location: Bunbury
WA, Australia

hey aranthi wanna tell me how hard it was to go about the au center console ?



_________________

84 XF Falcon S Pak, 250 crossflow (rebuilt ~5000km ago, carby model), Bored out 30 thou, Crow racing cam, extractors, yokohama 245's all the way round, chrome 12 slotters, lowered, 4spd man, open wheeler (blew my lsd...), Thumping sound system, L.E.D's everywhere

Top
 Profile


 Post subject: Re: ED into XG
Posted: Sat Nov 18, 2006 11:12 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

danjb wrote:
Has any successfully put an ED dash into a X series?
I started this a few days ago, I knew there was going to be a lot of work but it's quickly getting out of hand.
I've FINALLY got the thing to physically fit, but to get everything to work is turning out to be a nighmare.
I thought these would have been very simular in regards to wireing, heating and cooling. But it seems everything is slightly different.


hay mate, top work there, is that actually bolted in and secure in there?

Should be a pisser to get to work really, i note the smartlock sticker on your window, so any reason why you can't run ED dash loom + ED engine bay wiring? should make every thing more or less plug and play



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


 Post subject: Re: ED into XG
Posted: Sun Nov 19, 2006 12:59 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

danjb wrote:
I've FINALLY got the thing to physically fit, but to get everything to work is turning out to be a nighmare.
I thought these would have been very simular in regards to wireing, heating and cooling. But it seems everything is slightly different.
I would've thought you've done the hardest part - getting the dash to fit.
An EBII/ED dash into an XG, would have the same issues as an EF/EL dash into an XH. This is mainly the fit to the bottom windscreen, and to the A pillars. The airbox's are the same, so with the incoming dash's ducting, it should join up, provided you can position the dash correctly. A LOT of work I'd think. Then there's the dash sides, which might jam against the existing door trims.
Good effort though, as everyone's said - don't give up.
fordzatmyplace wrote:
Should be a pisser to get to work really, i note the smartlock sticker on your window, so any reason why you can't run ED dash loom + ED engine bay wiring? should make every thing more or less plug and play
The XG's have just about the same wiring as the EBII/ED, just as XH has the same wiring as EL (but with an EF BEM).
The main difference would be in wire lengths, plug positions, etc due to the differing dashes.
Good opportunity to run a few Fairmont goodies like trip computer, Climate control, etc.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Nov 19, 2006 8:33 pm
Oompa Loompa
Offline

Posts: 23

Joined: 16th Jan 2005

Ride: XH XR6

Location: Townsville
QLD, Australia

Quote:
Should be a pisser to get to work really, i note the smartlock sticker on your window, so any reason why you can't run ED dash loom + ED engine bay wiring? should make every thing more or less plug and play


The engine looms are pretty much the same, am using ED dash loom, but 1 of the problems is the body loom.
The harness that supplies everything to the door and the lhs indicator on he XG is part of the dash loom. But the ED the loom crosses the floor under the seats, then goes back the lhs door.
Could use the ED body loom, but unsure how the smartlock will react without having boot, fuel door and rear doors..

Quote:
I would've thought you've done the hardest part - getting the dash to fit.
An EBII/ED dash into an XG, would have the same issues as an EF/EL dash into an XH. This is mainly the fit to the bottom windscreen, and to the A pillars. The airbox's are the same, so with the incoming dash's ducting, it should join up, provided you can position the dash correctly. A LOT of work I'd think. Then there's the dash sides, which might jam against the existing door trims.
Good effort though, as everyone's said - don't give up.


Yeah thanks. The front air duct fits fine, but the windscreen duct on the ute sticks out o far and has to be modified. The modified ED dash now has no vents to let air out to he windscreen. Have been thinking of using some hose for this but once again, not much room.
The doors themselves without trims hit the dash. Not sure what to here.
Yeah your right too, the join between the door,dash, windscreen and pillar is very, very untidy. Looks like s#it actually.
Top
 Profile


Posted: Sun Nov 19, 2006 8:40 pm
Oompa Loompa
Offline

Posts: 23

Joined: 16th Jan 2005

Ride: XH XR6

Location: Townsville
QLD, Australia

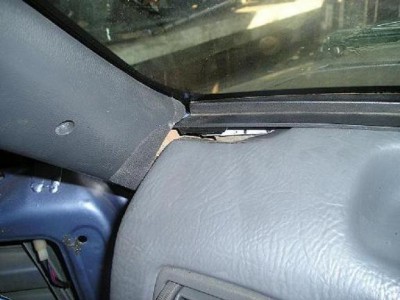

corner.





Attachments:
P1010036.JPG [ 41.6 KiB | Viewed 70 times ]
Top
 Profile


Posted: Sun Nov 19, 2006 9:19 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, I've been temped to fit an EF/EL dash. As you've found, the only way to find out for sure is to get one and actually attempt to fit it.

danjb wrote:
Could use the ED body loom, but unsure how the smartlock will react without having boot, fuel door and rear doors.
Smartlock will be okay - the XG setup is the same - none of the above are connected.
Actually, you'll find all the features of the passenger vehicles still present in the XG BEM, they're just not wired up. So you could use them for custom purposes, e.g. hardtray top release, etc.
Remote Central locking would be easy to fit also.
So if you had to go back to the XG dash, all is not lost.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Dec 10, 2006 5:48 pm
Smokin em up
Offline
User avatar

Posts: 212

Joined: 11th Mar 2005

Gallery: 4 images

Location: Melbourne
VIC, Australia

looking good mate good luck with the conversion defentally gonna watch this thread closly
Top
 Profile


Posted: Fri May 11, 2007 10:06 pm
Fordmods Newbie
Offline

Posts: 9

Joined: 11th May 2007

Location: Gold Coast
QLD, Australia

any updates on how this is going
Top
 Profile


Posted: Fri May 25, 2007 9:50 am
Oompa Loompa
Offline

Posts: 23

Joined: 16th Jan 2005

Ride: XH XR6

Location: Townsville
QLD, Australia

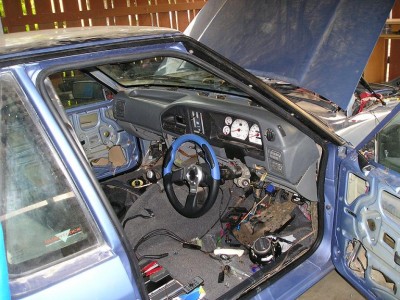

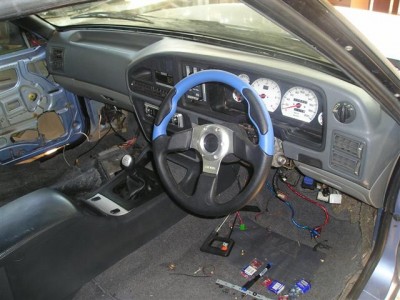

These photos were taken a while ago.
The dash is fitted and working. For the Hazzard switch i used a switch fitted into on of the blanks near the Trip comp.
Door trims to be finished.
Bought an XH XR6 so the XG has just been collecting more dust.





Attachments:
44 (2) (Small).JPG
44 (2) (Small).JPG [ 61.03 KiB | Viewed 84 times ]
44 (4) (Small).JPG
44 (4) (Small).JPG [ 60.89 KiB | Viewed 84 times ]
Top
 Profile


Posted: Fri May 25, 2007 3:59 pm
Smokin em up
Offline
User avatar

Posts: 212

Joined: 11th Mar 2005

Gallery: 4 images

Location: Melbourne
VIC, Australia

mate that looks insane, howd u go about moudling it to the shape of the XF window?
Top
 Profile


Posted: Thu Aug 02, 2007 7:51 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

dash mat!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Thu Aug 02, 2007 10:49 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

Krytox wrote:
dash mat!


dash mat to cover the gap up??



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L

Top
 Profile


Posted: Sun Aug 12, 2007 7:44 pm
Fordmods Junkie
Offline
User avatar

Age: 31

Posts: 1175

Joined: 23rd Mar 2005

Gallery: 6 images

Ride: 1994 ED Fairmont

Location: Brisbane
QLD, Australia

nice work with that! those dash's look tops love the shape.



_________________

1994 ED Fairmont Champaign Gold - AU Series II Intech 4.0L - EL EFI - Thermo Fans - 4.11 LSD - Pacemaker 4480 Into Custom 3" Exhaust - Shift Kit
In Progress: EL 4 Speed Auto- 3000 STALL - To be fitted
EF Tickford Race Spec Head Port- In the shop
Custom SureCam - Chiptorque

Top
 Profile
