XF - AU VCT conversion, engine wiring diagram needed please



Page 1 of 1 [ 11 posts ]


 Post subject: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Thu Apr 17, 2014 12:06 pm
Fordmods Newbie
Offline

Age: 49

Posts: 16

Joined: 24th Sep 2013

Ride: XF Falcon ute

Location: shepparton
VIC, Australia

This is my first post so hope I have put this in the right forum.

I have just finished putting an AU VCT engine with 4 speed auto into my XF ute, I have found the engine harness diagram and ECU pin outs for an ef but really need a copy of the engine wiring diagrams for an AU with the VCT engine.
Can anyone help out? I have worked out most of it but there are a few areas I'm not sure of and the proper diagram would help heaps.

If anyone is contemplating doing this swap I have taken heaps of progress photos that may help others if interested.

Thanks,
Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sat Apr 19, 2014 7:29 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Get an AU series workshop manual.....you'll need it for future hassels anyway.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sat Apr 19, 2014 7:32 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Offered the AU Manual as a PDF.

Still waiting for Email address to send it to you.
Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sun Apr 20, 2014 12:28 pm
Fordmods Newbie
Offline

Age: 49

Posts: 16

Joined: 24th Sep 2013

Ride: XF Falcon ute

Location: shepparton
VIC, Australia

Thanks for the replies, pm sent SWC, first time didn't go through obviously. Using Google Chrome now, seems to be working better on my computer.

cheers,





Attachments:

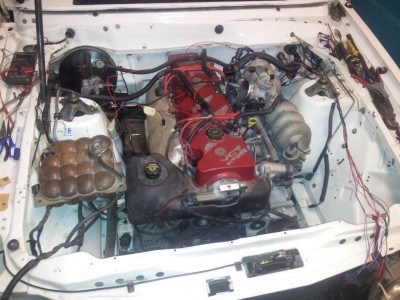

File comment: bit more to do still,
2014-04-18 20.37.26.jpg
2014-04-18 20.37.26.jpg [ 131.52 KiB | Viewed 110 times ]

Last edited by xfute4.0 on Sun Apr 20, 2014 12:38 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sun Apr 20, 2014 12:32 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Went to send it and it was too big.

See if these downloads work.

http://www.fordaustraliaforums.com/foru ... 49462.html

http://www.allcarmanuals.com/factory-se ... on-AU.html

http://kickass.to/2001-ford-falcon-au-w ... 59121.html

http://manualmadness.com/ford-au-falcon ... op-manual/

Sorry that I couldn't send you the one I have, but one of these should help you out.

Sent by PM as well.
Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sun Apr 20, 2014 12:41 pm
Fordmods Newbie
Offline

Age: 49

Posts: 16

Joined: 24th Sep 2013

Ride: XF Falcon ute

Location: shepparton
VIC, Australia

Ok thanks again, I was thinking about buying a Haynes manual but haven't done so yet, mainly from previous experience with these manuals.
Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sun Apr 20, 2014 3:55 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

dunno about haynes .. won't use gregory's [crap] but picked up a coupla max ellory's for EF/EL & AU which seem ok
Top
 Profile


 Post subject: Re: XF - AU VCT conversion, engine wiring diagram needed please
Posted: Sun Apr 20, 2014 4:34 pm
Fordmods Newbie
Offline

Age: 49

Posts: 16

Joined: 24th Sep 2013

Ride: XF Falcon ute

Location: shepparton
VIC, Australia

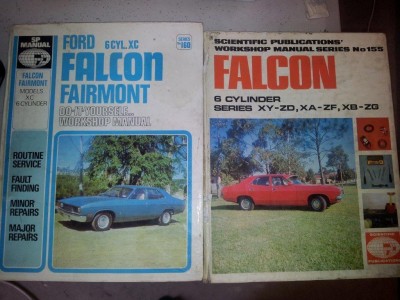

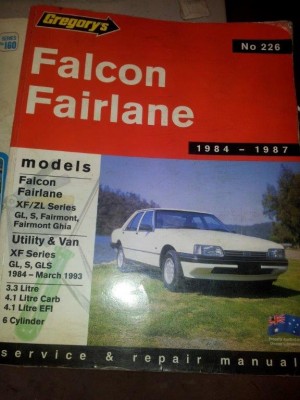

Gotten a lot of use out of the Gregory's one for the xf over the years, the numbers and letters on the wiring diagrams are hard to read though, have to be enlarged, and the old SP (scientific publications) ones are also good,
