Xg falcon faulty odometer



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: Xg falcon faulty odometer
Posted: Wed Jan 29, 2020 10:23 pm
Fordmods Newbie
Offline

Age: 49

Posts: 10

Joined: 5th May 2014

Ride: ef fairmont falcon

Location: maitland
NSW, Australia

Anyone repaired a faulty odometer, the speedo is ok but odometer and trip meter not counting kilometres, not working.

Im guessing a failed gear in the speedo head. Any pics and info appreciated.

Is it a standard size gear that fails or are they different from car to car??
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Thu Jan 30, 2020 4:44 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

check my bottom link below this reply. it's for the EA/B/D style clusters.
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Fri Jan 31, 2020 8:01 am
Moderator
Offline
User avatar

Age: 42

Posts: 2419

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Your pictures dont open Mad.
Yes what usually happens is that there are 2 gears on the side of the odometer mechanism. A large and a small gear.
Usually the smaller one always breaks a tooth and its all over. Occasionally the larger gear underneath does the same with same result.
To get to it you need to remove the cluster , open the glass from the cluster , remove the speedo needle and speedo plate screws and remove the main counter module and disassemble.
If you don't have patience they are fiddly work.
I believe the gears are all the same through out the earlier Falcons and Commodores of early 90s.
Speedo places charge a bomb to do this also. Ive rung around. :wink:



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Fri Jan 31, 2020 5:11 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

93EB wrote:
Your pictures dont open Mad.


roger roger ..... currently working on it. . . . . . . . . . . . . . :roll: :mrgreen:
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Fri Jan 31, 2020 6:47 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 712

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

You can buy the odometer repair kit on Ebay, like 93EB said there's two cogs and only takes one tooth to break to stop it from working, but I've done this repair for mates before who broke it again within a week by resetting it whilst driving which you can't do,car has to be stationary to reset.





Attachments:

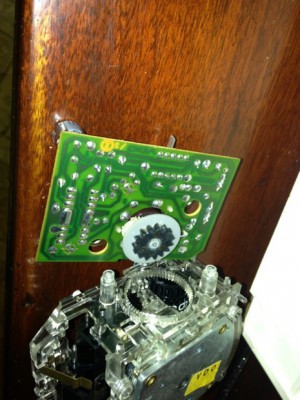

File comment: This is the part 93EB mentioned that needs to be removed to get to the cogs.
image-1.jpg [ 41.47 KiB | Viewed 17 times ]

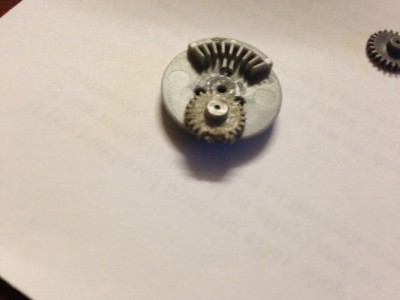

File comment: These are the cogs
image.jpg [ 16.16 KiB | Viewed 16 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Fri Jan 31, 2020 8:49 pm
Fordmods Newbie
Offline

Age: 49

Posts: 10

Joined: 5th May 2014

Ride: ef fairmont falcon

Location: maitland
NSW, Australia

Any tip for ebay search to ensure correct gear for my 5 speed manual 6cyl xg van?
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Fri Jan 31, 2020 9:52 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

darrencrebert wrote:
Any tip for ebay search to ensure correct gear for my 5 speed manual 6cyl xg van?



my link has been updated.

https://www.ebay.com.au/itm/262506483451?ssPageName=STRK:MESINDXX:IT&_trksid=p3984.m1436.l2649

https://www.ebay.com.au/itm/132487570995?ssPageName=STRK:MESINDXX:IT&_trksid=p3984.m1436.l2649

either one depending on your cluster. doesn't matter what gearbox is fitted.
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Sat Feb 01, 2020 12:36 pm
Moderator
Offline
User avatar

Age: 42

Posts: 2419

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

I got the gears from the link in Mads top suggestion.
The yellow gear to use will require you break of your old gear from the back of the grey disc.
You then get nippers and cut the 3 nipples of the grey disc of, and glue the new gear onto it.
You will know what I mean when you do it :lol:
Then reassemble.



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Sat Feb 01, 2020 3:13 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

93EB wrote:
I got the gears from the link in Mads top suggestion.
The yellow gear to use will require you break of your old gear from the back of the grey disc.
You then get nippers and cut the 3 nipples of the grey disc of, and glue the new gear onto it.
You will know what I mean when you do it :lol:
Then reassemble.



or


https://www.ebay.com.au/itm/Complete-Set-Holden-Astra-odometer-gear-Sun-and-COMPLETE-Carrier-gea-/132487610050?_trksid=p2385738.m4383.l4275.c10
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Sat Feb 01, 2020 10:57 pm
Moderator
Offline
User avatar

Age: 42

Posts: 2419

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Yep either one.
I used the gear that you glue on. Was pretty easy besides all the plastics on the housing going brittle and snapping.
Ideally i could do with a speedo housing to replace mine lol. :roll:



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Sun Feb 02, 2020 12:03 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

93EB wrote:
Yep either one.
I used the gear that you glue on. Was pretty easy besides all the plastics on the housing going brittle and snapping.
Ideally i could do with a speedo housing to replace mine lol. :roll:



clear plastic?
Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Sun Feb 02, 2020 8:18 pm
Moderator
Offline
User avatar

Age: 42

Posts: 2419

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Yeah the clear plastic lol



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Sun Feb 02, 2020 9:57 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Mon Feb 03, 2020 5:44 am
Moderator
Offline
User avatar

Age: 42

Posts: 2419

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

Hi mad i could do with one. Send me a pm mate and i will chat to you.
Maybe a photo so we can confirm its the right thing lol.
Thanks again :)



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Xg falcon faulty odometer
Posted: Mon Feb 03, 2020 7:54 pm
Fordmods Junkie
Online
User avatar

Posts: 3285

Joined: 22nd Jan 2009

Ride: '03 BA Wagooon & EB Wagooons

Location: Geeelong
VIC, Australia

93EB wrote:
Hi mad i could do with one. Send me a pm mate and i will chat to you.
Maybe a photo so we can confirm its the right thing lol.
Thanks again :)



pm sent :mrgreen:
