hello again fellow ford followers.
i have been working on my ZF Fairlane over the last few days to fit an XG dash, engine and 5speed box :mrgreen: . all is going well and dash is in. BUT...i cannot seem to find any diagrams on google to show the color wires for the tail lights. if i still cant find anything then i shall have to resort to stripping the back of donor ute :? . i have found the Fairlane wiring and once i get the xg diagram, i will then cut and solder the XG dash plugs onto the Fairlane loom then i shall start on the engine :lol: .
any help will be much appreciated. thanks
Top
 Profile


 Post subject: Re: XG UTE WIRING DIAGRAM HELP
Posted: Sat Sep 17, 2016 10:29 pm
Fordmods Newbie
Offline
User avatar

Age: 36

Posts: 10

Joined: 6th Jun 2016

Ride: XF Falcon S Pac - 5L Efi

Location: Bendigo
VIC, Australia

hopefully you can see that





Attachments:

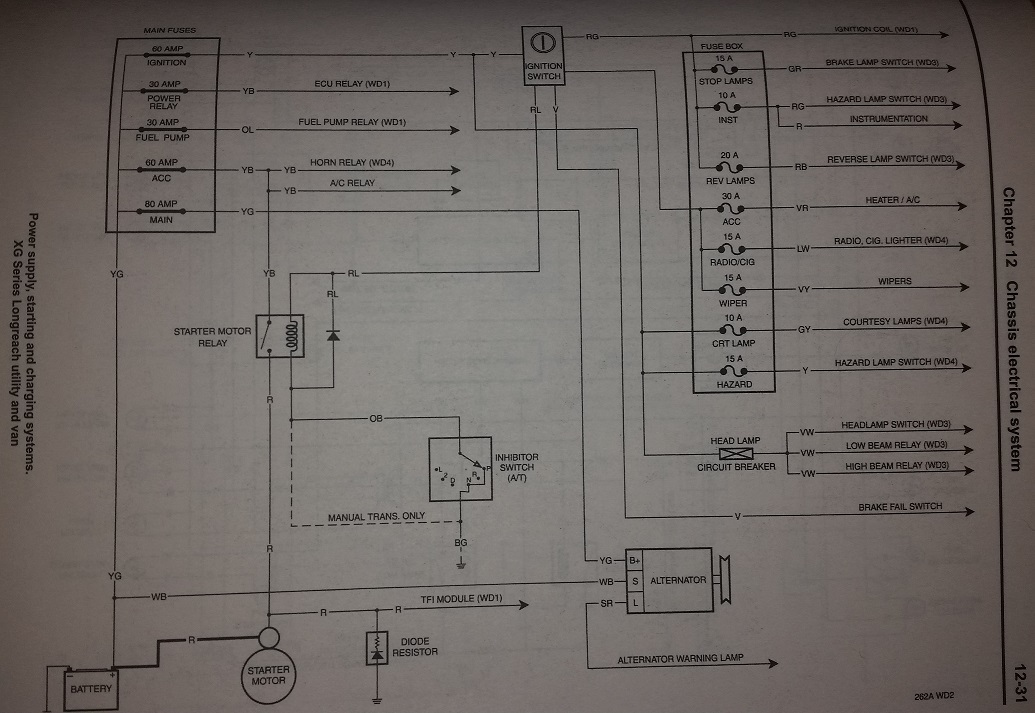

d3.jpg [ 199.7 KiB | Viewed 47 times ]

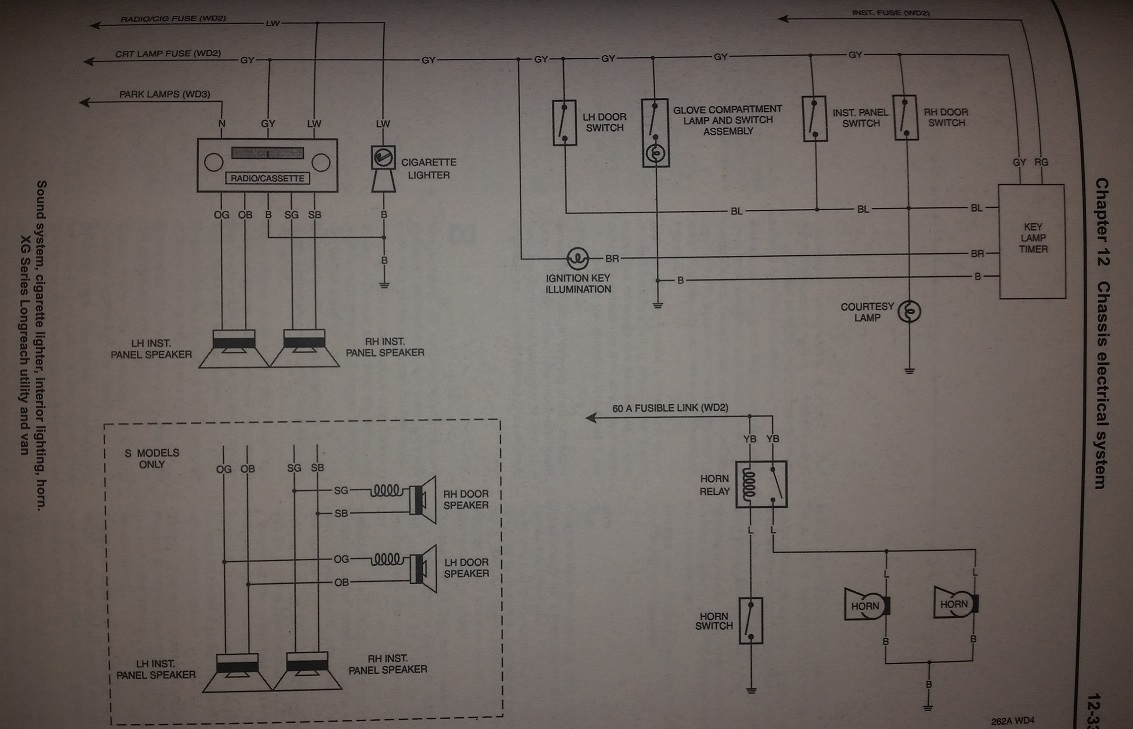

d2.jpg [ 195.25 KiB | Viewed 43 times ]

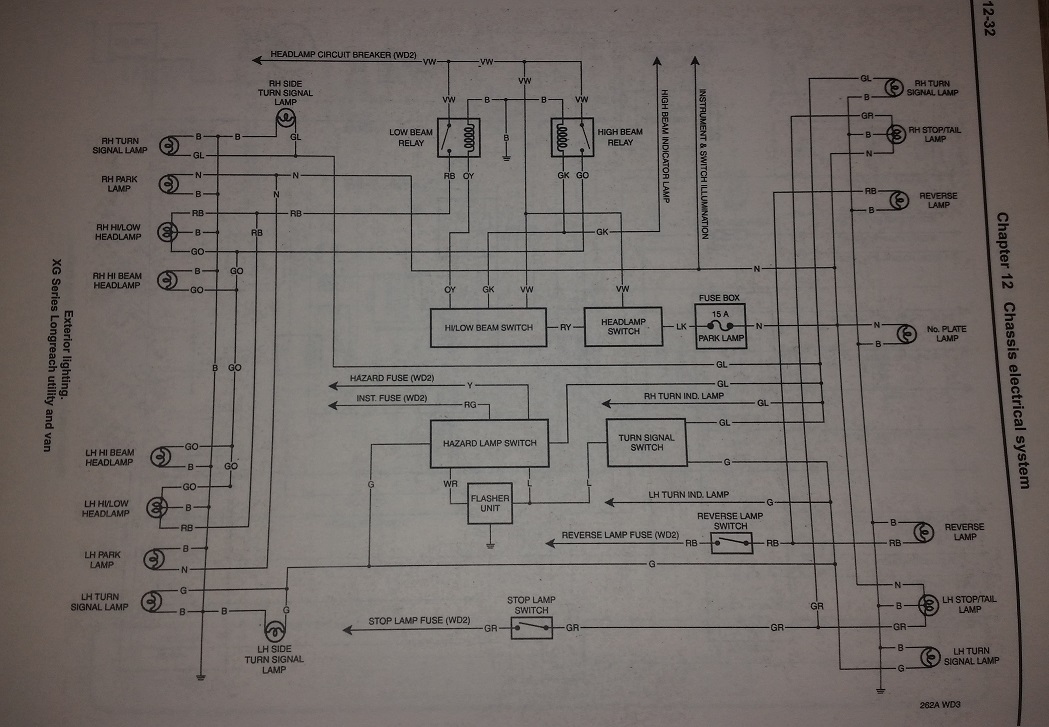

ext wiring 2.jpg
ext wiring 2.jpg [ 205.08 KiB | Viewed 41 times ]
Top
 Profile


 Post subject: Re: XG UTE WIRING DIAGRAM HELP
Posted: Sun Sep 18, 2016 9:24 am
Parts Gopher
Offline
User avatar

Age: 24

Posts: 62

Joined: 11th May 2012

Ride: 94 tickford enhanced xg ute

Location: devonport
TAS, Australia

haha thanks for that. i got it done eventually but this may yet still prove useful to someone else in the future. cheers mate
Top
 Profile


 Post subject: Re: XG UTE WIRING DIAGRAM HELP
Posted: Sun Sep 18, 2016 8:03 pm
Fordmods Newbie
Offline
User avatar

Age: 36

Posts: 10

Joined: 6th Jun 2016

Ride: XF Falcon S Pac - 5L Efi

Location: Bendigo
VIC, Australia

Ah that's good to hear. No worries
