XH 6/6.5" door speaker upgrade



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: XH 6/6.5" door speaker upgrade
Posted: Wed Jun 20, 2007 1:34 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

As most XF/XG/XH ute owners may appreciate, those std 4" speakers just don't cut it, no matter how good a brand, they just don't compare with the bigger speakers.
There have been threads on adding subs, etc to the behind seat panel, but I wanted to mod the doors - AFAIK, I haven't seen anyone do it.

Not really that hard - remove the old plastic speaker bracket, mark the speaker position, cut your hole (be careful), I used E series wagon tailgate brackets, which were pop rivetted to the doors (keep the foam splash guards too) they did need the speaker holes enlarged to fit the speakers, drill the speaker holes, fit the speaker. There's enough clearance to the lowered window glass.
The door trim needs to be cut and the grill fitted (hence the parcel shelf carpet to cover any imperfections, etc).
I did use brushcote sound deadener inside the door and on the outer skin - does make a fair difference on road noise, and improves the speaker bass considerably - even the doors sound like doors when they're closed - not like tin cans anymore.





Attachments:

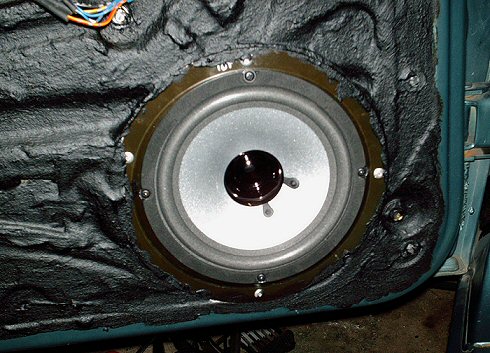

File comment: Speaker fittting . . .
speaker1.jpg [ 78.31 KiB | Viewed 120 times ]

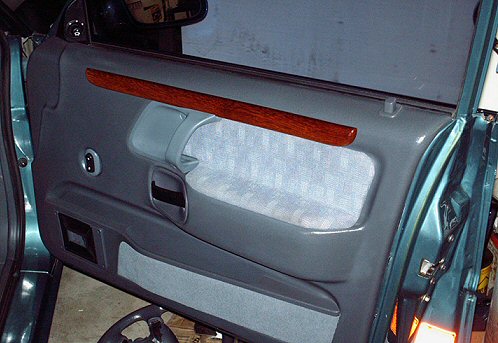

File comment: Before . . . .
speaker4.jpg [ 61.65 KiB | Viewed 157 times ]

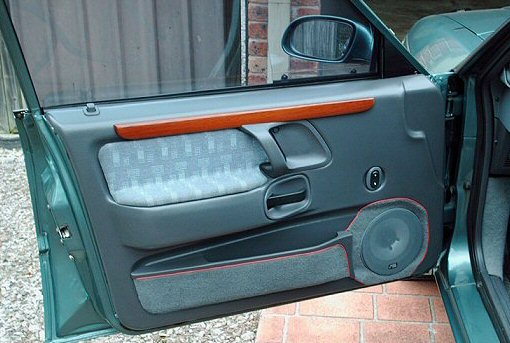

File comment: After . . .
speaker3.jpg [ 58.47 KiB | Viewed 181 times ]

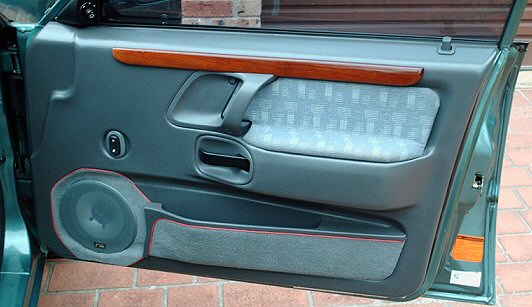

File comment: After . . .
speaker2.jpg [ 63.93 KiB | Viewed 144 times ]



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Wed Jun 20, 2007 7:29 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Once again snap...nice work! 8-)
When I first read the title I was gunna post something along the lines of 6" speakers are hard to fit to the doors. I have trouble (I didn't fit the speakers, the previous owner did) with the window winders hitting the speaker grills; a problem you have solved :lol: :lol:



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Thu Jun 21, 2007 11:54 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Thanks dude. I wouldn't think going back to manual winders would be a prob on mine as the grille is sitting in the recess.
The grilles are mounted too far proud of the door in yours ??



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Thu Jun 21, 2007 3:46 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Nice looking window switches - Damn nicer than the jaycar ones I had to use. Where'd you get em? :D



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Thu Jun 21, 2007 5:00 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2550

Joined: 28th Jun 2005

Gallery: 13 images

Ride: EF 5 Speed, XH Uterus :P

Location: Hobart
TAS, Australia

EBGizmo wrote:
Nice looking window switches - Damn nicer than the jaycar ones I had to use. Where'd you get em? :D


they're EF/EL switches



_________________

Maloo - Holden's word for ugly.

Top
 Profile


Posted: Thu Jun 21, 2007 5:47 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Don't suppose you know how much they cost from Ford? I take it they are the switches for the rear doors, as they appear to have a shroud built in.



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Thu Jun 21, 2007 6:03 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

snap0964 wrote:
Thanks dude. I wouldn't think going back to manual winders would be a prob on mine as the grille is sitting in the recess.
The grilles are mounted too far proud of the door in yours ??


Yeah the grilles are a bit proud. One day I will replace the entire door trim and mount them properly 8-)



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Thu Jun 21, 2007 7:59 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

The Dog wrote:
snap0964 wrote:
Thanks dude. I wouldn't think going back to manual winders would be a prob on mine as the grille is sitting in the recess.The grilles are mounted too far proud of the door in yours ??
Yeah the grilles are a bit proud. One day I will replace the entire door trim and mount them properly 8-)
Do it fella !!!!

mr_sperm1 wrote:
EBGizmo wrote:
Nice looking window switches - Damn nicer than the jaycar ones I had to use. Where'd you get em? :D
they're EF/EL switches

EBGizmo wrote:
Don't suppose you know how much they cost from Ford? I take it they are the switches for the rear doors, as they appear to have a shroud built in.
That's correct - I wouldn't bother with ford, they'll cost big $$$. IIRC I've got a couple spare. Wouldn't EB/D ones suit yours better??, IIRC you put powereds in your EB.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Thu Jun 21, 2007 8:02 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

No, EB was always manual, its the EF i'm almost finished with in the powered conversion. Do you have a pic of both types close up?



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Thu Jun 21, 2007 8:05 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Yeah will do it one day...enthusiasm for doing anything to any vehicles has died in the a*** since the cops defected my BA :evil:



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Thu Jun 21, 2007 8:16 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

The Dog wrote:
Yeah will do it one day...enthusiasm for doing anything to any vehicles has died in the a*** since the cops defected my BA :evil:
I'm hearin Ya . . . .

EBGizmo wrote:
No, EB was always manual, its the EF i'm almost finished with in the powered conversion. Do you have a pic of both types close up?
Sorry no photos of EB type - should be able to find them on here though in the galleries. EF/EL ones: http://www.fordmods.com/forums/viewtopic.php?t=34631



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: XH 6/6.5" door speaker upgrade
Posted: Wed Dec 23, 2009 2:33 pm
Fordmods Newbie
Offline

Age: 29

Posts: 1

Joined: 18th Dec 2009

Ride: XH Ute

Location: The Bush
WA, Australia

hey, nice pics,
i just wanted to know if its possible to keep the original door trim and still have 6 inchers?
also do you know what clearance there is between the window and the inside door panel?
Top
 Profile


 Post subject: Re: XH 6/6.5" door speaker upgrade
Posted: Wed Dec 23, 2009 10:28 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, you can keep the original trims.
Best way to measure the window to skin depth is to pull the door trim, wind the window down, remove the original speaker, and use a ruler through the cavity.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: XH 6/6.5" door speaker upgrade
Posted: Mon May 21, 2012 4:33 pm
Fordmods Newbie
Offline

Age: 26

Posts: 10

Joined: 10th May 2012

Gallery: 1 images

Ride: ford xh ute

Location: melbourne
VIC, Australia

What door trims have you used are they xr6.or.e series
Top
 Profile


 Post subject: Re: XH 6/6.5" door speaker upgrade
Posted: Mon May 21, 2012 7:55 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

They are neither.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile
