XH XR6 No Spark!



Page 1 of 1 [ 8 posts ]


 Post subject: XH XR6 No Spark!
Posted: Tue Oct 23, 2018 5:49 pm
Parts Gopher
Offline

Age: 22

Posts: 63

Joined: 27th Aug 2012

Bought a cheap XH XR6 Falcon with a supposed distributor problem, when i got it i noticed it had a new distributor in it as well as a new coil. Still no spark so i pulled the plug off the coil and I'm getting power to the coil and replaced the coil to distributor lead aswell and I put a spark plug in the other end and confirmed there was no spark getting to the dizzy. Ive also checked the CRT fuse in the cabin which was fine and the interior light is working.

Starting to think a wiring issue or BCM maybe? any help would be sweet!|

Cheers
Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Wed Oct 24, 2018 9:31 am
Getting Side Ways
Offline

Age: 49

Posts: 440

Joined: 3rd Jan 2005

Ride: AU XR6 with BF Turbo engine

Location: Sydney
NSW, Australia

check power to module on the dizzy. the TFI module is a common culprit on these



_________________

RIP :( 1x confused Falcon..EL Falcon with full AU running gear...VCT, 5 speed, IRS, AUII front suspension, brakes, and steering RIP

Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Thu Oct 25, 2018 1:27 pm
Parts Gopher
Offline

Age: 22

Posts: 63

Joined: 27th Aug 2012

Do you know which pins should be powered up on the TFI plug?

Also there seems to be some pretty dodgy wiring on the TFI loom, looks like they have extended the TFI loom on one of the wires for some reason.

Cheers
Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Fri Oct 26, 2018 11:39 am
Getting Side Ways
Offline

Age: 49

Posts: 440

Joined: 3rd Jan 2005

Ride: AU XR6 with BF Turbo engine

Location: Sydney
NSW, Australia

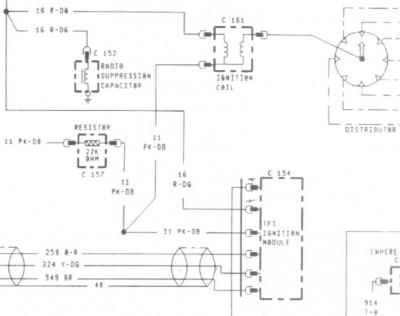

there should be a red with green trace wire that has 12v with ign on. REF attachment for diagram





Attachments:
EL.JPG [ 48.35 KiB | Viewed 3 times ]



_________________

RIP :( 1x confused Falcon..EL Falcon with full AU running gear...VCT, 5 speed, IRS, AUII front suspension, brakes, and steering RIP

Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Fri Oct 26, 2018 8:04 pm
Parts Gopher
Offline

Age: 22

Posts: 63

Joined: 27th Aug 2012

Am definitely getting power at the TFI Plug!

Just chucked another ECU in it that my mate had and that didn't work either, BCM Fault maybe?
Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Mon Oct 29, 2018 4:18 pm
Getting Side Ways
Offline

Age: 49

Posts: 440

Joined: 3rd Jan 2005

Ride: AU XR6 with BF Turbo engine

Location: Sydney
NSW, Australia

MMmmm Could be, have also seen cheap chinese dizzy's fail when new. Some where i have a EL workshop manual which would be similar to the XH, ill see if I can dig it out. Where are you located?



_________________

RIP :( 1x confused Falcon..EL Falcon with full AU running gear...VCT, 5 speed, IRS, AUII front suspension, brakes, and steering RIP

Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Mon Oct 29, 2018 5:40 pm
Parts Gopher
Offline

Age: 22

Posts: 63

Joined: 27th Aug 2012

Have got another Dizzy and module to try (second hand) I've also cleaned up some average wiring jobs from the previous owner.

Im starting to think its an earth fault, I'm getting power to the coil but may not be earthing it correctly so i have a diode to try.

Will let you know what i find, starting to run out of ideas!
Top
 Profile


 Post subject: Re: XH XR6 No Spark!
Posted: Mon Oct 29, 2018 8:18 pm
Parts Gopher
Offline

Age: 22

Posts: 63

Joined: 27th Aug 2012

Tried the other dizzy aswell as the new diode.

Still got no spark. im out of ideas.
