AU Clutch pedal return spring



Page 1 of 1 [ 8 posts ]

Post New Topic Post Reply  Previous topic Next topic

PhilsMont
 Post subject: AU Clutch pedal return spring
Posted: Thu Jan 05, 2017 7:14 pm
Fordmods Newbie
Offline

Age: 29

Posts: 7

Joined: 4th Jan 2017

Ride: Au Fairmont Wagon

Location: Melbourne
VIC, Australia
Just about to do a t5 conversion on my au wagon, and just wondering what the clutch pedal return spring connects to? I assume one end is in the hole on the pedal.
Cheers.
Top
 Profile


Mad2
 Post subject: Re: AU Clutch pedal return spring
Posted: Thu Jan 05, 2017 9:09 pm
Fordmods Junkie
Online
User avatar

Posts: 3930

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia
i'm assuming other end clips into bracket on firewall [inside] ? ... couldn't see anywhere on bracket for it to clip too? [currently brackets sitting in shed]
Top
 Profile


Shortshift
 Post subject: Re: AU Clutch pedal return spring
Posted: Fri Jan 06, 2017 11:42 am
Getting Side Ways
Offline
User avatar

Age: 61

Posts: 869

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

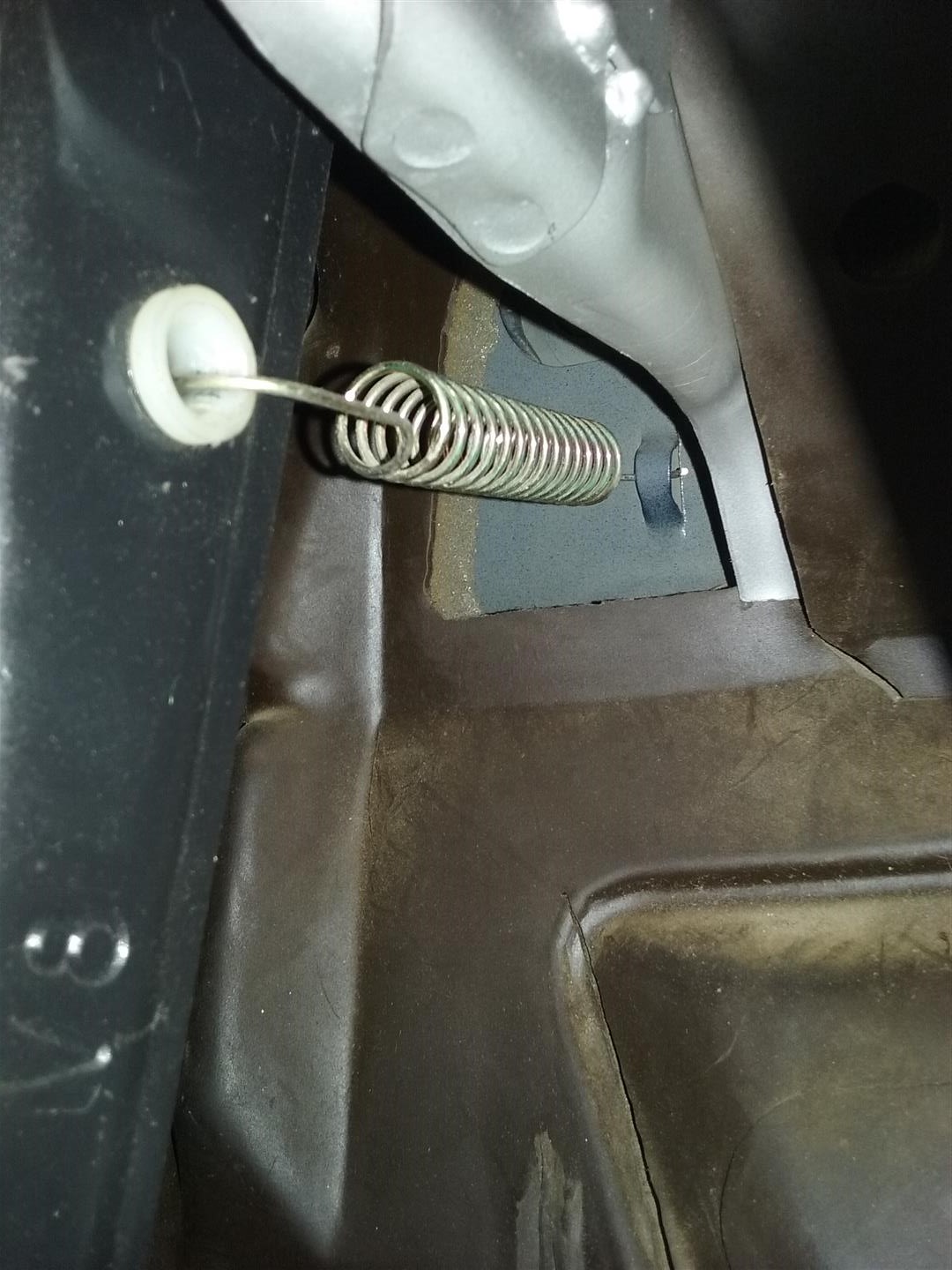

Here you go...





Attachments:
File comment: Location of clutch spring on AU
20170106_113548 (Large).jpg
20170106_113548 (Large).jpg [ 259.29 KiB | Viewed 634 times ]



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection
Top
 Profile


PhilsMont
 Post subject: Re: AU Clutch pedal return spring
Posted: Fri Jan 06, 2017 1:40 pm
Fordmods Newbie
Offline

Age: 29

Posts: 7

Joined: 4th Jan 2017

Ride: Au Fairmont Wagon

Location: Melbourne
VIC, Australia
Ah yes next to where the cable comes through the firewall, thanks mate don't know how I missed that.
I assume it's purpose is to keep the throwout bearing in contact with the pressure plate fingers?
Top
 Profile


PhilsMont
 Post subject: Re: AU Clutch pedal return spring
Posted: Sun Jan 08, 2017 3:10 pm
Fordmods Newbie
Offline

Age: 29

Posts: 7

Joined: 4th Jan 2017

Ride: Au Fairmont Wagon

Location: Melbourne
VIC, Australia
And also, can someone shoot me a photo of the clutch cable bracket on the back of the block/bellhousing?
Thansks
Top
 Profile


Mad2
 Post subject: Re: AU Clutch pedal return spring
Posted: Sun Jan 08, 2017 3:22 pm
Fordmods Junkie
Online
User avatar

Posts: 3930

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia
PhilsMont wrote:
And also, can someone shoot me a photo of the clutch cable bracket on the back of the block/bellhousing?
Thansks



are you meaning the front one that holds the outer cable? ... or the part that holds the cable to the fork?
Top
 Profile


PhilsMont
 Post subject: Re: AU Clutch pedal return spring
Posted: Sun Jan 08, 2017 3:37 pm
Fordmods Newbie
Offline

Age: 29

Posts: 7

Joined: 4th Jan 2017

Ride: Au Fairmont Wagon

Location: Melbourne
VIC, Australia
Mad2 wrote:
PhilsMont wrote:
And also, can someone shoot me a photo of the clutch cable bracket on the back of the block/bellhousing?
Thansks



are you meaning the front one that holds the outer cable? ... or the part that holds the cable to the fork?


The one that holds the outer cable and guides it in straight towards the bellhousing
Top
 Profile


Mad2
 Post subject: Re: AU Clutch pedal return spring
Posted: Sun Jan 08, 2017 11:11 pm
Fordmods Junkie
Online
User avatar

Posts: 3930

Joined: 22nd Jan 2009

Ride: '03 BA & '06 BF Wagooons

Location: Geeelong
VIC, Australia
PhilsMont wrote:
Mad2 wrote:
PhilsMont wrote:
And also, can someone shoot me a photo of the clutch cable bracket on the back of the block/bellhousing?
Thansks



are you meaning the front one that holds the outer cable? ... or the part that holds the cable to the fork?


The one that holds the outer cable and guides it in straight towards the bellhousing


ok two pics of it for ya :mrgreen:




that's what came with the AU box i bought & looks the same as the EA/EB/ED/EF/EL items
Top
