BA ECU inputs needed for 4-speed to shift correctly



Page 1 of 1 [ 5 posts ]


 Post subject: BA ECU inputs needed for 4-speed to shift correctly
Posted: Sun Jan 18, 2015 11:24 am
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hi guys,have done a barra conversion in my XG ute but need to know what the ecu needs to know when to change gears correctly, I've used the sequential shifter aswell as tacho module for EB sports cluster-xg extention housing & speedo, so the ecu has no speed or tacho input - I'm assuming this is the problem,can anyone give me a bit of advice about this-would be really appreciated, cheers, Johnny.
P.S-can anyone point me in the right direction to a BA FALCON UTE NON-ABS -ECU Pinout, am having a hard time finding non abs pinouts at all.



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Last edited by johnnyeHCF on Mon Jan 19, 2015 5:49 pm, edited 3 times in total.

Top
 Profile


 Post subject: Re: BA ECU inputs for needed for 4-speed to shift correctly
Posted: Sun Jan 18, 2015 2:23 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Ok so normally the BA gets the VSS from the ABS & from what I can tell I should be able to change the ECU to run non ABS (with HP tuner)then run 1 or 2 wires from XG speedo sender to the ECU, Anyone know which of the three speedo wires I need to use and which pin/s it goes to on the BA ECU,cheers, Johnny.



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: BA ECU inputs needed for 4-speed to shift correctly
Posted: Mon Jan 19, 2015 7:18 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys-even thou nobody replied (they probably assumed I'm a moron), grannyfalcon82/Bayden helped me work it out-wish I was as switched on as he is at his age, anyway for anyone else doing the same it's the white wire from the speedo sender to ECU pin B07, gears change ok (needs a few adjustments)-tiptronic working aswell,

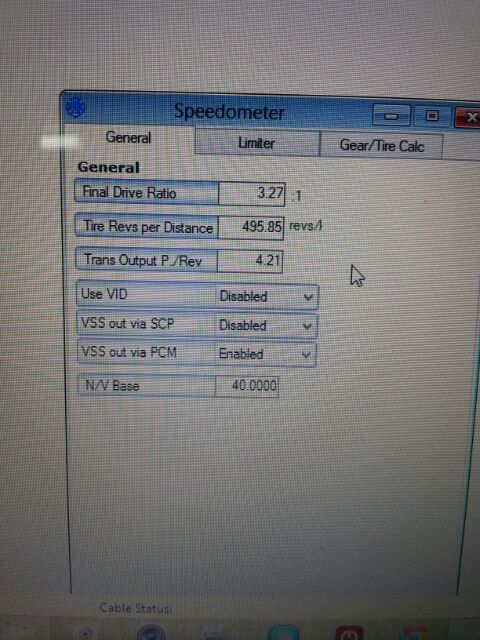

Pic here shows what to change-will try to work out shifts and update asap, cheers, Johnny.





Attachments:
IMG_2015011942473.jpg [ 62.69 KiB | Viewed 35 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: BA ECU inputs needed for 4-speed to shift correctly
Posted: Tue Jan 20, 2015 10:23 am
Fordmods Junkie
Offline
User avatar

Posts: 2753

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

don't think ya a moron! ... only noticed last night & keep up the good work :mrgreen:
Top
 Profile


 Post subject: Re: BA ECU inputs needed for 4-speed to shift correctly
Posted: Wed Jan 28, 2015 12:00 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hi Mad2 thanks mate -I appreciate that, so Ive sorted the speedo input-turns out that all the transducers from XF on are 10 pulse per revolution and before XF are 8 pulse (if any one can confirm/correct this) so changed it to 10 & used a online tyre/wheel calculator and came up with 788.59 tyre revolutions per mile (for my tyre size), shifts are alot better but still a bit weird between 3rd & 4th-so still some fine tuning, but drove it back from the far north coast 7-8 hour drive mainly using the sports shift or performance mode and have to say it was a pleasure to drive-fuel economy was really good compared to the old donk (the old xg engine wasn't too bad on fuel) but the dohc engine gives very good economy, the engine with the sports exhaust that I already had on the XG and new extractors (cat had to be lengthened)+the massive K&N pod filter and the new underdrive kit-throttle response is really good and induction noise has a very nice note.
Will be doing a bit of a build thread in the next few weeks in the garage (just getting a couple of things out of the way first) so I'll try and make it as informative as possible.
Cheers, Johnny.
