BA Front Brake Conversion to BF



Page 1 of 2 [ 21 posts ] Go to page 1, 2  Next


 Post subject: BA Front Brake Conversion to BF
Posted: Wed Jul 25, 2007 10:15 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

OK, we're underway.

The BA XR8 Front brakes are 298mm ventilated Rotors.

The BF XR8 Front brakes are 322mm ventilated Rotors with different calipers (I've heard these come as a result of the Brake work done on the Territory)

The BA XR8 Premium Brake package had 325mm front discs. So the BF discs work out to be quite a bargain.

Anyway, FTG have a front brake upgrade kit (BA to BF) for $650, which includes RDA slotted rotors, Calipers, Brake Lines and Pads (See the FTG area of the forums for more details).

I have the upgrade kit on my oily-shelf, and will be photo-journalling the cutover and posting it up here.

My first two points of call are:

(1) What solvent do you guys recommend for removing the storage-and-transport coating? And what's the best way of cleaning them up - bathing them in the stuff, or damp-ragging it away.

(2) What brand/type of brake fluid is generally used by Ford Workshops? I'll obviously have to bleed-in the new lines and calipers, and want to use the same fluid where I can.

The first set of Photo's should be up shortly with the bits fresh out of the shipping box....


Lukeyson
Top
 Profile


Posted: Wed Jul 25, 2007 10:25 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Re: Brake Fluid

User Manual says Super Dot 4 brake fluid. Ford R1-39A is an example.

Question is, should I go for the Ford fluid or just find any Super Dot 4?

Recommendations anyone?


Lukeyson
Top
 Profile


Posted: Wed Jul 25, 2007 11:02 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 280

Joined: 21st Apr 2007

Gallery: 4 images

Ride: xr8 no.3 Au3 Ute

Location: Bundaberg
QLD, Australia

just go to u'r local ford dealer spare parts and ask for a bottle of brake fluid or 2. shouldn't be dear..... but then again lol genuine ford spare parts, take the deed to your house incase
Top
 Profile


Posted: Wed Jul 25, 2007 11:07 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

they're about $6 a bottle reatail for brake fluid. The change is a piece of pie to do, we did trents BA turbo a while ago, but after u bleed the brakes the pedal might still feel spongy when at dead stop for a week or 2, same as any brand new car you get into.
Top
 Profile


Posted: Wed Jul 25, 2007 11:20 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3531

Joined: 5th Nov 2004

Gallery: 25 images

Ride: 93 Maverick LWB/S2 LWB Delica

Power: 75 rwkw

Location: uoʇǝlƃuıs lʍoq ʇsnp
NSW, Australia

Lukeyson wrote:
Re: Brake Fluid

User Manual says Super Dot 4 brake fluid. Ford R1-39A is an example.

Question is, should I go for the Ford fluid or just find any Super Dot 4?

Recommendations anyone?


Lukeyson


Find any well known brand name Dot 4, it won't make any difference considering most dealerships use different brands of brake fluid as long as it conforms to original specs, it is the same with oils used at dealerships.

If it is a warranty issue than more likely the dealership with use Ford branded products so they can claim it back from Ford, same thing happens with other manufacturers.


Use any solvent which leaves no residue for cleaning the discs, guaranteed solvent would be brake cleaner, the name says it all.



_________________

93 Ford Maverick LWB automatic petrol guzzler (gets stuck where Deli doesn't, big pumpkins :evil:)
97 S2 Mitsubishi Delica LWB (off the road getting v8 transplant) http://tmacmechanical.com.au/

Top
 Profile


Posted: Fri Jul 27, 2007 1:44 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

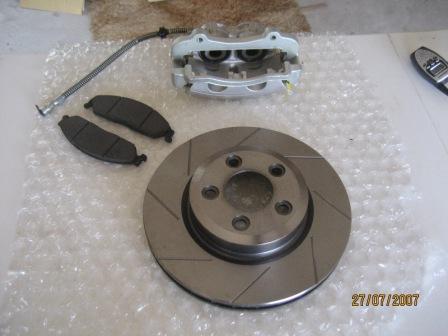

All the components of the LHS Brake Replacement





Attachments:
ALL_LHS_BITS_IMG_1283_IMG.jpg [ 23.21 KiB | Viewed 85 times ]
Top
 Profile


Posted: Fri Jul 27, 2007 1:46 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

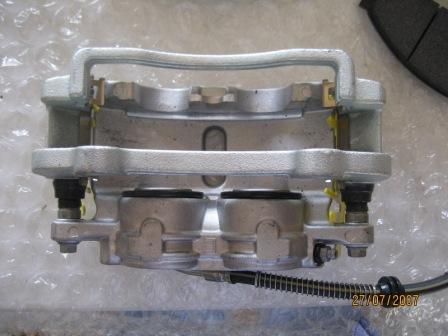

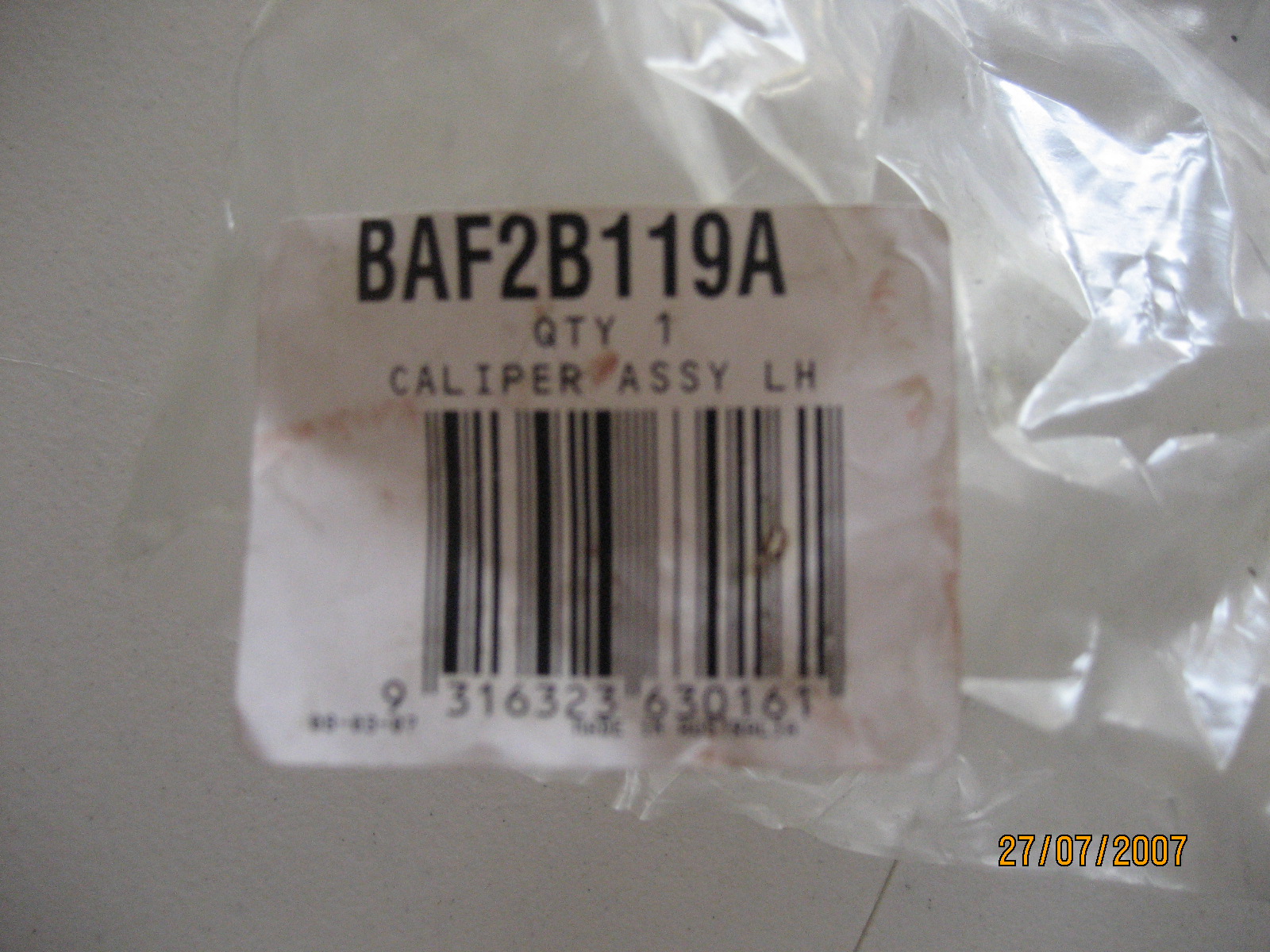

Caliper Images





Attachments:
CALIPER_PART_NO_IMG_1287_WEB.jpg [ 557.32 KiB | Viewed 41 times ]
CALIPER_LH_IMG_1286.jpg [ 25.73 KiB | Viewed 45 times ]
Top
 Profile


Posted: Fri Jul 27, 2007 1:50 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

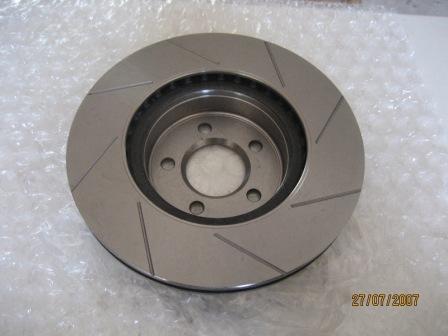

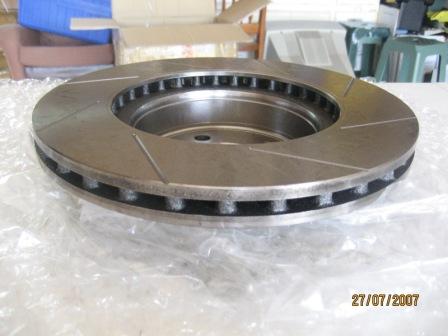

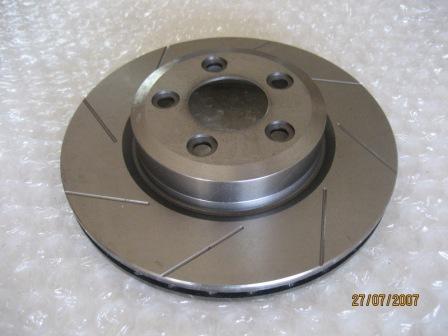

322mm slotted RDA Rotors





Attachments:
ROTOR_EXPOSED_SIDE_IMG_1282_WEB.jpg [ 22.03 KiB | Viewed 37 times ]
ROTOR_INNER_SIDE_IMG_1280_WEB.jpg [ 21.07 KiB | Viewed 39 times ]
ROTOR_EDGE_IMG_1281_WEB.jpg [ 23.55 KiB | Viewed 38 times ]
Top
 Profile


Posted: Mon Aug 06, 2007 4:22 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Brake Cleaner Solvent? That's some sort of well known product at Supercheap Auto or something maybe?

Otherwise, how relevant are solvents like Turps, Methylated Spirits, Paint Thinners or Petrol?

I think I'll get in this weekend and have a go at changing them over.



Lukeyson
Top
 Profile


Posted: Fri Aug 10, 2007 7:07 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Brake upgrade done.

Is there any need to do a How-To? I took a whole lot of shots.

Here's a few of them:





Attachments:

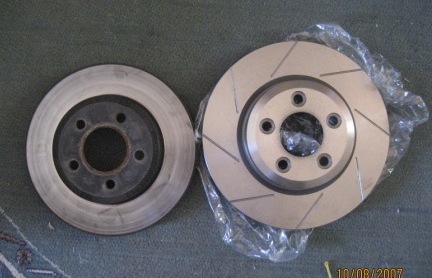

File comment: Disc comparison
IMG_1331_WEB.jpg [ 44.32 KiB | Viewed 52 times ]

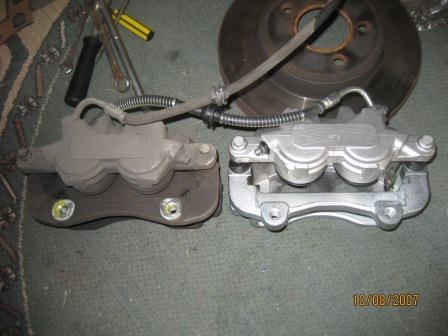

File comment: Caliper Comparison. Seems to be the same pistons, just different mounting
IMG_1336_WEB.jpg [ 27.42 KiB | Viewed 87 times ]

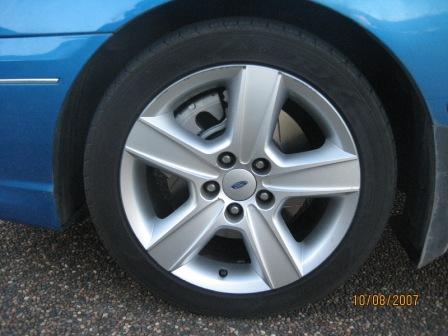

File comment: Final Product
IMG_1345_WEB.jpg [ 26.63 KiB | Viewed 70 times ]
Top
 Profile


Posted: Fri Aug 10, 2007 8:03 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1298

Joined: 4th Apr 2006

Ride: BA 3v ute

Location: Melbourne
VIC, Australia

Looks good! How do they compare to the old ones? I was looking at getting them but instead i decided on the PBR kit which is going on in a week :D



_________________

www.bseries.com.au/punktured

Top
 Profile


Posted: Fri Aug 10, 2007 8:06 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Early days. Still smoking a lot as I had to try and remove most of the 'shipping coating' using a solvent.... And a bit spongy on the pedal after going in. I suspect I probably do have to bleed some more.

I'm not doing any hard stops yet until they bed in for awhile, so I won't be able to offer you any bumometer braking comparisons yet.


Lukeyson
Top
 Profile


Posted: Fri Aug 10, 2007 8:07 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

I'm starting to get brake shudder again so i'll be looking at getting something like that. A guide would still be helpful as I dont know all the little things like bleeding brakes properly etc. Last thing i'd want is brake fail.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Fri Aug 10, 2007 8:11 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

While you can't see it in the picture above, the old rotors were pretty badly scored, and had already been machined 3 times at Ford while under warranty.

There wasn't much left of them!

And the pads only had about 2-3mm left on them. So it was good timing.

But I've got to say, the bleeding is the easy bit. The hard bit is getting enough leverage to undo the 2 main mounting bolts which seem to be lock-tite bonded from the factory, and getting the discs off the hub - after so may heat cycles the things had to be levered off with a bloody 1-metre bar!

2yo was crawling over my back and lap at the time, so there were a few tense moments....


Lukeyson
Top
 Profile


Posted: Fri Aug 10, 2007 8:22 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

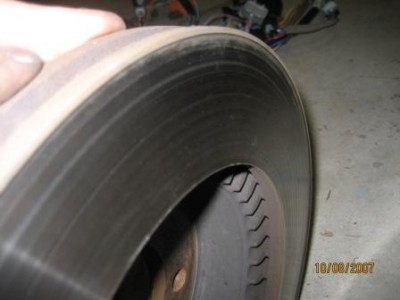

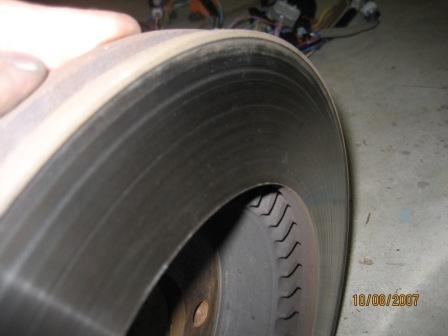

This picture might show the scoring - there's a pretty deep lip right on the edge, about 1mm thick and maybe the same again deep.





Attachments:
IMG_1353_WEB.jpg [ 18.22 KiB | Viewed 41 times ]
