Bolting a T5 to a Cleveland?



Page 1 of 1 [ 7 posts ]


 Post subject: Bolting a T5 to a Cleveland?
Posted: Sat Apr 19, 2008 2:02 am
Oompa Loompa
Offline

Age: 51

Posts: 22

Joined: 2nd May 2007

Ride: older the better

Location: Perth
WA, Australia

I am fitting a cleveland into my old XK falcon and I want to run a T5 behind it. I know it can be done, but I don't want to pay a fortune for a conversion kit. I'm sure I've read some info about using a single rail bell housing and machining the bearing housing on the front of an I6 T5 box slightly to fit in the hole in the single rail bellhousing. I believe there is also some hole relocating that has to go on. Anyone done it? I searched the threads and came up blank.



_________________

Give a man a fish and you'll feed him for a day. Teach a man to drive a Ford and all the Holden drivers can smell like fish instead.

Top
 Profile


Posted: Sun Apr 20, 2008 12:07 am
Getting Side Ways
Offline
User avatar

Posts: 1863

Joined: 30th Apr 2006

Location: Melbourne
VIC, Australia

pilch on AFF had an EA 6 cylinder T5 behind his clevo'd XC so have a search on there, he had plenty of info up.

On a side note, how'd you get clearance for the clevo in the XK?
Top
 Profile


Posted: Sun Apr 20, 2008 2:44 am
Stock as a Rock
Offline

Age: 28

Posts: 161

Joined: 30th Sep 2007

Ride: XB ute, ED mont

Location: Kalamunda
WA, Australia

I put a T5 in an xb ute behind a clevo, just get a bellhousing from Dellow they are about $400, then bolts straight up, just need to slightly modify cross member.



_________________

ED Fairmont, XR lights, AU tickford 200kw, GT-P 18's, TwEEcer, 230kw, KAAZ LSD.

Top
 Profile


Posted: Thu Apr 24, 2008 9:08 pm
Oompa Loompa
Offline

Age: 51

Posts: 22

Joined: 2nd May 2007

Ride: older the better

Location: Perth
WA, Australia

Hi guys, been doing the family thing for a few days, so missed a couple of your messages (sorry). I just called a mechanical shop that has done the conversion before and he confirmed that a single rail bell housing is the trick. I will fit a couple of "slugs" into it to tap a new thread for the bottom bolts. I will put photos on here as I go. As for the way to fit a clevelend into the engine bay, you buy an L300 Mitsi front suspension unit and do away with those nasty intrusive spring towers! Photos soon! This is all police OK'd, just bought my McDonald brothers triangulated four link kit from Fat Pickups in Morley for the back end. Got to get it done before I move house.



_________________

Give a man a fish and you'll feed him for a day. Teach a man to drive a Ford and all the Holden drivers can smell like fish instead.

Top
 Profile


Posted: Thu Apr 24, 2008 9:17 pm
Getting Side Ways
Offline
User avatar

Posts: 1863

Joined: 30th Apr 2006

Location: Melbourne
VIC, Australia

DIRT_UTE_6 wrote:
Hi guys, been doing the family thing for a few days, so missed a couple of your messages (sorry). I just called a mechanical shop that has done the conversion before and he confirmed that a single rail bell housing is the trick. I will fit a couple of "slugs" into it to tap a new thread for the bottom bolts. I will put photos on here as I go. As for the way to fit a clevelend into the engine bay, you buy an L300 Mitsi front suspension unit and do away with those nasty intrusive spring towers! Photos soon! This is all police OK'd, just bought my McDonald brothers triangulated four link kit from Fat Pickups in Morley for the back end. Got to get it done before I move house.


Sounds like an awesome project mate, looking forward to some pics.
Top
 Profile


 Post subject: Shots of the donor and the project
Posted: Fri Apr 25, 2008 1:17 am
Oompa Loompa
Offline

Age: 51

Posts: 22

Joined: 2nd May 2007

Ride: older the better

Location: Perth
WA, Australia

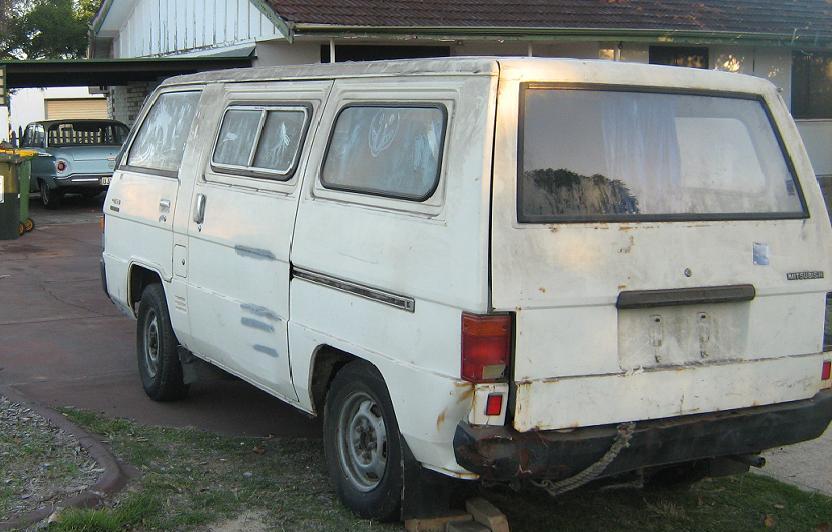

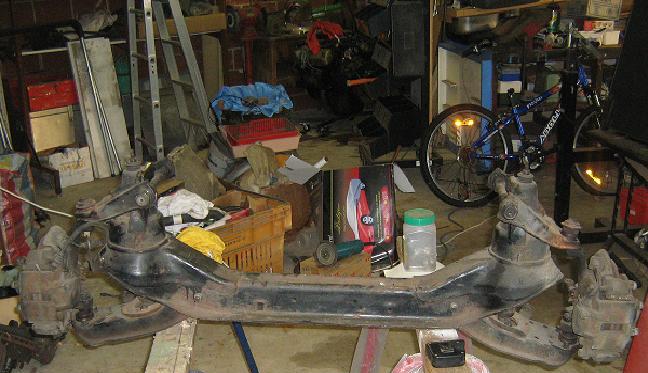

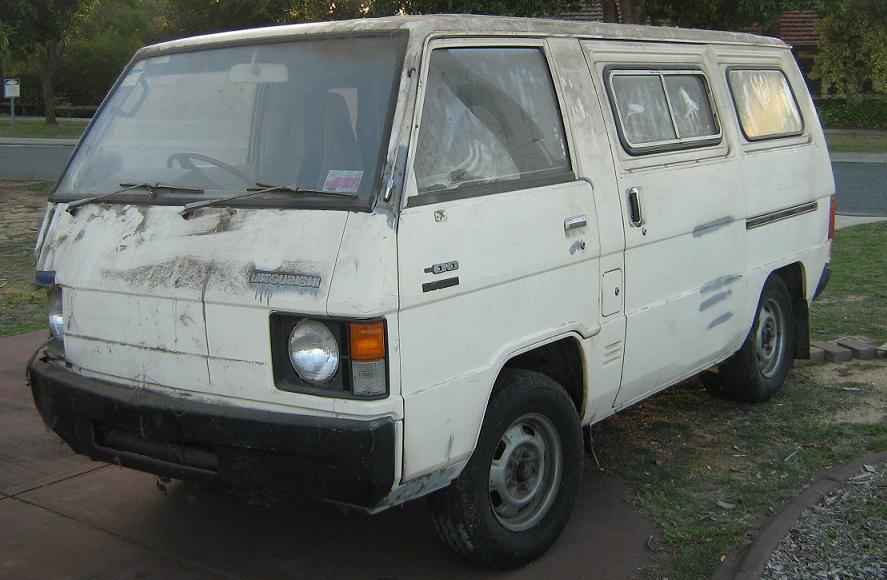

Here's some shots for one and all. I'm going to use an L300 frontend under my XK, so I can remove the spring towers and fit in a clevo. I picked up a van near my place, I think it's a 85 model. I knocked on the door and paid $150 for it. I should get most of that back because it has a new radiator and the motor goes etc. You can see my XK in the background. I already have another L300 frontend in the shed (shed's a mess, I know!) for a hotrod I'm fiddling with, so I included a shot of it to show how one looks. This one has had all the mounts trimmed off, so it really only gives you an idea on their configuration. All the steering arms and the springs are off it too. You can see the clevo in the background if you look close. I'll see if I can post a shot of the freshly harvested one with all it's peripherals attached once it's out. I know I digressed a bit, but it's all the same project.





Attachments:
L300 3a.JPG
L300 3a.JPG [ 76.21 KiB | Viewed 54 times ]
L300 2a.JPG
L300 2a.JPG [ 71.41 KiB | Viewed 59 times ]
L300 1a.JPG
L300 1a.JPG [ 53.01 KiB | Viewed 77 times ]



_________________

Give a man a fish and you'll feed him for a day. Teach a man to drive a Ford and all the Holden drivers can smell like fish instead.

Top
 Profile


Posted: Tue Apr 29, 2008 3:03 am
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

Now that's old fashioned modding at its best, please keep up the photos on you progress!!
Cheers,
Paul
