BTR 4 speed auto TRANSMISSION CONTROLLER



Page 5 of 16 [ 229 posts ] Go to page Previous  1, 2, 3, 4, 5, 6, 7, 8 ... 16  Next


Posted: Thu Feb 23, 2006 10:36 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

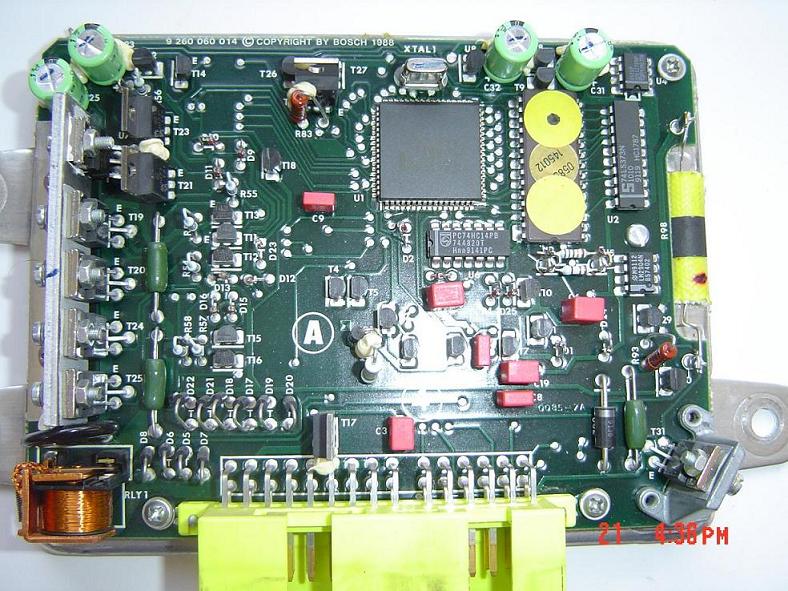

this is just one of many pics of the controller

guys any thoughts

i seen some great input at the start of the thread , u guys that understand electronics where do we start

cheers





Attachments:
DSC03534_BTR1.JPG [ 120.49 KiB | Viewed 143 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Fri Feb 24, 2006 2:18 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

hmm, well Id say the processor is in top right the square looking thing... and the chip to the right of that with what looks like stickers on it is the memory where the maps would be stored Im assuming.

The transistors on the left hand side would be FETs for the solenoids probably. Im trying to think of what that solenoid in the bottom left corner does.

You could start by pulling those yellow stickers of that chip, getting the Part number and the manufacturer. Then just check (google) if it is memory, and try and get a datasheet for it, and then we can try and read what is on it?

Anyone else?


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Sat Feb 25, 2006 7:54 am
ACT Cruise Moderator
Offline
User avatar

Age: 37

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Considerign that transistor at the borrom right is hooked up to the big resistor, I'd say it may be to do with shift 'firmness' - ie S5.

Unless my eyes are playing tricks and teh track just loops around the bottom trace of the resistor leg.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Feb 27, 2006 11:50 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

the epromm that is covered i have pealed of the stickers and its UV type of 28 pin epromm

the actual details on the eprom are as followers


857654
S56022
U10901285

i m c 1982


( note the small m and c letters have circles around them )


any ideas guys

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Mon Feb 27, 2006 1:46 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

can you pleae take a picture?


Thanks



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Fri Apr 21, 2006 10:09 pm
Fordmods Newbie
Offline
User avatar

Age: 39

Posts: 1

Joined: 21st Apr 2006

Ride: EFIIXR6

Location: Bendigo
VIC, Australia

Hi all, first post for me here although I've lurked for a long time on and off.
This project grabbed my attention, usually not a lot of people seem interested in getting into the guts of things... makes a refreshing change.
I can't offer much time or commitment, but I know enough to be dangerous mechanically and with micro's. My main interest is seeing a solution for 'mastering' the EECV, but this project is a great start in getting on top of things. I suspect that somewhere in this project, interaction with the EEC will be required (I'm sure the engine practises "torque control" during shifts) so hopefully something good will come of that too. At this stage all I can offer is encouragement and the occasional bit of info that may be useful - between everyone, we should know enough to make something happen.
I'm sure all are aware of the rudimentary "shift kits", but I'll link them here for reference:
http://www.mechanicalforums.com/viewtopic.php?t=18
http://www.fordmods.com/forums/viewtopic.php?t=2378

cheers
Top
 Profile


Posted: Sat Apr 22, 2006 9:44 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

justfordima wrote:
can you pleae take a picture?


Thanks


sorry my camare resolution up that close is not good

picture on macro is blurry

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Sat Apr 22, 2006 9:57 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

-=thrasher=- wrote:
Hi all, first post for me here although I've lurked for a long time on and off.
This project grabbed my attention, usually not a lot of people seem interested in getting into the guts of things... makes a refreshing change.
I can't offer much time or commitment, but I know enough to be dangerous mechanically and with micro's. My main interest is seeing a solution for 'mastering' the EECV, but this project is a great start in getting on top of things. I suspect that somewhere in this project, interaction with the EEC will be required (I'm sure the engine practises "torque control" during shifts) so hopefully something good will come of that too. At this stage all I can offer is encouragement and the occasional bit of info that may be useful - between everyone, we should know enough to make something happen.
I'm sure all are aware of the rudimentary "shift kits", but I'll link them here for reference:
http://www.mechanicalforums.com/viewtopic.php?t=18
http://www.fordmods.com/forums/viewtopic.php?t=2378

cheers



Yes some interesting reading on all the different methods people go to make the transmission shift differently

but the ideal way would be to use the facotry microprocessors in its proper way and program the shifting requirements

We need a electronics guy that knows his microprocessors like the back of his hand

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Thu May 04, 2006 1:18 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

I've been speaking with a few mate that work at BRT/ION/DSI about this. One of them has told me that they do some programming of the auto ecus there, and there is some form of EPROM burner and programming software they have. I'm still waiting to head back from them, and also speaking with another mate about trying to at least borrow this equipment..
I'll keep you guys informed.
Top
 Profile


Posted: Thu May 04, 2006 11:49 am
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

you mean the transmission controller?? or the whole Auto ECU?

I doubt they have access to programming the Ford ECUs, Ford is VERY strict on this, and normally only Ford Engineers with special clearance have access to the code/equipment.

Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Thu May 04, 2006 12:20 pm
Getting Side Ways
Offline
User avatar

Age: 47

Posts: 1040

Joined: 5th Nov 2004

Gallery: 5 images

Ride: EA Fairmont Ghia

Location: Melbourne
VIC, Australia

The BTR 4 speed auto control only recieves inputs from the TPS etc, it does NOT talk to the ECU in any shape or form.

I have an EA 3 speed auto ECU in my car, running a 4 speed auto trans control computer, with of course the BA/BF SSS electronics over the top of all that.



_________________

Full working BA Shifter now upgraded to BF Shifter.
BA headlight inserts in my EA headlights.

Top
 Profile


Posted: Thu May 04, 2006 12:22 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

yeah, ok...
but the later ECUs came with that built in, hence the ECU controls everything.

Its only the earlier fords that got the transmission controller, the rest of them have been controlled through the actual ECU itself.



Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Thu May 04, 2006 12:26 pm
Getting Side Ways
Offline
User avatar

Age: 47

Posts: 1040

Joined: 5th Nov 2004

Gallery: 5 images

Ride: EA Fairmont Ghia

Location: Melbourne
VIC, Australia

in the I6 from i think EBII on it was intergrated
in the V8 from i think AU on it was intergerated



_________________

Full working BA Shifter now upgraded to BF Shifter.
BA headlight inserts in my EA headlights.

Top
 Profile


Posted: Thu May 04, 2006 12:29 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

yeah, the V8s remained seperate.. but yeah from EBII onwards in the 6s it was integrated. Thats why I was asking which one they program, cos I don't think Ford would allow programming of the whole ECU, unless its the newer ECUs, then its no big deal.



Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Thu May 04, 2006 12:42 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 575

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

I'm lead to believe that some of the autos they send out actually have an controller with them. Keep in mind that BRT/ION make the same gearboxes for other companies then ford.
As soon as I find out more I’ll let you guys know..
