 Post subject: BTR Leak Very Unusual Spot
Posted: Wed Mar 28, 2018 10:33 am
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

Hi everyone,

I’ve just spend considerable time searching about a btr plastic connector leak, to find nothing at all.

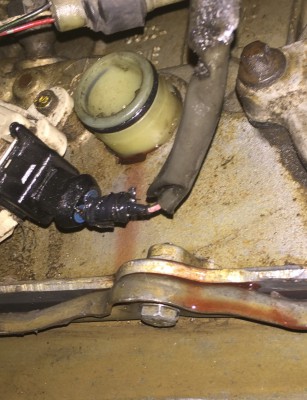

The transmission is leaking from the large round solenoid connector on the passenger side of the car can this be removed & replaced easily ?

I assume there is a seal that is replaceable?

Any tranny experts shed some light on this leak?

Can’t seem to reconnect it either as it just pushes into the transmission, but is obviously held by something to stop it falling in completely.

Very frustrated with the thing, trying to do from jack stands on the floor.

Leaks badly, especially when pushed in, loses litres in a matter of days.

Anyone shed light on this, plenty of info about a mechatronics sleeve on a zf, but nothing on a btr connector, even the PDF of the transmission never mentions a potential leak from here, or anything about the connector except it being a solenoid connector.

Any info much appreciated !





Attachments:
FC5E3E10-454B-42F3-9568-41DAB66C5239.jpeg [ 406.38 KiB | Viewed 22 times ]
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Tue Apr 03, 2018 11:55 pm
Getting Side Ways
Offline
User avatar

Age: 65

Posts: 3497

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

If it IS coming from that connector and not from behind the Neutral Switch? Then, you would have to replace the harness.
Attachment:
Auto.jpg [ 218.08 KiB | Viewed 23 times ]


There is a seal behind the Neutral switch and is available so, I would check that first.
Attachment:
Auto2.jpg [ 126.17 KiB | Viewed 26 times ]
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Wed Apr 04, 2018 2:42 pm
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

Thank you for your reply, it’s 100% coming from the outside of harness connector, it’s like it’s not seated correctly in the transmission allowing it to leak.

Should you be able to just push the connector further inside the transmission & it be able to rotate , or should it be firm?

It looks like from the schematic I would have to disassemble half the auto to replace it, I wonder if I could do anything on the outside of the box to seal it.

Either way looks like a nightmare leak !
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Wed Apr 04, 2018 4:26 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 367

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

ghia97 wrote:
Thank you for your reply, it’s 100% coming from the outside of harness connector, it’s like it’s not seated correctly in the transmission allowing it to leak.

Should you be able to just push the connector further inside the transmission & it be able to rotate , or should it be firm?


It should be firm and not rotate, i will double check this later as have a trans sitting on the ground. is should also not push in any further, it should be held in by little plastic spring lugs. (if i recall correctly there is a O ring around that connector plug in the trans, you would think i would remember because i pulled it out 3 hrs ago) i will get a photo later if i remember

ghia97 wrote:
It looks like from the schematic I would have to disassemble half the auto to replace it, I wonder if I could do anything on the outside of the box to seal it.

Either way looks like a nightmare leak !



Yep to get the one i pulled today out required valve body and a few other bits off the inside of the trans out the way.

Oil safe RTV sealant around the outside of the connector to seal it from the outside maybe?



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
RIP 1996 EF Falcon furura, White sacrificed for parts
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Wed Apr 04, 2018 8:36 pm
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

Thank you so much for your response !

I had a feeling that it shouldn’t be able to move around & push into the transmission.

Even if I seal it from the outside I’m unsure if I will be able to reconnect the plug without it pushing too far back in the transmission.

Do you know if there is a certain way that it sits in the transmission, I was thinking of getting some pliers to try to pull it out the connector further in the hope it will somehow lock into place, there appears to be an indent in the bottom of the transmission at the 6 o’clock position where the connector is, any idea of its purpose?

This shouldn’t be able to happen & to have to pull apart everything to re-seat it or replace it is a crazy design.

Would be great if you could check your transmission to see how it’s seated in & if it does move or is solid.
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Fri Apr 13, 2018 10:09 am
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

So nobody has a clue on how this connector should be seated in the transmission housing ?
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Fri Apr 13, 2018 10:25 pm
Fordmods Junkie
Offline
User avatar

Posts: 2845

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

ghia97 wrote:
So nobody has a clue on how this connector should be seated in the transmission housing ?



sometimes people that know ......... don't come on here very much. just be patient :mrgreen:


and NO i do not know.
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Thu Apr 26, 2018 1:58 am
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

I would of thought a month was been patient especially when the car is off the road because of this annoying leak.

I will use pliers on the plastic & try to engage it in place without breaking it.

Otherwise it looks like it will need another auto, or someone who may have the connector from a stuffed auto.

Can’t believe no one else has had this issue.
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Thu Apr 26, 2018 5:29 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 367

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

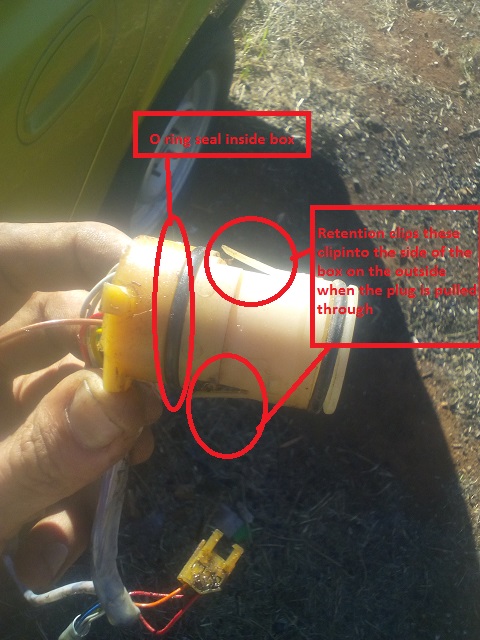

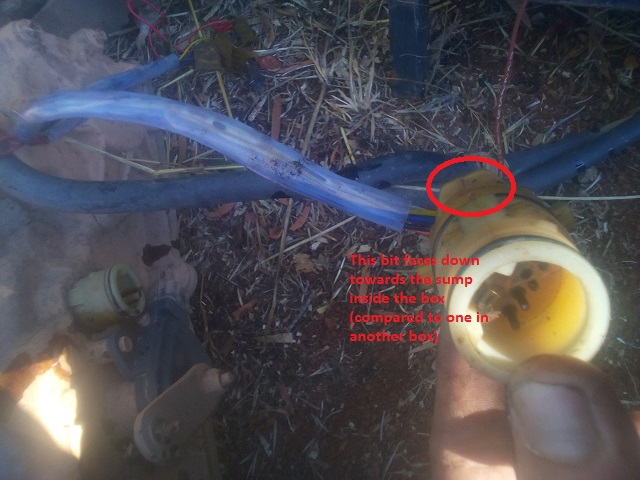

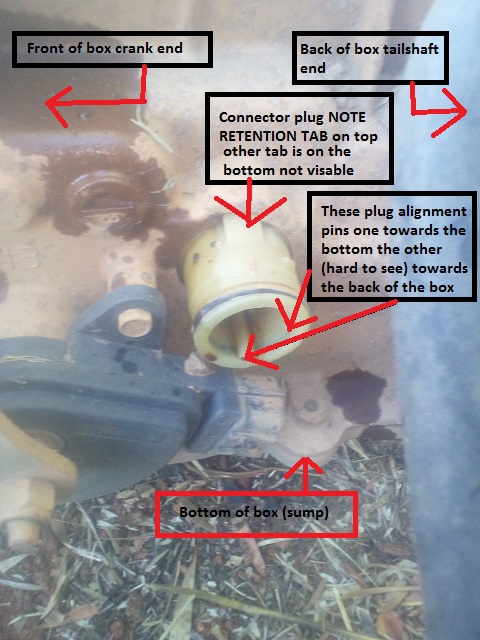

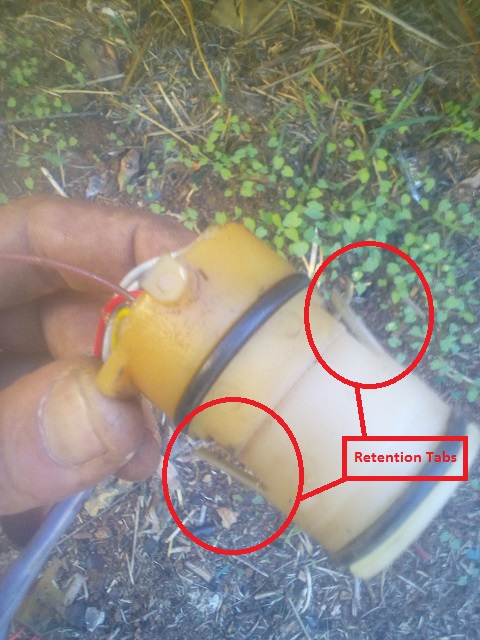

Attachment:
IMG_20180426_153036.jpg [ 180.83 KiB | Viewed 14 times ]


Attachment:
IMG_20180426_153016.jpg [ 168.31 KiB | Viewed 16 times ]



Attachment:
IMG_20180426_153233.jpg [ 164.06 KiB | Viewed 15 times ]


Attachment:
IMG_20180426_154620.jpg [ 182.64 KiB | Viewed 16 times ]



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
RIP 1996 EF Falcon furura, White sacrificed for parts
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Thu Apr 26, 2018 10:16 pm
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

OMG Robertau, you are an absolute champion. This is exactly the info I needed thank you so much for your detailed diagrams.

If your ever in Melbourne I’ll shout you a beer.

I’ll update you once I’ve done the job !
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Thu Apr 26, 2018 10:24 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 367

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

ghia97 wrote:
OMG Robertau, you are an absolute champion. This is exactly the info I needed thank you so much for your detailed diagrams.

If your ever in Melbourne I’ll shout you a beer.

I’ll update you once I’ve done the job !


No worries at all sorry it took so long couldn't get any pictures from inside the box, was too far buried in the scrap pile



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
RIP 1996 EF Falcon furura, White sacrificed for parts
1997 EL Falcon
1980 Ford Escort

Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Sun Apr 29, 2018 8:46 pm
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

Not a problem at all!

I just moved it to the direction in your diagram and pulled it out with pliers & the leak stopped right away and popped out further & it is firm.

I added litres of fluid with the engine running to get it to the correct level.

The only issue now is I can’t seem to get the round harness connector to connect to the transmission connector properly, I push it on hard and it feels like it’s home but can just be pulled right off easily.

Is there a certain way to attach the harness to the transmission connector?

Thanks again Robert !
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Fri May 18, 2018 11:14 am
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

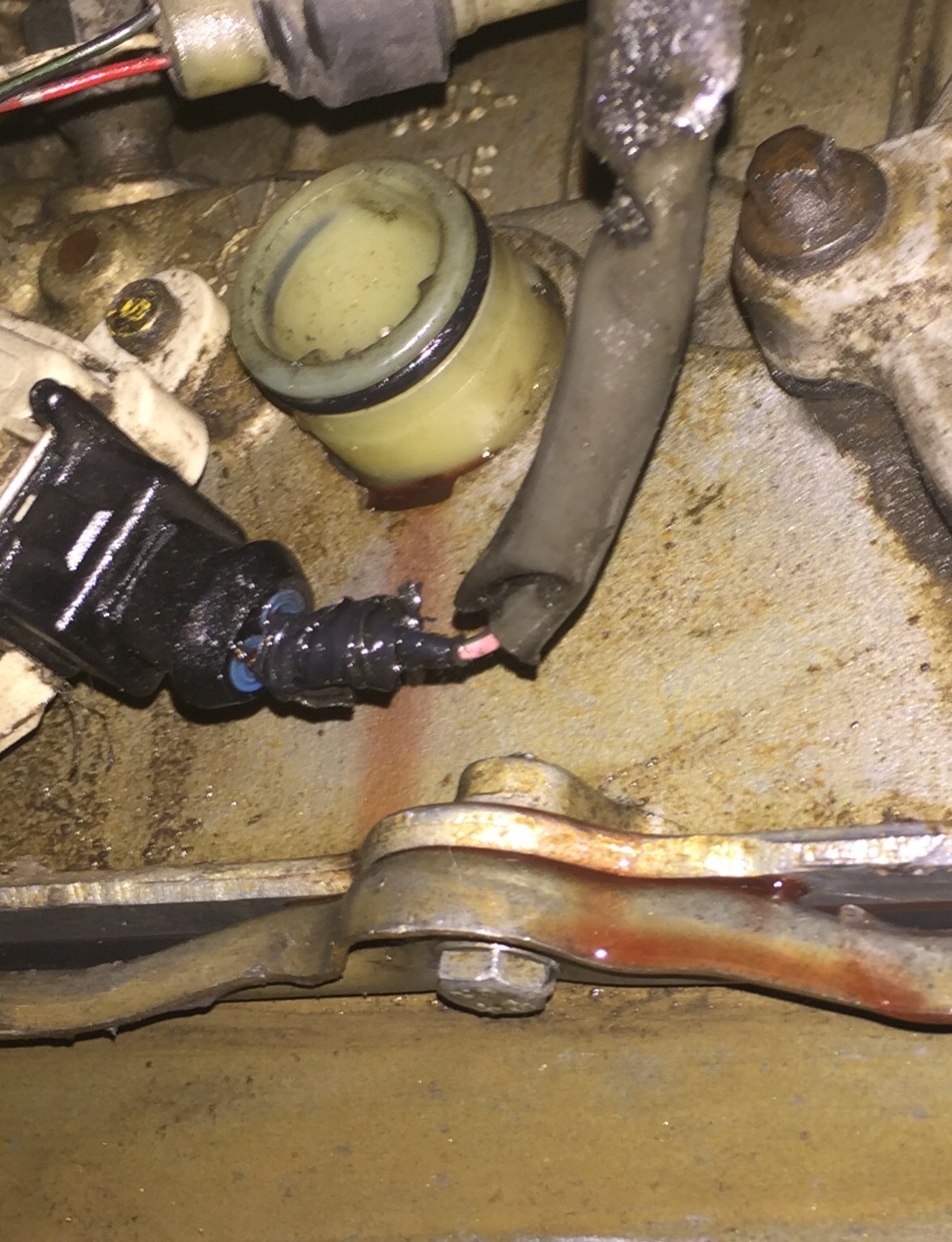

Does anyone know how this plug connects to the loom, as it was months since it was disconnected I can’t remember how it was removed.

Last edited by ghia97 on Fri May 18, 2018 1:10 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Fri May 18, 2018 11:16 am
Getting Side Ways
Offline

Posts: 666

Joined: 31st Aug 2007

Gallery: 1 images

Ride: 08 BF Ghia

Location: Melbourne
VIC, Australia

Has anyone else had any experience with how the connector plugs in ? Does it twist on or is there a special way of getting it on. It certainly doesn’t appear to just push on & without it plugged in properly it only has reverse & limp home mode.
Top
 Profile


 Post subject: Re: BTR Leak Very Unusual Spot
Posted: Fri May 18, 2018 6:17 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 367

Joined: 24th Jun 2014

Gallery: 4 images

Ride: BA XR6 Turbo

Location: Jamestown
SA, Australia

ghia97 wrote:
Has anyone else had any experience with how the connector plugs in ? Does it twist on or is there a special way of getting it on. It certainly doesn’t appear to just push on & without it plugged in properly it only has reverse & limp home mode.



Ill double check but i'm sure they only push on as the plug is keyed, and should sort of click on, you my have to push fairly hard to get it to lock on to its mating plug just had a play with a spare loom and plug to confirm this. Might be worth a spray of contact cleaner in the plugs to clean the contacts. Have you had a scan tool on it to check the fault codes?

Mate was playing with one of his cars and was getting trans problems and worked out to be the plug not clipped properly pushing it on firm fixed the problem until he messed with it again.

apologies i meant to get back to you few weeks ago again regarding this



_________________

Current Ride
BA XR6 Turbo, P3 Paint, BP Trim, Fully Stock Mods to Come!
BA XR6 , P3 Paint, BG Trim, !
1995 EF XR6 The newest member of my ford family!

BLUE BLOOD
Previous Rides
RIP 1996 EF Falcon furura, White sacrificed for parts
1997 EL Falcon
1980 Ford Escort
