 Post subject: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:57 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

I was just wondering if anyone had pics on where through the engine bay the clutch cable runs on a EB.

half way through a manual conversion and i was just wondering were exactly it runs



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 11:39 am
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Hey man, I had this problem too when converting mine.

I called a mate at the local ford joint and got the diagrams faxed over.

A pic is worth a thousand words, if you can wait 45 mins I'll take some of mine and post them up for you...



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 11:40 am
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

That would be great to know for when I do mine.
Ok mine is an EF but it should point me roughly in the right direction.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 11:52 am
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

Just be prepared for the fact it's not pretty - there end up being bends/angles that I just can't feel comfortable with - but that's the way it's meant to be. I think the cables in these need to be somewhat shorter so they lay in a smooth loop instead of having to be routed with tight bends.



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 12:41 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

EVL098 wrote:
That would be great to know for when I do mine.
Ok mine is an EF but it should point me roughly in the right direction.


EF/EL run from the firewall going down on the drivers side of the exhaust manifold, inbetween a small gap where the steering column connects to the rack and from there runs along the steering rack under the sump and bends back out into the gear box at approximately where the starter motor is.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 12:46 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

here we go

as mentioned its not pretty

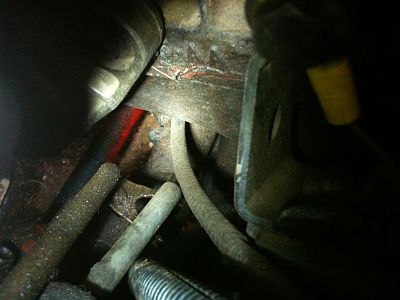

from the top side
Attachment:
File comment: top side
view 1_opt.jpg
view 1_opt.jpg [ 43.3 KiB | Viewed 247 times ]

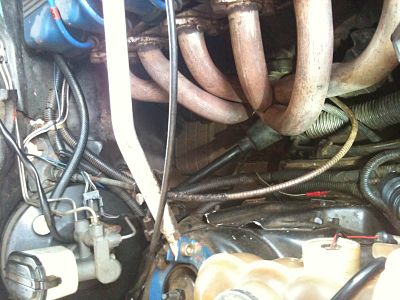

Attachment:
File comment: under exhaust
view 2_opt.jpg
view 2_opt.jpg [ 34.62 KiB | Viewed 178 times ]

Attachment:

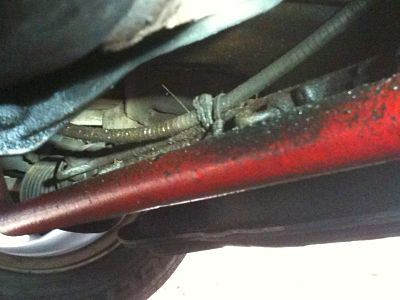

File comment: past power steering
view 3_opt.jpg
view 3_opt.jpg [ 26.21 KiB | Viewed 144 times ]

from under drivers side

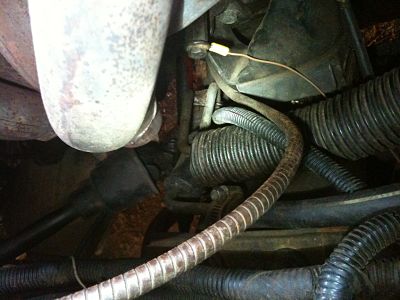

Attachment:
File comment: better view to rack
view 5_opt.jpg
view 5_opt.jpg [ 28.69 KiB | Viewed 148 times ]

from passengers side

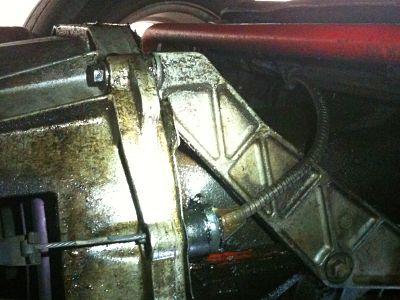

Attachment:
File comment: around support bracket to arm
view 7_opt.jpg
view 7_opt.jpg [ 38.68 KiB | Viewed 204 times ]


if anything, push more of the top loop down and have more at the bottom, but thats how i did it..

hope that helps



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 1:22 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

ford-4l-and-6-cylinder-f1/where-does-the-clutch-cable-run-on-an-el-t24218.html
If you ever notice, there should be a grommet on the cable, there is from factory a clip that this goes into and screws in halfway along the steering rack body. You can see the mount in pic 4, to the right of the cable ties.
Not having the clip - I'd cable tie the cable in two spots on the rack, near each bellows, rather than in the centre as per the pic.
In the last pic, there should be a bracket that the cable clips into, so it enters through the bellhousing straight, not on a bend as shown.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 1:29 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

The bracket at the bellhousing end is highly possible Snap

I got mine from a "bush car" to put it simply LOL, so there was no bracket, or the plastic boot/box either

Dont have a pic of one by chance?



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 1:42 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

It's not possible Dude - it needs to be there.
Looks like a right angle bracket with a clip bend - a standoff I guess.
Bolts to the bellhousing, and positions the cable to go straight in.
If you did like the pic, the cable would probably saw through the plastic surround over time, and the cable would chafe against the bellhousing hole.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 3:24 pm
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

As long as the cable works and it's not actually in vibration contact with anything (maybe tie rap a piece of split hose on the relevant section and also apply a bit of silastic as a standoff?) then the pictured routing on the bellhousing side is actually more gentle on it than using the standoff/bracket which then forces a really tight bend to enable the cable to run along the rack. Downside of the pictured arrangement is that you end up with an even longer section on the column side to deal with - ie. as pictured, the cable has had to be "S"d to some degree to make it fit.

You can see how if the cable assembly were maybe as much as 2 foot shorter it would be a smoother fit overall.

With the correct bracket on the bellhousing etc. the cable needs to go down to the rack, make a fairly tight bend to align along the rack, then make a fairly tight bend to go into the bellhousing bracket on the other side.



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 3:51 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

Ive actually looked into the bellhousing hole the cable goes through to see if the cable rubs the plastic bush that goes in it, its all clear. The bit of plastic worn off the cable is a section that has cracked off before I got hold of the parts.

theres no rubbing anywhere.

Its not too much of an issue having a bigger loop on the exhaust side, as long as the cable isnt touching or too close, I hooked it through the steering rack pipes as shown to hold it away from the extractors. its really just the visual side if you dont like the ugly..



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 5:30 pm
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

Yeah, the loops do look a little awkward but on balance are nicer curves than the factory fit forces the cable to take - so overall I think what you've done there is actually quite a bit better than the factory fit :-)



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:06 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I don't run my clutch cable as per factory fitting...too many tight curves.
Also have found that puting a wide band hose clamp on the soft insulator at the bellhousing end of the cable also gives you back 4mm of cable travel.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:24 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Well, my setups have a nice sweeping loop with the bracket in place, so no tight bends there.
I'd say the bracket should be there also for extra support - have a look while someone operates the pedal - I'd think the cable will try to straighten up - correct me if I'm wrong.
What's this bracket on the other side of the bellhousing ??
2 foot shorter would to be a mistype??
EF/EL/XH cables are around 3-4" shorter than EB/ED ones.
Yeah obviously, there has to be 2 bends, try and make them as smooth as you can.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: CLUTCH CABLE ROUTING
Posted: Sun Mar 13, 2011 9:27 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

i figured it out and ran it where i thought, which is pretty much the same as those pics. i am now the proud owner of a manual e-series :D



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile
