 Post subject: clutch pedal problems
Posted: Wed Apr 12, 2006 6:07 pm
Parts Gopher
Offline

Age: 31

Posts: 69

Joined: 3rd Dec 2005

Ride: 07 xr5 mondeo

Location: caringbah
NSW, Australia

ok guys here is my problem.
i have a EBII S XR6 manual and i have recently put a new clutch in.
but now every time i push on the clutch pedal it is heavier than the last time, the clutch still operates normally just the pedal is heavy and loosing travel.
now i think i have found the problem.
there is a big bracket that attaches to the fire wall and off which the three pedals all hang on shafts attached to the said bracket.
i"ve looked and the clutch pivot point (fat shaft thingy) is bent to hell and back.
i'm pulling it out atm but would like to know if anyone has had this problem before and could offer any different solutions(ie replacement) ??/
maybe what other model ( ea, ed etc) bracket i could bolt in as a replacement...
cheers



_________________

If it moves, weld it down!
It if doesn't move and should, get a bigger hammer!

Top
 Profile


Posted: Wed Apr 12, 2006 6:47 pm
Getting Side Ways
Offline
User avatar

Posts: 1392

Joined: 5th Nov 2004

Ride: XR6 Turbo, XR8, Transit

Location: Somewhere
VIC, Australia

Hi,

that "big bracket" that attaches to the firewall is called the Pedal Box.

The "fat shaft thingy" that the clutch sits on bending is a common fault.

I got mine reinforced by a panel beater.

You might also want to check the firewall where the clutch cable goes through to see if there is any cracking.



_________________

www.XR8Chic.com
1993 ED XR8 - Poly Green, AFR 185 Alloy heads, Edlebrock Performer RPM Manifold, Crane 2031, T56 6 Speed, 3.9 diff, = 205.7 rwkw.
1993 ED Fairmont - Cobalt Blue, 5L, 17" CSA's and not much else.
1969 Mustang Fastback - Gunmetal Grey, 302, Auto, LHD. Doesn't go very hard, but looks sexy as !

Top
 Profile


Posted: Wed Apr 12, 2006 10:33 pm
Parts Gopher
Offline

Age: 31

Posts: 69

Joined: 3rd Dec 2005

Ride: 07 xr5 mondeo

Location: caringbah
NSW, Australia

thanks heaps, i'm going to bend the shaft back into position and gusset it and weld the hell outta it to make oit stay where its supposed to be.



_________________

If it moves, weld it down!
It if doesn't move and should, get a bigger hammer!

Top
 Profile


Posted: Wed Apr 12, 2006 11:41 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Have read of http://www.fordmods.com/forums/viewtopi ... highlight= .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sat Apr 15, 2006 5:16 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1751

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA ute, FG XR6T

Location: Quakers Hill
NSW, Australia

It will need a little more than a touch of weld to bring it back. the pedal box is a very thin, low carbon stamping; the clutch pedal pivot is essentially welded in postion to the pedal box and supported by a thin, spot-welded re-inforcing plate behind the pedal spigot. All the load is taken up by this plate. This is the b**ch that needs attention, both in removal of flex and increasing the area for surface adhesion (area welded to the pedal box).

See Cresent Head motor sports about it. They have a mod for this problem at a very fair price.



_________________


Top
 Profile


Posted: Sun Apr 16, 2006 5:55 pm
Parts Gopher
Offline

Age: 31

Posts: 69

Joined: 3rd Dec 2005

Ride: 07 xr5 mondeo

Location: caringbah
NSW, Australia

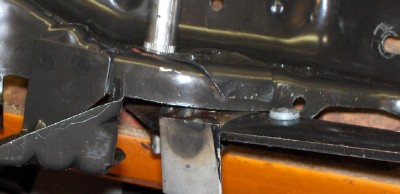

spent all day friday fixing it and putting the dash back in as well as tidying up the under dash wiring etc... this is whatt looked like and what it looks like now.
