 Post subject: Destroyed clutch and flywheel.
Posted: Sun Jun 30, 2013 10:18 pm
Oompa Loompa
Offline
User avatar

Age: 22

Posts: 48

Joined: 5th Sep 2011

Gallery: 3 images

Ride: ford falcon eb gli

Location: Euroa
VIC, Australia

Sorry about the s**t quality I was running out of daylight and only had my phone :roll:

Anyway I absolutely destroyed my clutch on Friday night, but I'm not sure how I managed to break my flywheel. Has anybody ever seen something like this happen?
Is it worth buying a steel flywheel instead of a standard cast one?

Cheers Zac



_________________

signature pic removed by admin. refer to guidlines for image sizes

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Sun Jun 30, 2013 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 22

Posts: 696

Joined: 10th Oct 2012

Ride: 5 speed XG ute

Location: Adelaide Hills
SA, Australia

Holy s**t! :shock:



_________________

Yep, I don't know what to write here...

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Mon Jul 01, 2013 2:20 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Steel flywheels don't have the same friction coeffiecent ( for want of a better word :? ) as a cast iron flywheel......in other words, the cast one has better grippage than a steel one.
High quality steel flywheels have a replaceable cast iron insert.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Mon Jul 01, 2013 4:14 pm
VIC Cruise Moderator
Offline
User avatar

Age: 27

Posts: 1167

Joined: 6th Jan 2009

Gallery: 12 images

Ride: ed

Location: Mooroolbark
VIC, Australia

im running a cro-molly flywheel from extrem and with an organic 10.5" and its putting up with 750nm just... this is the second clutch on the flywheel i killed a cast one.



_________________

94 White ED Wagon
eaton M112 supercharger, lowered a tad, extractors, 2.5" exhaust, T5 , custom SureCam supercharger cam, 3.45 lokka, 2 piece tailshaft, poyair bags in the back, TSS front Skirt, Sprint skirts, XR wagon spoiler.
soon to get: AU diff, upc 330mm brakes, Vapor LPG injection.

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Mon Jul 01, 2013 5:59 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 205

Joined: 8th Dec 2009

Gallery: 1 images

Ride: EB XR8, Now Blown 1977 Mini S

Location: Toowoomba
QLD, Australia

Most flywheels are a two piece item and are cold pressed together during the manufacture stage. This means the company can make up the centre blanks and then add the ring gear, depending on what application it is going on. They are cooled and then the ring gear is interference fitted to the centres. If you overheat a flywheel...this is what can happen. Minis are notorious for it as are Mazda rotaries due to them getting hot, contamination of the faces of the clutch and general abuse. You usually know when a mini one lets go when the ring gear separates and embeds itself in the firewall adjacent to your feet, usually between the brake and clutch pedal...I know as it happened on a trip to Sydney and scared the shiznats out of me!

Look for a single piece fly but be prepared to pay for it. Forget the stainless steel bling items as that is what they are, bling! Cast iron is better in normal day to day stuff and most racing applications and can be balanced/lightened easier too. A word of caution though, make sure you get the WHOLE clutch, pressure plate, fly and crank balanced as one as they can throw each other off and this could be catastrophic for the driver...considering if it lets go it will rake across your ankles as it separates from your drivetrain and punches through the transmission tunnel.

Just from seeing too many let go while at Wakefield and elsewhere tracks...rotaries are spectacular when they let go though and usually go straight up. Wrecks your engine as well as your bonnet and firewall :lol:

Hooroo
Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Thu Jul 04, 2013 11:00 am
Oompa Loompa
Offline
User avatar

Age: 22

Posts: 48

Joined: 5th Sep 2011

Gallery: 3 images

Ride: ford falcon eb gli

Location: Euroa
VIC, Australia

Thanks guys I will be putting on a second hand flywheel I had siting around for now as I couldn't afford a flywheel and clutch at the moment. I also just ordered a HD clutch kit to go in as a replacement and shouldn't have any worries with that.

Cheers Zac



_________________

signature pic removed by admin. refer to guidlines for image sizes

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Thu Jul 04, 2013 11:23 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

I have a lightened billet steel flywheel with a 4 puk button clutch. It can take a 4000rpm clutch dumps and revs up very easily. Nothing wrong with steel flywheels at all.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Thu Jul 04, 2013 11:24 am
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

GeZza200 wrote:
I have a lightened billet steel flywheel with a 4 puk button clutch. It can take a 4000rpm clutch dumps and revs up very easily. Nothing wrong with steel flywheels at all.


Is your's the setup Paul has on the CVE Facebook page?



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Thu Jul 04, 2013 11:32 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

Six wrote:
GeZza200 wrote:
I have a lightened billet steel flywheel with a 4 puk button clutch. It can take a 4000rpm clutch dumps and revs up very easily. Nothing wrong with steel flywheels at all.


Is your's the setup Paul has on the CVE Facebook page?


Na mine is different, mine has been lightend and it's a 4 puk clutch



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Thu Jul 04, 2013 11:38 am
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

Nice one! , I'm going to have to look at getting mine done soon I think...



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Thu Jul 04, 2013 2:14 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

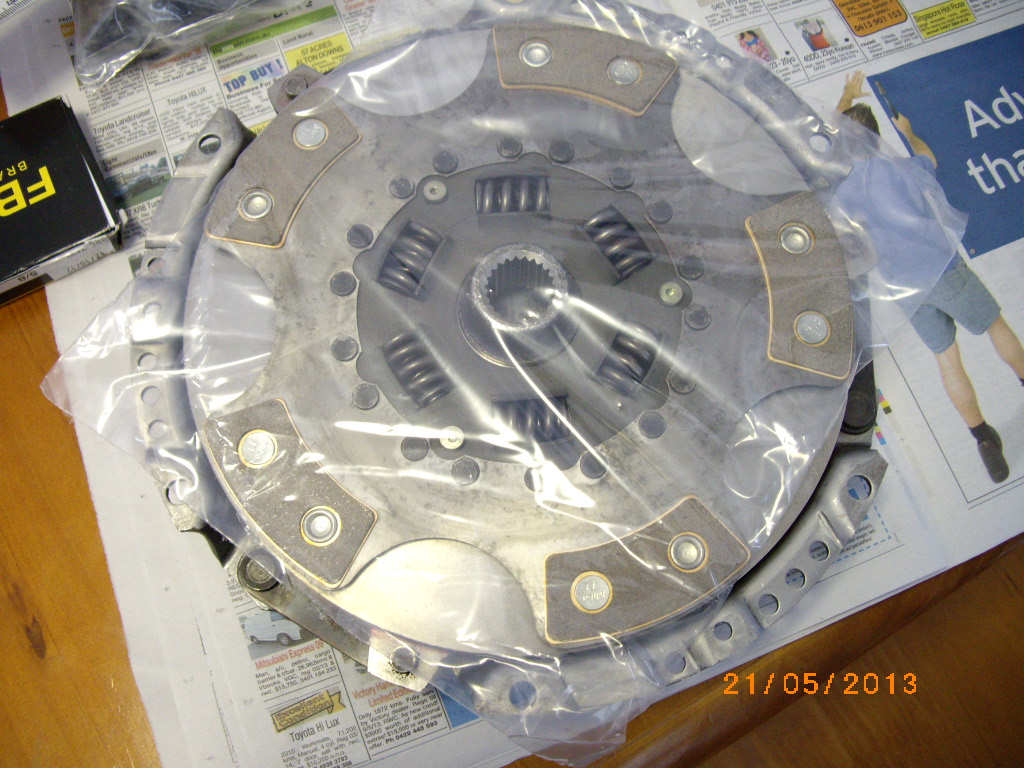

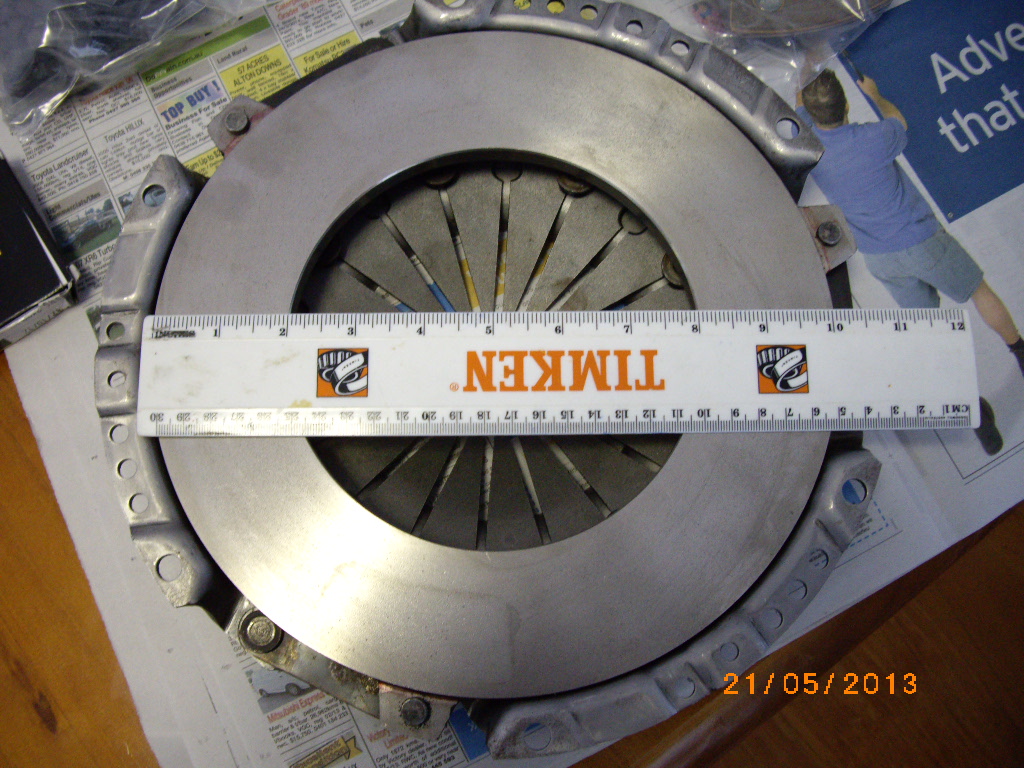

I bought a steel flywheel for my slant 6....it has integral ring gear teeth, and takes a 10" clutch.
I got the 5 puck clutch plate for it, and is suppose to handle 450 rwhp.





Attachments:
IMGP1397.JPG [ 376.52 KiB | Viewed 45 times ]
IMGP1398.JPG [ 380.17 KiB | Viewed 41 times ]
IMGP1400.JPG [ 394.71 KiB | Viewed 54 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Fri Jul 05, 2013 10:37 pm
Oompa Loompa
Offline

Posts: 40

Joined: 8th Mar 2012

Location: skye
VIC, Australia

cjh wrote:
Steel flywheels don't have the same friction coeffiecent ( for want of a better word :? ) as a cast iron flywheel......in other words, the cast one has better grippage than a steel one.
High quality steel flywheels have a replaceable cast iron insert.


Huh ? A billet steel flywheel, that can handle high RPM has a granulated iron section where the heat is ? What sort of grain structure holds it together ?

I would be quite interested to see one of those flywheels SFI rated ?
Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Sat Jul 06, 2013 10:17 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Here is a 2 piece flywheel........... http://www.autoaccessoriesgarage.com/Tr ... l-Flywheel



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Destroyed clutch and flywheel.
Posted: Sun Jul 07, 2013 6:18 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I forgot to mention, that clutch kit and flywheel ( for the slant 6 ) is for a drag car, not a street car.
