 Post subject: diff change diferences
Posted: Mon Dec 22, 2008 8:51 pm
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

ok would like to change out the orig nc2/ed diff , now if i can find a ed will be easy , what i am chasing is detailed info on what to expect if i use either ef or el , help please



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


Posted: Mon Dec 22, 2008 9:35 pm
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

searching everything

found this thread but no mention of model differences
http://www.fordmods.com/forums/viewtopi ... f%20change



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


Posted: Mon Dec 22, 2008 10:10 pm
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

more searching
thanks BenJ for your work

http://www.fordmods.com/forums/viewtopi ... 1&start=40

still unsure of the trailing arm body pivoit points are they the same?
should we be using both upper and lower arms to keep it correct



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


Posted: Tue Dec 23, 2008 3:03 am
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

Paul,
You are referring to a disc to disc swap aren't you?
AFAIK the lower arms are not a problem, a good rule of thumb is to use the upper control arms of the donor model.
This can vary though if your car is really low.
BenJ almost got away with using EB2 upper arms with an EF diff housing and superlow suspension, only yesterday he realised he still had slight pinion angle problem.
I had to use standard EL uppers with my EL XR6 diff fitted to my EB2 in the central hole on superlows. I now have EL XR6 arms, which are very different, to fit to the lowest hole on the EL diff housing to further adjust the pinion angle.
The mounting bracket angle[?] and hole positions vary between models.
EB2-ED diff assemblies should interchange with no alteration to your present setup.
I prefer the EL setup as it presents more possibilities for adjustment with the extra hole and kinked XR6 arms available.
I retained the EL disks, calipers and handbrake, modding the h/brake cable was very simple and works a treat. There also seem to be many more low klm EL LSDs available than EF.
This old thread of mine may help a little.
http://www.fordmods.com/forums/viewtopi ... light=diff
Cheers,
Mac



_________________

What goes around, comes around.

Top
 Profile


Posted: Tue Dec 23, 2008 7:13 am
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

Thanks mate is helping alot , bit of info for you , the exact correct angle??

the crank shaft and the diff pinion should be parralell as so the uni's speed up and slow down together for proper operation

do you think ford changed the front mount points on the body



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


Posted: Wed Dec 24, 2008 11:02 pm
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

Paul,
Sorry I can't help with exact angles, no way to get a true measure at home.
I don't think Ford changed the body mount points, I do think they changed the bracket positions on the diff housing.
When BenJ and I were measuring up arms between models, all the lowers were the same, only the uppers varied.
We didn't measure Fairlanes, AFAIK differences to sedans are elsewhere and don't affect diff. assy. changes.
Cheers,
Mac



_________________

What goes around, comes around.

Top
 Profile


Posted: Wed Dec 24, 2008 11:17 pm
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

thanks mate, read on trueblue ford that the ef changed top arms from the ed , and they changed again with the el

i recon like you i need to see this to know that info is correct, anyhow thanks again , still a little academic at the moment cant find a 3.45 diff anywhere in tas yet

have great christmas



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


Posted: Sat Jan 17, 2009 8:22 am
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

update: well been upside down in multipul wreckers and have worked out a few things,
my 12/94 nc2 has an ef diff from the factory (late model sway bar brackets)

the bang ive been getting on hard accceleration is the tail shaft hitting the floor( now fixed by adding a pinion snubber from xr6 to the two holes above the front of the diff )

my ratio is 3:27 , found lots of 3:23 , why would you bother (ford i mean) with such a small change

el and au are the only diff with the three top holes

cant find complete diff anywhere cheap, so getting gears off ebay and will do the change over myself (ring and pinion)



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


 Post subject: Re: diff change diferences
Posted: Fri Feb 27, 2009 7:46 am
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

ok ,changed the diff ,now has the el 3.45 lsd with the watts link hat (20mm lower than std) and the bent el xr6 upper arms , the xr6 pinion snubber is a must other wise you put the tail shaft into the floor under hard accel, handles better not a lot of change in straight line, smoother through corners and no a** skip over bumps eg. train lines with power on.

over all nice change, plus brings supercharger on quicker



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


 Post subject: Re: diff change diferences
Posted: Fri Feb 27, 2009 3:17 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Here are some picts of diff brackets and such. These are of an EL sedan.





Attachments:

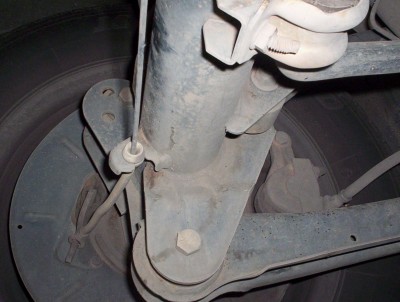

EL Diff housing 003.jpg
EL Diff housing 003.jpg [ 372.18 KiB | Viewed 17 times ]
File comment: Showing handbrake cable position.

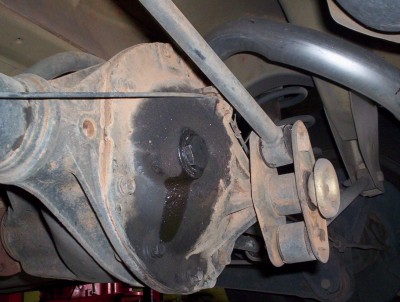

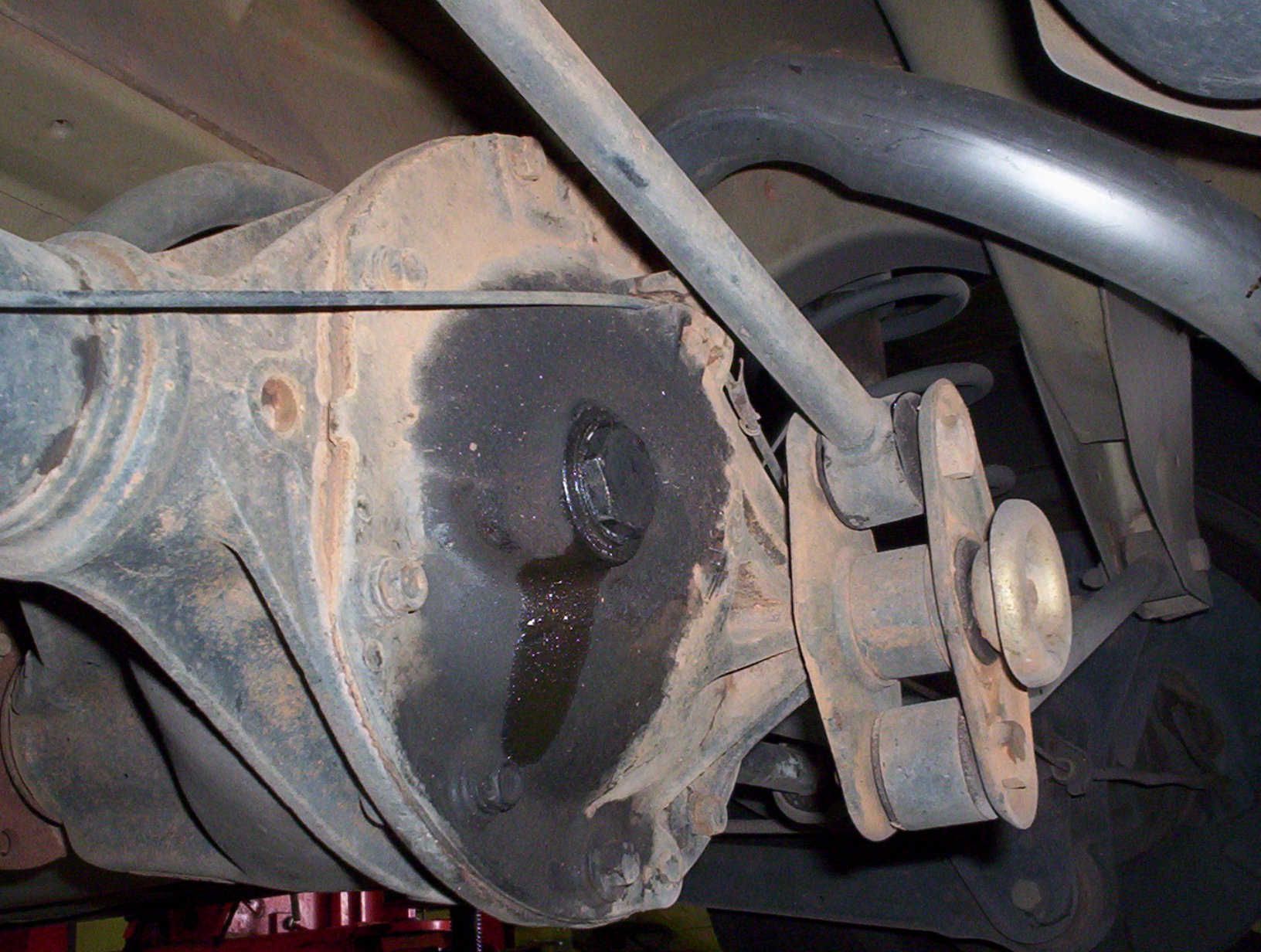

EL Diff housing 001.jpg
EL Diff housing 001.jpg [ 410.25 KiB | Viewed 25 times ]

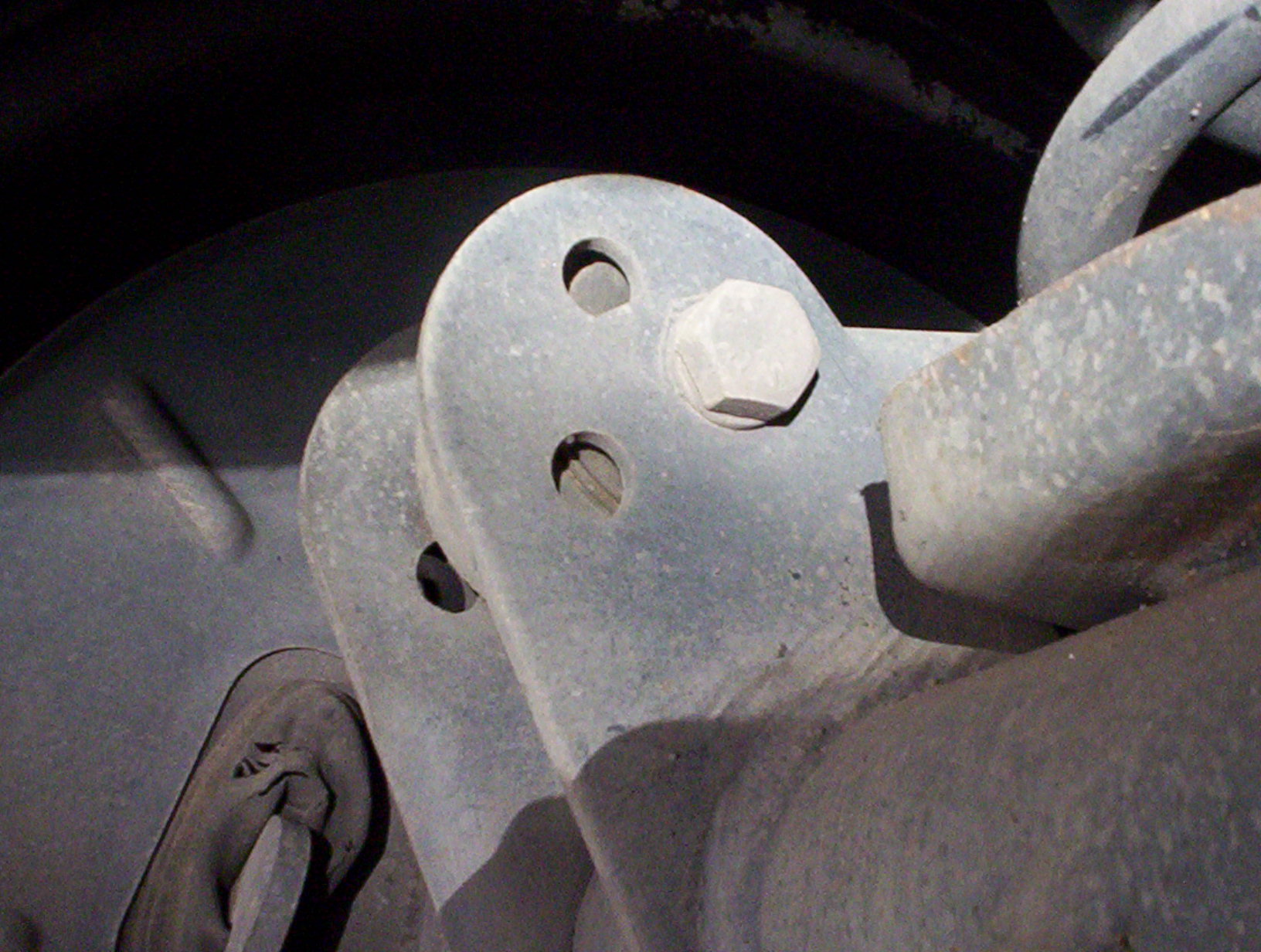

EL diff upper bracket..jpg
EL diff upper bracket..jpg [ 367.12 KiB | Viewed 14 times ]
