Diff gears vs speed vs rpm



Page 1 of 1 [ 4 posts ]


 Post subject: Diff gears vs speed vs rpm
Posted: Sat Feb 12, 2011 12:35 am
Oompa Loompa
Offline

Age: 27

Posts: 26

Joined: 30th Jan 2010

Ride: ef falcon

Location: brisbane
QLD, Australia

Hey guys I have a ef falcon with a au and a btr the diff is shagged so gone get it rebuilt I use it at the drags for the street series for a bit of fun it has a wade 977b in it and a 2400 convertor It I'm looking at 3.9's or even 4.11's but need to know wat the highway rpm will be at 110 I know it won't be great just need to know which will work beta as u have to drive to Rome for 1/8mile series
Top
 Profile


 Post subject: Re: Diff gears vs speed vs rpm
Posted: Sat Feb 12, 2011 1:23 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Top
 Profile


 Post subject: Re: Diff gears vs speed vs rpm
Posted: Sat Feb 12, 2011 10:31 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

My post from the different diff types explained forum..

gearbox-suspension-brake-driveline-f4/different-diff-types-explained-t59-140.html

Quote:
Ok...

Discovery... None of these take into account tire buldge (IE because it has weight on it)...

So I have 235 45 17 so to calc radius (I'll work in metric so it ends in km/hr)

45% of 235 = 105.75mm profile

17" = 431.8mm

So calc radius of my wheels are half of mag + profile = 431.8/2 + 105.75 = 321.65mm

Upon measuring (for whatever factors cause the difference) I measure 298mm

So that is 1 inch in radius and 2 in diameter that these equations are out...

If you use this formula to get km/hr (where * is times, / is divide, r is measured loaded radius from ground to wheel centre, R1 is transmission ratio, R2 final (diff) ratio, and RPM is your desired RPM, and remember order of operations (do whats in the brackets first))

(0.00037698 * RPM * r) / (R1 * R2) = km/hr

or to calc RPM when you know speed this way

(km/hr * R1 * R2) / (0.00037698 * r) = RPM

Example:

So in theory (still doesn't measure quite right though)

I think 5th is .63:1? and my diff is 3.27:1 at 100km/hr with 298mm radius


(100 * .63 * 3.27) / (0.00037698 * 298)

206.01 / .11234004

= 1833.81 RPM


Compare with the 322 calc'd measurement of the wheel is 1697.13, so 136rpm of difference. Not much but it makes it more accurate this way...

Hope it helps 8-)



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Diff gears vs speed vs rpm
Posted: Sun Feb 13, 2011 2:03 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

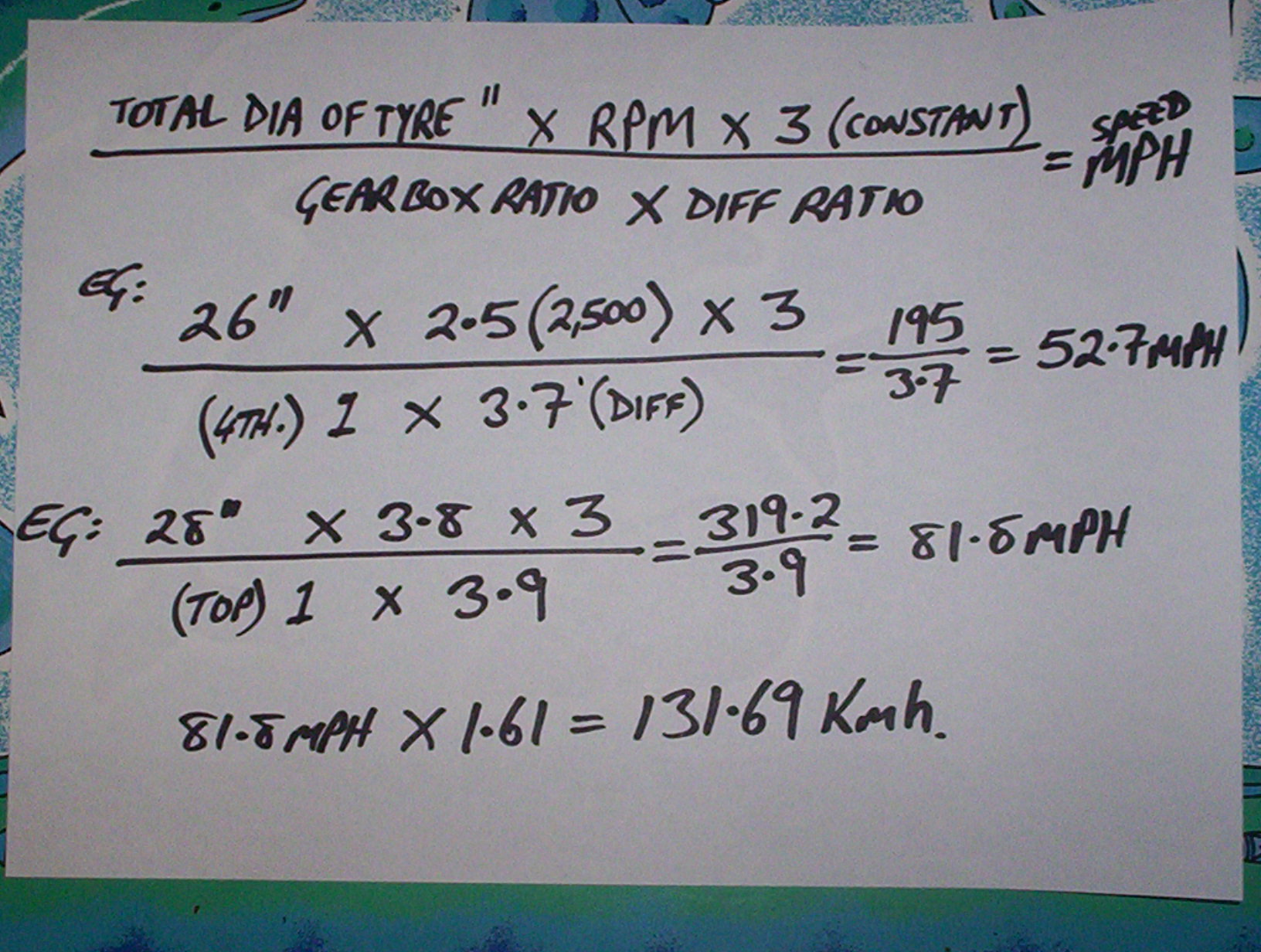

this is how you work it out......remember RPM....3,800 = 3.8 .
Auto overdrive is 0.68 X ( diff ratio ) 3.9.....or....4.11....depending which way you go.





Attachments:
Speed calculator with example.jpg
Speed calculator with example.jpg [ 353.25 KiB | Viewed 41 times ]
