EA-ED pedal box into EF



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: EA-ED pedal box into EF
Posted: Thu Nov 09, 2006 7:53 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

I have what I suspect is an ED pedal box and after some research I have discovered that I can modify it to suit an EF but the detail is very thin. First I need to confirm it is an EA-ED and second I need to confirm what to modify.

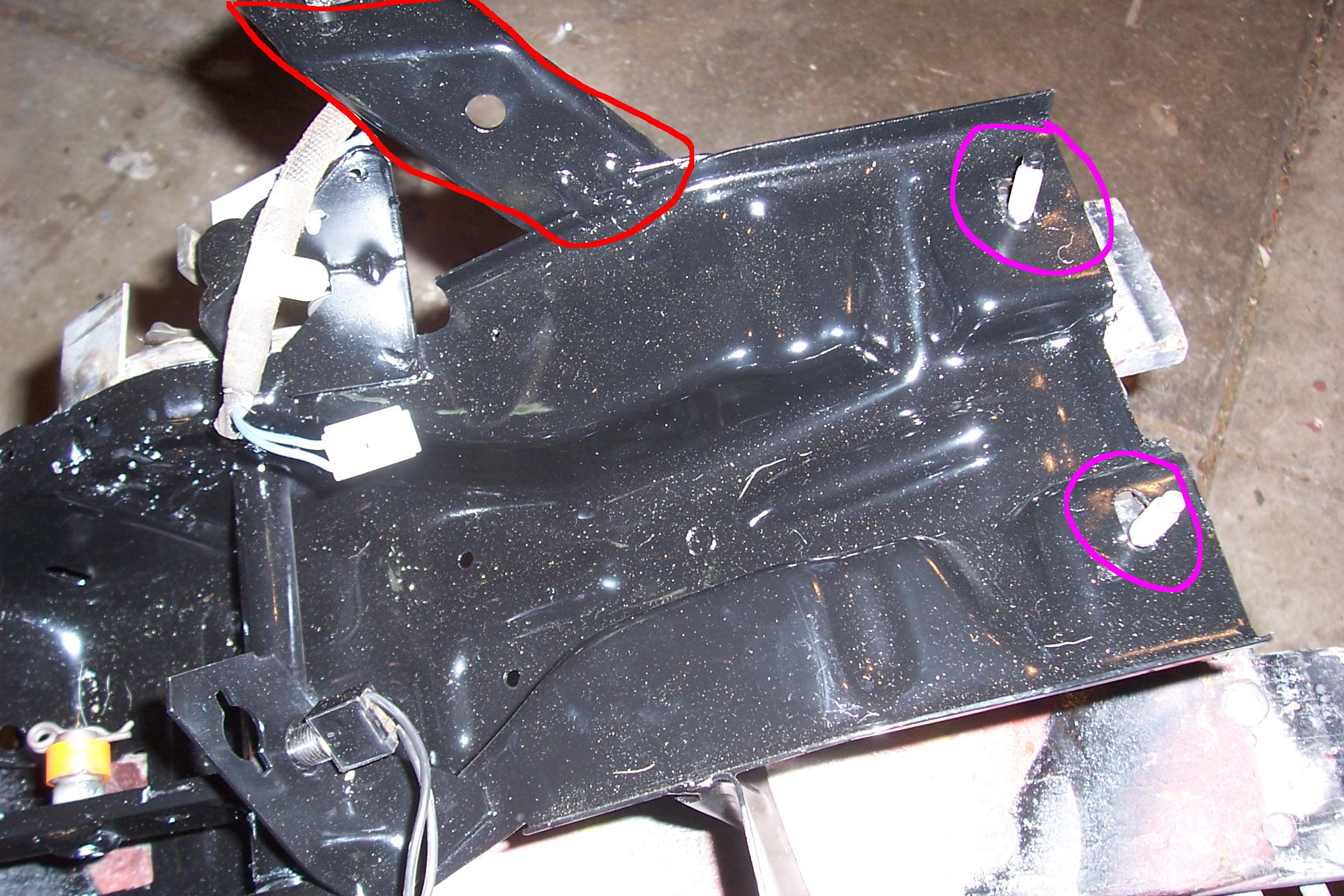

The bracket circled in RED I assume is the hand brake bracket and I need to remove this?

The captive bolts circled in purple need to be removed and the holes enlarged to suit the different mounting of the steering column, correct?

Is there any other changes?





Attachments:
File comment: EA-ED Pedal Box
ED Pedal box.JPG
ED Pedal box.JPG [ 534.67 KiB | Viewed 83 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Thu Nov 09, 2006 8:04 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

I >CAN< Confirm that is a boxcar pedal box for you mate. Its exactly the same as the one i pulled out of my NC

Unfortunatly i can't tell you what mods need to be done :oops:



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Thu Nov 09, 2006 8:42 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

yeah you got an ea-ed box there

you can see the differences here (black ed, rust ef)


To make it fit into an EF you need to hack to top bolts out so the ones in the ef column can pass through


The hand brake bracket can be cut off or just bent out the way



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Thu Nov 09, 2006 8:49 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Thanks stockstandard,
This might be a bonus anyway as I can mount a better brake switch instead of the failure prone EF one.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Fri Nov 10, 2006 12:49 am
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

so i can use my ea manual pedal box on my ef?



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Fri Nov 10, 2006 12:55 am
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

rushed wrote:
so i can use my ea manual pedal box on my ef?


EA's are slightly different again. If you look on those pedal boxes I posted pics of you see that on the side of the box (inline with the brake pivot bar on the opposite side to the clutch) there are two holes. These are used to mount some of the electronics under the dash of the ef's but that part of the pedal box is missing on the ea's. You can still use it but you have to secure the electronics some other way (i.e. handful of cable ties).



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Nov 10, 2006 6:54 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

stockstandard wrote:
rushed wrote:
so i can use my ea manual pedal box on my ef?


EA's are slightly different again. If you look on those pedal boxes I posted pics of you see that on the side of the box (inline with the brake pivot bar on the opposite side to the clutch) there are two holes. These are used to mount some of the electronics under the dash of the ef's but that part of the pedal box is missing on the ea's. You can still use it but you have to secure the electronics some other way (i.e. handful of cable ties).
Buggar, that makes mine an EA. I might pick up an Auto EF pedal box and move the brackets , pedals and shaft across.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Fri Nov 10, 2006 7:00 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

stockstandard wrote:
yeah you got an ea-ed box there

The RHS of the large angled bracket with the three holes at the top of this picture looks different between ED and EF or is that just camera angle?



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Fri Nov 10, 2006 2:10 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Its the camera angle.
Top
 Profile


Posted: Sun Nov 12, 2006 12:08 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

I picked up an Auto pedal box yesterday and installed a new clutch pedal shaft and transplanted the brackets from the EA pedal box.





Attachments:

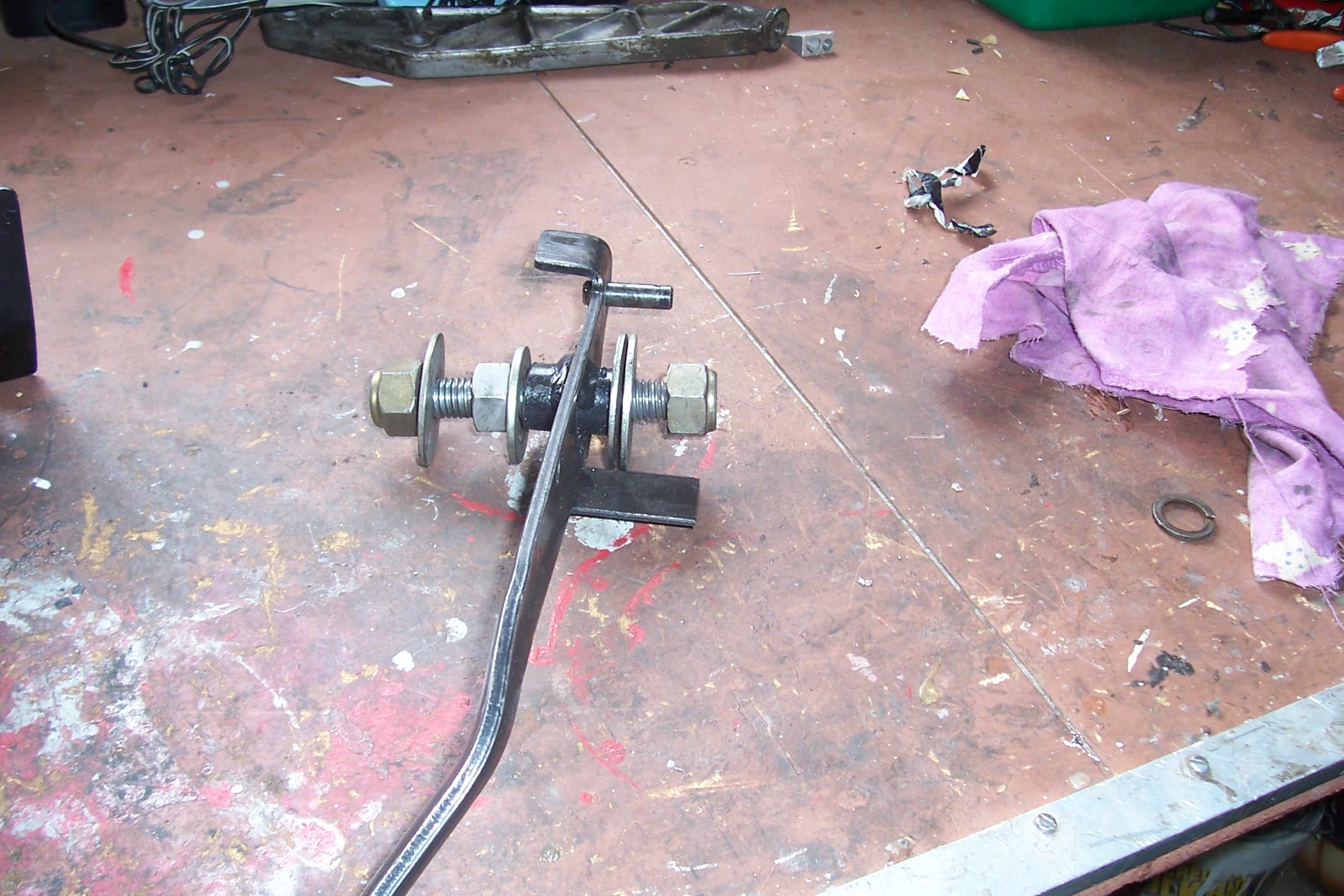

File comment: While there I found a manual ED with the pedals still in there. When I went to remove it I was shocked to see the way it had been installed.
Someone had used threaded rod to install it. Anyway I now have a spare clutch and manual brake pedal.

Pedal.jpg [ 733.38 KiB | Viewed 60 times ]

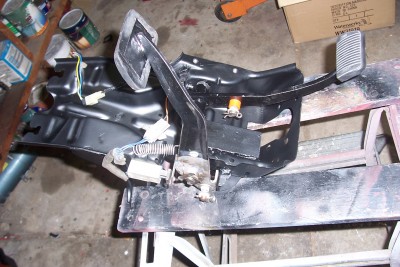

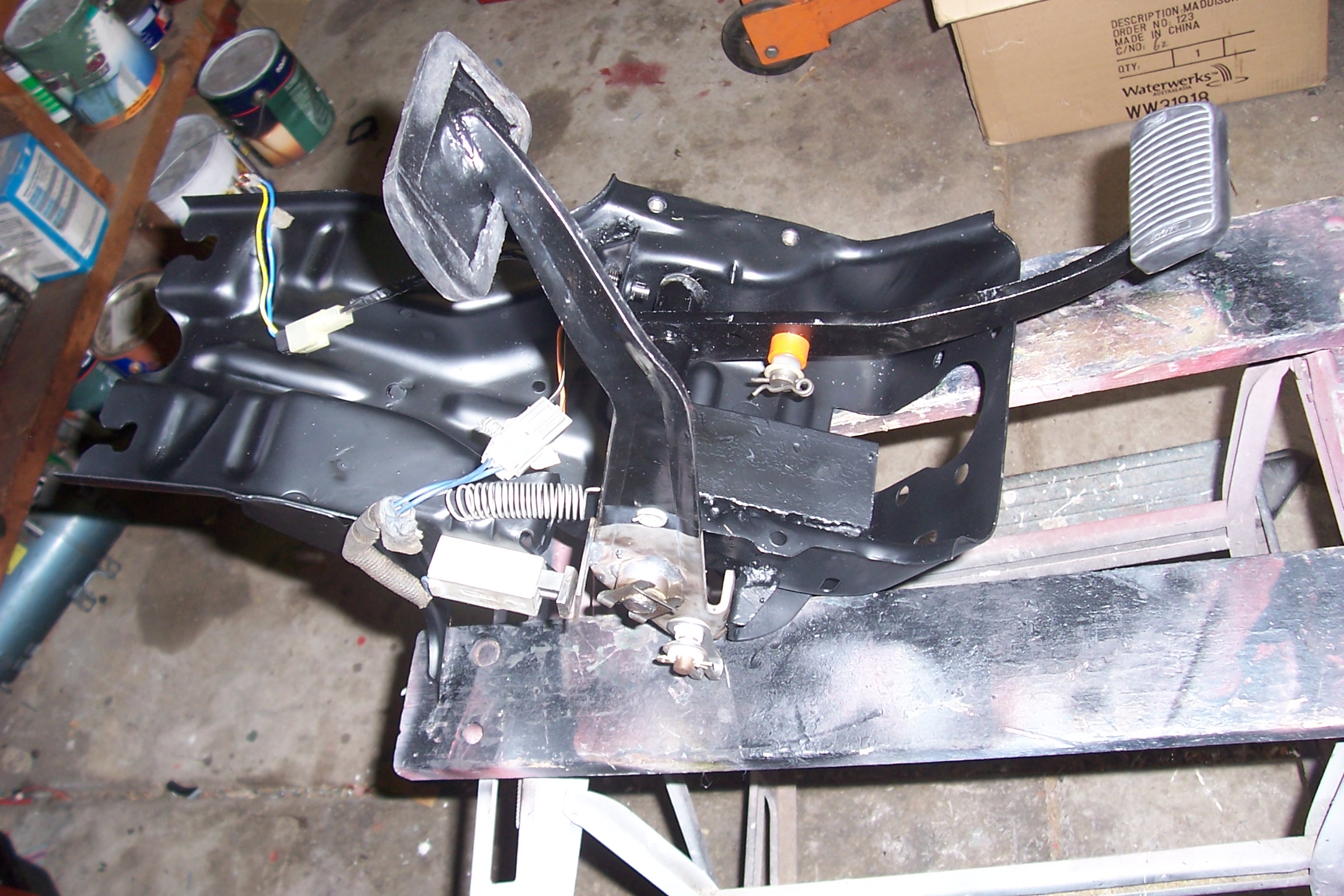

File comment: EF Auto pedal box modifed and strengthened.
reworked EF Auto.jpg
reworked EF Auto.jpg [ 756.21 KiB | Viewed 121 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Mon May 28, 2007 10:55 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

I have some pics of when I fitted the ea wagon's pedal box into my ef.

anyone wana see?



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Sat Jun 16, 2007 5:26 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

sorry to thread mine a bit here guys,

but i am looking at getting an EB2 5 speed and swapping boxes with my EF auto.

Will the EF auto pedal box fit into the EB? and reading this, i should be able to just cut those holes at the top of the EB box and it'll fit the EF?

Is that correct?



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Jun 16, 2007 11:51 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Your question has already been answered at http://www.fordmods.com/forums/viewtopic.php?t=51031.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Jun 17, 2007 1:09 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

yeah, sorry, i dug up this old thread, then thought it would be easier to just put everything together.

sorry bout that!! :oops:



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


 Post subject: Re: EA-ED pedal box into EF
Posted: Tue Apr 19, 2011 11:20 pm
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 26th Mar 2009

Ride: 94 ef

Location: bacchus marsh
VIC, Australia

hey im doing a manual conversion and ive installed an eb ed manual pedal box in my 94 ef and im unsure where to wire the clutch up to? the brake was straight forward but the two wires on the clutch im not sure about.... are they needed? will this affect the car in anyway???
Top
 Profile
