ef rotor change



Page 1 of 2 [ 29 posts ] Go to page 1, 2  Next


 Post subject: ef rotor change
Posted: Sat Nov 03, 2007 9:01 am
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

has anyone done the ef rotor change? got any pics? im doing it today, and might need some guidance!!!



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 9:18 am
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

I know im replying to myself, but for information for others...

http://www.trueblueford.com/wheelbearings.htm



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 9:28 am
Stock as a Rock
Offline

Age: 38

Posts: 181

Joined: 4th Aug 2006

Gallery: 2 images

Ride: 97 EL futura & BF XR6 Turbo

Location: sydney
NSW, Australia

i done the front rotors yesterday and it is very easy but didnt take photo's sorry :( (1st time doing it) you take the calipers off first then the outer silver cap then the split pin, and the nut the rotors and bearings will come out.
if your planing on getting new bearings take the old ones off and grease the new ones up (high temp grease) dont be shy with the grease on the bearings there is a bearing behind that will still be on the car to take off.
clean the outercap with a rag (to get ridd of the old grease) and anything else that needs cleaning.
and just reverse from when you take it off.



_________________

there is only 2 rules in driving go hard or go home

Top
 Profile


Posted: Sat Nov 03, 2007 9:39 am
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

Cool, i didnt think it would be too hard, im getting a set of DBA slotted for it.. wont be able to see them cause its still got the standart fairmont wheels on it.. i think there is a dust cover that i can take off the wheel.. untill i get the new mags.. getting those typhoon replicas..
$1200 fitted with tyres, 18 inch..



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 5:53 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

I need a expert here.. I changed the rotors to rda slotted, with new bearings and a s**t load of grease.. can you use too much grease??
can that bust the rear seal like of you put to much into a ball joint??
Anyhow, i got it all back together. I didnt bleed the system, me parts guy said it wouldnt need it, as im not opening up the bleed valves etc....
First run with new pads and rotors with half a gentle touch on the brake pedal the abs buzzes... thought nothing of it.... i gets 5 or 6 k's down the road the "check ABS" light comes on, and the brakes dont feel as good, but are stopping the car as you would expect...
What have i done wrong?,, should a bleed be recomended.. ive always bleed after any pad change!!...
Help boys, i just want it to be 100% safe!..



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 6:06 pm
Stock as a Rock
Offline

Age: 44

Posts: 131

Joined: 1st Sep 2007

Gallery: 1 images

Ride: 2004 BA Falcon

Location: Adelaide
SA, Australia

teveo wrote:
I need a expert here.. I changed the rotors to rda slotted, with new bearings and a s**t load of grease.. can you use too much grease??
can that bust the rear seal like of you put to much into a ball joint??
Anyhow, i got it all back together. I didnt bleed the system, me parts guy said it wouldnt need it, as im not opening up the bleed valves etc....
First run with new pads and rotors with half a gentle touch on the brake pedal the abs buzzes... thought nothing of it.... i gets 5 or 6 k's down the road the "check ABS" light comes on, and the brakes dont feel as good, but are stopping the car as you would expect...
What have i done wrong?,, should a bleed be recomended.. ive always bleed after any pad change!!...
Help boys, i just want it to be 100% safe!..


Did you buy abs rotors with the shutter wheel on the back of the disc?



_________________

what is it with these wankers and their pod filters.....f#*ken too fast too furious crap! You do realise that big suck noise is for your engine and not your member.

Top
 Profile


Posted: Sat Nov 03, 2007 6:09 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

au2man wrote:
teveo wrote:
I need a expert here.. I changed the rotors to rda slotted, with new bearings and a s**t load of grease.. can you use too much grease??
can that bust the rear seal like of you put to much into a ball joint??
Anyhow, i got it all back together. I didnt bleed the system, me parts guy said it wouldnt need it, as im not opening up the bleed valves etc....
First run with new pads and rotors with half a gentle touch on the brake pedal the abs buzzes... thought nothing of it.... i gets 5 or 6 k's down the road the "check ABS" light comes on, and the brakes dont feel as good, but are stopping the car as you would expect...
What have i done wrong?,, should a bleed be recomended.. ive always bleed after any pad change!!...
Help boys, i just want it to be 100% safe!..


Did you buy abs rotors with the shutter wheel on the back of the disc?


yeah it has a wheel on the back of the rotor.. its exactly the same as the standard on i took off, only its slotted...



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 6:14 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

I cleaned the calipers and surrounding areas with a brake cleaner than the hose. ( cause i painted the caliper).. could this be the reason why?.. water on the sensor?was i supposed to do anything special for the abs when i changed the rotor?



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 6:17 pm
Stock as a Rock
Offline

Age: 44

Posts: 131

Joined: 1st Sep 2007

Gallery: 1 images

Ride: 2004 BA Falcon

Location: Adelaide
SA, Australia

Are the shutter wheels damaged in any way? Ive seen guys remove these shutter wheels and fit them on non abs rotors and if they are not just right they will bring the abs light on. Also magnetic filings on the abs sensor can cause problems. Sometimes after rotors have been machined on cars the filings collect on the sensor also bringing the light on.



_________________

what is it with these wankers and their pod filters.....f#*ken too fast too furious crap! You do realise that big suck noise is for your engine and not your member.

Top
 Profile


Posted: Sat Nov 03, 2007 6:21 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

au2man wrote:
Are the shutter wheels damaged in any way? Ive seen guys remove these shutter wheels and fit them on non abs rotors and if they are not just right they will bring the abs light on. Also magnetic filings on the abs sensor can cause problems. Sometimes after rotors have been machined on cars the filings collect on the sensor also bringing the light on.

The rotors are brand ndew RDA's, everything looked 100%perfect, as you would expect.
The abs sensor is that wire that goes to the back of the rotor near the shudder wheel???..
ill sus it out..
Everything was fine till i changed the rotors today, the old ones where warped, and would vibrate through the steering wheel at high speed braking.



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sat Nov 03, 2007 7:05 pm
Stock as a Rock
Offline

Age: 44

Posts: 131

Joined: 1st Sep 2007

Gallery: 1 images

Ride: 2004 BA Falcon

Location: Adelaide
SA, Australia

Not being a user of them, how good are RDA rotors ? Ive only used DBA s. Im not hanging s**t on RDA s coz i dont know much about them but i know there are some crap rotors on the market. Does any one know about the quality of RDA rotors?



_________________

what is it with these wankers and their pod filters.....f#*ken too fast too furious crap! You do realise that big suck noise is for your engine and not your member.

Top
 Profile


Posted: Sun Nov 04, 2007 8:29 am
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

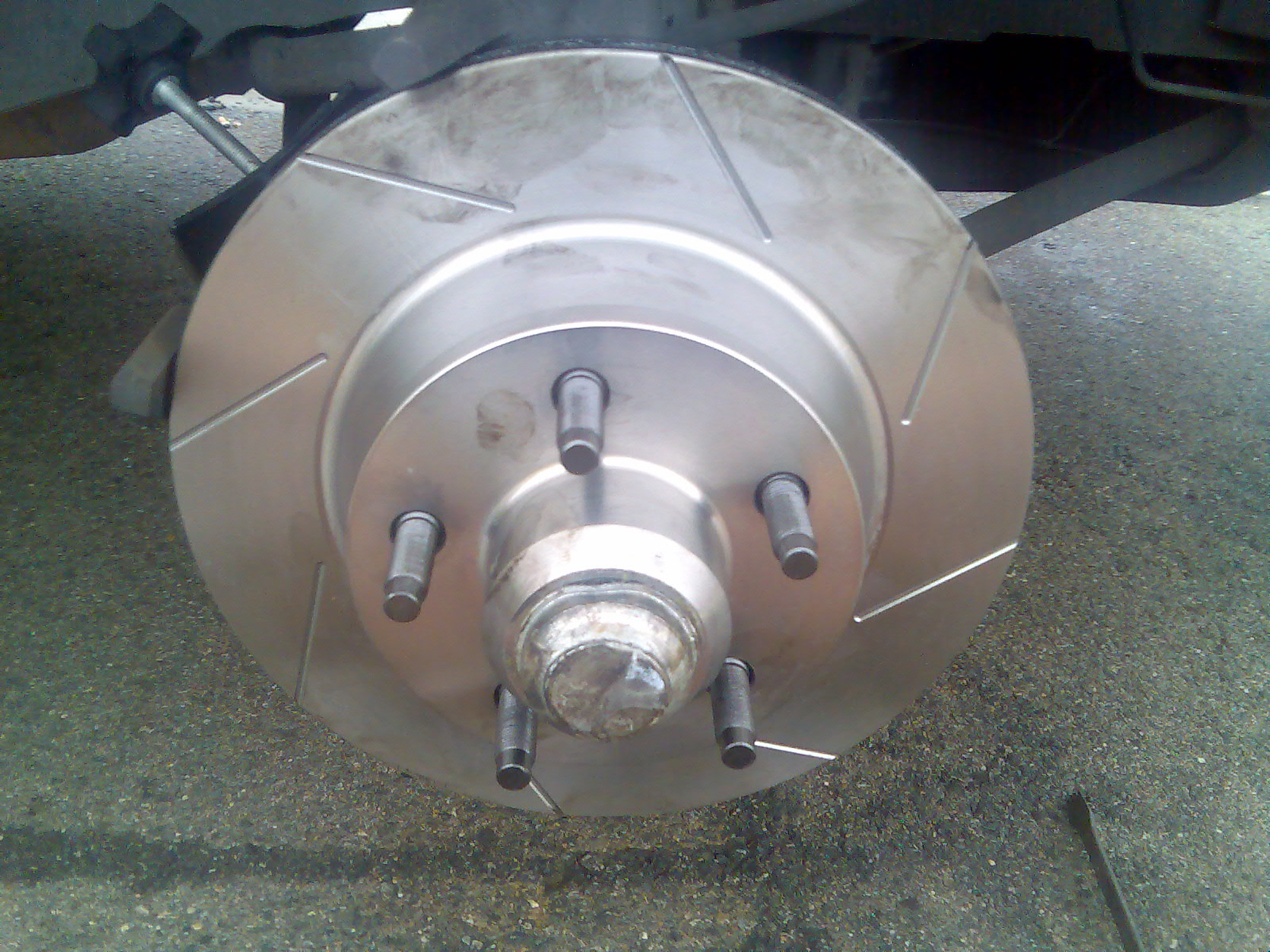

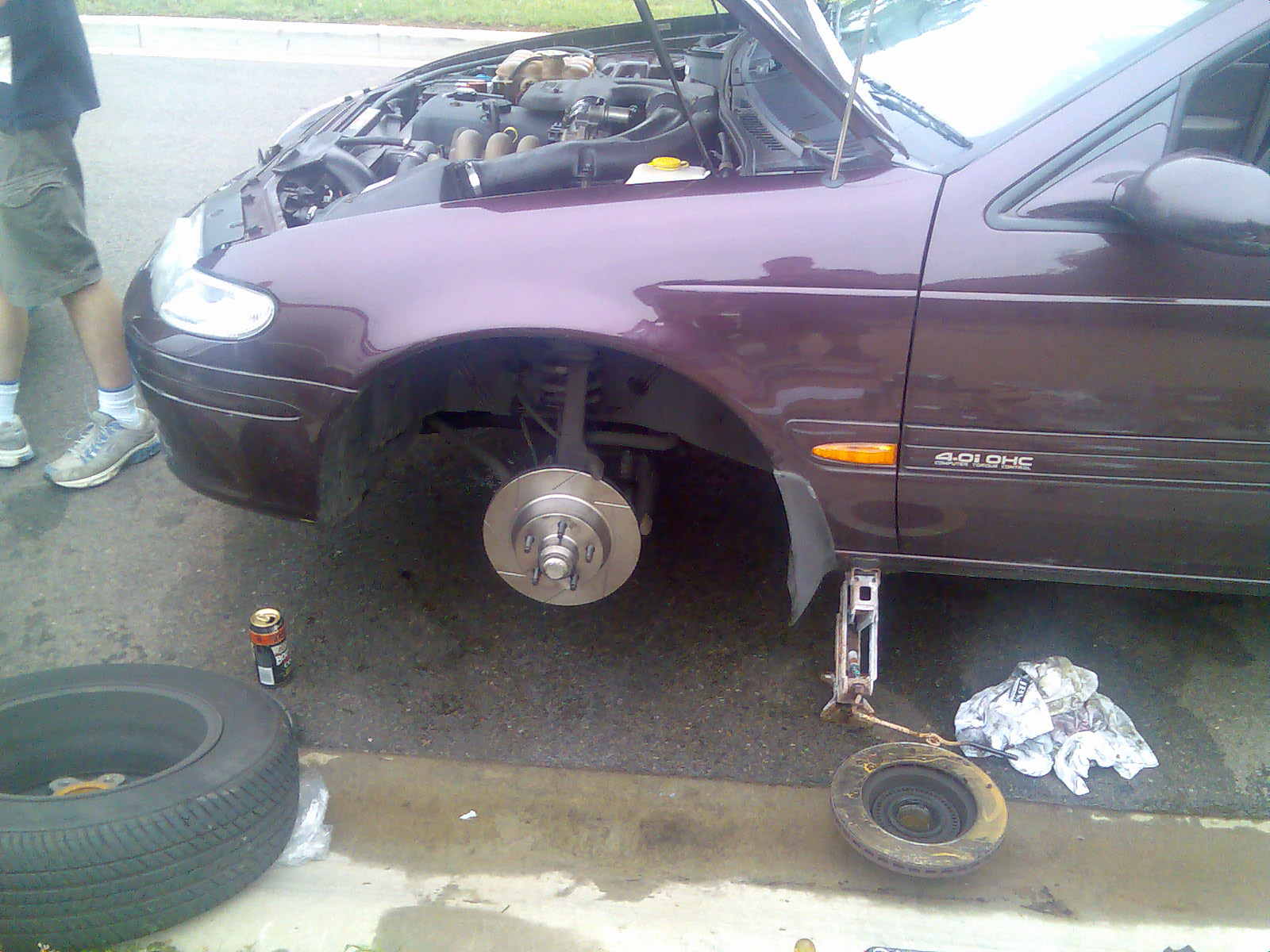

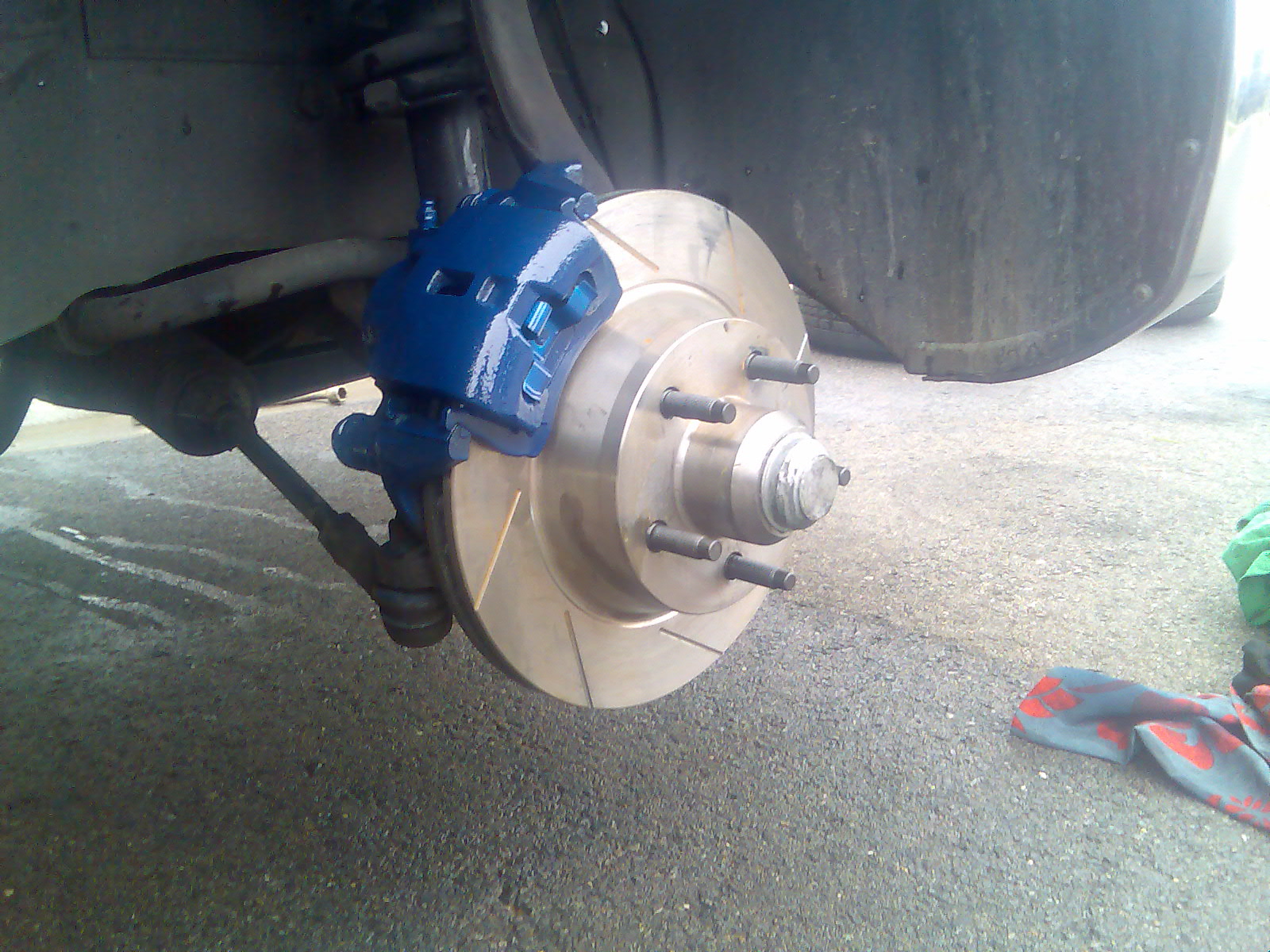

ill post a photo.. the quality is second to none... rda dba is like ford and holden.. thay are both one the same level.. ..
i took it for a drive today, stops great, and no abs light, but i dont feel any abs at all





Attachments:
Phone094.jpg [ 465.35 KiB | Viewed 50 times ]
Phone023.jpg [ 330.34 KiB | Viewed 50 times ]
Phone020.jpg [ 490.25 KiB | Viewed 56 times ]



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Last edited by teveo on Sun Nov 04, 2007 8:40 am, edited 1 time in total.

Top
 Profile


Posted: Sun Nov 04, 2007 8:38 am
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

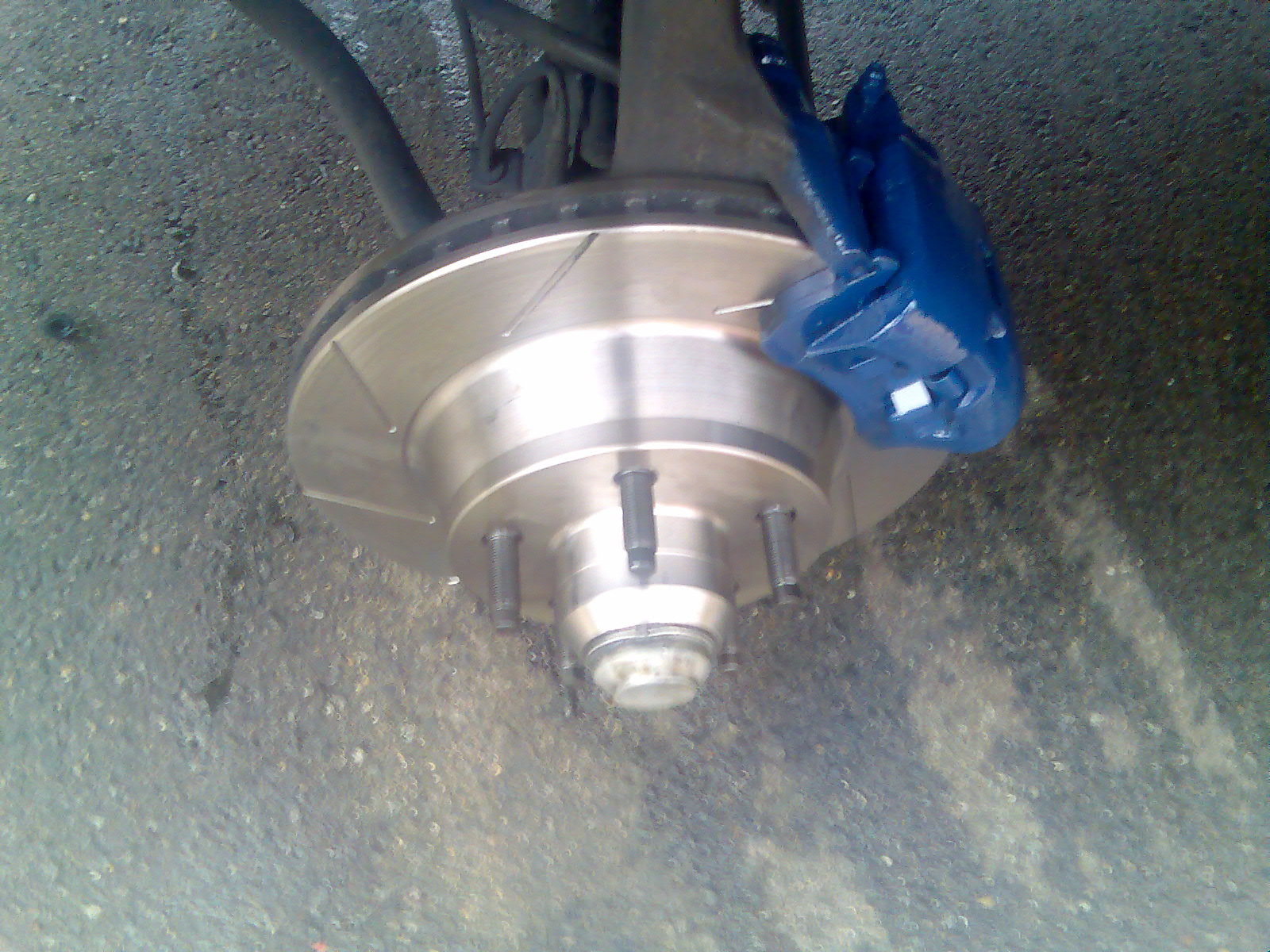

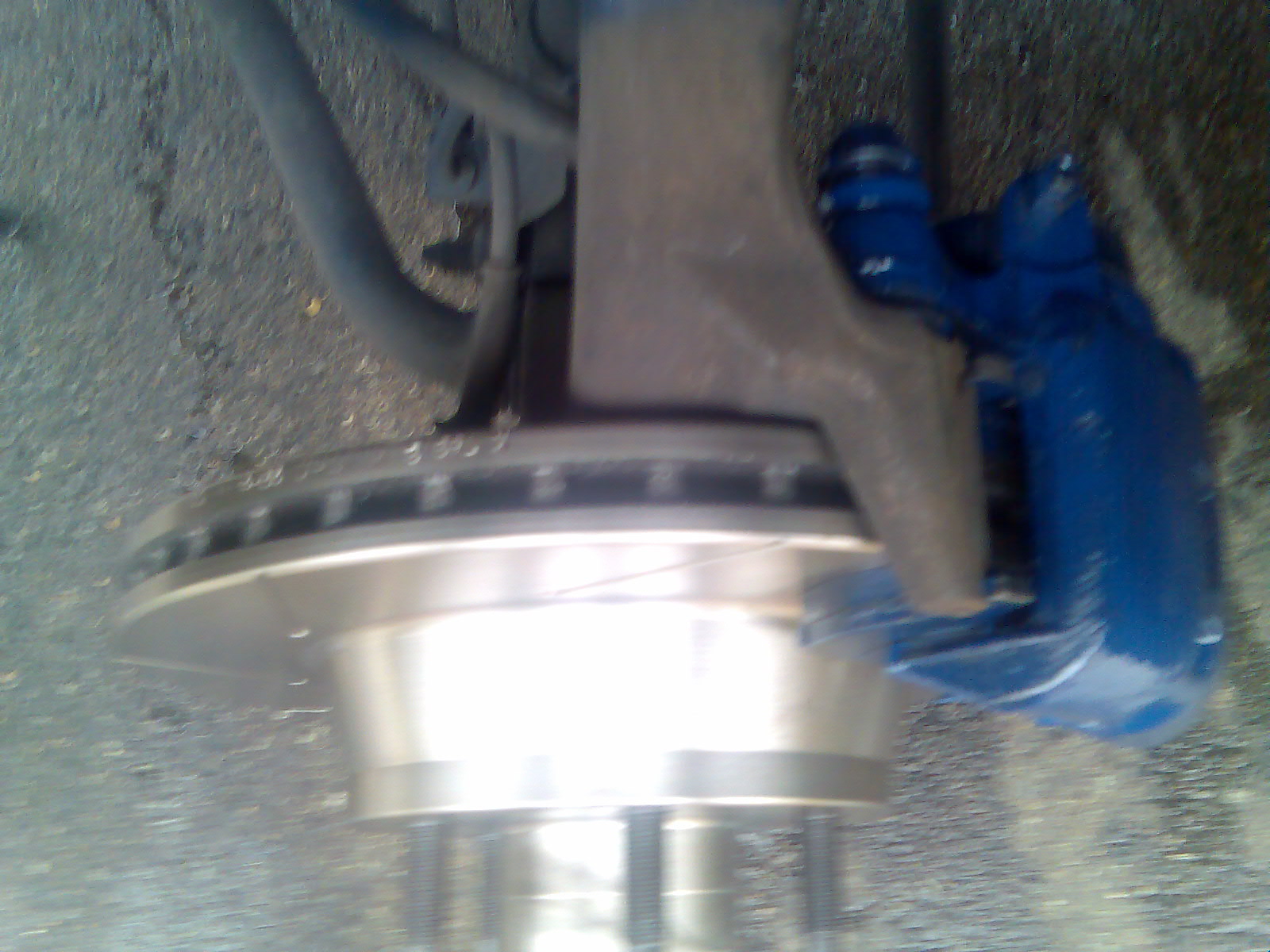

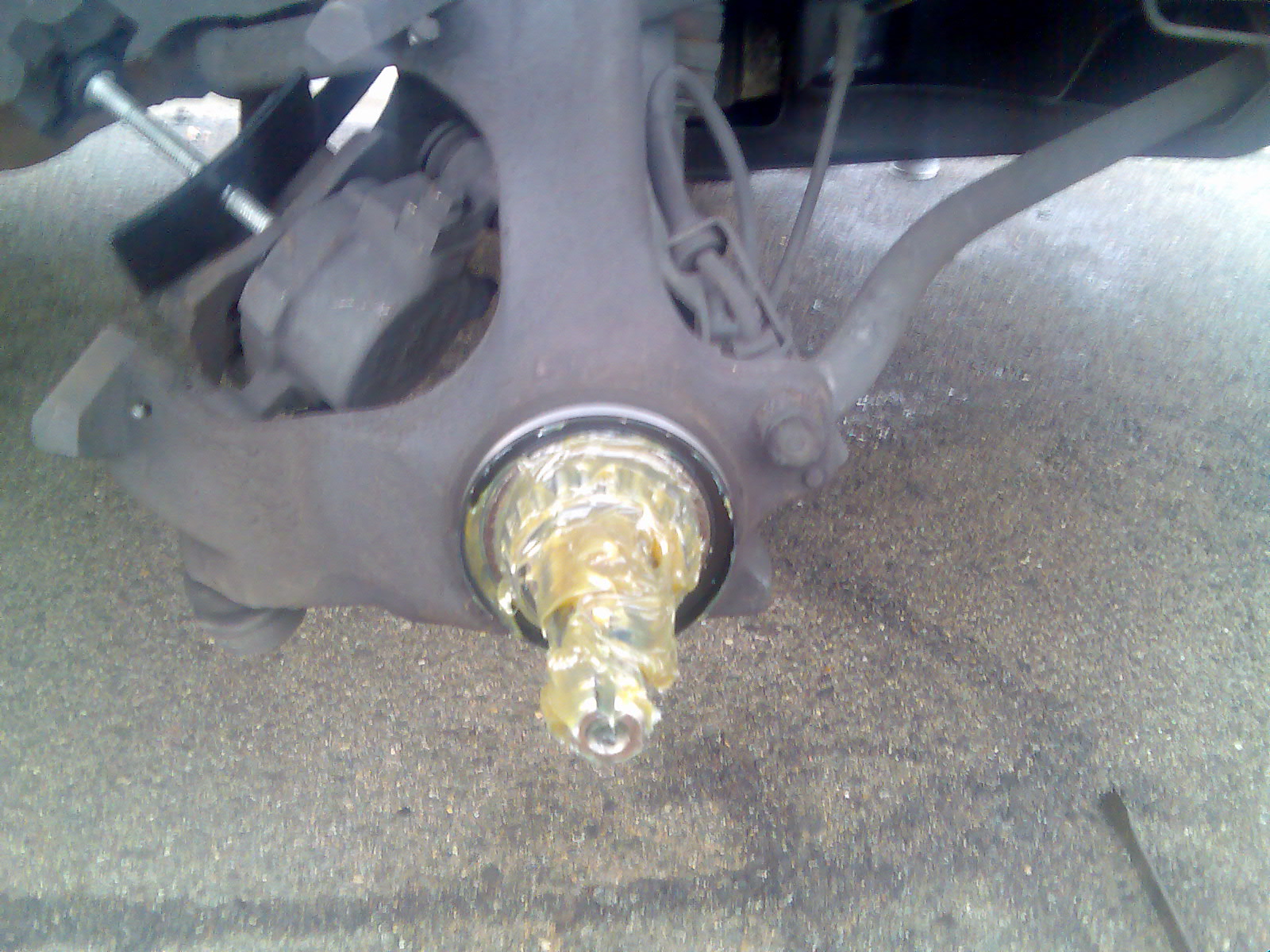

some more of the same thing..





Attachments:
Phone089.jpg [ 495.74 KiB | Viewed 42 times ]
Phone025.jpg [ 464.41 KiB | Viewed 55 times ]
File comment: Note can of woodstock, a definate must when performing the applications.
Phone015.jpg [ 468.04 KiB | Viewed 52 times ]



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile


Posted: Sun Nov 04, 2007 11:06 am
Smokin em up
Offline
User avatar

Age: 31

Posts: 280

Joined: 21st Apr 2007

Gallery: 4 images

Ride: xr8 no.3 Au3 Ute

Location: Bundaberg
QLD, Australia

find a secluded road and put 2 wheels on the dirt and stand on the brakes, if u'r abs is working u will know it. and yes that is a lot of grease, have u had the rotor off since u put it on? u may find u'll be pushing grease out past the seal and even forward into the dust cap.
Top
 Profile


Posted: Sun Nov 04, 2007 12:32 pm
Smokin em up
Offline
User avatar

Age: 37

Posts: 266

Joined: 8th Aug 2007

Gallery: 30 images

Ride: xd 351, AUII XR6.... R.I.P ef fa

Location: Prestons
NSW, Australia

Ausman wrote:
find a secluded road and put 2 wheels on the dirt and stand on the brakes, if u'r abs is working u will know it. and yes that is a lot of grease, have u had the rotor off since u put it on? u may find u'll be pushing grease out past the seal and even forward into the dust cap.


Thats what i thought, but i was working on better to be safe than sorry
Ill give it a week and see how it goes... what do you reckon about bleeding



_________________

<a href="http://s154.photobucket.com/albums/s278/stephen351/?action=view¤t=resize2.jpg" target="_blank"><img src="http://i154.photobucket.com/albums/s278/stephen351/resize2.jpg" border="0" alt="resize"></a>

Top
 Profile
