 Post subject: EL XR6 upper trailing arm to diff photos
Posted: Sun Feb 08, 2009 10:07 am
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

EL XR6 upper trailing arm to diff photos,anybody go photos of an orig el , i want to see the bent arms and the mounting point on the diff



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Sun Feb 08, 2009 4:20 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

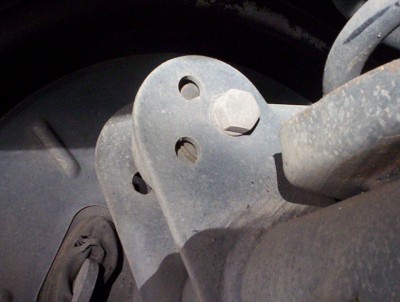

These are of an EL diff upper mounting point.





Attachments:
EL diff upper bracket..jpg
EL diff upper bracket..jpg [ 367.12 KiB | Viewed 116 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Sun Feb 08, 2009 8:58 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi


The pic above shoes the standard arm fitted into the correct hole, front. The EL XR arms would mount into the lower rear hole.

In these pics the std arm is on the left and the XR arm is on the right. You can see how the XR arm is longer by 20mm and is kinked at the diff end to clear the axle tube due to the lower mounting point.

Hope that helps

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Mon Feb 09, 2009 8:04 am
Smokin em up
Offline

Age: 54

Posts: 218

Joined: 12th Jun 2005

Location: hobart
TAS, Australia

thanks gents this has answered everything,i have the bent xr6 arms and the el diff so im progressing the way i wanted , now hows this for strange took the arms of a el gli at a wreakers here in hobart, stock as , thought something was going on when i noticed the alloy shaft and the xr6 pinion snubber



_________________

NC2 Fairlane AU2 Intech 4.0 Wolf V500 ECU Accel 500cc Injectors Eaton M90 Blower MPx Porting 75mm Mustang TB Intercooler Holley 255lph EL XR6 Rear End 3.45 LSD Duel Fuel lots more.
Long and Very Nice

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Mon Feb 09, 2009 8:26 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

It should be noted that the EF had the same length upper arms as the EL XR, but were not kinked at the end.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 8:53 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

just a question guys, I've got a NL, (not the tickford version) its lowered, does that mean i need to change where the bolts go though that hold the upper control arm???

Is that what the over two holes it used for??? for lowering the car?

Laticia



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 9:00 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi Laticia

Unless you actually have the EL XR arms, do not alter where the std arms bolt to. It would mess with the pinion angle big time.

There are three holes in the pic. The top hole is actually not fully round, and is in the normal location for previous E series. The front lower hole, is where the std EL upper control arm mounts too. The rear lower hole is designed for the EL XR arms to go in as they are lower and assists in correcting the pinion angle.

If you can source the EL XR upper arms, it would be a worth while upgrade.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 9:09 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

okay thanks for that, yeah, i wondered what the 3 bolt holes are for!! I'll just leave them in the normal place :)

Thankyou

Laticia.



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 9:51 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1775

Joined: 10th Jul 2007

Gallery: 8 images

Ride: BFII Turbo

Power: 253 rwkw

Location: Waurn Ponds
VIC, Australia

these holes are for corrrecting the pinion angle after lowering the reaer of the car. if you have lowered your car you can use the xr hole with the standrad trailing arm from what Ive been told. one of our members here, "shav" has done this on his au. i need to do it on mine as the pinion angle is incorrect and vibrates badly on decel. has ruined a few sets of bearings now.

thanks amatuers who did my diff.



_________________

enough isn't enough

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 10:13 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

Grimketel wrote:
these holes are for corrrecting the pinion angle after lowering the reaer of the car. if you have lowered your car you can use the xr hole with the standrad trailing arm from what Ive been told. one of our members here, "shav" has done this on his au. i need to do it on mine as the pinion angle is incorrect and vibrates badly on decel. has ruined a few sets of bearings now.

thanks amatuers who did my diff.


so, cos my car has been lowered, I should use one of the other holes in the upper traliing arms? .... what ones would I use??

- Also, which ones are the XR holes??

Thankyou .

Laticia .



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 10:38 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I disagree here strongly.

Your pinion angle would be much worse in the wrong direction if you tried to put the Std EL arms in the rear lower XR hole.

You can try it if you like, but you will find that the Pinion will be at an awful angle.

In addition the XR arms are kinked at the diff end to allow for full travel of the diff without the axle housing fouling on the upper control arm.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 12:11 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1775

Joined: 10th Jul 2007

Gallery: 8 images

Ride: BFII Turbo

Power: 253 rwkw

Location: Waurn Ponds
VIC, Australia

im just going by what shav did with his au. his build thread is in the garage somewhere.

edit: found http://www.fordmods.com/commercial-sponsors-forum-f53/shav-s-au2-futura-t73167.html



_________________

enough isn't enough

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Tue Feb 10, 2009 12:34 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Shav's thread confirms my own opinions.

He originally used the std arms in the lower rear (XR) hole and had bad vibration. He fixed it by moving the std arms into the front hole, correcting the pinion angle to the std position.

If Shav was to fit XR upper arms into the lower rear hole, it would improve the situation again.

From Shav's thread

shav wrote:


ok here is the situation.


In new position.

Diff now in new position
As you can see its in a far better position and seems to sit straighter

and the verdict is:

we have a winner!!! Took the car for a little drive up the main road, and what do ya know, no vibration, smooth as a baby's bum.

Im so relieved its not funny.

For anyone looking to do this mod, just be real careful where the upper trailing arm is positioned and check the position of the diff.



BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Sun Feb 22, 2009 8:53 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

does also work for a EL XR6 cause i lower it with kings super lows and mine makes a vibration at around 100 kms when decal and pass 100 kms it vibrates aswell. i had all uni's replace and rear bush in the gerabox.
Top
 Profile


 Post subject: Re: EL XR6 upper trailing arm to diff photos
Posted: Wed Jan 15, 2014 10:28 pm
Getting Side Ways
Offline
User avatar

Age: 102

Posts: 466

Joined: 22nd Jun 2011

Ride: '97 EL Fairmont Ghia

Location: Perth
WA, Australia

Wow, I wish I'd've found this thread earlier :lol: :lol: :lol:
