Front Upper control Arm bush AUII



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 12:38 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

G'day folks,

I need some advice regarding the bushes on Front Upper control arm on the AUII.

Sometime ago I had removed the original rubber bush and had them replaced with Blue SuperPro bushes...I applied the black grease to the bush prior to pressing and applied black grease to the bolts.

Tightened up to torque, worked well until 4 months ago,,starting to squeak evertime going over bumps as well as entering and exiting vehicle.

Those SuperPro bushes were inserted about 9 monhs ago.

Had anyone had recurring problems / issues with those Blue SuperPro bushes?

I'm going to replace those bushes again shortly..I do a lot of mileage everyday.

Should I go back to the original rubber bush or replace with same Blue SuperPro bush?

I assume the black grease which comes with the bushes is applied to the outside of the bush to ease fitting?

To minimise squeak, what type of grease, if any, should be applied to the bolt and the centre metal ferral?

Cheers.
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 9:00 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the grease goes between the crush tube and bush as well as on the ends, you may find they just need to be re greased.....
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 10:44 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

@ TROYMAN,

Thanks for that info, much appreciated.

Is there any particular grease I should use. I ran out of that black grease which came with those Blue SuperPro bushes some time ago.

Cheers
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 10:54 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

would be best to try get some rubber grease or a synthetic non petroleum based grease,
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 2:57 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

@ TROYMAN

Thanks mate, I'll do that.

Cheers.
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 8:38 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The proper grease for SuperPro bushes was the white stuff....it's now the silicone coloured stuff, and is very thick.
Go to a SuperPro dealer ( Fulcrum Susupension ) and get a small tube of that grease.....it works.

I've had SuperPro bushes in my Falcons for over 10 years....no squeaks.....swapped them from the EA to my ED.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 11:05 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

cjh,

I only had small packet of black grease that came with mine, not enough considering the price I paid for those Blue SuperPro bushes back then. From Superexpensive autos.

I'll also look into that whitestuff from Fulcrum Suspension.
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 11:06 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

bondy99 wrote:
cjh,

I only had small packet of black grease that came with mine, not enough considering the price I paid for those Blue SuperPro bushes back then. From Superexpensive autos.

I'll also look into that whitestuff from Fulcrum Suspension.


I think the white grease has been superceded to the silicone grease.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sun Dec 15, 2013 11:12 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

cjh,

Thanks for letting me know
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Thu Dec 19, 2013 12:34 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

Update,

I've replaced the bushes on upper control arm, tightened chassis bolts and upper ball joint pivot bolt to torque.


However according to workshop manual , the pivot bolts on upper arm needs to be 50Nm. After bouncing the car on ground , the pivot bolts are then torques to spec 50Nm.

I find that to be very difficult to do as there is no way possible to fit a torque bar due to insufficient room.

What's the remedy for this, or does one jack the front again and remove the upper control arm (without disturbing the final resting position) and torque the pivot bolt to spec when off the vehicle?

Any advice would be appreciated
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Thu Dec 19, 2013 11:11 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

bondy99 wrote:
Update,

I've replaced the bushes on upper control arm, tightened chassis bolts and upper ball joint pivot bolt to torque.


However according to workshop manual , the pivot bolts on upper arm needs to be 50Nm. After bouncing the car on ground , the pivot bolts are then torques to spec 50Nm.

I find that to be very difficult to do as there is no way possible to fit a torque bar due to insufficient room.

What's the remedy for this, or does one jack the front again and remove the upper control arm (without disturbing the final resting position) and torque the pivot bolt to spec when off the vehicle?

Any advice would be appreciated


A special extension is used, and a different torque setting due to the extension length.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Thu Dec 19, 2013 11:48 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

cjh,

How does that work and what does this special extension look like? I tried using a 17mm socket, 1/2" drive and there's no room to put an extension bar onto the bolt.

The nut is 16mm and it's facing the spring....ring spanner just gets in there, no way possible for a socket or extension bar to get onto the nut.
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Fri Dec 20, 2013 9:27 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The extension would look like a ring spanner at one end, and would have a 1/2" square hole for the tension wrench to fit into.
Most suspension places don't have anything like that, they would just rattle them up.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Fri Dec 20, 2013 10:53 pm
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

cjh,

That would be an unusual looking tool.

Would you know who makes those tools?
Top
 Profile


 Post subject: Re: Front Upper control Arm bush AUII
Posted: Sat Dec 21, 2013 9:37 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

bondy99 wrote:
cjh,

That would be an unusual looking tool.

Would you know who makes those tools?


Ford, SPX or OTC....someone like that.

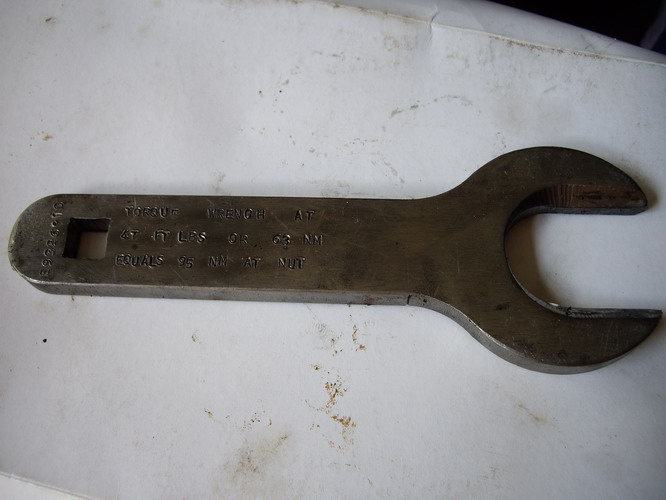

This is a Ford Tool for doing up Rack Ends.....look at the tension specs on it....this tool cost me $100 about 15 years ago.





Attachments:
IMGP1074_resize.JPG [ 64.62 KiB | Viewed 54 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
