 Post subject: hydraulic clutch or cable clutch EL
Posted: Wed Dec 12, 2012 10:04 pm
Oompa Loompa
Offline

Age: 26

Posts: 40

Joined: 17th Jun 2010

Gallery: 4 images

Ride: el xr6

Location: emerald
VIC, Australia

hey so i need to replace my gearbox and my clutch in my el xr6 i was just wondering if anyone thinks it would be woth converting it to a hydraulic clutch set up. i know it will cost mor money but i think it will just be nicer to drive. is this worth the mucking around seeing i only have basic mods to the engine or should i just leave it standard??
any advice would be good thanks
Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Wed Dec 12, 2012 10:15 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

I'd leave it standard Sam, for a Hydraulic clutch to work properly, you'd need a modified pedal (an XD/XE V8 one MAY work, but a BA/BF one certainly wont) and you'll also need to manufacture a mount for a clutch master cylinder eithier by making a totally custom mount, or doing something like welding in a section of firewall from a car that has a hydraulic clutch (you CANT fit a hydraullic clutch without cutting your car to bits) and you'll also need a modified clutch fork, a slave cylinder, and a custom made hydraullic line. You could probably use a clutch fork from a V8 XD/XE turned around the other way. I think a BA/BF Master would be the best bet. But seriously, a nicely done, well set up clutch with a cable will give you many years of pleasureable driving.

Gab
Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Wed Dec 12, 2012 10:43 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

In a 6cyl falcon it wouldn't be "too hard" to do. I'd be looking at modifying a peddle box and fitting a clutch master right to the peddle box, then just need a resivor in the engine bay, and to run a hydraulic line to the clutch fork area. No body mods then.

For the fork, there's a few ways to do it. Might be able to use a BA T5 clutch slave cylinder, or modify the factory fork & use an external cylinder, sort of like the Kingswood/Torana conversion that was so common years ago.

Yes, I've been thinking about this for a while, in the back of my head. I reckon a Toyota hilux clutch slave could be made to work with a nice fabricated bracket to hold it to the side of your gearbox. ;)

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Thu Dec 13, 2012 8:12 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

Send him a pm .

http://www.boostedfalcon.net/viewtopic.php?f=54&t=25470



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Thu Dec 13, 2012 8:24 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

Malwood do a kit

http://www.malwoodauto.com.au/whatsnew.htm



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Thu Dec 13, 2012 9:33 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

A cable operated clutch has " feel ".....the hydraulic operated clutches don't have the same " feel ".....the same goes for motorbikes.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Thu Dec 13, 2012 9:54 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

cjh wrote:
A cable operated clutch has " feel ".....the hydraulic operated clutches don't have the same " feel ".....the same goes for motorbikes.


True, I hate not feeling exactly what the clutch is doing in a hydraulic clutch car.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Thu Dec 13, 2012 11:47 am
Oompa Loompa
Offline

Age: 26

Posts: 40

Joined: 17th Jun 2010

Gallery: 4 images

Ride: el xr6

Location: emerald
VIC, Australia

Yeah I remember driving a ba xr6 and the clutch was way too light. I guess wat I want to know is is it worth doing?
Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Fri Dec 14, 2012 2:00 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

elmeup wrote:
Yeah I remember driving a ba xr6 and the clutch was way too light. I guess wat I want to know is is it worth doing?



Not really, for the time, trouble and outlay of $$$$ to achieve......what?...a clutch that still works, and has no " feel ".....just my 2 cents.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Fri Dec 14, 2012 7:40 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Gab1 wrote:
I'd leave it standard Sam, for a Hydraulic clutch to work properly, you'd need a modified pedal (an XD/XE V8 one MAY work, but a BA/BF one certainly wont) and you'll also need to manufacture a mount for a clutch master cylinder eithier by making a totally custom mount, or doing something like welding in a section of firewall from a car that has a hydraulic clutch (you CANT fit a hydraullic clutch without cutting your car to bits) and you'll also need a modified clutch fork, a slave cylinder, and a custom made hydraullic line. You could probably use a clutch fork from a V8 XD/XE turned around the other way. I think a BA/BF Master would be the best bet. But seriously, a nicely done, well set up clutch with a cable will give you many years of pleasureable driving.

Gab


Ning.
You don't need to cut up your car lol. Drill a hole or two yes, cut no.

Poor response/0


Clutch cables bend pedal boxes, bend firewalls, cables snap, and are f**k in general.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Sat Dec 15, 2012 8:50 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

krisisdog wrote:

Ning.
You don't need to cut up your car lol. Drill a hole or two yes, cut no.

Poor response/0


Clutch cables bend pedal boxes, bend firewalls, cables snap, and are f**k in general.


I have never had a pedal box fail, or the firewall crack, in either the ol' EA, or the ED. Neither of them were strengthened, and were running PBR RPM clutches too.
I have had the cables fail, and the fork insulator hooks fail, however.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Sun Dec 16, 2012 8:53 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

cjh wrote:
krisisdog wrote:

Ning.
You don't need to cut up your car lol. Drill a hole or two yes, cut no.

Poor response/0


Clutch cables bend pedal boxes, bend firewalls, cables snap, and are f**k in general.


I have never had a pedal box fail, or the firewall crack, in either the ol' EA, or the ED. Neither of them were strengthened, and were running PBR RPM clutches too.
I have had the cables fail, and the fork insulator hooks fail, however.


I've had those fork insulator hooks fail too, So I invented a fix for that, my clutch cable is held in by a washer with a slot in it that's too big to fit through the hole, it cant come out

Gab
Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Sun Dec 16, 2012 1:38 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

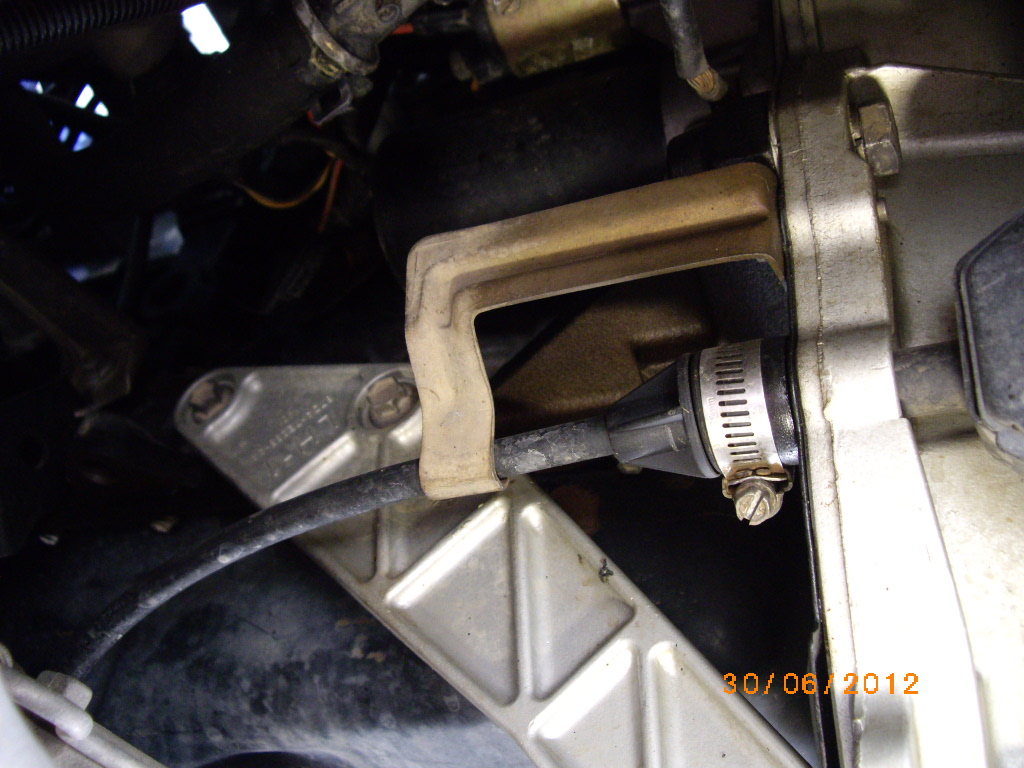

I forgot to mention, that I fitted a wide band heater hose clamp around the plastic guide that the other insulator rubber lives in.....stops the rubber squashing so much and losing cable/pedal travel.
I have also rerouted the cable so as to have no sharp bends, makes for a smoother operation, to give better " feel " as well.
I also added a return spring on the clutch fork so the throw-out bearing isn't in constant contact with the clutch fingers, and I fitted a pedal stop at the pedal box as well.





Attachments:
IMGP10334.JPG [ 307.89 KiB | Viewed 46 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Sun Dec 16, 2012 7:17 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

cjh wrote:
krisisdog wrote:

Ning.
You don't need to cut up your car lol. Drill a hole or two yes, cut no.

Poor response/0


Clutch cables bend pedal boxes, bend firewalls, cables snap, and are f**k in general.


I have never had a pedal box fail, or the firewall crack, in either the ol' EA, or the ED. Neither of them were strengthened, and were running PBR RPM clutches too.
I have had the cables fail, and the fork insulator hooks fail, however.


EF EL are notorious for breaking the firewall.
There's thousands who have bent a pedal box, there weak as piss.
PBR RPM clutch? So XR6 spec?
Try running a decent clutch with a cable - watch the cables snap, pedal boxes bend, clips and insulators snap. All round AIDs.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: hydraulic clutch or cable clutch EL
Posted: Sun Dec 16, 2012 10:00 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

krisisdog wrote:

EF EL are notorious for breaking the firewall.
There's thousands who have bent a pedal box, there weak as piss.
PBR RPM clutch? So XR6 spec?
Try running a decent clutch with a cable - watch the cables snap, pedal boxes bend, clips and insulators snap. All round AIDs.


A decent clutch shouldn't be so heavy as to give you a left leg like Arnny.
The clutch I had in my old Val was so heavy, that at the lights, I would shift it to neutral, because my left leg would start shaking after about 15 secs.
The clutch I run in the Falcon is slightly more heavier than a standard one, but it doesn't slip....with 220 rwhp and towing a car trailer with a car on it, changing at 4,000 rpm, no slip....and it's just an organic compound friction plate too.........Horses for courses, though.
