 Post subject: locka 4wd diffs
Posted: Sat Mar 06, 2010 9:09 pm
Stock as a Rock
Offline

Age: 114

Posts: 164

Joined: 25th Jan 2010

Ride: 1999 au series 1

Location: sydney
NSW, Australia

can someone explain to me what the difference is between a
locka 4wd diff with lsd centre & a standard lsd.

what will a locka diff do for me that ya normal lsd wont!
and what are the pros & cons of either brand. i am purchasing a lsd later in the year & am open to suggestions . on another thread someone mentions that the locka diff is the closest legal diff to the mini spool. so what does all that do for my car.
and where does one go to get a locka fitted. :D
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sat Mar 06, 2010 9:39 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

A Lokka is a mechanical centre. Under load it locks the rear axles together to drive evenly. A limited slip does not lock, but has a different tolerance to how it reduces wheelspin



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sat Mar 06, 2010 9:47 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

there is no locking diff that still retains the LSD function. (aside from a german? made unit that used magnets to apply extra pressure on an lsd clutch pack, though it proved weak and still slipped when used in tough 4x4 conditions)

there are also a number of different locking diffs.

ARB and TJM both in cab AIR operated diff locks, each of them work differently but basicly use compressed air to operate the lock. these are a two position device and are either open or locked.
The McNamara locker is similar to a the TJM locker.

You then have 'Auto lockers' like the Locright and the 4x4 systems Locker
Which basicly do the same thing as a Detroit locker. When power is applied they will lock, if there is no power being applied they will allow each rear wheel to travel Independently.

And LSD will never mechanically 'lock' through what ever clutch design the LSD has it will 'help' to transfer torque to the wheel with less grip. But to go through every type of LSD would be an article in its self.

Last edited by tickford_6 on Sat Mar 06, 2010 10:55 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sat Mar 06, 2010 10:32 pm
Getting Side Ways
Offline

Age: 47

Posts: 4604

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

Lockrights rule!!!!
100000x better then the best LSD.
Now I have one in a road car I wont be going back to an LSD in a hurry.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 2:26 pm
Stock as a Rock
Offline

Age: 114

Posts: 164

Joined: 25th Jan 2010

Ride: 1999 au series 1

Location: sydney
NSW, Australia

ok lockrights sound good ! but going from your original diff to the lockright ! was it an imediately noticible difference and if yes in what way was it better.
if i was to go out 2moro say to purchase one where would i go eg: 4wd shop like arb !
i need to know what to expect at the installers !
being that my diff is the s**t stock 3.08 standard diff as supplied as new on my 4ltr auto ( au ) ! do i have to fit a second hand xr6 or xr8 diff from rotor to rotor before getting a lockright fitted. do i still need to fit the 3.71 lsd centre i had plans on at xmas.
is it only the centre of ya diff that is replaced. how does it all work. :shock:
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 3:41 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Big difference in traction. You have to source it from 4wd systems in South Australia, basically your existing open centre gets stripped and the lockright sits inside that. You do not need an XR diff to fit one.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 4:08 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

A Lokka will not fit in a LSD centre... They are a different shape to an open centre, and as such the Lokka will only fit in open centres...

I have one and haven't fitted it yet (waiting on the return of the old man's diff spreader), however these are great... They can be fitted by any mechanically minded person, as long as you take the diff apart and put every piece back exactly where it came from (ie don't mix the shims and caps up) then the crown and pinion mesh pattern will not change...

You remove the centre, unbolt the two halves and pull out the spider assembly, insert the Lokka, take some measurements to make sure it'll unlock (basically that the shims inside the centre aren't too fat or too thin) and bolt the two halves together again and re fit your diff housing...

If you keep the same ratio you will not have to reset the preload, face/flank, and heel/toe measurements, if you change gears you will need to set all these again...

I'm keeping my current ratio (keeps it fuel efficient at 100km/hr, not too many revs) so it should be (fingers crossed) a fairly simple job for me to do...

I'll post up pics of it shortly...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 4:52 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Ok...

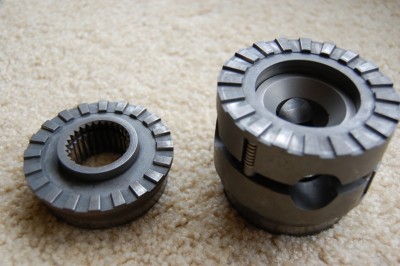

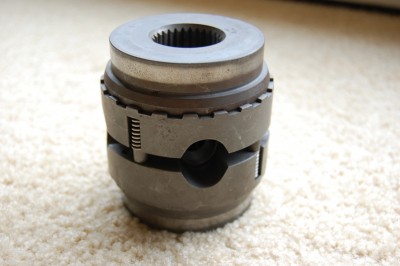

To explain how it works here some pics...

Firstly a couple of general pics...

Attachment:
DSC_0625.JPG [ 238.96 KiB | Viewed 3779 times ]

Attachment:
DSC_0626.JPG [ 287.11 KiB | Viewed 793 times ]


Ok...

You have to picture this to understand...
Tail shaft drives pinion -> pinion drives crown wheel -> crown wheel drives centre housing -> centre housing drives cross shafts -> cross shafts drive Lokka

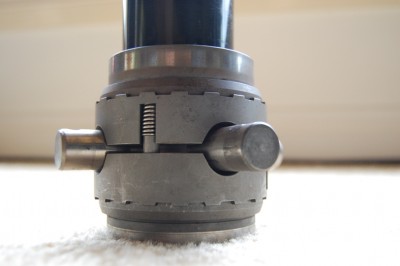

Now when you see thisI have compressed the springs (using an aerosol can) and this is how it resides inside the diff when under no drive

Attachment:
DSC_0628.JPG [ 185.67 KiB | Viewed 1085 times ]

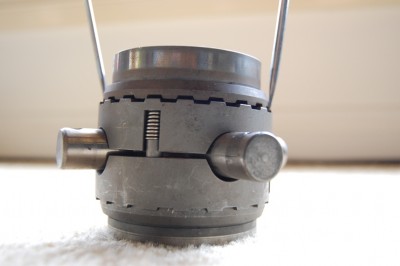

Now when you gun it the cross shafts turn into the inner gears and work like cams forcing the inner gears to mesh with the outer gears locking the wheels together...

When you back off and corner the Lokka drives the inside wheel (unlike a conventional SS) and allows the outer wheel to over-speed... A Lokka while never allow a wheel to under-speed only over-speed...

You have no drive and the traction combine with speed difference of the wheels allows this gadget to do this:

Attachment:
DSC_0630.JPG [ 188.47 KiB | Viewed 1044 times ]


therefore one wheel (inner wheel) remains locked and the other unlocks and shounds like a ratchet when these gears slip over each other...

This is my understanding of it anyway... I'll find out what its like when I get it in...

Hope it helps...

Cheers...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 5:02 pm
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Your pretty much spot on Tim, but when you corner under full throttle or load, it stays locked on both wheels, so you will either have the inside wheel skip or you will have a slide happening



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 5:32 pm
Stock as a Rock
Offline

Age: 114

Posts: 164

Joined: 25th Jan 2010

Ride: 1999 au series 1

Location: sydney
NSW, Australia

so timmy looks like i dont need the lsd anymore! ! if purchasing a locka diff ;
can you still pick a locka diff ratio" similar" to a 3.71 lsd for that off the line punch !
i hope there is somewere in sydney that sells and installs these as i cant wait.
also whats the approx/ price if anyone knows to purchase and get this fitted from a diff joint.
oh yeah! whats the best type !
detroit locker
arb air locker ( turn on turn off manualy)
lokright
what is the life expectancy of a locka driven at a respectable pace. i keep hearing about the ratchet noise when cornering hard
thanks for everyones advice i dont want to purchase the wrong brand and be gutted. :shock:
Top
 Profile


 Post subject: Re: locka 4wd diffs
Posted: Sun Mar 07, 2010 6:26 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

apparently (I haven't got mine fitted) with the new springs the ratchet noise is nearly non existent and the life expectancy from their website is twice the life of a diff of at least 500,000km...

The Lokka goes inside the carrier and as such you can bolt whatever ratio gear to the carrier that suit you...

The diff place in wagga quote me around $400 to have this fitted which is a bloody joke... I'll attempt it myself for that price...

I'd send them some pics and the instructions and say I want it installed and the ratio changed so how much...

Just be aware that when you change your ratio that their is a fair bit of time involved in setting the preload, backlash, face/flank and heel/toe up... You be up for quite a few hours I'd reckon there... Esp if they install the pinion with the shims it says and it turns out to be wrong and they have to remove it again as the colapsable washer in it can only be used once so your up for another new one if it ends up wrong and more time to set the pinion preload again...

If you can get away with already set up gears (I'm just gonna run with the 3.27 that are in the diff already) then its much cheaper and you'd near be able to install yourself...

They are supplied from a South Australian Company and you'd be better to get onto them and leave out the middle man...

Ok my understanding of following:
*Detroit, not practical for street use, hard to get to unlock, lots of parts and very complicated, more bits to wear out, physically very large (made for 9" diffs)
*Air Locker, Would be expensive and not very common and I've never seen one for the std Borg Warner Falcon Diff
*Lokka, small, simple, easily unlocks, very few parts, relatively cheap, fits into existing diff...

More on the above is on the 4wd systems website listed bellow (I'm sure I read it on there somewhere)

Here is an assortment of bits and pieces I have:

Supplier:
4wd Systems Australia

Contact At 4wd Systems:
Tom Hewitson -> tom@4wdsystems.com.au

Boosted Falcon Forums Info:
DIY Install
How To Drive With A Looka

Instructions For Install:
Lokka LR-68 Installation Instructions
Please note that the megashare file above is only available for 90 days from last download, so if you want it then be quick... 8-)

Hope this info helps guys
Cheers
