So i've been reading around the forum before i posted... but for clarification-

I have an EF falcon, 18 inch rims, standard height aka a truck. I want to lower it... but not so much that i scrape everywhere! How low does king spring superlow lower the car from standard height? or even just king spring lows? Does anybody know the specs?

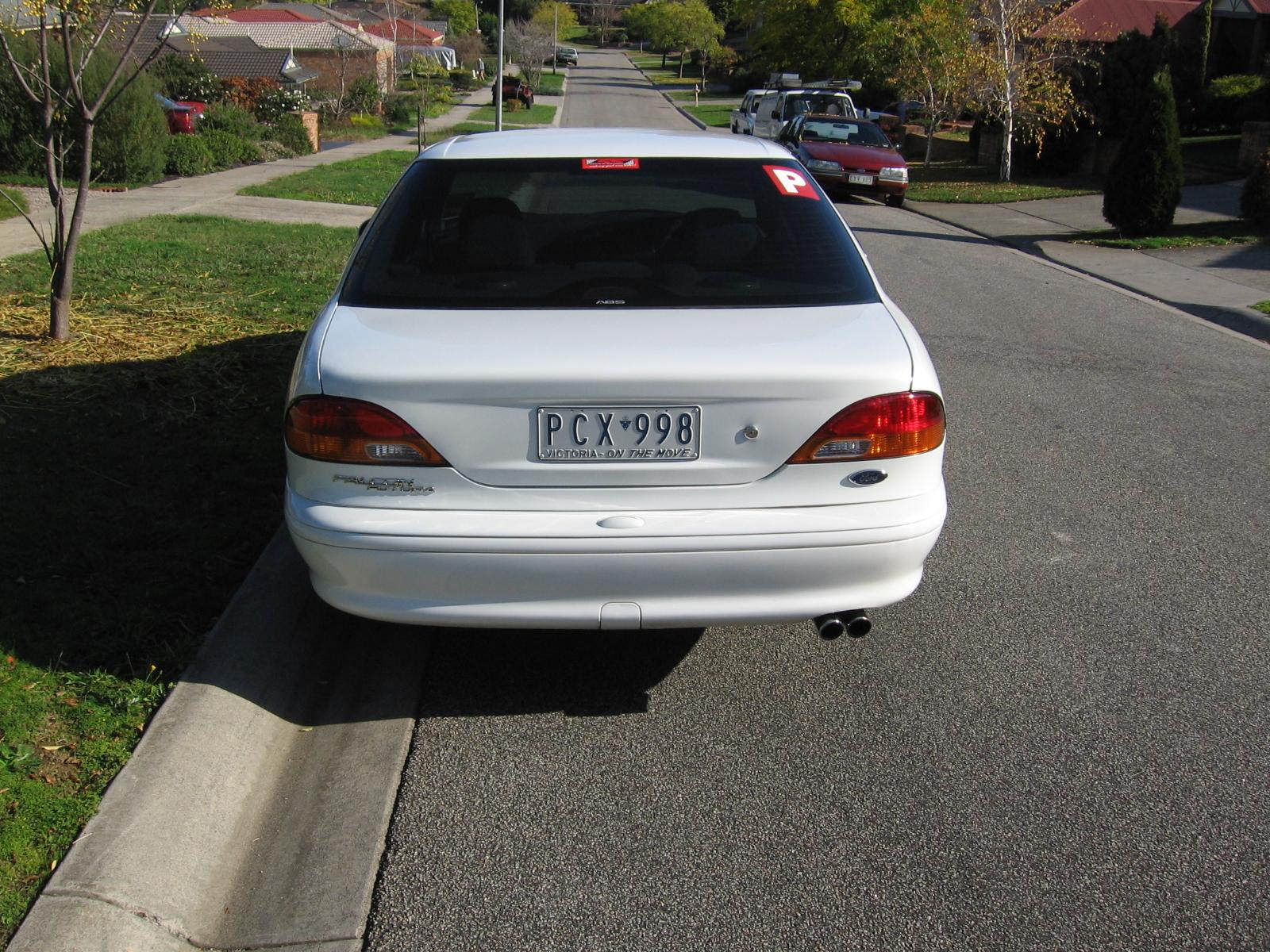

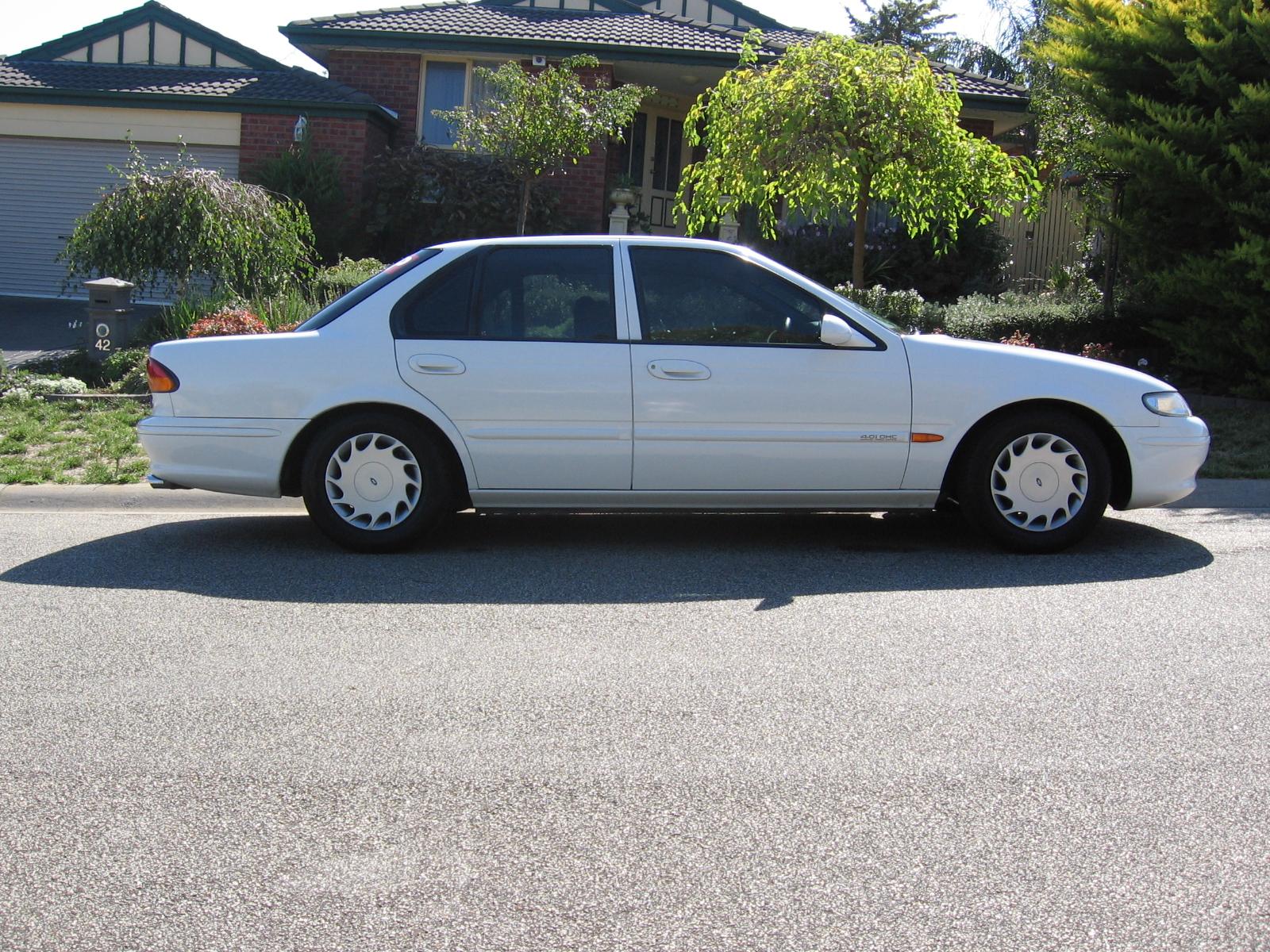

And heres a pic... how much should i drop it?


Top
 Profile


Posted: Mon Jun 16, 2008 6:43 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

holy s**t, i have an el and i swear it sits slightly lower than that stock...I would say go superlows, just adjust your driving to suit (ie go slow and straddle gutters and speed bumps)



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


Posted: Mon Jun 16, 2008 6:52 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

This is my EL with King springs super low in the rear, king lows on the front, with koni yellow shocks.

After driving for a month with superlows, I changed to lows in the rear. I did major scrapage at one of the shopping centres in Melbourne and now have scrapes along the chassis rails of the underside of my car...no passengers in the rear, full tank petrol and sound system sitting on 17" rims.

I say super lows might be safe for you with 18" rims but don't quote me on that.

phong =P~

EDIT: Forgot to add the picture lol.

EDIT 2: Also forgot to mention, the a** was sitting 8cm off the floor at the lowest point...it is now sitting a bit higher in the a** end, maybe 11-12cm off the floor.




_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Mon Jun 16, 2008 7:24 pm
Oompa Loompa
Offline

Age: 28

Posts: 36

Joined: 31st Mar 2007

Location: Adelaide
SA, Australia

ouch with the scraping... i feel your pain! (well... not in my current height... lol)

I will probably go superlow in the rear and low at the front. I got a quote from repco, they said around $180 a pair. Seen any springs cheaper around?

EDIT: And i also sit on 18x235... would superlow be too low? i don't want any undercar damage... or have to go 2kmph over speedhumps :)
Top
 Profile


Posted: Mon Jun 16, 2008 7:45 pm
Oompa Loompa
Offline

Age: 33

Posts: 41

Joined: 11th May 2008

Gallery: 30 images

Location: ipswich
QLD, Australia

hey man as a suspention tec i dont have a problem in my el fairmont i have pedders sport riders supper low's with standed hight shocks works well for me but the car will come down 45/50mm another 15mm with short stroke shock





Attachments:
IMG_1595resize.jpg [ 40.36 KiB | Viewed 593 times ]
Top
 Profile


Posted: Mon Jun 16, 2008 7:52 pm
Oompa Loompa
Offline

Age: 28

Posts: 36

Joined: 31st Mar 2007

Location: Adelaide
SA, Australia

sweet as... lookin at these cars now, i'll have to speed up the lowering ay lol

i measured it out, and i wanted my rear dropped around 50mm and front around 45mm... so superlow with standard shocks seems to be the closest fit :)

How much were the pedders?
Top
 Profile


Posted: Mon Jun 16, 2008 7:55 pm
Oompa Loompa
Offline

Age: 33

Posts: 41

Joined: 11th May 2008

Gallery: 30 images

Location: ipswich
QLD, Australia

cheap for me i work there
Top
 Profile


Posted: Mon Jun 16, 2008 8:34 pm
Oompa Loompa
Offline

Age: 28

Posts: 36

Joined: 31st Mar 2007

Location: Adelaide
SA, Australia

hahaha... what about a rough approximate? for the average bum like me who needs to go to the shop and buy them? :)
Top
 Profile


Posted: Mon Jun 16, 2008 8:40 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 632

Joined: 9th Jun 2007

Gallery: 7 images

Location: Rockingham
WA, Australia

just low springs on cars with 18inch rims or larger look rather gay. if u had 17's lows would look ok but thats what i have on my car and still think it looks to high in the front.

go superlows for sure just drive carefully around curbs and speed bumps and you'l be laughing



_________________

BA Fairmont Ghia
Optioned.
V8.
Superlows.
18's

Alot to come

Top
 Profile


Posted: Mon Jun 16, 2008 10:28 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

wild_ef wrote:
just low springs on cars with 18inch rims or larger look rather gay. if u had 17's lows would look ok but thats what i have on my car and still think it looks to high in the front.

go superlows for sure just drive carefully around curbs and speed bumps and you'l be laughing


Well super lows with any rim size look good, but I prefer practicality over looks. I also have shortened shocks so that's probably why it sat lower in the a** with a stereo system in the boot. You'll get away with super low springs in the rear with standard shocks and lows in the front with standard shocks.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Mon Jun 16, 2008 10:39 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

I'd go with what phongus said..... ive got the same setup in mine and looks good with practicality in mind.

The offset of those wheels looks like it might cause you headaches with tyres rubbing on the guards if you go to low
Top
 Profile


Posted: Mon Jun 16, 2008 11:03 pm
Oompa Loompa
Offline

Age: 28

Posts: 36

Joined: 31st Mar 2007

Location: Adelaide
SA, Australia

im for practicality too... want it to look good and ride well!
Ive been getting different messages... for practicality and looks, what should i go for? superlow rear and low front with standard shocks? or low rear low front standard shocks?
Top
 Profile


Posted: Mon Jun 16, 2008 11:14 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

razza62 wrote:
im for practicality too... want it to look good and ride well!
Ive been getting different messages... for practicality and looks, what should i go for? superlow rear and low front with standard shocks? or low rear low front standard shocks?


I think you'll get away with super low rears with standard shocks since the standard shocks will keep it up a bit down the back. Stick with lows in the front if you want to clear certain things such as parking lot concrete stoppers.

I only went low in the rear because I have shortened shocks which dropped it another 10-15mm, and having a pretty heavy stereo system in the boot didn't help the height either. With lows, shortened shocks and heavy boot, the car sits level and nice now.

I'll take a picture tomorrow if you want and you can compare between the two pictures.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Mon Jun 16, 2008 11:34 pm
Oompa Loompa
Offline

Age: 28

Posts: 36

Joined: 31st Mar 2007

Location: Adelaide
SA, Australia

that would be awesome mate... cheers!
Top
 Profile


Posted: Mon Jun 16, 2008 11:36 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

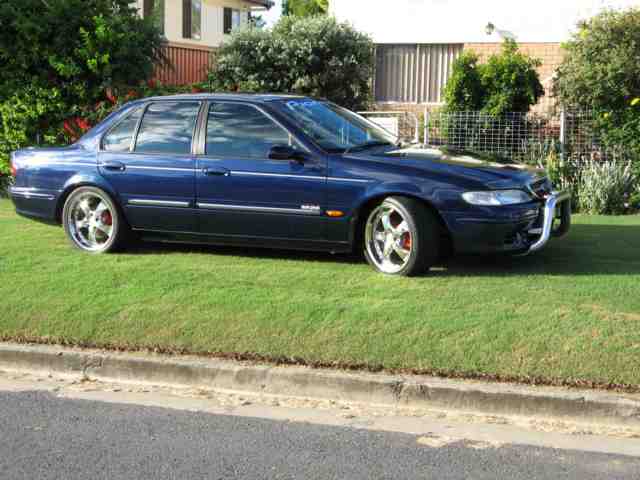

I got the pedders sports rider kit with shocks and springs and my back dropped 72mm and the front dropped 52mm (but im pretty sure my springs were higher than standard). The car rides a hell of alot better and it can take corners at twice the speed now.

oops yeah sorry i should of resized them





Attachments:
IMG_1719i.JPG [ 430.46 KiB | Viewed 547 times ]
IMG_1849i.JPG [ 378.51 KiB | Viewed 545 times ]



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come
