 Post subject: Manual Conversion (AU T5 into EF Futura)
Posted: Thu Oct 02, 2014 1:55 am
Parts Gopher
Offline

Posts: 66

Joined: 24th Mar 2011

Gallery: 3 images

Ride: 1995 le mans Red EF Futura 5spd

Location: Sunshine Coast
QLD, Australia

Hey guys needing some clarification on compatibility of parts.

Im fairly certain the AU box will fit in the ef sedan, but do i use original shifting mechinisim that came with the box, out of an AU ute?

The au bellhousing wont fit onto ef block as the bottom 2 bolts wont line up?, but will the clutch fork fit into ef el bellhousing?

Will the automatic ef shaft be compatable with AU T5.

Will the AU pedal box fit into the EF?

Also will the auto flywheel mate upto an AU clutch package.

Any help appreciated as im flying solo on this mission!
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Thu Oct 02, 2014 3:55 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Firstly the au box is longer so the shifter sits further back and wont line up correctly and you will also need an au manual tail shaft. Secondly the auto flywheel is just tin with holes in it for the torque convertor to bolt to, the manual one is a solid bit of steel.



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Thu Oct 02, 2014 7:19 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Hey guys needing some clarification on compatibility of parts.

Im fairly certain the AU box will fit in the ef sedan, but do i use original shifting mechinisim that came with the box, out of an AU ute?

(A) No you are wrong, AU T5 will fit but as was said about it is longer that the E series T5. Wou will need to modify your floor slightly and you centre consul.

The au bellhousing wont fit onto ef block as the bottom 2 bolts wont line up?, but will the clutch fork fit into ef el bellhousing?

(A) AU bellousing will bolt up but as you have said, the bottom 2 bolts won't fit. Many have used this set up with zero issues. Have no anwser on the clutch fork.

Will the automatic ef shaft be compatable with AU T5.

(A) No, you will require and AU Manual Tailshaft due to the AU T5 being longer. E sereis Auto and Manual use the same tailshaft

Will the AU pedal box fit into the EF?

(A) No.

Also will the auto flywheel mate upto an AU clutch package.

(A) No. Auto uses a Flex plate. You will need to find a Flywheel to suit, AU will be fine.

Any help appreciated as im flying solo on this mission![/quote]
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Thu Oct 02, 2014 6:14 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

SWC wrote:
Hey guys needing some clarification on compatibility of parts.



Will the automatic ef shaft be compatable with AU T5.

(A) No, you will require and AU Manual Tailshaft due to the AU T5 being longer. E sereis Auto and Manual use the same tailshaft

[/quote]


you could also get a spare E series shortened to suit :mrgreen:
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Thu Oct 02, 2014 7:07 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

my opinion is sell the au t5 conversion and get the correct e series one, it is less head aches and the au conversions are harder to come by so it should fetch more coin, e series conversions sell for 3-700 depending on how desperate the seller is,



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Thu Oct 02, 2014 7:47 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

bry40l wrote:
my opinion is sell the au t5 conversion and get the correct e series one, it is less head aches and the au conversions are harder to come by so it should fetch more coin, e series conversions sell for 3-700 depending on how desperate the seller is,



i actually agree .... less headaches due to shifter position - i bought a whole car for the box ... cost me a tad under $800 but i got a whole running car [not quite as good as me EA wagoon tho lol ] BUT its the OP's call on what they do
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Fri Oct 10, 2014 3:38 am
Parts Gopher
Offline

Posts: 66

Joined: 24th Mar 2011

Gallery: 3 images

Ride: 1995 le mans Red EF Futura 5spd

Location: Sunshine Coast
QLD, Australia

Ok not so awesome news, is there any benifits of an au box over the older e series T5
on the length issue how much modification needed on the floor? As i have a manual tailshaft to suit box out of an au ute, I'm now chasing pedalbox if anyone knows anyone?
Now will an e series box bolt up to au bellhousing?
Would I be able to trade a gearbox at the wreckers?
Thanks for the feed back glad i haven't pulled anything apart yet!
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Fri Oct 10, 2014 3:43 am
Parts Gopher
Offline

Posts: 66

Joined: 24th Mar 2011

Gallery: 3 images

Ride: 1995 le mans Red EF Futura 5spd

Location: Sunshine Coast
QLD, Australia

bry40l wrote:
Firstly the au box is longer so the shifter sits further back and (wont line up correctly) l.


So wont be able to select 2nd 4th and reverse properly i mean how many mm are we talking?
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Fri Oct 10, 2014 6:56 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Ok not so awesome news, is there any benifits of an au box over the older e series T5
(A) Much of a muchness.

on the length issue how much modification needed on the floor?
(A) By memory approx 20mm.

As i have a manual tailshaft to suit box out of an au ute, I'm now chasing pedalbox if anyone knows anyone?

Now will an e series box bolt up to au bellhousing?
(A) Yes.

Would I be able to trade a gearbox at the wreckers?
(A) Doubt it, but worth a try, will probably cost you some cash as well if they do it.

Thanks for the feed back glad i haven't pulled anything apart yet!
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Sat Oct 11, 2014 10:59 am
Getting Side Ways
Offline

Posts: 699

Joined: 1st Jan 2006

Ride: Lots, all Fords

Location: Hamilton
New Zealand

AU shift lever is 50mm further back than E-series shift lever. So it's going to be quite a job to make it fit and you'll need to move your center console backwards as well.



_________________

XA Faimont 351C, AU2 XR8 Manual 5.0, DA LTD 5.0, Mk1 Capri 5.0, 1995 Mustang 5.0, EF2 XR8 Manual, EF2 Fairmont Ghia 5.0, AU3 XR8 Auto, AU2 XR8 Auto, AU2 XR8 Manual Ute, TE Cortina 5.0 Manual, DU LTD 5.0 soon to be manual

Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Sat Oct 11, 2014 3:26 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Hi,

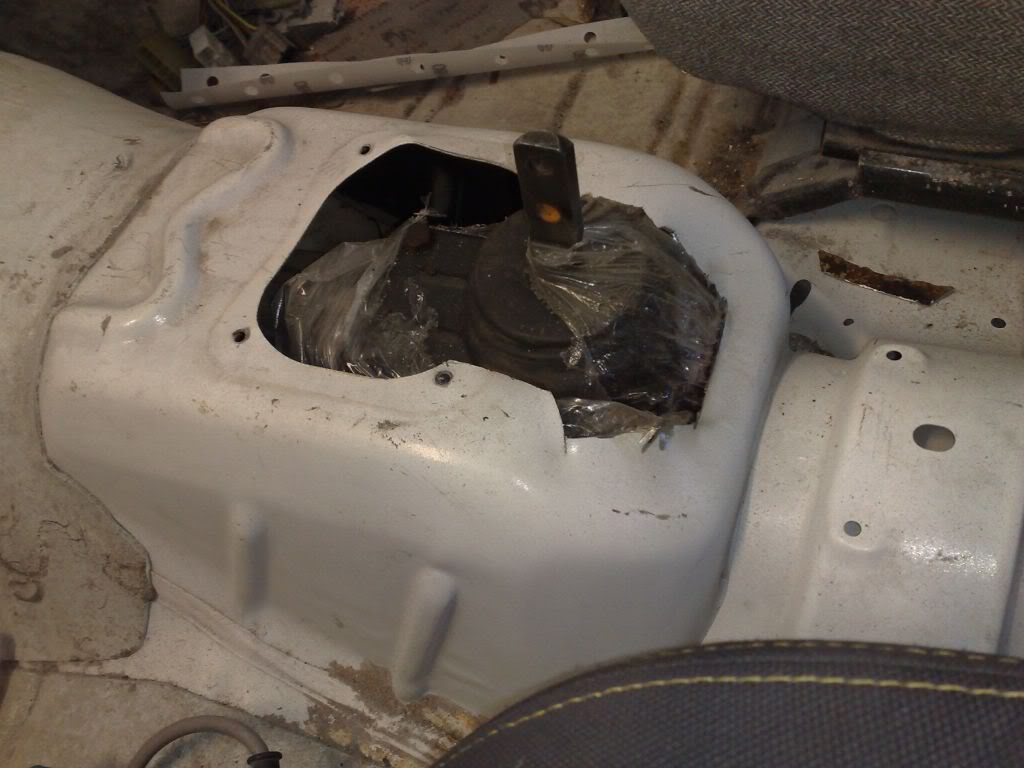

Attachment:
BA gearbox in ED.jpg
BA gearbox in ED.jpg [ 87.72 KiB | Viewed 59 times ]


Can't see that tail shaft being right either... The AU ute is going to be longer than the sedan one because the ute is a longer wheelbase...

Any box will bolt to any bellhousing...

I fitted an AU motor into my manual ED and used the same box and tailshaft, just bought the AU bellhousing so I had all the bolts line up... I know a lot of people say the missing two don't matter but I wasn't going down that route...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Tue Oct 14, 2014 3:25 am
Parts Gopher
Offline

Posts: 66

Joined: 24th Mar 2011

Gallery: 3 images

Ride: 1995 le mans Red EF Futura 5spd

Location: Sunshine Coast
QLD, Australia

Ive since purchased an ed manual, so will the pedal box out of that fit into an ef?
Also anyone got a manual interior gearboot for ef?
I was looking at some clutches something heavy duty, what sort of brands should i look for and what brands should i avoid?
And how high do i have to get the auto car off the ground to remove the box, like knee high ground clearence?
Thanks again for the feedback everyone really saving me a lot of hassles! & money :)
Top
 Profile


 Post subject: Re: Manual Conversion (AU T5 into EF Futura)
Posted: Tue Oct 14, 2014 6:37 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

EBSKIDPIG wrote:
Ive since purchased an ed manual, so will the pedal box out of that fit into an ef?

it's different... The ed one has different holes for the booster... Also has the handbrake mount on the side of it... You maybe able to mod it... Have a look around...

Also anyone got a manual interior gearboot for ef?
I was looking at some clutches something heavy duty, what sort of brands should i look for and what brands should i avoid?

I have an exedy HD which is the pink sports tuff one... Love it...

And how high do i have to get the auto car off the ground to remove the box, like knee high ground clearence?

at least bellhousing height... But you're going to need enough space to get under there and operate tools too so you'll need a little bit...

Thanks again for the feedback everyone really saving me a lot of hassles! & money :)



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit
