 Post subject: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 1:23 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Hello, I was wondering if anyone can assist me with a metal type of noise I've been hearing animating from under the chassis towards the rear of the car.

My car is a Ford AUII built June 2000.

I've already had my car taken to City Suspension and then to Fulcrum Suspension to check my car for the problem I've been experiencing.

Both of these specialists could not find anything that could be the culprit. I doubt if they have done a proper check as it seems to become louder / noisier every day.

The noise is definitely coming from underneath, from the rear, mainly heard on rough roads as well as long stretches on the Gatton-Clifton Roads heading from Ma-Ma Creek towards East Greenmount.

Each time the rear wheels hit a rough patch, definitely some sough of metal tin or something rattles from underneath. I pushed the rear section up and down a few times on the tow bar and no noise is generated.

I've replaced the entire live axle assembly 1 year ago, I've also changed the dust shield plate (thought the noise was coming from that)..., replaced the entire exhaust system , still have the same type of noise.

I'm just about at my witts end.

Anyone have any idea where this noise might be coming from or what could be causing the metal rattling noise? It still rattles even if I apply brakes on a rough road....no where near as bad on a smooth road , hardly noticeable.

I drive on a few rough roads and would like to get to the bottom of this (no pun intended)

Cheers, bondy
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 10:34 am
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

How old are the shocks?



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 10:47 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

@ 67RCE

The shocks are about 12 to 15 months old. I have not jacked the rear as yet. I could not hear any noise when bouncing the car just using my hands.

I'll jack the car up, place axle stands and remove the wheels. I can take the shock off , but how would I know or test it to see if its stuffed ?
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 10:49 am
Getting Side Ways
Offline

Age: 35

Posts: 4183

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Compress the shock and see how long it takes to reach full extension again. You won't be able to move the car fast enough to make noises in all cases.



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

OO0Y4 - BA2 XR6 Turbo, Nizpro Plenum, Process West stage 3 cooler, 4” dump, 3.5” exhaust, ID1000’s, ZF Auto - 11.8@116

Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 11:47 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia

im thinking the rear brake pads are rattling in the calipers??
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 1:07 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

@ 67RCE,

Just about to take rear drivers side shocky off and try what was suggested.

@ TROYMAN,

I thought it might have been that too but rattle noise is still there when brakes have been applied going down hill and on level rough bitumen roads, just as bad on loose gravel rocks. Hardly a noise on smooth bitumen.

Weird one, got me stumped, brake pads seem to be not the cause .
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 6:25 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

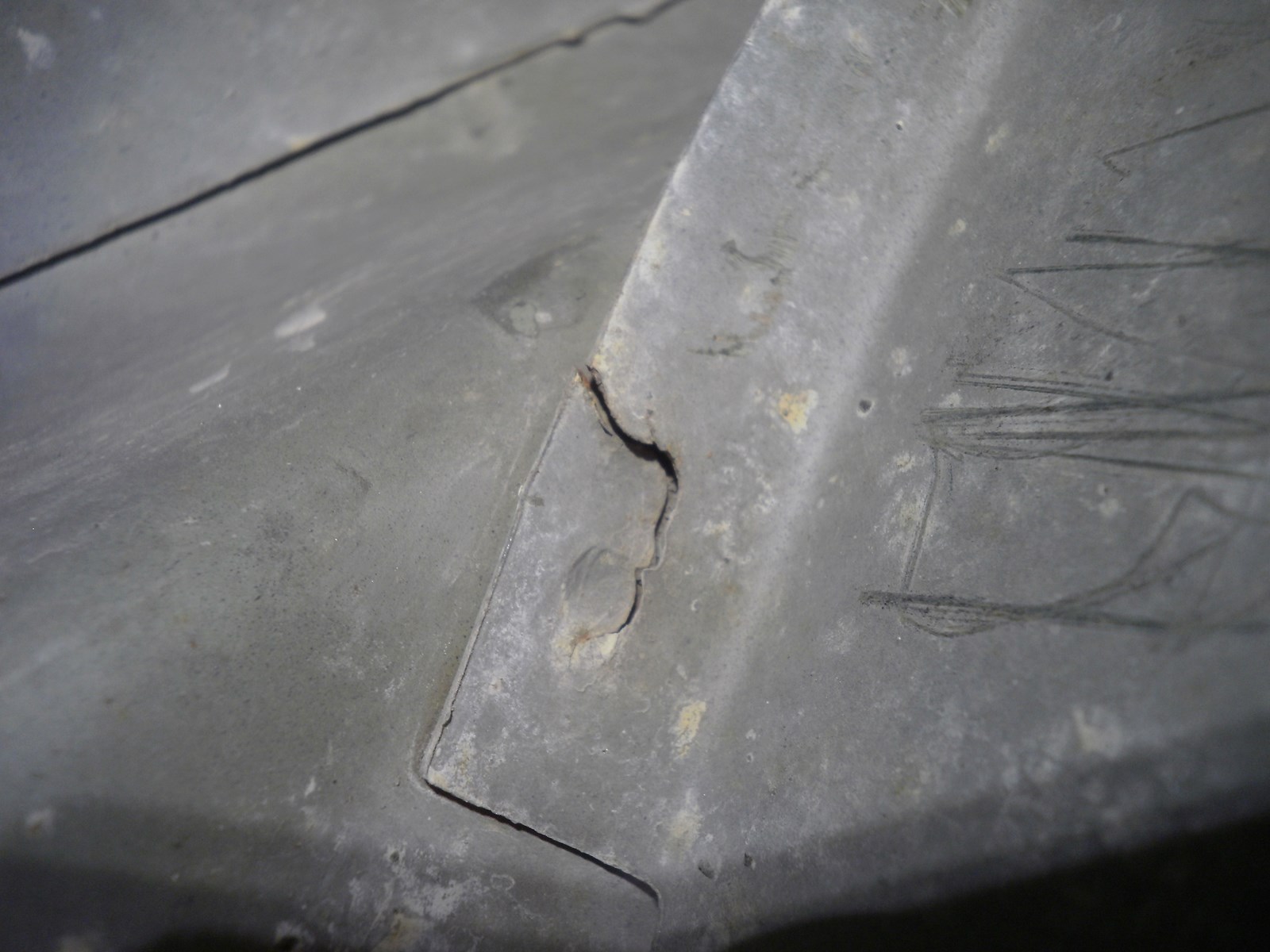

I checked under the vehicle, and noticed a crack in a piece of metal. The crack is near the spot weld.

I have no idea what that piece of metal serves, it's slightly curved shape, and is situated between the spare wheel well and the fuel tank. This may or may not be the culprit. I did tap the metal with my hand and it did make the same if not similar noise to what I've been hearing.

Sounds like a weld job.

Took the shocky off , compressed it, it took 22 to 23 seconds to fully decompress. It's a Gabriel shocky.

I could not find any noise, with the shocky, seems a bit slow rising that's about it.

Here's a pic of the metal in question.





Attachments:
crack in metal deflector (Copy).JPG
crack in metal deflector (Copy).JPG [ 238.9 KiB | Viewed 245 times ]
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 7:38 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Just the other day, I took a mates AUII ute for a drive, and I was thinking how noisy it was back there......I'm sure I could hear the plastic tub jumping around, and slapping the frame work under it.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Sat Apr 19, 2014 8:07 pm
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

@ cjh,

My plastic tub is fully secured, no chance of it jumping around, I even hit it with an 8lb hammer to see if there was any movement. Solid as a rock so to speak.
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Mon Apr 21, 2014 10:10 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Anyone in 100 klm radius of Brisbane area know how to weld?

I took the vehicle for a test drive since removing and replacing same shock absorber and straighten cracked metal...not much metal noise is heard, still few creaks are heard towards back wheel.

Everything is tight, no other signs of metal fatigue / hairline cracks noticeable.

Cheers
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Mon Apr 28, 2014 12:56 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

I thought I solved that noise problem, its back and sounds like metal clanging on metal, definitely something to do with rear wheels / suspension.

When I placed the old shock back in, noise seem to have become very quite to hardly any, now its back and sounds just as bad if not worse. Seems very much a shock absorber issue. It's already done 100,000 klm since the shocks were fitted.

Anyone else have any thoughts as to probable cause, two suspension joints I took the car for a check reckons its ok, they only have smooth roads , not rough roads where its more noticeable.
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Mon Apr 28, 2014 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Just a thought....how are the shackle bushes ???
Have you greased the spring leaves ???
Are the shockie bushes OK ???
Is the spare tyre inflated to 40 psi ???
Is the spare tyre a steel rim or a mag wheel ???
Are the tail gate hinges OK ???
Any loose parts in the tail gate ???
Are the steel tub mountings OK ???



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Mon Apr 28, 2014 9:36 pm
Moderator
Offline
User avatar

Age: 46

Posts: 2484

Joined: 6th Oct 2005

Ride: 93EB Fairmont / BA Falcon XR6T

Location: Western Sydney
NSW, Australia

My BA does a similar thing on the left rear. I reckon its the handbrake lever that goes through the back of the backing plate rattling.



_________________

93 EB II Fairmon8 with 17' EL GT's / Clear indicators / H.I.Ds / Sports exhaust / Lowered 2' / K&N / XR6 ECU.
2004 BA MKI XR6T in Lightning Strike paint / K&N / XR8 bonnet / BF lights and a few tweaks.

Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Tue Apr 29, 2014 12:08 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Hello cjh,

Thanks for your reply,

I've had a complete change over of the rear diff and housing. I dont have spring leaves, I have coil suspension. I have changed all bushes in both upper and lower control arms.

Shackle bushes I'll have to double check to see if my vehicle has them. It's been about a year since the complete diff assemble was changed over (that includes live axle). I don't have Independent Rear Suspension (IRS)

Spare tyre is inflated to 40 psi.

All wheels on vehicle are mags except fr spare which is steel rim.

Have no tailgate, mine is an AUII Sedan (Forte).

Tub mountings are good and tight.
Top
 Profile


 Post subject: Re: Noise from under Chassis from Back area
Posted: Tue Apr 29, 2014 12:14 am
Getting Side Ways
Offline

Age: 65

Posts: 1128

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Crestmead
QLD, Australia

Hello 93eb,

I dont think that's the cause of the rattles on my car, it only happens when its rough bitumised roads and gravel roads, If it was the handbrake cable rattling it would be noticebale on continuing basis and all road types.

I had the rear of the car raised again this afternoon double checked the handbrake cable that goes to the back wheel and its good as gold.
