Pedal Box strengthening



Page 1 of 5 [ 62 posts ] Go to page 1, 2, 3, 4, 5  Next


 Post subject: Pedal Box strengthening
Posted: Fri Nov 03, 2006 7:00 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

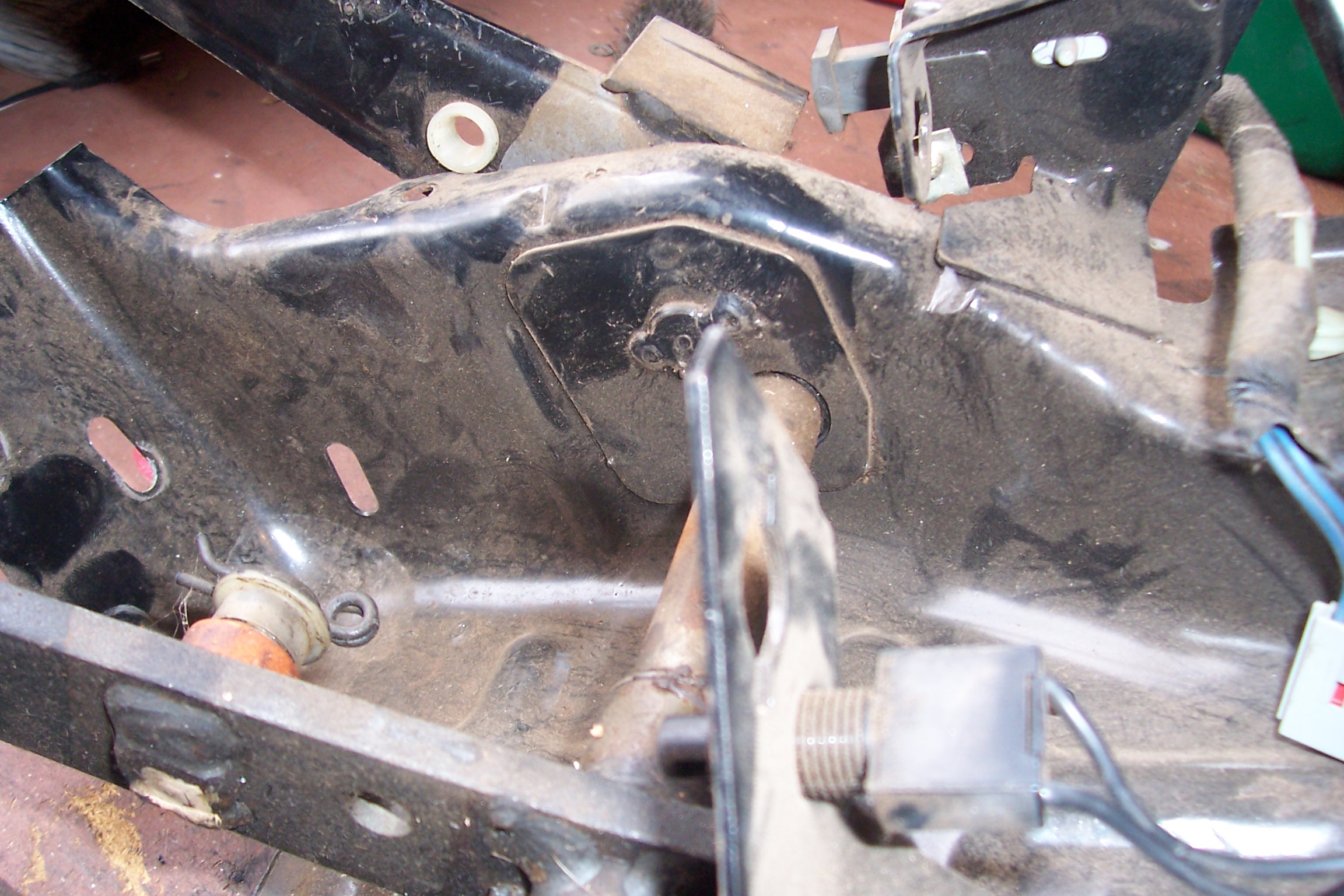

I have just got my pedal box from an EF and had been planning to strengthen it, but to my surprise it looks to be already done from factory. Should I add additional strengthening to it or will it never break?





Attachments:
File comment: Pedal Box
PedalBox1.jpg [ 740.47 KiB | Viewed 219 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Fri Nov 03, 2006 9:34 pm
Getting Side Ways
Offline
User avatar

Posts: 1142

Joined: 17th Sep 2005

Ride: Falcon

Location: Adelaide
SA, Australia

You coulda dusted the fcuking thing off FFS :x :x :x

vik...what part are we lookin at???



_________________

[b]BANNED[\b]

Top
 Profile


Posted: Fri Nov 03, 2006 9:50 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

the pedal box is fine
it is the firewall that need the strengthing
u can buy the part direct from ford



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Nov 03, 2006 10:46 pm
Getting Side Ways
Offline

Age: 30

Posts: 2256

Joined: 5th May 2005

Gallery: 1 images

Ride: 5 Star Boxcar

Location: blu mtns
NSW, Australia

nar pedal boxes do bend too....



_________________

Kezz's 5sp Box Car ---> RPD enhanced with a bunch of other stuff

Top
 Profile


Posted: Fri Nov 03, 2006 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

yeah BOTH of my pedal boxes have extra welds over the plate you can see on the side. im going to check mine out more.


what are these strengthning panels from ford? and how much do they cost?



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sat Nov 04, 2006 11:08 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1231

Joined: 6th Nov 2004

Ride: 2010 Nitro Blue FG

Location: Melbourne
VIC, Australia

The pedal boxes DO bend as i have now gone through 2 of them!! Get it welded for some extra strengthning around the pivot point



_________________

The boogieman checks under his bed for chuck norris

Top
 Profile


Posted: Sat Nov 04, 2006 11:12 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

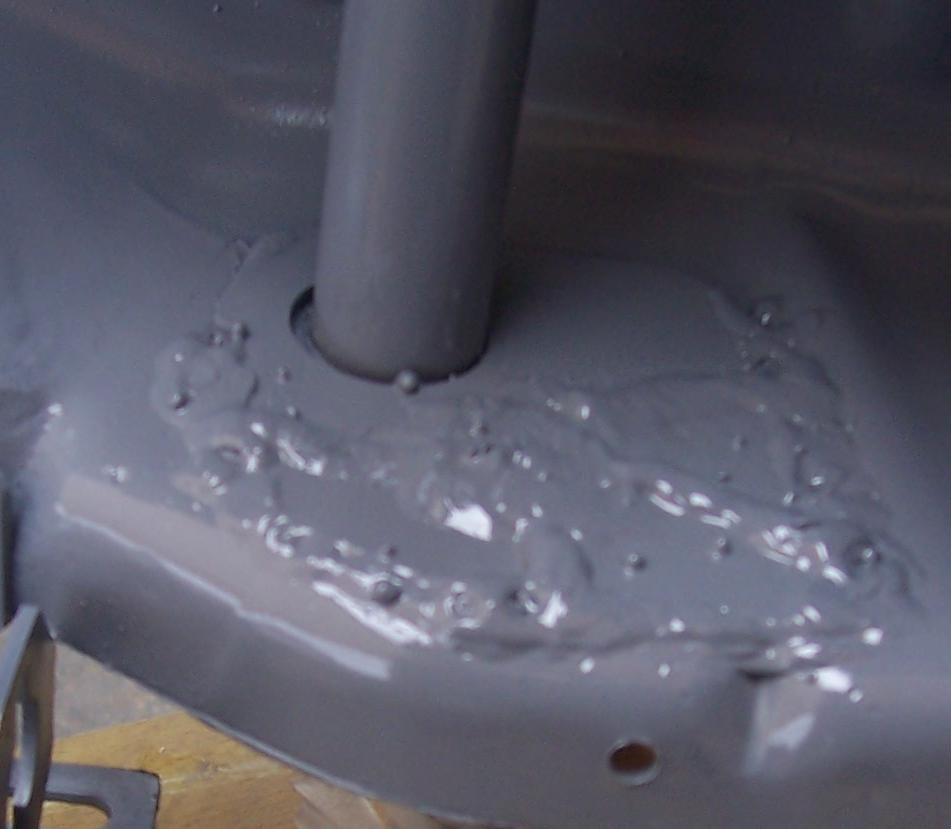

I did some quick welding to make it stronger. That pin is not going anywhere now.





Attachments:
File comment: Strenghtening welds
PedalMod.JPG [ 44.75 KiB | Viewed 87 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sat Nov 04, 2006 11:26 am
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Ive seen several broken pedal boxes but in each case the pedal box only went after the firewall. In other words, clutch cable went, owner didnt change, extra load caused the firewall to tear, owner didnt fix, finally the pedal box went and the owner finally decided to do something about it.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sat Nov 04, 2006 12:30 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Disco Frank wrote:
the pedal box is fine
it is the firewall that need the strengthing
u can buy the part direct from ford


i tried to get the part for the firewall from ford and they gave me a weird look and said there is no such thing..

but if you have a part number i could stick it in there face...
Top
 Profile


Posted: Sat Nov 04, 2006 12:39 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

ive broken mine twice!
I strengthened mine here is a pic - put anotehr bit of metal over it and fille the pin with weld!




_________________

Nicko

Top
 Profile


Posted: Sat Nov 04, 2006 12:55 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

one of mine has a mountain... literally a MOUNTAIN of weld over it... ill go grab a pic



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sat Nov 04, 2006 2:16 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Neo_nick wrote:
ive broken mine twice!
I strengthened mine here is a pic - put anotehr bit of metal over it and fille the pin with weld!

That looks exactly the same as mine , it appears to be the way they were reinforced from factory.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sat Nov 04, 2006 3:51 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

TROYMAN wrote:
Disco Frank wrote:
the pedal box is fine
it is the firewall that need the strengthing
u can buy the part direct from ford


i tried to get the part for the firewall from ford and they gave me a weird look and said there is no such thing..

but if you have a part number i could stick it in there face...


they are t***

the part fits iirc XR to AU falcon manuals

had a quick squiz at the database and not there :(



_________________

RIP SCOTT

Top
 Profile


Posted: Sat Nov 04, 2006 4:08 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

i cracked my pedal box but my firewall was fine???



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


Posted: Sat Nov 04, 2006 5:02 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Disco Frank wrote:
TROYMAN wrote:
Disco Frank wrote:
the pedal box is fine
it is the firewall that need the strengthing
u can buy the part direct from ford


i tried to get the part for the firewall from ford and they gave me a weird look and said there is no such thing..

but if you have a part number i could stick it in there face...


they are t***

the part fits iirc XR to AU falcon manuals


had a quick squiz at the database and not there :(

Can I have the part number again seperated with a dot or something, fordmods thinks you are swearing :P ,



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile
