 Post subject: Spigot bearing, auto
Posted: Sun Jan 12, 2014 4:45 pm
Parts Gopher
Offline

Age: 31

Posts: 99

Joined: 11th Apr 2011

Ride: Batmobile

Location: Tauranga
New Zealand

Hey guys, just had to put an auto back in my car after the T5 died. I have left the spigot bearing in the crank shaft and bolted the auto back up. It seems to bolt up ok. Am I going to have any issues leaving it in?

Also this box came out of an EB, where is the dipstick supposed to bolt up to? Second highest bellhouse bolt on the drivers side? It sits at that height but the angle of the bracket the bolt goes through is on a weird angle.

Finally, any tips on getting trans cooler lines back in the car with the engine in...PITA!!!!

All help much appreciated.

Cheers
Top
 Profile


 Post subject: Re: Spigot bearing, auto
Posted: Sun Jan 12, 2014 8:49 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

kiwief wrote:
Hey guys, just had to put an auto back in my car after the T5 died. I have left the spigot bearing in the crank shaft and bolted the auto back up. It seems to bolt up ok. Am I going to have any issues leaving it in?

Also this box came out of an EB, where is the dipstick supposed to bolt up to? Second highest bellhouse bolt on the drivers side? It sits at that height but the angle of the bracket the bolt goes through is on a weird angle.

Finally, any tips on getting trans cooler lines back in the car with the engine in...PITA!!!!

All help much appreciated.

Cheers


The spigot bearing is suppose to be removed when fitting and auto tranny, as the spigot on the convertor locates in the crank, and is way bigger than the manual spigot.
As for the tranny cooler lines......good luck !



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Spigot bearing, auto
Posted: Sun Jan 12, 2014 10:52 pm
Getting Side Ways
Offline
User avatar

Age: 102

Posts: 466

Joined: 22nd Jun 2011

Ride: '97 EL Fairmont Ghia

Location: Perth
WA, Australia

The thing that sticks out the front of the torque converter is going to press on it, I did the same thing. I ran for almost a year with it and didn't notice anything unusual, but when doing a manual conversion, I was having extreme difficulty taking the torque converter bolts off, as the whole flex plate was being bent into a dish like shape against the torque converter, putting huge pressure on the bolts.

The spigot bearing looked like this after getting it off.



_________________

EL Ghia

Top
 Profile


 Post subject: Re: Spigot bearing, auto
Posted: Sun Jan 12, 2014 10:59 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

TyLeR3397 wrote:
The thing that sticks out the front of the torque converter is going to press on it, I did the same thing. I ran for almost a year with it and didn't notice anything unusual, but when doing a manual conversion, I was having extreme difficulty taking the torque converter bolts off, as the whole flex plate was being bent into a dish like shape against the torque converter, putting huge pressure on the bolts.

The spigot bearing looked like this after getting it off.


The proper Ford spigot bearing is like that one ^^^^^^^^^^^^^^....they are a needle roller with a special outer.

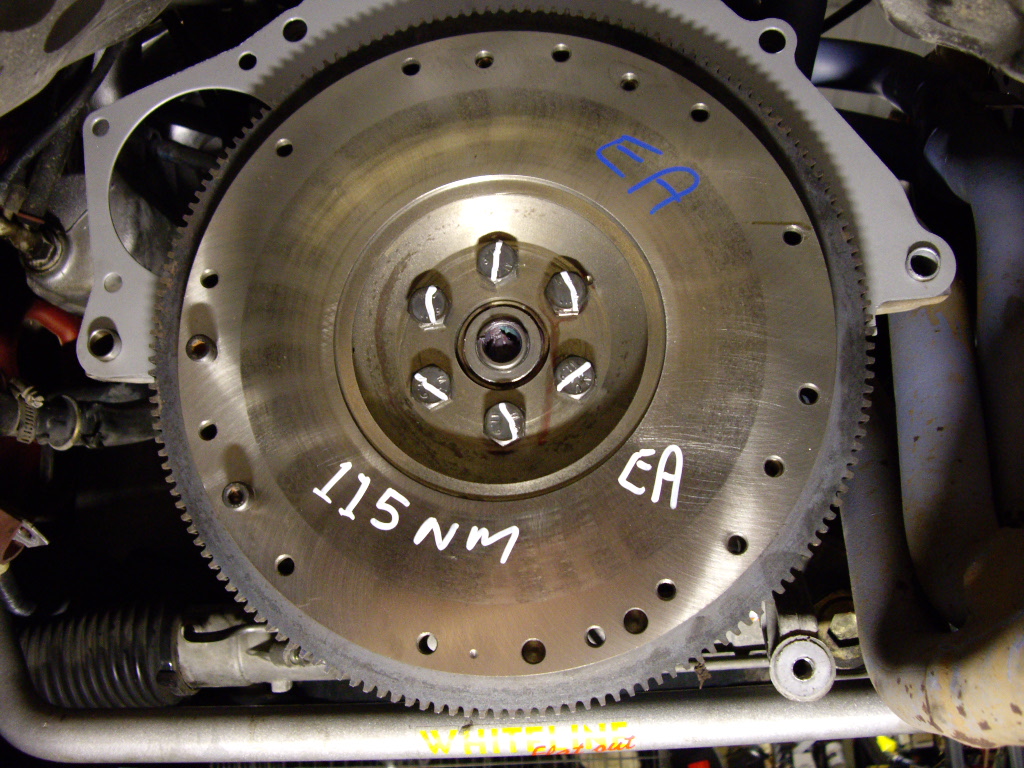

Here's a pic of one.....you'll see what I mean.





Attachments:
IMGP3545.JPG [ 378.74 KiB | Viewed 38 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Spigot bearing, auto
Posted: Sun Jan 12, 2014 11:00 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

So....with a Genuine Ford spigot bearing in place, the spigot of the torque convertor could never go in.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Spigot bearing, auto
Posted: Tue Jan 14, 2014 10:10 am
Parts Gopher
Offline

Age: 31

Posts: 99

Joined: 11th Apr 2011

Ride: Batmobile

Location: Tauranga
New Zealand

Thanks guys, off she comes then. I managed to get the cooler pipes in by going straight under the front bumper, past engine mount and into the box.
