Steering intermediate shaft question



Page 1 of 1 [ 10 posts ]


 Post subject: Steering intermediate shaft question
Posted: Thu Aug 22, 2013 10:16 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 591

Joined: 28th May 2011

Gallery: 4 images

Ride: EF Futura DUH

Location: central coast
NSW, Australia

Hi all! Been a while since i've posted. Still plugging away at the EF.

I have been meaning to replace the intermediate shaft for some time due to a sloppy uni joint and my mechanic has finally pulled me up on it during a pink slip inspection.

I plan to try and find a decent 2nd hand one but I remember the wreckers telling be there are a few different ones for the EF last time I made enquiries (number of splines to be exact).

Is this correct?
If so, is there a way of indentifying which model had what type or do I need to bring the shagged one with me?

Any help would be muchly appreciated - Ryan.



_________________

1996 EF Futura factory manual
Fully rebuilt engine,Decked, Honed, Bored, Tolerences spot on, Wade 1673, Extractors, 2.5" zorst, 3" CAI, High flow filter, Exedy sports tuff clutch, Chiptorque tune.
Future Mods: A mortgage...

Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 1:49 am
Smokin em up
Offline
User avatar

Posts: 218

Joined: 28th Apr 2012

Ride: EL Wagon, DF LTD

Location: Vermont South
VIC, Australia

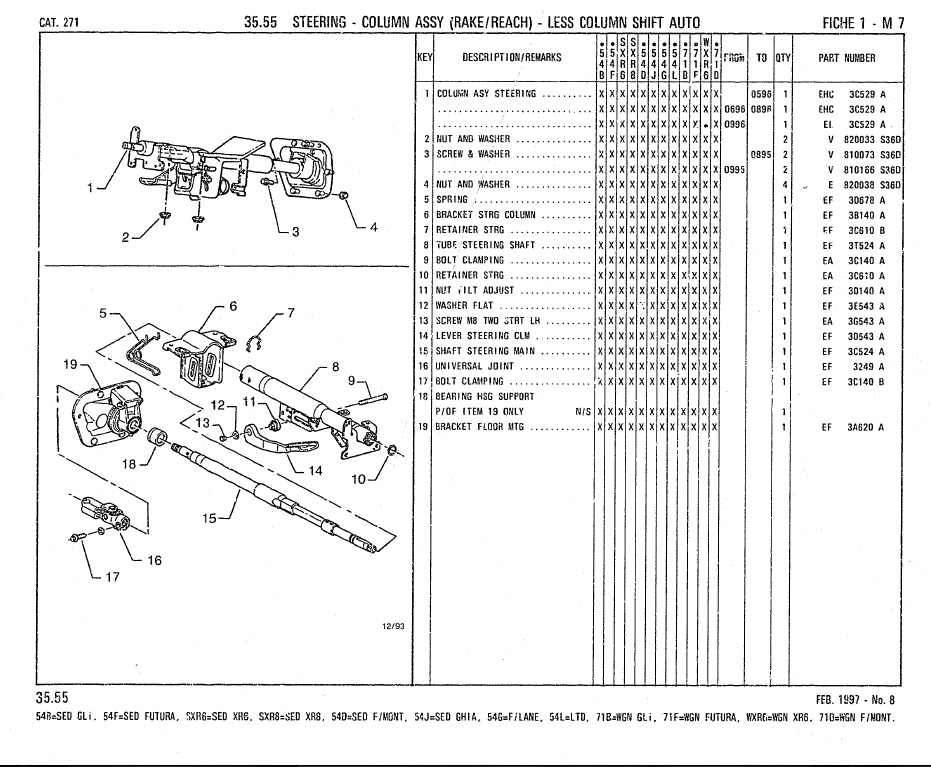

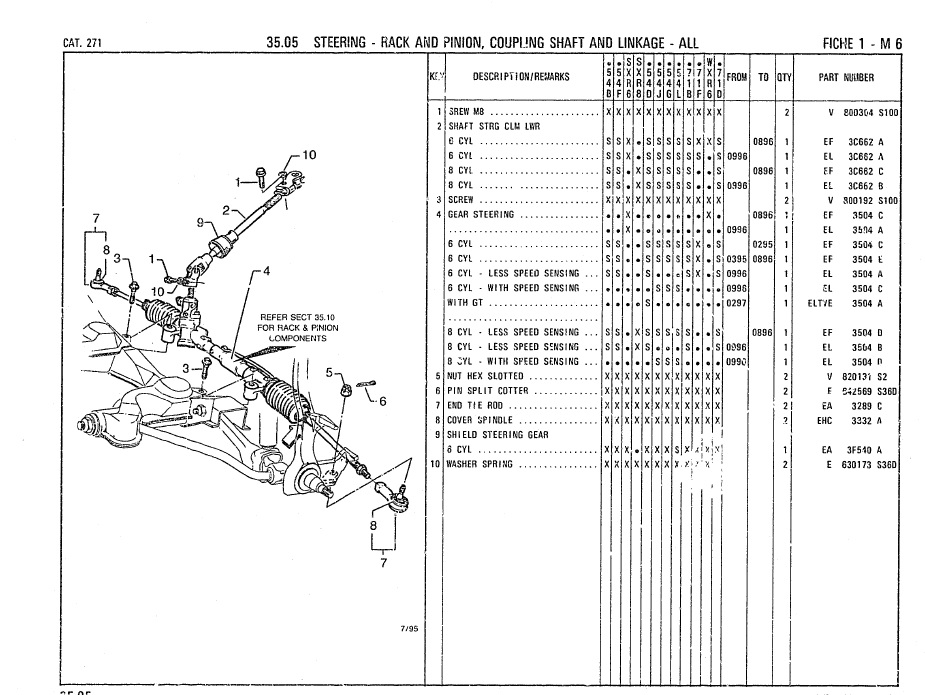

Does this help at all? I've got the rest of it too if you need the other diagrams.
Attachment:
steering.jpg [ 200.72 KiB | Viewed 63 times ]

Attachment:
steering2.jpg [ 235.13 KiB | Viewed 55 times ]



_________________

The gene pool could do with a little bit of chlorine...

Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 11:58 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

The number of splines is to do with the end that fits onto the rack's spline....easy to see the difference...one is really a***, the other is really fine......most are a*** spline.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 2:05 pm
Getting Side Ways
Offline

Posts: 973

Joined: 15th Nov 2004

Ride: el wagon

Location: melbourne
VIC, Australia

So, which has the corse spline, and which the fine??

Looking at the parts diagram above, both have the same part number, except for the V8's, which I think is the addition of the heat shield
Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 3:47 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

If it's for an EF 6 cyl, get the same - they are a fine spline, they're also longer than an EL which is a*** spline.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 7:09 pm
Getting Side Ways
Offline

Posts: 973

Joined: 15th Nov 2004

Ride: el wagon

Location: melbourne
VIC, Australia

Quote:
a*** spline.


What's with the asterisks??????? :roll:
Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 9:11 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 591

Joined: 28th May 2011

Gallery: 4 images

Ride: EF Futura DUH

Location: central coast
NSW, Australia

Cheers guys!

Ended up taking the shagged one to the wreckers and got the correct one.

The reason why I wanted to know is that I had to pull it apart in the mechanics car park due to time and work restrictions which I felt a bit rude doing... Oh well. Got it done.

The only other thing is the damn air bag light wont go off even after trying to reset the stupid thing a million times by earthing the pin (fourth from the left top row)....

Thanks again!



_________________

1996 EF Futura factory manual
Fully rebuilt engine,Decked, Honed, Bored, Tolerences spot on, Wade 1673, Extractors, 2.5" zorst, 3" CAI, High flow filter, Exedy sports tuff clutch, Chiptorque tune.
Future Mods: A mortgage...

Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Fri Aug 23, 2013 9:20 pm
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

EFFUTURA4.05SP wrote:
Cheers guys!

Ended up taking the shagged one to the wreckers and got the correct one.

The reason why I wanted to know is that I had to pull it apart in the mechanics car park due to time and work restrictions which I felt a bit rude doing... Oh well. Got it done.

The only other thing is the damn air bag light wont go off even after trying to reset the stupid thing a million times by earthing the pin (fourth from the left top row)....

Thanks again!



Great that you got it done

But is it a big job to replace ? as for some reason i believe the uni joint in mine is quite worn
Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Sun Aug 25, 2013 11:11 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

creeture3 wrote:
Quote:
a*** spline.


What's with the asterisks??????? :roll:


I did type in c o a r s e .....but the inbuilt swear refractor has changed it, thinking it was a r s e.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Steering intermediate shaft question
Posted: Sun Aug 25, 2013 8:45 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 591

Joined: 28th May 2011

Gallery: 4 images

Ride: EF Futura DUH

Location: central coast
NSW, Australia

EF_wanabe wrote:
EFFUTURA4.05SP wrote:
Cheers guys!

Ended up taking the shagged one to the wreckers and got the correct one.

The reason why I wanted to know is that I had to pull it apart in the mechanics car park due to time and work restrictions which I felt a bit rude doing... Oh well. Got it done.

The only other thing is the damn air bag light wont go off even after trying to reset the stupid thing a million times by earthing the pin (fourth from the left top row)....

Thanks again!



Great that you got it done

But is it a big job to replace ? as for some reason i believe the uni joint in mine is quite worn


Nah. A 10mm bolt at the top and one at the bottom. Lift the bottom off the rack and pull the top away from the firewall, comes out as a complete Shaft + uni.

Note: The bolts have to be all the way out as the splines have a groove that the thread of the bolt sits in so they dont come apart if the bolts work loose.



_________________

1996 EF Futura factory manual
Fully rebuilt engine,Decked, Honed, Bored, Tolerences spot on, Wade 1673, Extractors, 2.5" zorst, 3" CAI, High flow filter, Exedy sports tuff clutch, Chiptorque tune.
Future Mods: A mortgage...
