 Post subject: Strengthening pedal box pics
Posted: Mon Oct 29, 2007 9:05 pm
Oompa Loompa
Offline

Posts: 21

Joined: 8th Mar 2007

Location: Melbourne
VIC, Australia

Just thought I’d post some pics of the strengthening I did to my pedal box (not sure if it’s anything new, but might help someone).

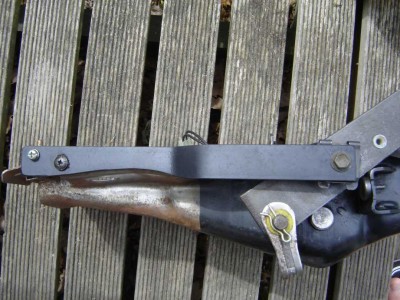

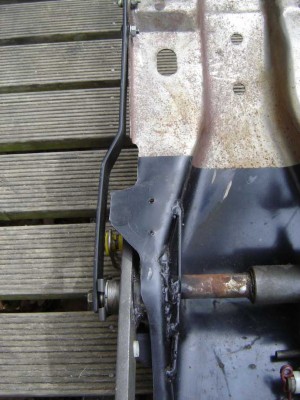

Basically added extra weld to the pin, also welded a plate on the back, then drilled and tapped a thread into the pin and made a bracket going to the top of the pedal box.

The aim was to give the pin another anchor point, rather than just one side.





Attachments:
DSC02270.JPG [ 99.94 KiB | Viewed 43 times ]
DSC02268.JPG [ 85.65 KiB | Viewed 46 times ]
Top
 Profile


Posted: Tue Oct 30, 2007 3:34 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

any bit of info helps mate, i'm sure someone will see it and use it.

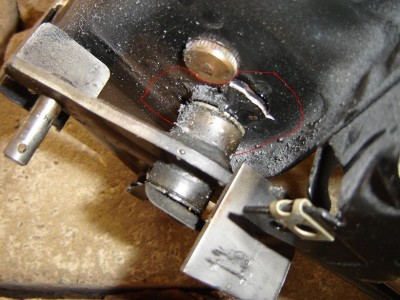

the pic i've uploaded is previous to having touched it, i dont have any after pics, which is a shame.

but, with mine, i bent it back to shape, welded it, grinded it back and made up a piece of flat 6mm iron, and grinded out the link bit and shaped it to suit.
i then drilled a couple of extra holes, welded them, and also right around the iron plate, and to date i have not had a problem.
[/img]





Attachments:
pedal box.JPG
pedal box.JPG [ 101.77 KiB | Viewed 40 times ]



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Tue Oct 30, 2007 8:44 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, twin point attachements are way better.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
