 Post subject: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 22, 2017 7:10 pm
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

Hey guys

Just recently purchased my Xr6 Ford Falcon Fg 2008 Love it with a Passion, brought the car from a private sale off the owner who had some mods done to it.
Been lowered on 19's (which is nice) but i have come to a problem that's been bothering me and just wondering if anyone can help or give me some advice or lead me in the right direction on how to or what do with the issue.

My issue is I recently hit a pot hole that just appeared on our roads (which i drive regularly) out no where, ever since then just hearing a noise (Like somethings catching) with the suspension every time I either went over a bump or turned slowly in any direction.
Quickly popped home to park up and have a look (Correct me if Im wrong) it seems the Upper Control Arm inner bolt is catching/hitting the spring every bump or turn that i do. I managed to jack the car up and removed the wheel for a closer look and the bolt has made a little cut in the spring.


Just hoping anyone out there thats had this issue is able to help a lad out? Would i need to get alignment done? or is this a easy fix?

Thanks guys appreciate the advice

Apologies for the photo quality was taken at night





Attachments:

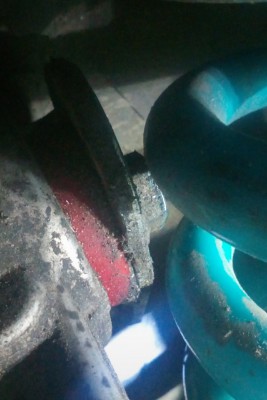

File comment: cut
IMG_20170917_091628.jpg [ 408.42 KiB | Viewed 7 times ]

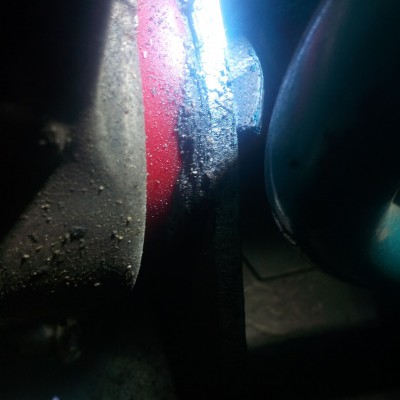

File comment: bolt
IMG_20170917_091812.jpg [ 492.73 KiB | Viewed 9 times ]

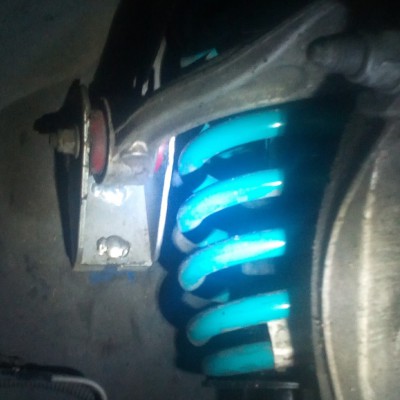

File comment: bolt/spring
IMG_20170917_091839.jpg [ 392.57 KiB | Viewed 6 times ]

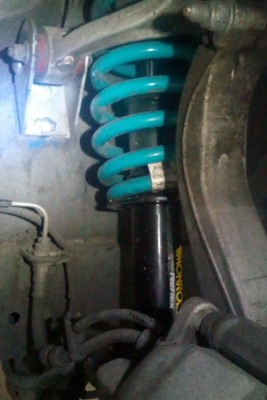

File comment: full2
IMG_20170917_091919.jpg [ 430.9 KiB | Viewed 6 times ]
File comment: Full
IMG_20170917_091902.jpg [ 400.72 KiB | Viewed 9 times ]
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Mon Sep 25, 2017 6:59 pm
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3448

Joined: 11th Jan 2009

Ride: BA Falcon XT

Location: Smithfield
NSW, Australia

Maybe the bolts for the upper control arm have come loose? moved?
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Mon Sep 25, 2017 8:08 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

don't know much about the FG model [or most others lol] ... but is it the correct spring for it or has the spring moved? .. spring looks real close to control arm mount.
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Mon Sep 25, 2017 9:00 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

If the lowering springs were used with standard shocks, the spring may have moved out of position at the top when you hit the pothole. A shorter shock will keep the spring under compression when shock travel is increased. Are the springs Super Low?



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Wed Sep 27, 2017 12:30 pm
Fordmods Newbie
Offline

Age: 48

Posts: 10

Joined: 13th Jun 2012

Ride: EL Fairmont Ghia 97'

Location: Logan City
QLD, Australia

As previously stated check that the spring is in the correct position. Another cause could be that the caber/caster correct kit (as seen in the photos looks to be either nolathane or pedders) is the wrong kit for the fitted spring causing excessive shimming during the wheel alignment thus bringing the bolt into contact with the spring. There are two different kits available depending on the spring used. One kit used for standard height and first stage lowered springs (25-30mm down) and another kit that is used with superlow and ultralow springs (45-60mm down). A decent suspension shop should be able to identify the kit by the sizing/measurement of the brackets.
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 10:47 am
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

Awesome Guys

Thanks for the advice, Im unsure of the brand nor the right type thats great for this car. But the previous owner said that it was done by a tire company named Bling here in New Zealand which he mentioned that they specialize in FPV/HSV Mags and Suspension kits. Also checked that all bolts are tight everything seem to be ok.
The previous onwer did say that they are on super low springs Im kinda new to forum thing apologies if i didnt reply in time or havent replied directly to your guys post.
I can say I have checked the other side and it seems the same issue is happening on that side just now as bad as this side. Im getting it checked in my hometown by a suspension specialist who deals with lowered cars will keep you guys updated.

Cheers guys
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 10:55 am
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

SimonEL wrote:
As previously stated check that the spring is in the correct position. Another cause could be that the caber/caster correct kit (as seen in the photos looks to be either nolathane or pedders) is the wrong kit for the fitted spring causing excessive shimming during the wheel alignment thus bringing the bolt into contact with the spring. There are two different kits available depending on the spring used. One kit used for standard height and first stage lowered springs (25-30mm down) and another kit that is used with superlow and ultralow springs (45-60mm down). A decent suspension shop should be able to identify the kit by the sizing/measurement of the brackets.


Thanks Simon yea will look into that Im so new to this also learning alot just wish i had more of a clue
what your talking about so i can fix it lol....I can take more pics if you like maybe your find out more from there maybe.

Another question? wheres the best place to Jack a Fg? Like i know the usual place where you get your normal jack where your spare tire is but is there any other places?
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 10:58 am
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

Shortshift wrote:
If the lowering springs were used with standard shocks, the spring may have moved out of position at the top when you hit the pothole. A shorter shock will keep the spring under compression when shock travel is increased. Are the springs Super Low?


Yeah from the previous owner stated they are superlows unsure of brand tho shortshift
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 11:00 am
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

Mad2 wrote:
don't know much about the FG model [or most others lol] ... but is it the correct spring for it or has the spring moved? .. spring looks real close to control arm mount.


Im unsure as this the 1st Fg model Ive owned i also have a Ba was going to practice on that to lowering it lol Yea the actual bolt to the mount is hitting the spring.
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 12:04 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

Mk3coon wrote:
Mad2 wrote:
don't know much about the FG model [or most others lol] ... but is it the correct spring for it or has the spring moved? .. spring looks real close to control arm mount.


Im unsure as this the 1st Fg model Ive owned i also have a Ba was going to practice on that to lowering it lol Yea the actual bolt to the mount is hitting the spring.



yeah well something aint right for the bolt to hit the spring.
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 4:46 pm
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

Mad2 wrote:
Mk3coon wrote:
Mad2 wrote:
don't know much about the FG model [or most others lol] ... but is it the correct spring for it or has the spring moved? .. spring looks real close to control arm mount.


Im unsure as this the 1st Fg model Ive owned i also have a Ba was going to practice on that to lowering it lol Yea the actual bolt to the mount is hitting the spring.



yeah well something aint right for the bolt to hit the spring.


Agree! i just hope either that mounts to the upper control arm arent bent or the control arm isnt bent.
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 6:01 pm
Fordmods Newbie
Offline

Age: 48

Posts: 10

Joined: 13th Jun 2012

Ride: EL Fairmont Ghia 97'

Location: Logan City
QLD, Australia

Mk3coon wrote:
Shortshift wrote:
If the lowering springs were used with standard shocks, the spring may have moved out of position at the top when you hit the pothole. A shorter shock will keep the spring under compression when shock travel is increased. Are the springs Super Low?


Yeah from the previous owner stated they are superlows unsure of brand tho shortshift




If the struts are the Monroe brand there will be a part number stamped into the body, usually below the spring seat. The part number that suits superlow springs is "35-0724".
As for your jacking points if you look under the side of your car you will see a pressed steel frame rail approximately 300mm in from the sill. Other than that the jacking points would be the center of the front and rear subframes. Take care not to lift on the diff due to the possibility of damaging the diff mounting bushes and also not to jack on the engine sump for obvious reasons. If you can get on a hoist then the lift points are the sills, making sure the vehicle is centrally balanced.
Top
 Profile


 Post subject: Re: Suspension GURUS NEED HELP!! (With PICS)
Posted: Fri Sep 29, 2017 6:14 pm
Fordmods Newbie
Offline

Age: 31

Posts: 7

Joined: 16th Sep 2017

Ride: Ford Falcon FG XR6

Location: Gisborne
New Zealand

SimonEL wrote:
Mk3coon wrote:
Shortshift wrote:
If the lowering springs were used with standard shocks, the spring may have moved out of position at the top when you hit the pothole. A shorter shock will keep the spring under compression when shock travel is increased. Are the springs Super Low?


Yeah from the previous owner stated they are superlows unsure of brand tho shortshift




If the struts are the Monroe brand there will be a part number stamped into the body, usually below the spring seat. The part number that suits superlow springs is "35-0724".
As for your jacking points if you look under the side of your car you will see a pressed steel frame rail approximately 300mm in from the sill. Other than that the jacking points would be the center of the front and rear subframes. Take care not to lift on the diff due to the possibility of damaging the diff mounting bushes and also not to jack on the engine sump for obvious reasons. If you can get on a hoist then the lift points are the sills, making sure the vehicle is centrally balanced.


Awesome info thank you Simon will take some pics for ya let ya know the part number etc, my uncle owns a work shop but charges me like $40hr just to use the hoist lol so ima stick to the jack Lmfao
