 Post subject: T5 rebuild Cluster preload
Posted: Sat Jan 02, 2010 5:36 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Hi all,

I decided to re-use this thread rather than create a new one, so ignore all the replies below.

I have set up the cluster in my T5 with the correct shim for pre-load, the cluster is quite firm to turn, is this normal? If i had a thinner shim in, it would lose preload nad have end play, if i put a thicker one in it will gain too much preload and jam up. So I'm wondering how firm the cluster should be when turning by hand?



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Last edited by XFWAGON on Sun Jan 10, 2010 12:52 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Rebuilding T5 WC, reverse slider problems!
Posted: Sat Jan 02, 2010 7:27 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Hope this helps.





Attachments:

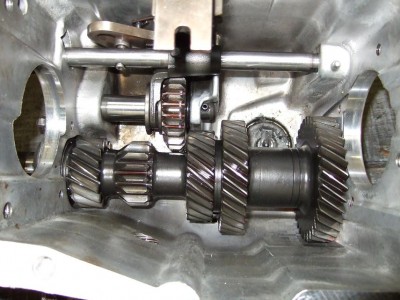

Layshaft.JPG [ 99.13 KiB | Viewed 74 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Rebuilding T5 WC, reverse slider problems!
Posted: Sat Jan 02, 2010 10:57 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

If the input shaft and mainshaft are fitted, make sure the 2 selector hubs are in neutral.
Also check the peened post of the reverse selector shaft - bad cracks may be a sign of fatigue.
In Andrew's photo above, it's in the top left corner.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Rebuilding T5 WC, reverse slider problems!
Posted: Sun Jan 03, 2010 3:16 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

Thanks Krytox, looks how mine is but my spring looks on a different angle, could be why it's hard to shift it.

snap0964 wrote:
If the input shaft and mainshaft are fitted, make sure the 2 selector hubs are in neutral.
Also check the peened post of the reverse selector shaft - bad cracks may be a sign of fatigue.
In Andrew's photo above, it's in the top left corner.


Only have the cluster, billet bearing support and reverse stuff in at the moment. What do you mean by peened post? This poor thing has had the thrashing of a life time by the previous owner, i was tempted to get another reverse idler gear but i think mine should be right, the teeth faces look ok.

I've checked the selector forks for cracks too, but none there which is good.



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Rebuilding T5 WC, reverse slider problems!
Posted: Sun Jan 03, 2010 7:46 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Reread my post and look at the photo.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: T5 rebuild Cluster preload
Posted: Sun Jan 10, 2010 12:52 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

I decided to re-use this thread rather than create a new one, so ignore all the replies below.
