 Post subject: What are the Solenoids i.e. numbers
Posted: Tue Sep 06, 2005 5:50 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

I am currently working on a paddle shift circuit while i am repairing my car and i would like to know what each solenoid does

Solenoid 1 - ?
Solenoid 2 - ?
Solenoid 3 - ?
Solenoid 4 - ?
Solenoid 5 - Shifting Solenoid for line pressure.
Solenoid 6 - ?
Solenoid 7 - (is this the Translockup for the Torque convertor clutch)

And what state does each of the gear solenoids need to be in to activate each gear. Thankyou.
Top
 Profile


Posted: Tue Sep 06, 2005 5:54 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 1040

Joined: 5th Nov 2004

Gallery: 5 images

Ride: EA Fairmont Ghia

Location: Melbourne
VIC, Australia

$200 and you can have the electronics already configured and working.



_________________

Full working BA Shifter now upgraded to BF Shifter.
BA headlight inserts in my EA headlights.

Top
 Profile


Posted: Tue Sep 06, 2005 5:54 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Yeah, s7 is the TCC lockup.

S1 to S4 are used for the gearshift sequences. Different combinations of S1,2,3 and 4 result in different gear changes occuring - up gears, down gears, kickdown etc.

Pm me with your email if you want, ive got a nifty little chart.

BTW - NFI what S6 does ?!?!?



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Tue Sep 06, 2005 6:47 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

Thanks 4.9 EF Futura - PM Sent.
Top
 Profile


Posted: Tue Sep 06, 2005 8:25 pm
Tyre Shredder
Offline
User avatar

Age: 51

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

4.9 EF Futura wrote:
BTW - NFI what S6 does ?!?!?


From what I've read it says it is a Normally Open ON/OFF solenoid that sets the high/low level of line pressure.
I'm guessing its like an on/off switch for the trans from that description???
I'm open to anyone else's interpretation of that.. :D



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Tue Sep 06, 2005 8:30 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

NFGhia - Where are you reading this from. Do you have any Documents/Info that you could post for me.
Top
 Profile


Posted: Tue Sep 06, 2005 10:42 pm
Tyre Shredder
Offline
User avatar

Age: 51

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

pm sent. :D



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Tue Sep 06, 2005 10:46 pm
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

can people put all this info in the thread...it sounds interesting but i can see it :(



_________________


Top
 Profile


Posted: Tue Sep 06, 2005 10:51 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

i will post info up once i have all the info if you like.
Top
 Profile


Posted: Tue Sep 06, 2005 10:58 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

PM Sent NFGhia :D :D :D
Top
 Profile


Posted: Tue Sep 06, 2005 11:05 pm
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

EACRUISER wrote:
i will post info up once i have all the info if you like.
that would be great!



_________________


Top
 Profile


Posted: Wed Sep 07, 2005 12:30 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

Reading the Information sent to me from 4.9 EF Futura & NFGhia

The documents indicate

Solenoid 1 - Gear Selection Solenoid
Solenoid 2 - Gear Selection Solenoid
Solenoid 3 - Gear Selection Solenoid
Solenoid 4 - Gear Selection Solenoid

Solenoid 5 - Variable Pressure Solenoid for shifting pressure.
Solenoid 6 - High pressure / low pressure solenoid for line pressure.

Solenoid 7 - Torque convertor clutch solenoid

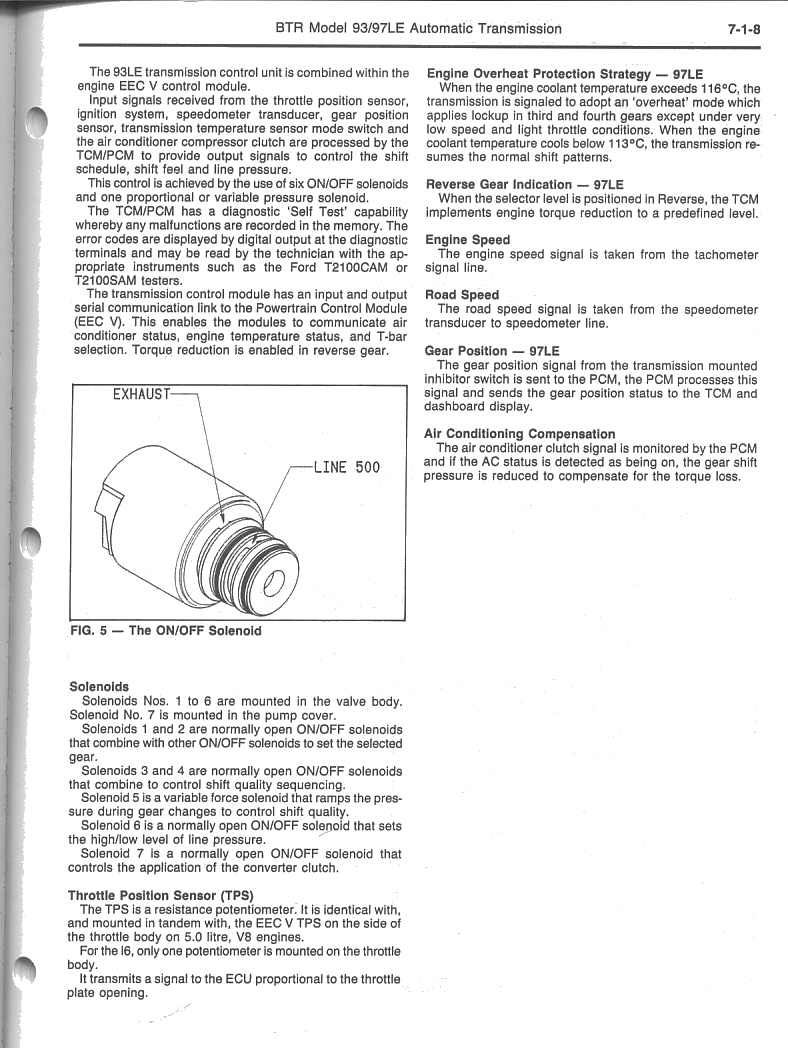

Here are a few of the documents provided by NFGhia

Removed Document from 4.9 EF Futura as requested





Attachments:
7-1-08-AutoTrans.jpg [ 102.87 KiB | Viewed 75 times ]

Last edited by EACRUISER on Wed Sep 07, 2005 2:05 pm, edited 5 times in total.

Top
 Profile


Posted: Wed Sep 07, 2005 12:33 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

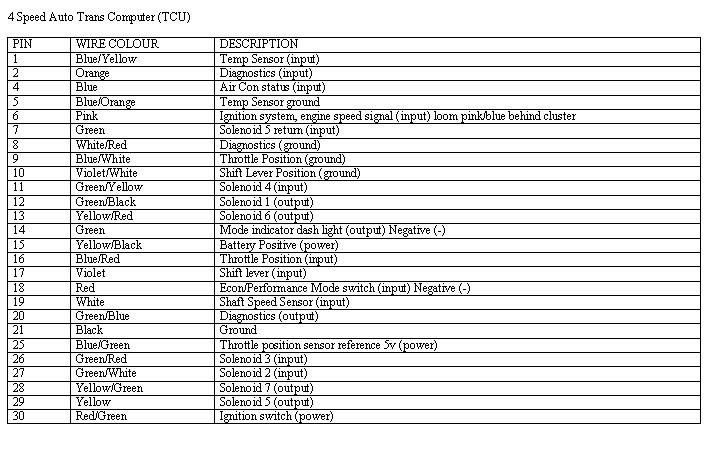

Here are the Pinouts from the 4-speed TCU
