xg btr extention housing on a ba 4-speed auto???



Page 1 of 1 [ 3 posts ]


 Post subject: xg btr extention housing on a ba 4-speed auto???
Posted: Sun Nov 23, 2014 12:35 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

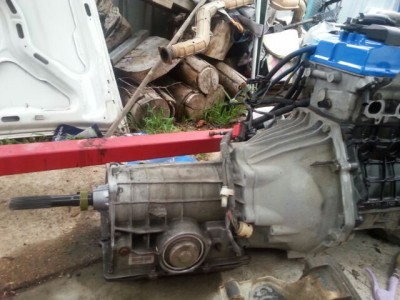

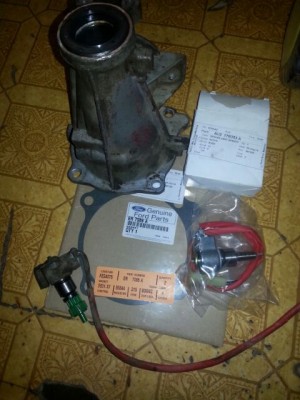

Hi all, been looking for some info on swapping extention housings from my xg auto to the ba auto so I have speedo drive, can anyone tell me how to go about it or if there are any previous threads on this, I still need to get a gasket and seal kit which includes a shim (Drive T p/n RIK40085), I have a extention housing oil seal and could make a paper gasket but im a bit worried about not having the shim(or where it goes),so if anyone could help with any information I would be very grateful, cheers, Johnny.
p.s this is for a n/a barra conversion In a xg ute





Attachments:
IMG_2014112349723.jpg [ 56.62 KiB | Viewed 34 times ]
IMG_2014112340448.jpg [ 55.79 KiB | Viewed 27 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: xg btr extention housing on a ba 4-speed auto
Posted: Tue Nov 25, 2014 5:56 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

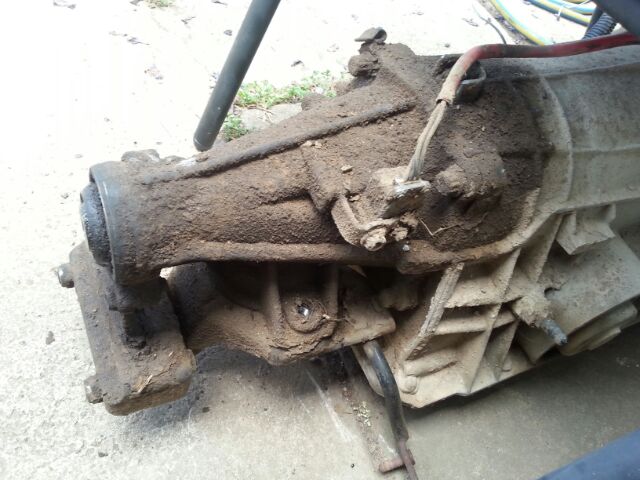

Ok so extention housing swap turns out to be easier than I thought, got both the XG & BA housings off and all good, the shaft even has the hole ready to receive the speedo cog drive, simply press in the clip and slide gear off with the clip and slid back on the BA shaft till the clip seats in the hole and it's ready for the XG extention housing to go back on with a new housing seal and in my case a new brass bush which I'll get done tomorrow.





Attachments:

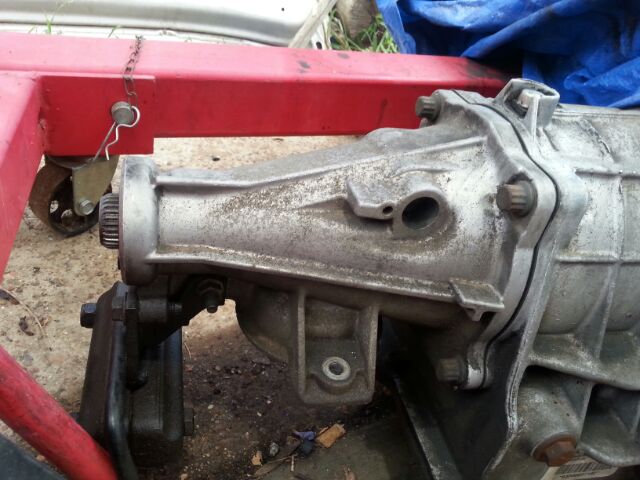

File comment: And the BA again with the cog and clip from the XG.
IMG_2014112524651.jpg [ 58.36 KiB | Viewed 43 times ]

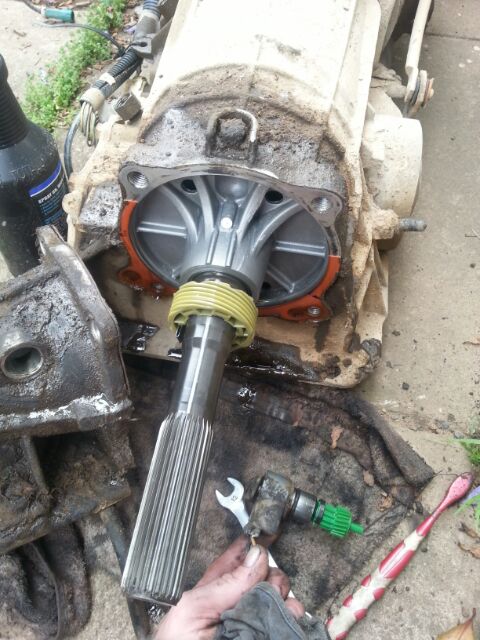

File comment: XG with the cog still on.
IMG_2014112558281.jpg [ 71.2 KiB | Viewed 34 times ]

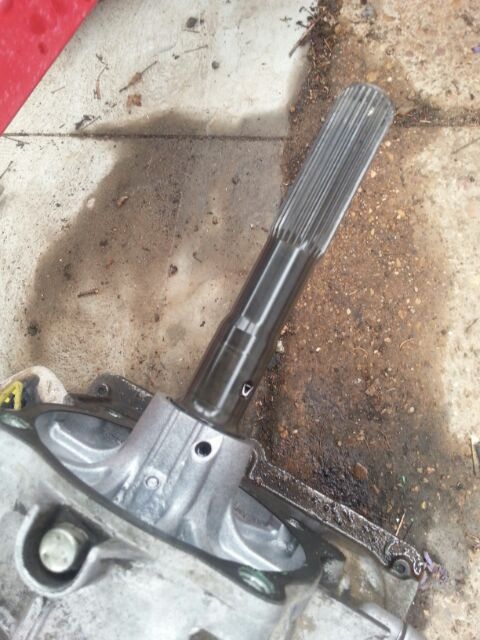

File comment: This is the BA shaft-you can see the hole ready for the drive cog clip.
IMG_2014112535340.jpg [ 62.5 KiB | Viewed 27 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter
Mods to come AU XR6 3:45.1 LSD/New wheels and full respray
the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: xg btr extention housing on a ba 4-speed auto???
Posted: Thu Nov 27, 2014 6:24 pm
Tyre Shredder
Offline
User avatar

Age: 44

Posts: 363

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Ok so got the extension housing back from the transmission shop with a new bush and seal and got a new gasket and speedo sender (from Ford) as the old one was getting a bit brittle-still works so I'll keep as a spare.





Attachments:

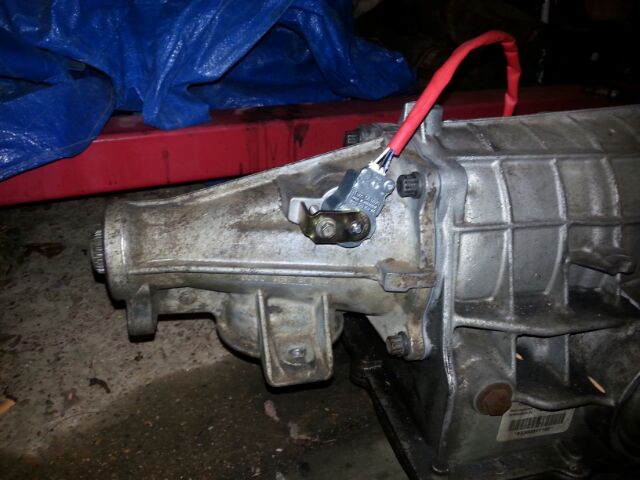

File comment: BA 4-speed with the XG extention housing & new speedo sender.
IMG_2014112755269.jpg [ 49.32 KiB | Viewed 52 times ]

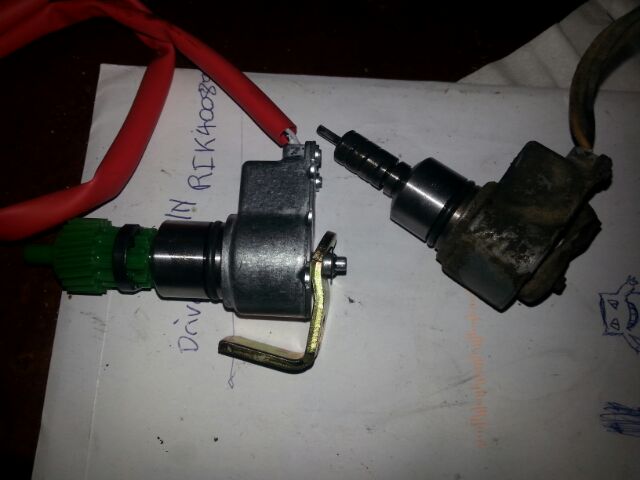

File comment: Swap the cog and clip onto the new speedo sender.
IMG_2014112714950.jpg [ 32.83 KiB | Viewed 21 times ]
IMG_2014112734560.jpg [ 52.73 KiB | Viewed 51 times ]
