Fordmods Logo

ZF Auto - "Flappy Paddles"



Page 8 of 11 [ 152 posts ] Go to page Previous  1 ... 5, 6, 7, 8, 9, 10, 11  Next


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Wed Mar 04, 2009 5:07 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Haha, they've got you by the short and curlies eh?

The clue is in those two little holes on either side. You have to insert a screwdriver there in just the right way to detent a clip at either side. It's not easy. I did it in the bright daylight and at times was able to separate the casing enough to get light in there to know where to put the screwdriver head.


Lukeyson
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Thu Mar 05, 2009 10:48 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

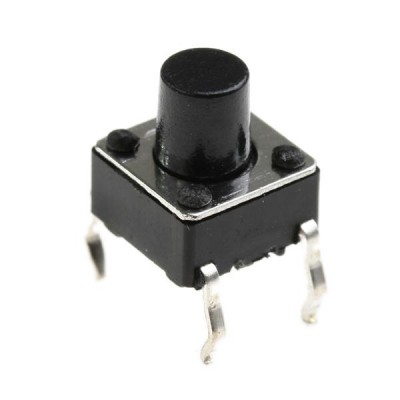

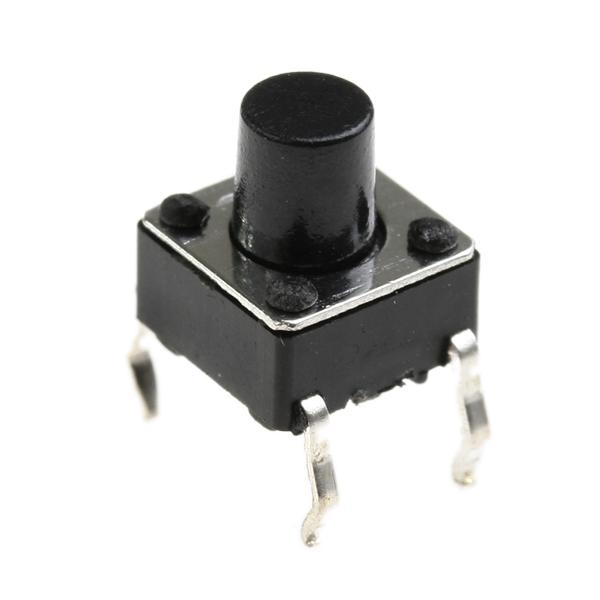

Anyone want a couple of switches for flappy paddles?

Attachment:
002.jpg [ 18.39 KiB | Viewed 260 times ]


http://www.virtualvillage.co.uk/Items/0 ... tton%20Pin


Lukeyson
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Thu Mar 05, 2009 10:52 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

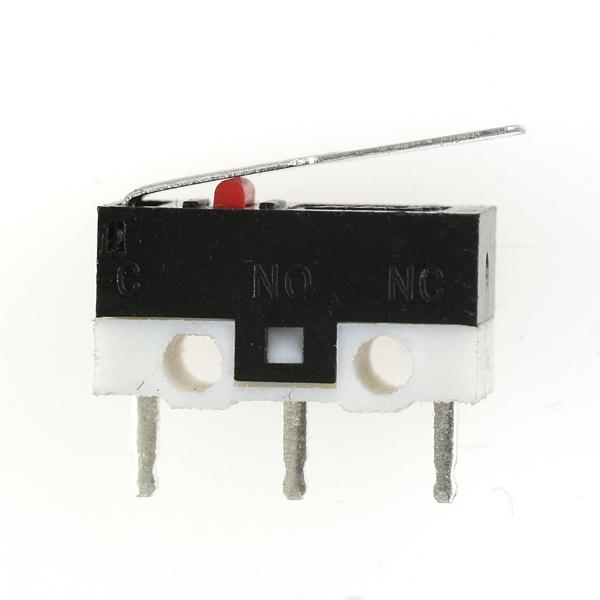

Or maybe these?

Attachment:
002a.jpg [ 18.86 KiB | Viewed 219 times ]


Nah, I like the first ones better. Although it would be nice if they had a few mm of springed movement before they made contact...


http://www.virtualvillage.co.uk/Items/0 ... mm%20Lever

Lukeyson
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Thu Mar 05, 2009 10:58 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I use the first kind (but with a less tall button).

The immediate action is what you want.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Thu Mar 05, 2009 11:02 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

The buttons on the factory switches have spring-loading in them. There's no springs anywhere else. I thought it might be useful to adopt the 'spring is in the switch' approach for the flappy paddles as well.

Have you had any success pulling your switches apart eboost? I'd be curious to see someone's efforts on this. I have a few other things lined up to complete first before I'd get to this (CarPC, Mirror Indicators) and have a 3-week hobby-work hiatus coming up, and besides, I'd be relying on DM doing a 4A version of it before I could entertain the idea.


Lukeyson
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Thu Mar 05, 2009 11:34 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

yeah mate got them f@rt, just wasnt holding my tongue right.....lol
Im in the process of making new boards to suit el cruise. If anyone wants one let me know so i can make a couple while im at it. The boards im making will replace the factory ones and sit in the housing like the original one.
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Fri Mar 13, 2009 6:15 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I got a package in the mail today (finally).

Time to get started.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sat Mar 14, 2009 9:20 am
Oompa Loompa
Offline

Age: 56

Posts: 38

Joined: 28th May 2007

Ride: F6 Tornado

Location: Melbourne, Australia
VIC, Australia

Ah good, some progress :)

What proggie did you use to design the PCB? It seems the auto-routing did not work that well, and very many sharp bends/points in the tracks...

Well, what matters most is if it works!

Keep us posted.
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sat Mar 14, 2009 9:59 am
Getting Side Ways
Offline
User avatar

Age: 50

Posts: 2500

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Hopefully the electricity will not care that it has to go around a sharp point or two...
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sat Mar 14, 2009 1:14 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

mrbean wrote:
Ah good, some progress :)

What proggie did you use to design the PCB? It seems the auto-routing did not work that well, and very many sharp bends/points in the tracks...

Well, what matters most is if it works!

Keep us posted.


I use Eagle for schematic and PCB design.

The autorouter use 45° bends, it's all good. And as this is an entirely DC circuit, nothing to worry about in regards to trace accuracy/length/reflections/etc.

@fiend no they don't care. :)



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sat Mar 14, 2009 7:10 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1997

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

Very impressive job data mine, you and lukeyson always have something out there and very impressive happening with those b series.
Lukeyson wrote:
Yeah, there was a real gotcha to getting them apart - and the clue was in those 2 holes on either side. I had to reach it with a small screwdriver and push in the right spot - which detents the clip and lets it come forward. Knowing how tricky it is, I took a few pics.

Let me know if you want pics sent, or if they should be posted here.


Lukeyson

Just out of interest would you mind posting the pics, as I don't seem to be able to get it, might be trying in the wrong place, did it still take a bit of force when you got the right spot?



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sat Mar 14, 2009 9:47 pm
Oompa Loompa
Offline
User avatar

Age: 53

Posts: 27

Joined: 1st Oct 2006

Gallery: 21 images

Location: mackay
QLD, Australia

Hi all

I’ve been looking at doing the same thing with my BF XR8 ZF 6 speed but I’m not as electrically minded as data_mine ( well dune ) but I have made some custom components for my XR8.

You can see them in my you tube video at http://www.youtube.com/watch?v=1704wjiA2PQ
And my next modification is going to be a PLX DM-100 OBD II gauge mounted in the rear vision mirror like this http://www.youtube.com/watch?v=2iIx11F-cco

I’m thinking of using a set of these Bell Paddle Shifter NEO Kit Paddle shifter

And ill cut or modify the center of them and mount them to the inside of the steering wheel column.
or use the steering wheel set up similar to data_mine

So I’m very very interested in buying a interface unit when there all ready to rock and roll.

Thanks
M Whitaker
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sun Mar 15, 2009 1:27 am
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

http://www.tunersgroup.com/Online_Store ... ersal.html

Wow, thanks for the tip off. Very interesting, but also very expensive.

I'm still mulling over adding something to the existing cruise/stereo button units.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Sun Mar 15, 2009 1:01 pm
Oompa Loompa
Offline
User avatar

Age: 53

Posts: 27

Joined: 1st Oct 2006

Gallery: 21 images

Location: mackay
QLD, Australia

True it's not the best way of doing it as I’m on a budget, but I do like the look of the paddles.

I think the existing cruise/stereo button units will look and function grate to.

I’m going to have a look today and go tinker in my man cave (as my partner calls it) and see if I cant come up with something along that line of a set of paddles on the cruise/stereo button units to give a helping hand with this process.
:) :)

Thanks
M Whitaker
Top
 Profile


 Post subject: Re: ZF Auto - "Flappy Paddles"
Posted: Mon Mar 16, 2009 9:56 pm
Oompa Loompa
Offline
User avatar

Age: 53

Posts: 27

Joined: 1st Oct 2006

Gallery: 21 images

Location: mackay
QLD, Australia

I’ve had a look at my XR steering wheel and column and after many cardboard cutouts and mental imaging I’ve come to the conclusion that having a set of floppy paddles on my steering wheel or column is a no go.

And having a set of paddles on the volume/cruise controls is a good idea from Lukeyson but it just didn’t suit my driving style, as some of the time I may turn a corner with my right hand (turning right) grabbing the left hand side of the wheel with my thump on the inside of the wheel to turn the corner and the cardboard cut out I had in place of the paddle just got in the way.

I know it’s not the proper or safe way to drive but we all have a set of bad habits that we do behind the wheel.

So trying to make the paddles the way I would like them to look and operate would just get very frustrating and buying a set of paddles is out of my budget.

So I think I’m going to go with a set of buttons on the wheel so I can shift up & down and mount them in the horn/airbag center housing around the same place as data_mine mounted his under the silver tabs on his FPV wheel.

I’m going to counter sink them into the horn/air bag housing as mounting them into the cover may be a bad idea as if the airbag go’s off peaces of button and wiring may fly around every where. So by counter sinking them and mounting them into the wheel them self. Now if the airbag go’s off the buttons will stay in there position in the wheel.

So on the other hand how’s the ZF’s interface coming along.


Thanks
M Whitaker
Top
 Profile

Display posts from previous:
Sort by
 Page 8 of 11  [ 152 posts ]  Go to page Previous  1 ... 5, 6, 7, 8, 9, 10, 11  Next

Who is online

Users browsing this forum: No registered users and 41 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Fri Mar 29, 2024 6:29 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
